LCP-0160-026-036-FGP (Each)

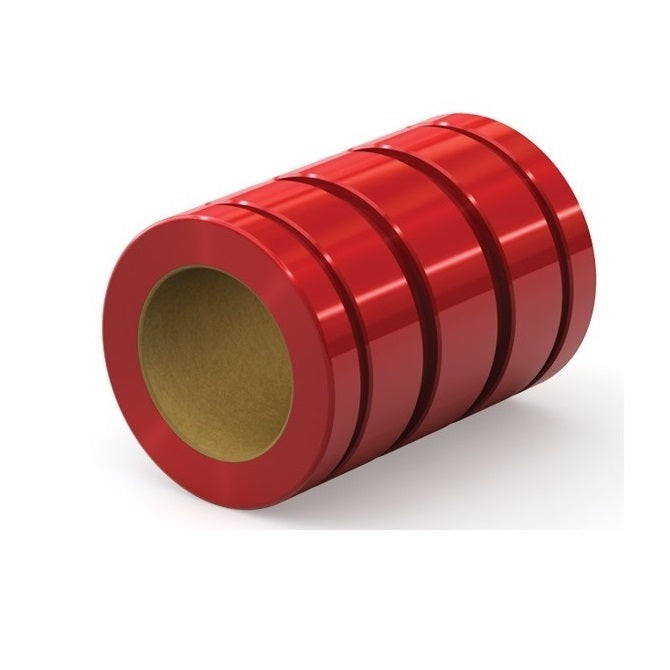

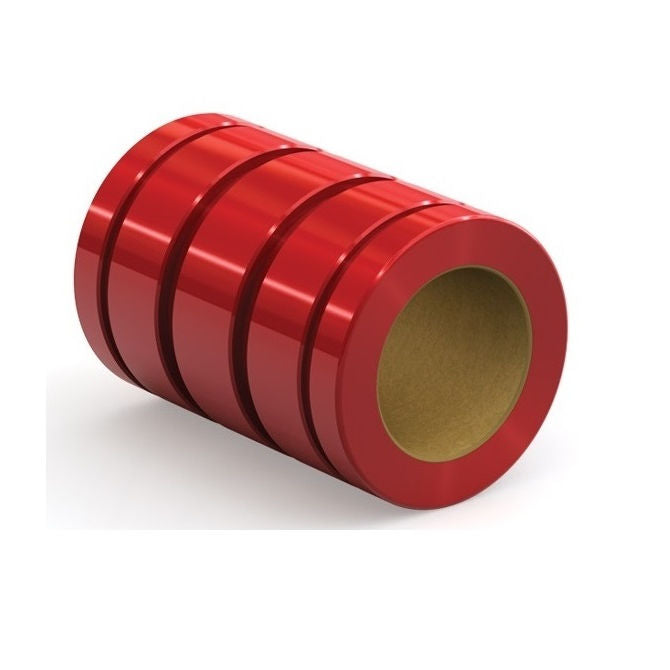

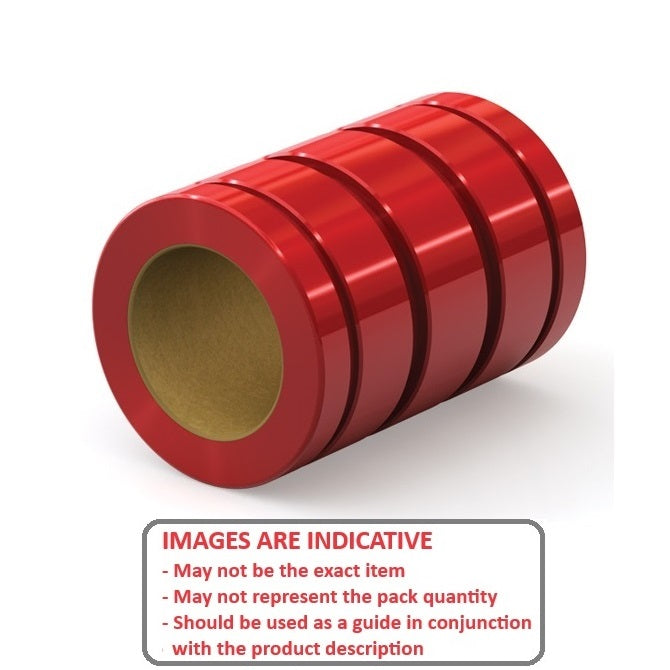

Sliding Bearings Linear - 16x26x36 mm - Frelon Gold Lined Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $80.63 AUD Each
16x26x36 mm Sliding Bearings Linear - Frelon Gold Lined - Sold per Each:
Base Category: Linear - Sliding Bearings
Top Level Category: Linear - Sliding Bearings - Frelon Gold Lined - Closed - Precision

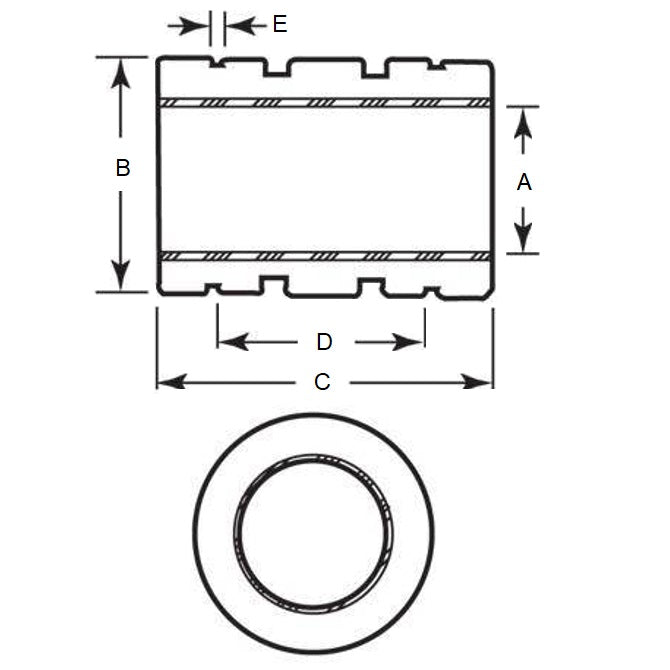

Product Details
Nominal Shaft Size (T): 16.000mm(16.000mm is 0.63 in.)
Frelon Gold Lined
- Nominal Shaft Size (T): 16.000mm
(16.000mm is 0.63 in.)
- Nom. Outer Diameter (D): 26.000mm
(26.000mm is 1.024 in.)
- Overall Length (L): 36.000mm
(36.000mm is 1.417 in.)
- Max. Load: 605.000N
- Groove Distance (D): 22.000mm
- Groove Width: 1.32mm
- Series: Precision
- Type: Closed
- Max Speed Dry: 42.600m/s
- Max Speed Lubricated: 122.000m/s
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 60605K94
- Pacific FM16
- Reid Tool® PBC-909
- PBC909
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
LCP0160026036FGP, LCP0160026
