P-030G-016-150FH-AL-G-048 (Each)

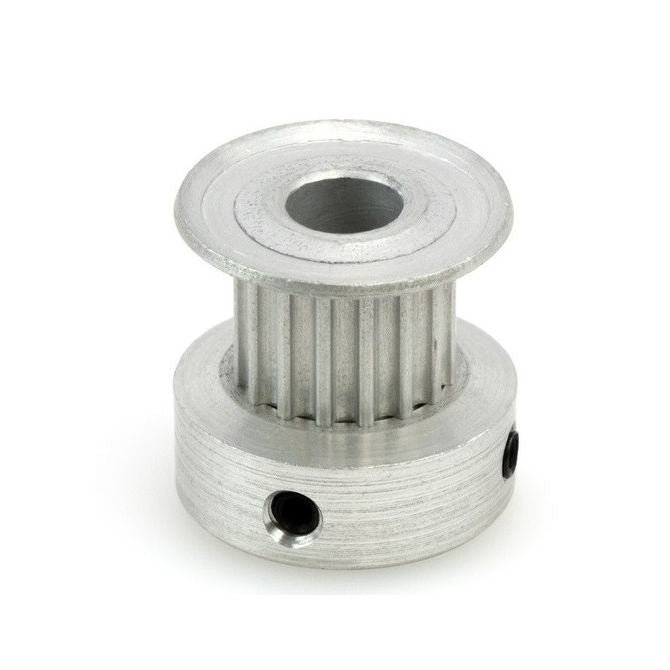

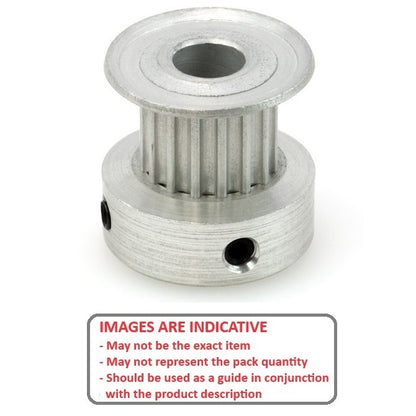

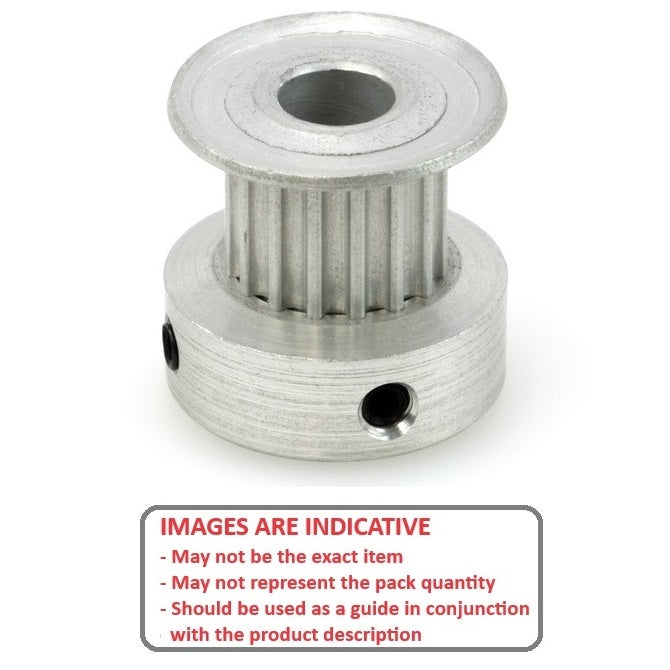

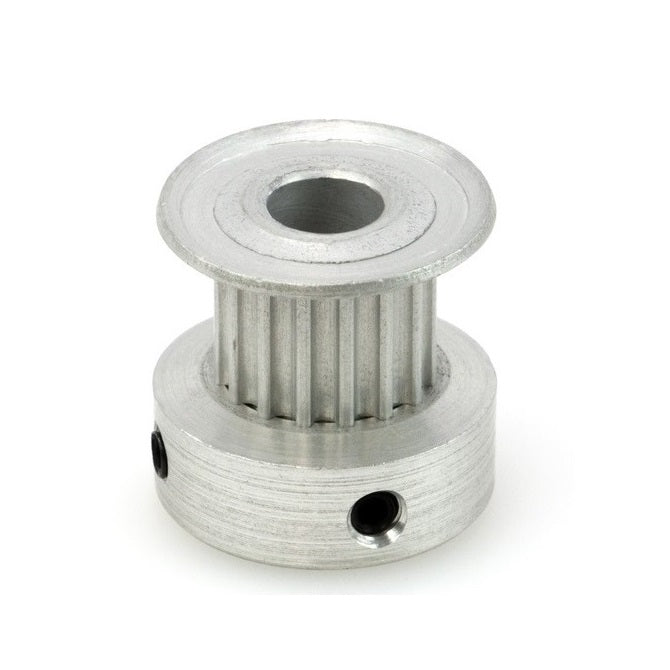

Metric Timing Pulleys - 16 tooth - 15x4.763 mm 3mm Pitch - Aluminium Pulley
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Timing Pulleys Catalogue PDF
3mm GT Timing Belts
Order 50 or more
for $34.41 AUD Each
16 tooth - 15x4.763 mm Metric Timing Pulleys - Aluminium - Sold per Each:
Base Category: Pulleys - Metric Timing
Top Level Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 15mm Wide Aluminium
Product Details
Number of Teeth: 16Aluminium
- Number of Teeth: 16
- Max Belt Width: 15.00mm
(15.00mm is 0.591 in.)
- Bore (d): 4.763mm
(4.763mm is 0.188 in.)
- Bore Type: Finished
- Locking Type: Set Screw

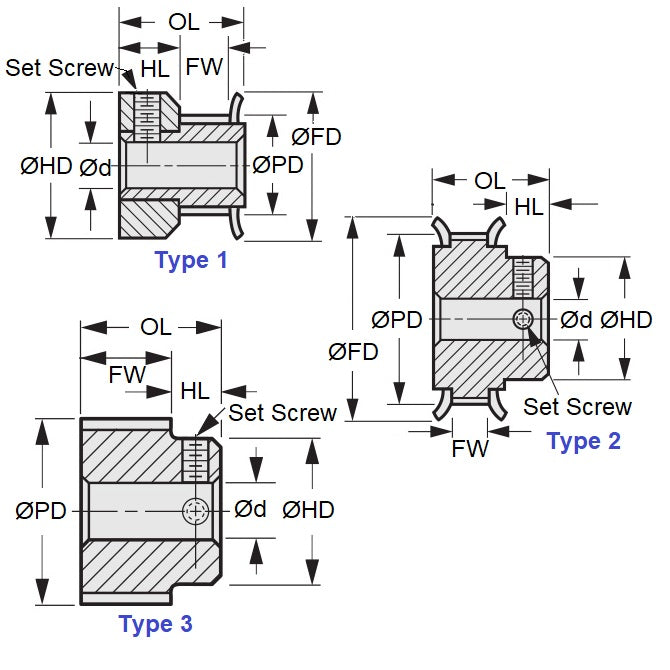

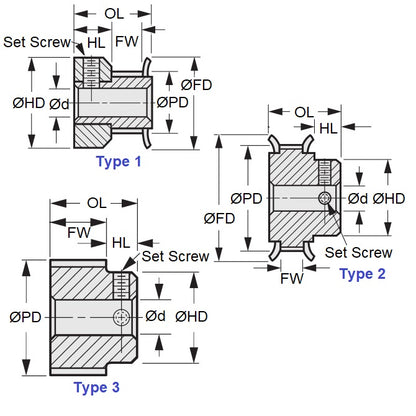

- Type: 1
- Pitch Dia. (PD): 15.27mm
- Flange Diameter (FD): 18.3mm
- Overall Length: 23.6mm
- Hub Diameter (HD): 18.0
Brand: MBA
Country of Origin: IN
Product Compliance and Data
Similar to
- Gates® 16-3P15-6CA2
- 163P156CA2
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
