P-030H-015-060FF-AL-G-060

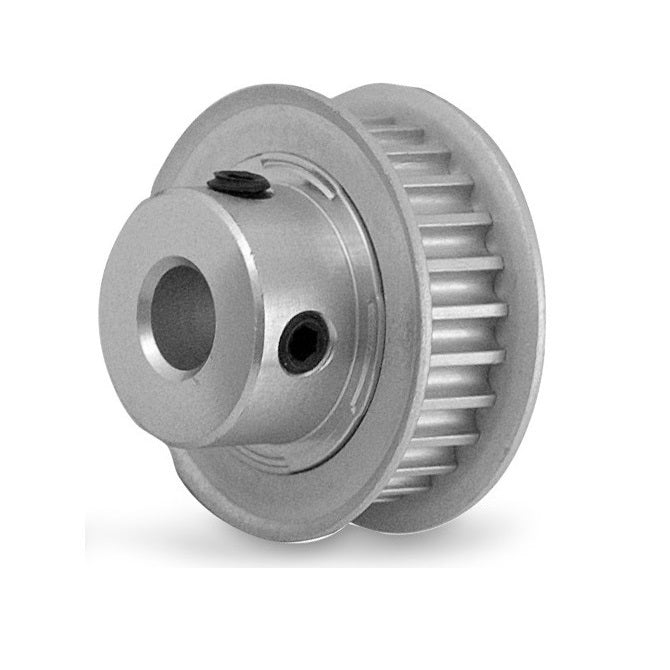

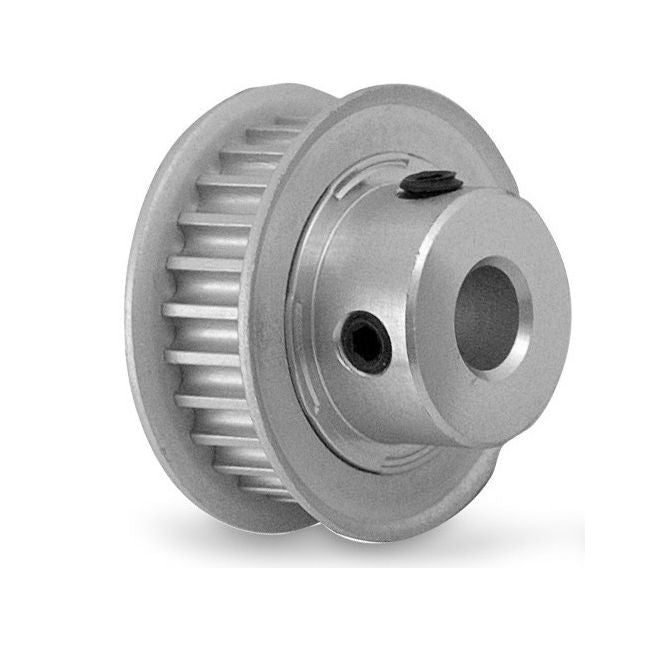

Metric Timing Pulleys - 15 tooth - 6x6 mm 3mm Pitch - Aluminium Pulley

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:
Timing Pulleys Catalogue PDF
3mm HTD Timing Belts
Price:
$26.50 AUD
$31.80 AUD $26.50 AUD
Excludes GST and overseas Taxes & Duties
 Each
Backorder
Order 50 or more for $23.85 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Nov 02, 2025

Base Category: Pulleys - Metric Timing

Top Level Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore

Product Details

Number of Teeth: 15

Aluminium
  • Number of Teeth: 15
  • Max Belt Width: 6.00mm
    (6.00mm is 0.236 in.)
  • Bore (d): 6.000mm
    (6.000mm is 0.236 in.)
  • Bore Type: Finished
  • Locking Type: Set Screw

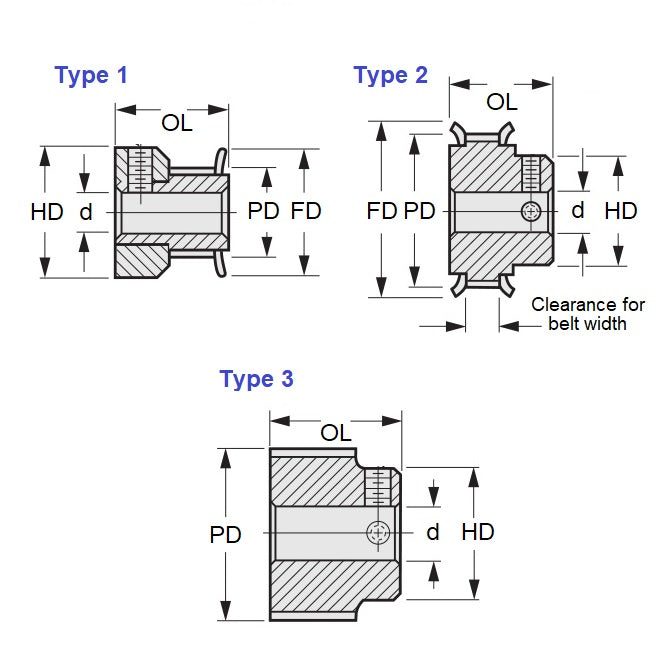

  • Type: 2
  • Pitch Dia. (PD): 14.32mm
  • Flange Diameter (FD): 17.4mm
  • Overall Length: 14.5mm
  • Hub Diameter (HD): 17.4mm

Brand: MBA
Country of Origin: IN

Product Compliance and Data

Similar to

  • Gates 15-3M06M6CA6
  • A6A23M015DF0606
  • 153M06M6CA6

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
