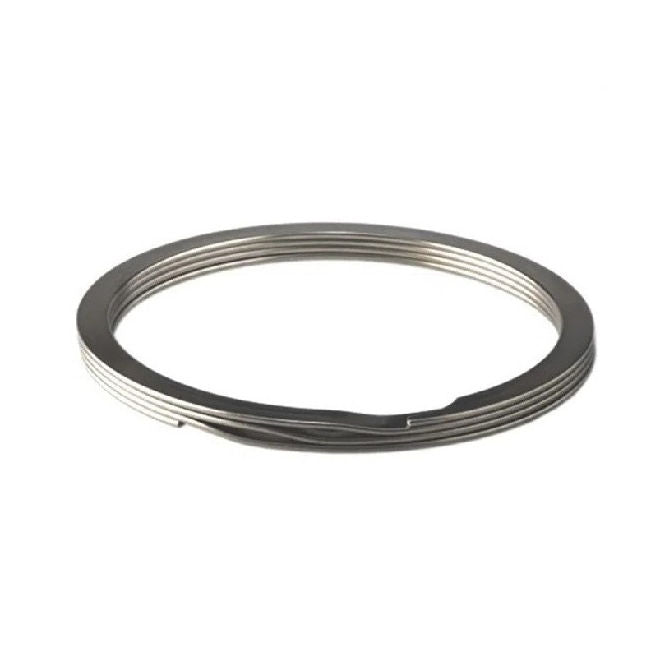

RRN-062-S02 (PK-100)
Internal Retaining Rings - 15.88x0.89x16.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Spiral Rings and Snap Rings PDF
Order 50 or more packs of 100 (5000 pcs)
for $408.89 AUD per 100 pack
5/8 inch Spiral Ring - 15.88x0.89x16.89 mm Internal Retaining Rings - Stainless Steel 302/304 (Similar to A2, 18-8) - Sold per pack of 100:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Product Details
Additional stock available from USA subject to Prior Sale = 201
Housing Bore (B): 15.88mm
(15.88mm is 0.625 in.)
Stainless Steel 302/304 (Similar to A2, 18-8)
- Housing Bore (B): 15.88mm
(15.88mm is 0.625 in.)
- Clip Thickness (T): 0.89mm
+/- 0.05
(0.89mm is 0.035 in.)
- Groove Dia. (Dg): 16.89mm
(16.89mm is 0.665 in.)
- Approx. Loose Circlip OD (Dr): 16.94mm
+ 0.33 / - 0.00
- Radial Wall (S) Approx.: 1.40mm
+/- 0.10
- Groove Width (W): 1.03mm
+/- 0.05
- Approx. Loose Clip ID: 14.14
+/- 0.04
- Groove Depth (d): 0.51
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 92370A131
- Associated Spring® AHI-062-S02
- Huyett® RRN-062-S02
- Smalley® WHM-062-S02
- WHM062S02
- AHI062S02
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RRN062S02, RRN062
