UR-062 (PK-13)
Internal Retaining Rings - 15.88x0.46x16.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Spiral Rings and Snap Rings PDF
Order 50 or more packs of 13 (650 pcs)
for $10.67 AUD per 13 pack
5/8 inch Spiral Ring - 15.88x0.46x16.59 mm Internal Retaining Rings - Carbon Spring Steel - Sold per pack of 13:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Spiral Rings - Light Duty - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 2569

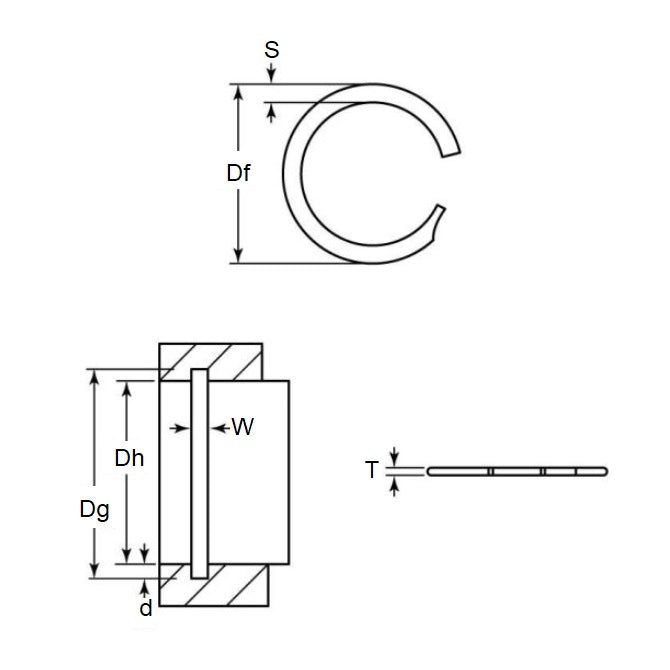

Housing Bore (B): 15.88mm
(15.88mm is 0.625 in.)
Carbon Spring Steel
- Housing Bore (B): 15.88mm
(15.88mm is 0.625 in.)
- Clip Thickness (T): 0.46mm
+/- 0.04
(0.46mm is 0.018 in.)
- Groove Dia. (Dg): 16.59mm
(16.59mm is 0.653 in.)
- Approx. Loose Circlip OD (Dr): 16.64mm
+ 0.33 / - 0.00
- Radial Wall (S) Approx.: 1.14mm
+ 0.08 / - 0.13
- Groove Width (W): 0.56mm
+/- 0.05
- Approx. Loose Clip ID: 14.36
+ 0.05 / - 0.00
- Groove Depth (d): 0.36
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 91663A540
- Associated Spring® CI-062
- Huyett® UR-062
- Smalley® VH-062
- CI062
- VH062
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
UR062,
