LCHP-0159-049-TSS (Each)
Thomson Super Smart Housings Linear - 15.88 63.500 x 44.450 49.28 mm Pillow Block Closed
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $381.81 AUD Each
5/8 inch Housing - 15.88 63.500 x 44.450 49.28 mm Thomson Super Smart Housings Linear - - Sold per Each:
Base Category: Linear - Thomson Super Smart Housings
Top Level Category: Linear - Thomson Super Smart Housings - Pillow Block Closed
Product Details
Nominal Diameter: 15.88mm(15.88mm is 0.625 in.)
- Nominal Diameter: 15.88mm
(15.88mm is 0.625 in.)

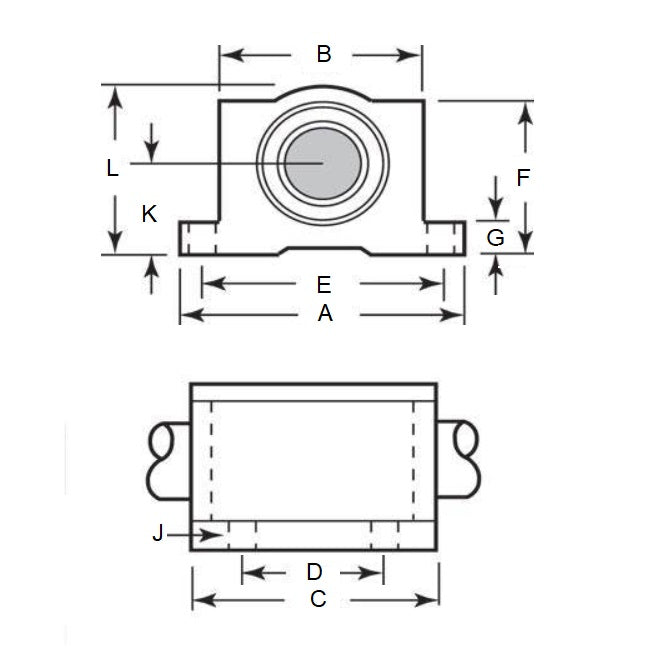

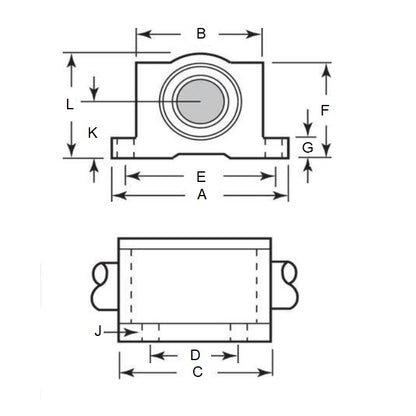

- Widths (A x A2): 63.500 x 44.450mm
(63.500 x 44.450mm is 2.5 in.)
- Length (B): 49.28mm
(49.28mm is 1.94 in.)
- Bolt Distances (E x E1): 28.575 x 53.975mm
- Height (H x H1): 22.225 x 41.402mm
- Flange Height (F1): 7.11mm
- Lube Hole Distance (G1 x G): 22.352 x 21.082mm
- Bolt Dia.: 4.83mm
- Weight: 0.23Kg
- Dynamic Load Capacity: 277kgf
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® TLM-955
- QBC® TSS6UPB-10
- TLM955
- TSS6UPB10
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
LCHP0159049TSS, LCHP0159049
