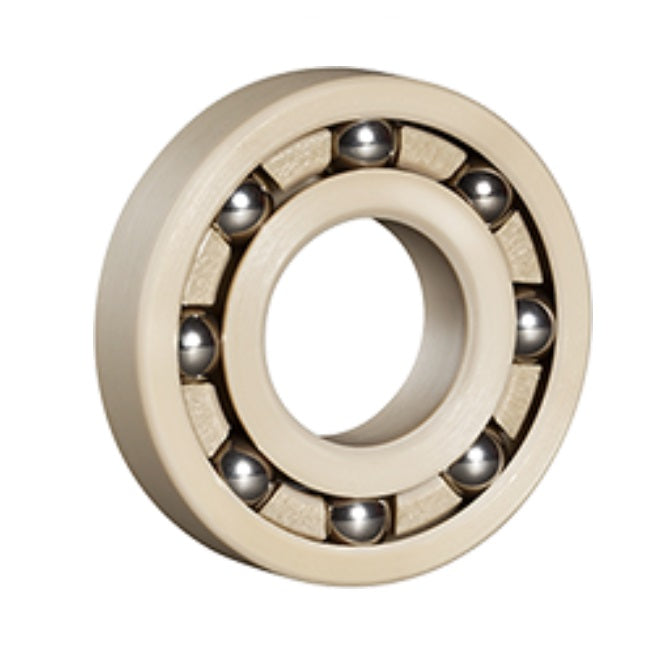

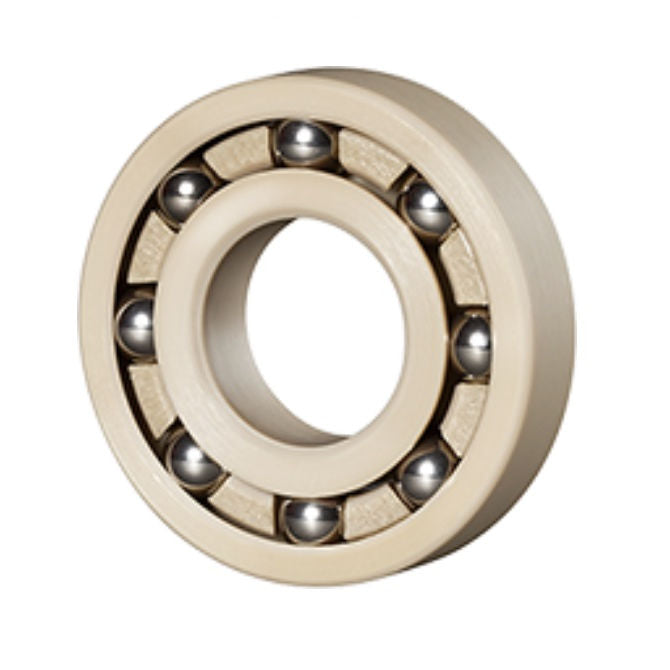

Bearing - 15.875 mm x 34.925 mm x 11.112 mm
P-R10D-PKS6

Name: 1112362 | P-R10D-PKS6 --- Bearing - 15.875 mm x 34.925 mm x 11.112 mm
Brand: MBA
SKU: PR10DPKS6
Price: 150.59 AUD
Availability: InStock

MBA

Category: Bearings - Plastic - PEEK with 316 Stainless Steel Balls

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

Price:

$150.59 AUD

Each
Out Of Stock
Order 50 or more for $135.53 AUD Each

Similar Items

Pre-Order now! Backorders for more than the stock quantity are expected before Jan 17, 2025

Quantity

Base Category: Bearings - Plastic

Top Level Category: Bearings - Plastic - PEEK with 316 Stainless Steel Balls

Product Details:

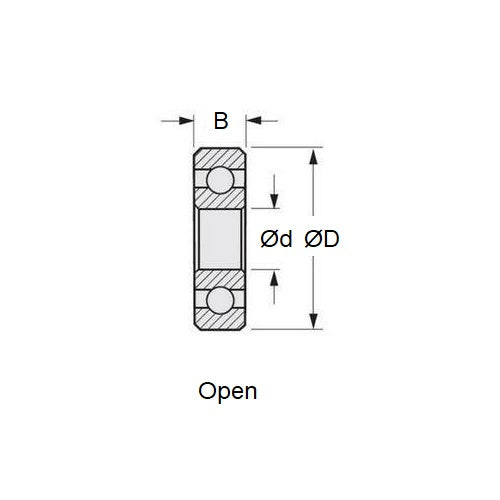

ID (d): 15.875mm
_{+0.076/-0.000}

PEEK with 316 Stainless Balls

OD (D): 34.925mm
_{+0.000/-0.102}
Width (B): 11.112mm
_{+0.127/-0.000}
Max RPM in Air: 1283
Dynamic Load Rating: 38.8Kg
Static Load Rating: 30.4Kg

Brand: MBA
Country of Origin: US

Alternatives: PKR10B-5/8B-6, PR10DPS6

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
