MAG-D-16-025-C3T (Each)

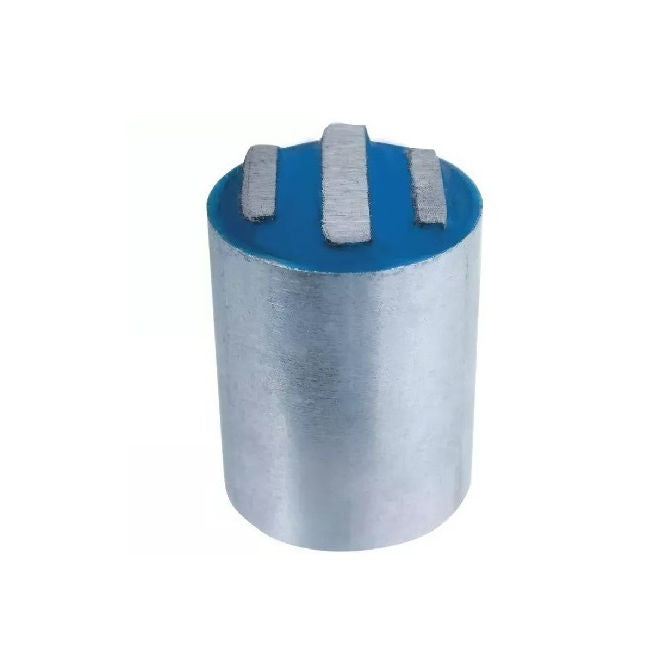

3 Pole Magnets - 15.875x25.4 mm - 6.2 kg Ceramic Insulated Aluminium Tapped Blind Hole
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportCouldn't load pickup availability
5/8x1 inch Magnet - 15.875x25.4 mm - 6.2 kg 3 Pole Magnets - - Sold per Each:
Base Category: Magnets - 3 Pole
Top Level Category: Magnets - 3 Pole - Ceramic Insulated Aluminium Tapped Blind Hole
Product Details
Deleted Item. Available while stocks last.

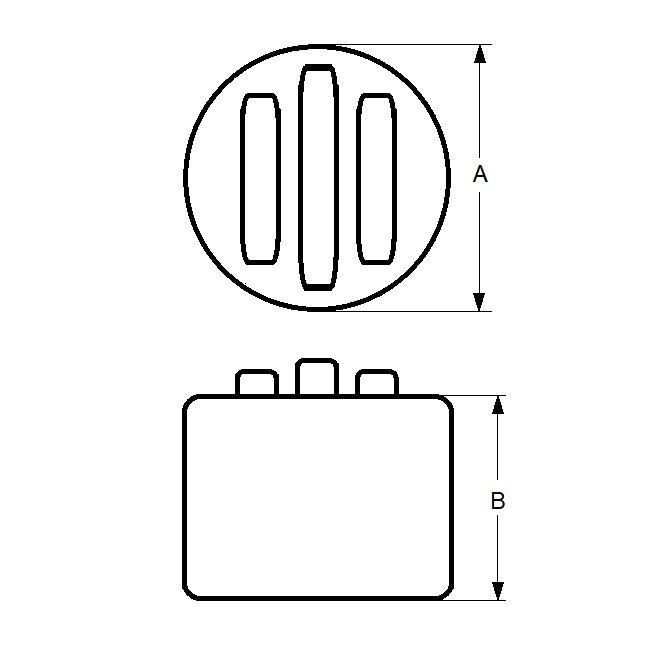

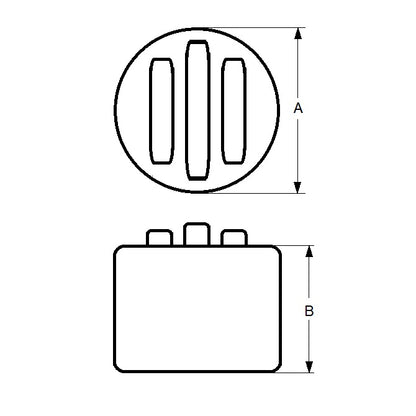

Diameter: 15.875mm
(15.875mm is 0.625 in.)
- Diameter: 15.875mm
(15.875mm is 0.625 in.)
- Length: 25.4mm
(25.4mm is 1 in.)
- Pull: 6.2kg
- Tapped Hole Size: 8-32 UNC (4.17mm)
- Hole Depth: 4.8mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® MAG-104
- MAG104
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MAGD16025C3T, MAGD16
