DP140-024-CH-1

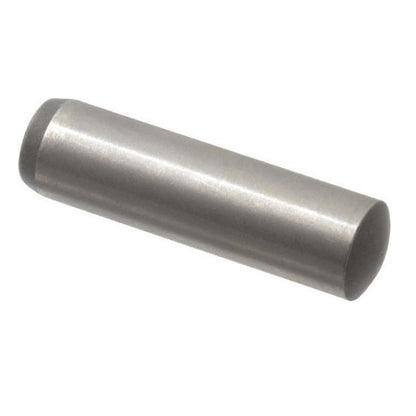

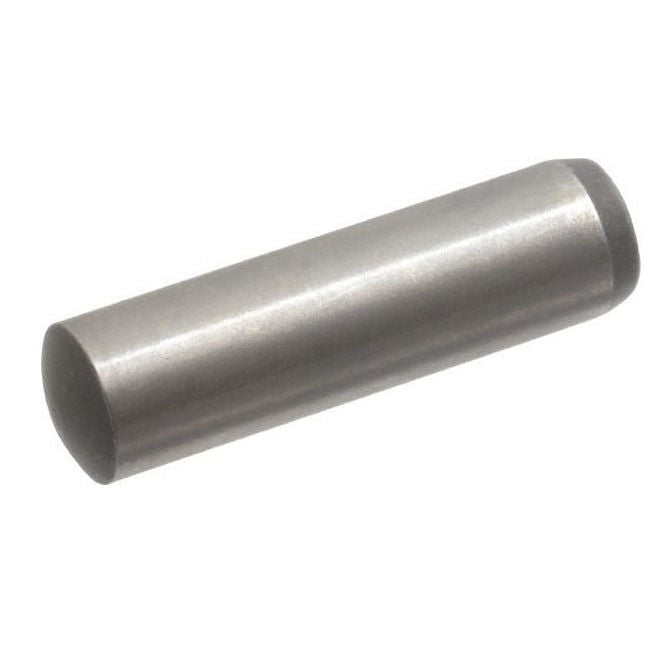

Dowel Pins - 14x24x24 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

NoCor

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$6.59 AUD
$6.59 AUD
Each
Qty: 190 available now
Order 50 or more for $5.93 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 07, 2025

Pickup available at Shop location

Usually Ready in 4 Hours (If ordered Mon-Fri 8am to 1pm)

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 1875


Diameter (D): 14.000mm
+ 0.007 / + 0.018
(14.000mm is 0.551 in.)

Steel 100Cr6 - Heat Treated and Ground Rc 58-62
  • Length (L): 24.00mm
    +/- 0.420
    (24.00mm is 0.945 in.)
  • Approx. Overall Length: 24.00mm
    +/ - 0.420
    (24.00mm is 0.945 in.)
  • Type: 1 (Chamfer One End)
  • Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: US

Alternative Parts Include: DH1424, DH14-24, DOWMH140024, DOWMH-140-024, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
