RS-562

Name: RS-562 - External Retaining Rings - 142.88x1.83x139.14 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Brand: MBA
SKU: RS562
Price: 32.41 AUD
Availability: BackOrder

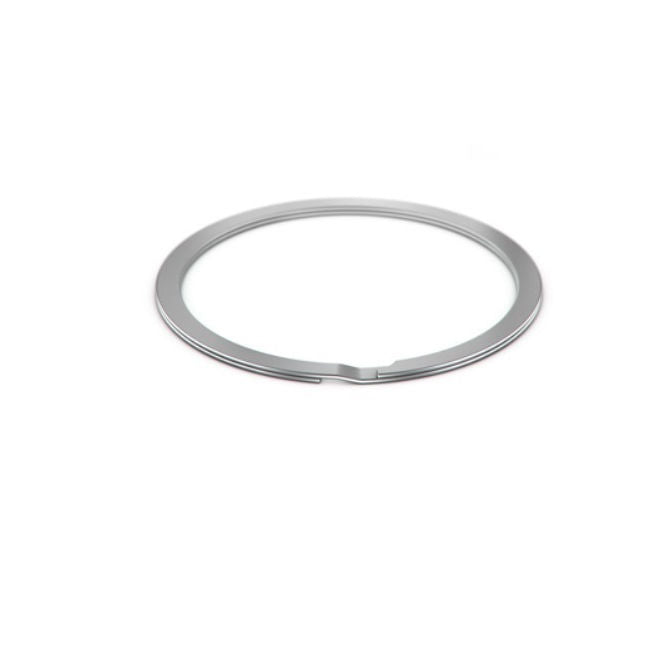

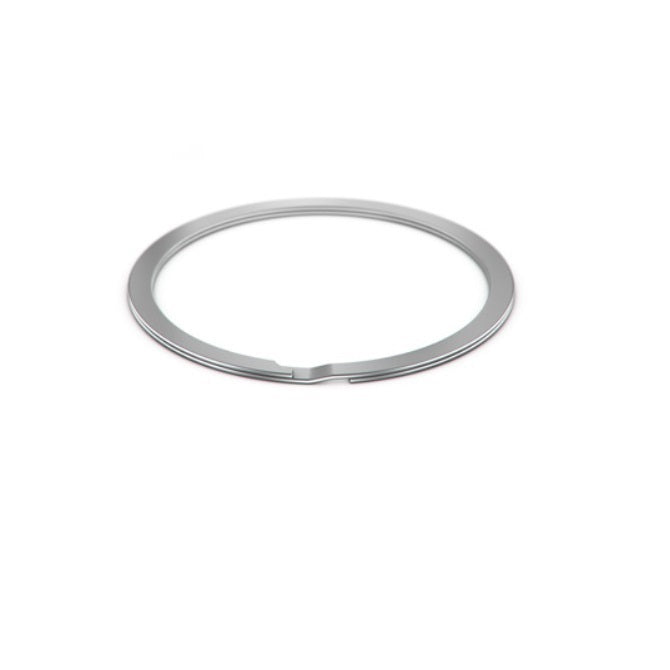

External Retaining Rings - 142.88x1.83x139.14 mm Spiral Rings - Carbon Spring Steel Spiral Ring

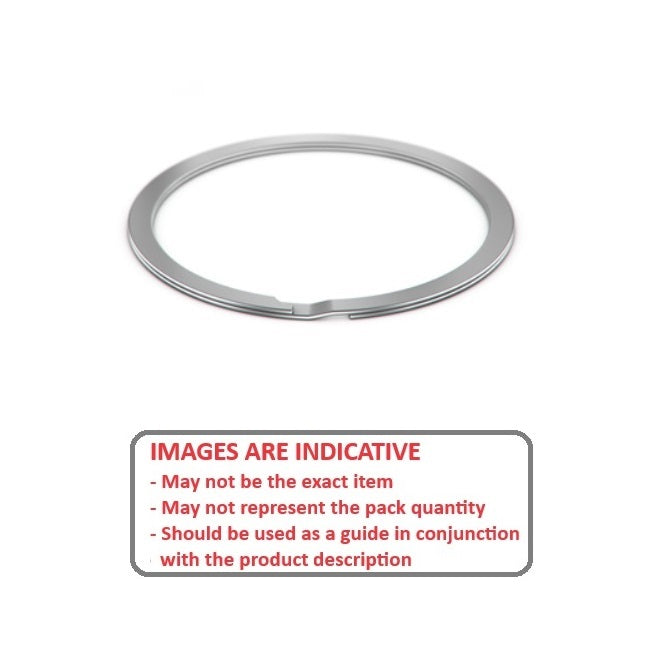

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

NaN -Infinity

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export

Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Additional resources:
Spiral Rings and Snap Rings PDF

Price:

$32.41 AUD

~~$38.89 AUD~~ $32.41 AUD

Each
Backorder
Order 50 or more for $29.17 AUD Each

Backorder now! Backorders for more than the stock quantity are expected before Sep 14, 2025

Quantity

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Product Details

Additional stock available from USA subject to Prior Sale = 144

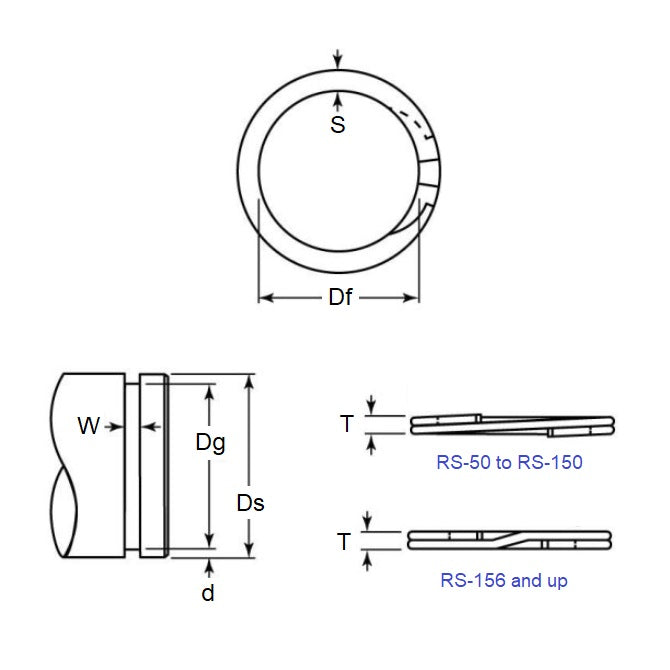

Shaft Diameter (Ds): 142.88mm
_{(142.88mm is 5.625 in.)}

Carbon Spring Steel

Clip Thickness (T): 1.83mm
_{+/- 0.10}
_{(1.83mm is 0.072 in.)}
Groove Dia. (Dg): 139.14mm
_{(139.14mm is 5.478 in.)}
Approx. Loose Circlip ID (A): 134.31mm
_{+ 0.00 / - 1.27}
Radial Wall (S) min/max: 6.35mm
_{+/- 0.13}
Groove Width (W): 2.07mm
_{+/- 0.18}
Approx. Loose Clip OD: 147.01
_{+/- 0.06}
Groove Depth (d): 1.88

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Smalley WS-562
WS562

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
