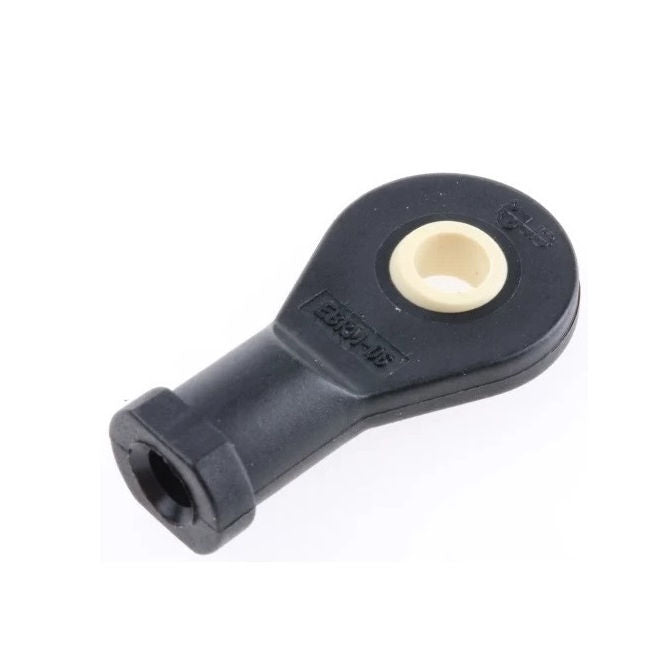

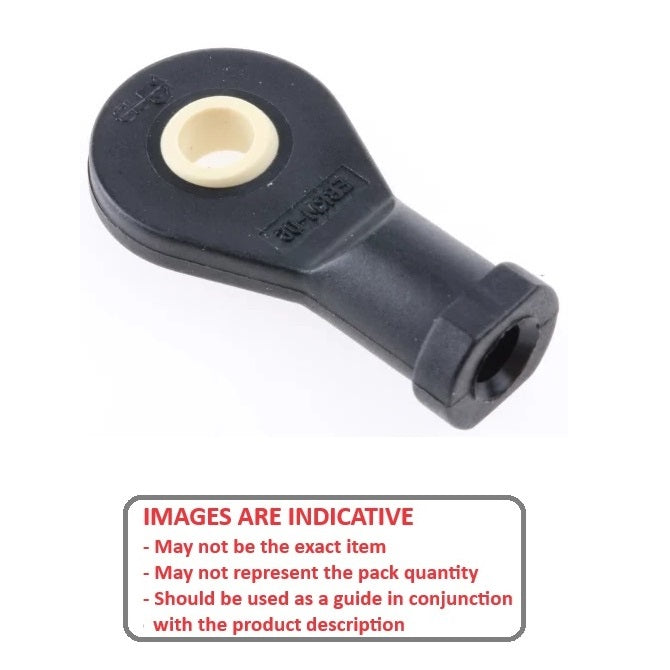

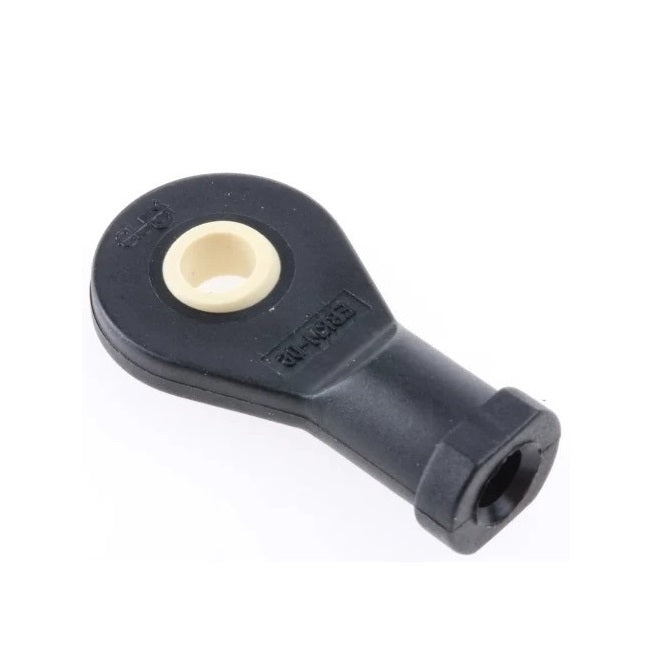

Female Rod Ends - 14 mm x 76 mm M14x2 Right
REF-140-R-PP
Out Of Stock
Order 50 or more for $19.93 AUD Each
Base Category: Rod Ends - Female
Top Level Category: Rod Ends - Female - Plastic

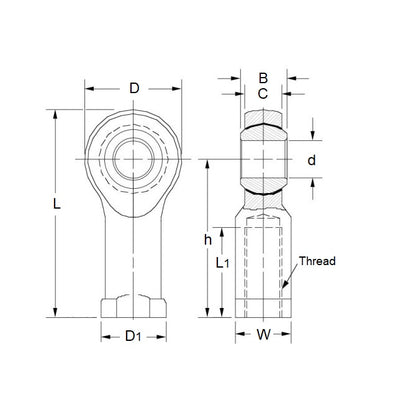

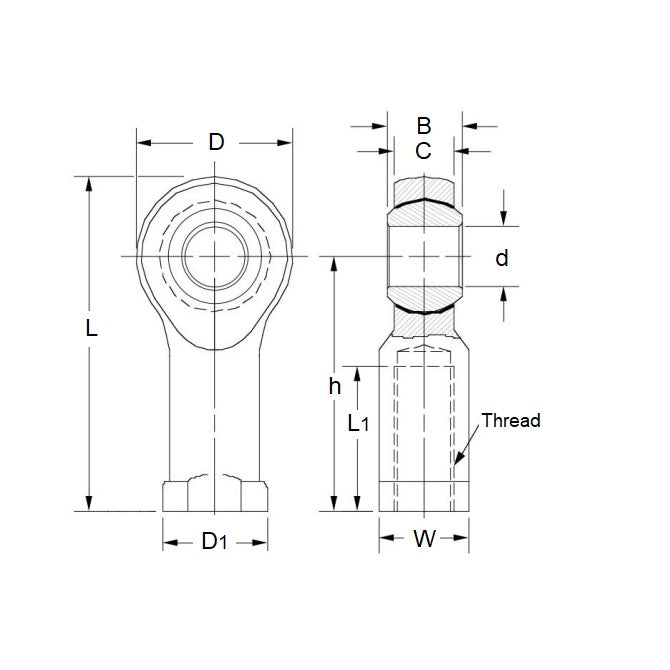

Product Details:Eye Size (d1): 14.000mm
Plastic
- Overall Length (L): 76.00mm
- Thread Size: M14x2 Right
- Thread Length (l2): 25.00mm
- Head Width (W): 13.50mm
- Eye Width (W1): 19.00mm
- Head Diameter (D1): 38.00mm
- Centre Height (l1): 57.00mm
- Grease Nipple: No
- Max Angle of Pivot: 23°
- Max Torque Strength: 35.00n.m
- Body Width/Flange Width(W2/D3): 20.00 / 25.00mm
Brand: MBA
Country of Origin: DE
Alternatives: I-540, KBRM-14, S62GFRM141
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
