G106P-132-M08-030-100-AL (Each)

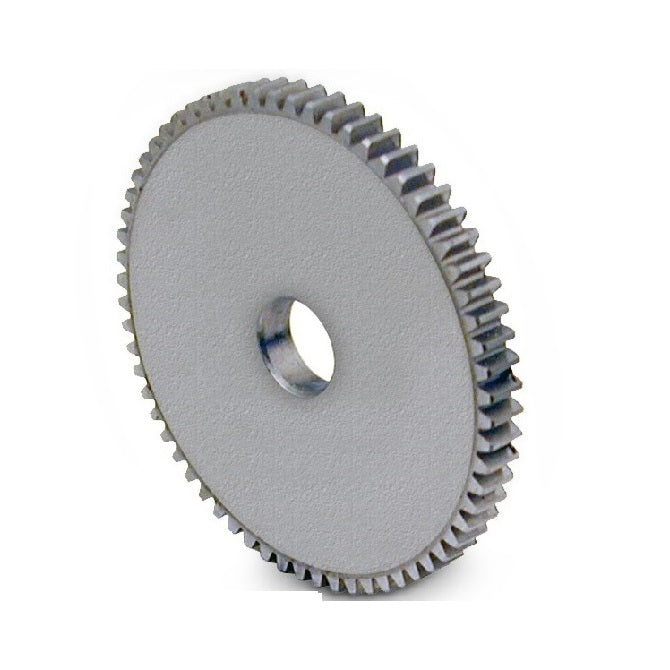

Spur Gears - 132 tooth - 105.6x10 mm Hubless - Aluminium Alloy 2024 Gear
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportCouldn't load pickup availability
132 tooth - 105.6x10 mm Spur Gears - Aluminium Alloy 2024 - Sold per Each:
Base Category: Gears - Spur
Top Level Category: Gears - Spur - Hubless - Module 0.8 - Aluminium
Product Details
Deleted Item. Available while stocks last.
Number of Teeth: 132
Aluminium Alloy 2024

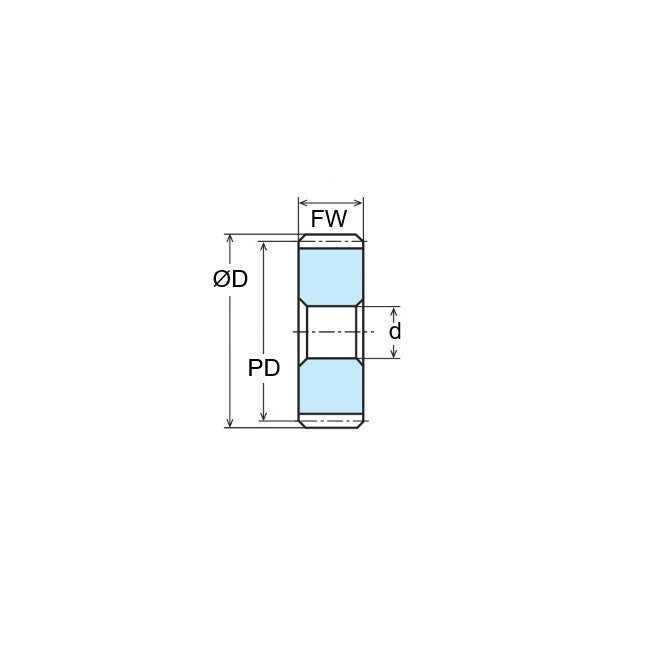

- Number of Teeth: 132
- Pitch Circle Diameter (PD): 105.60mm
(105.60mm is 4.157 in.)
- Bore (d): 10.000mm
(10.000mm is 0.394 in.)
- Outside Diameter (OD): 107.20mm
- Face Width (FW): 3.00mm
- Type: Hubless
- Quality: ISO 7 - ( AGMA 10 )
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- G106B132M08030100ALN
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
G106P132M08030100AL, G106P132M08
