WRI-0120-RD (PK-50)

Name: Internal Retaining Rings - 12x1x13 mm Round Wire - Carbon Spring Steel Wire Clip (Sold Per PK-50) - - WRI-0120-RD
Brand: MBA
SKU: WRI0120RD
Price: 11.95 AUD
Availability: InStock

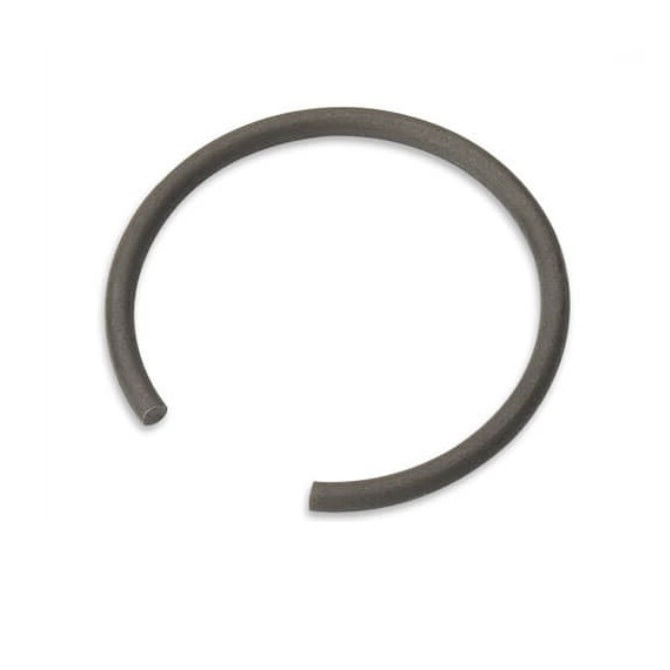

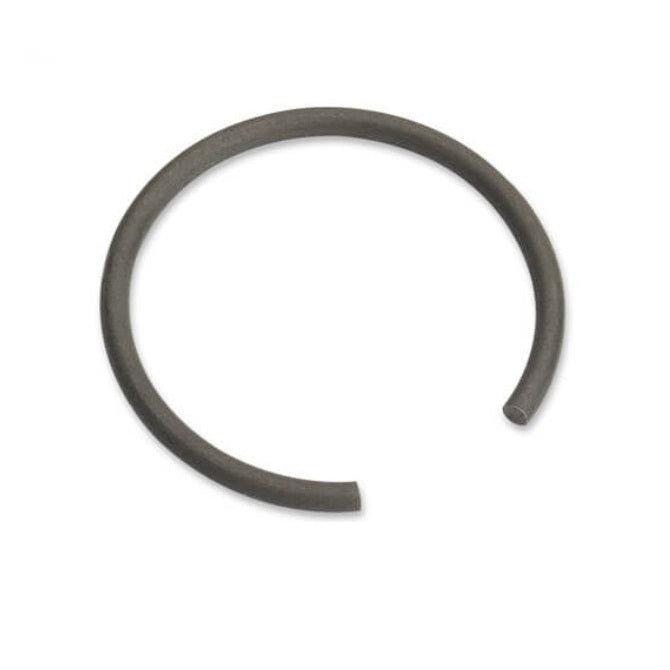

Internal Retaining Rings - 12x1x13 mm Round Wire - Carbon Spring Steel Wire Clip

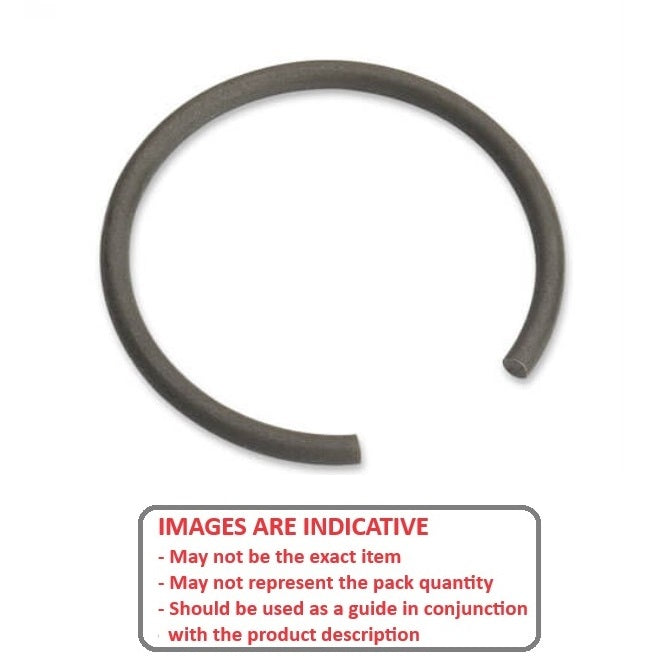

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export

Category: Retaining Rings - Internal - Round Wire

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue

Price:

$11.95 AUD

Priced, Stocked and Sold Per 50 Units

Excludes GST and overseas Taxes & Duties

Qty: 9 packs (450 pcs) available now

Order 50 or more packs (2500 pcs)
for $10.76 AUD per 50

Product Details

Additional stock available from USA subject to Prior Sale = 6922

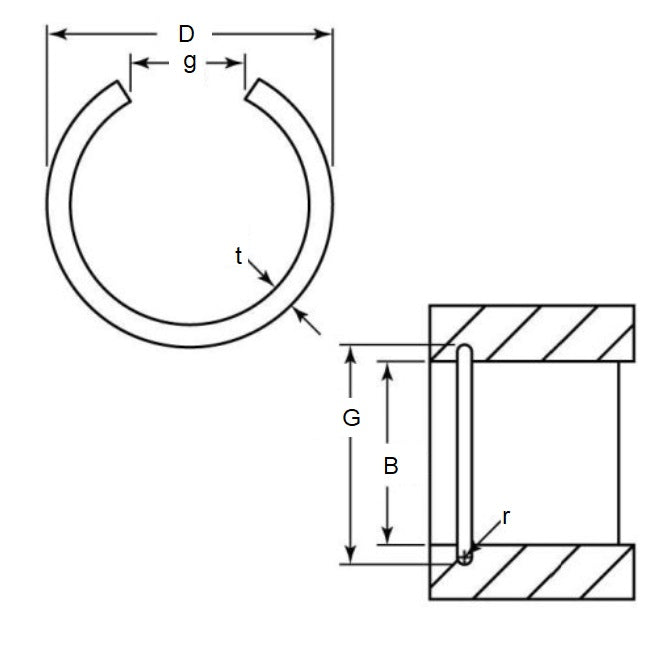

Housing Bore (B): 12.00mm
_{(12.00mm is 0.472 in.)}

Carbon Spring Steel

Housing Bore (B): 12.00mm
_{(12.00mm is 0.472 in.)}
Clip Thickness (T): 1.0mm
_{B DIN 2076}
_{(1.0mm is 0.039 in.)}
Groove Dia. (Dg): 13.00mm
_{+ 0.4 / - 0.0}
_{(13.00mm is 0.512 in.)}
Approx. Loose Circlip OD (Dr): 13.20mm
_{+ 0.00 / - 0.05}
Groove Width (W): 1.20
Free Inside Diameter (D): 11.2
Info: DIN7993
Section Profile: Round Section
Groove Radius (r): 0.60mm
Gap (g): 6.00mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Huyett® DRB-012
NoCor® DRB-012
DRB012

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
