W0120-T-019-015-W3-C (PK-2)

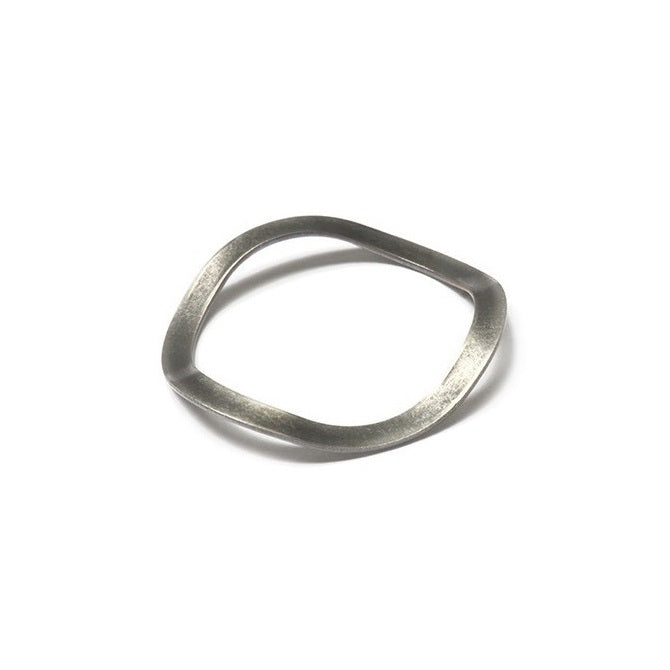

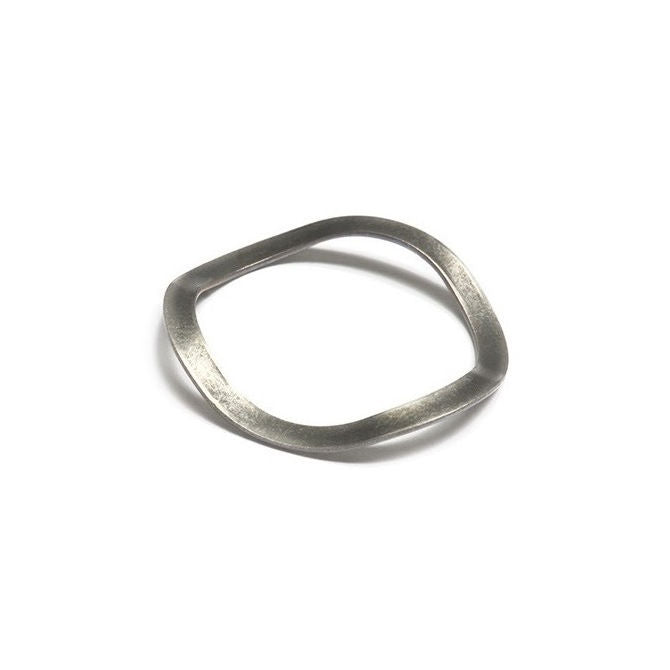

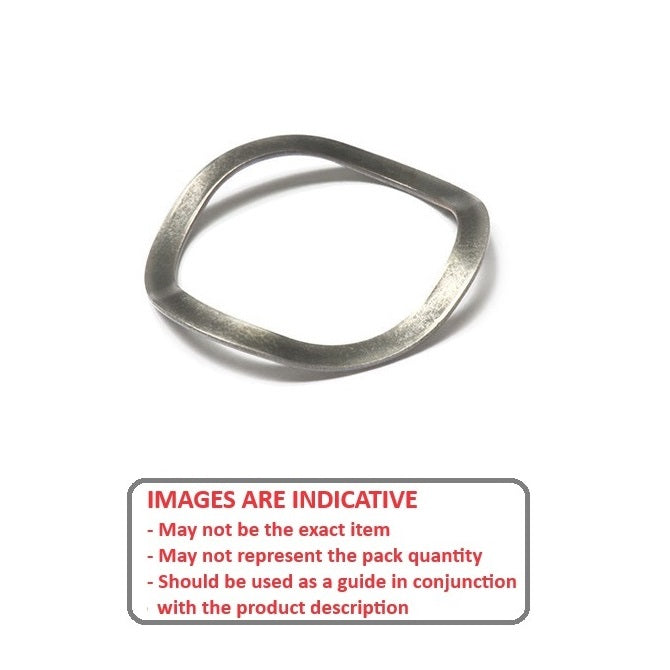

Spring Washers - 12x19x1.5 mm Wave - Carbon Spring Steel Self Finish Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportAssortment Kits
Screws
Order 50 or more packs of 2 (100 pcs)
for $2.49 AUD per 2 pack
Couldn't load pickup availability
12x19x1.5 mm Spring Washers - Carbon Spring Steel Self Finish - Sold per pack of 2:
Base Category: Washers - Spring
Top Level Category: Washers - Spring - Wave - Carbon Steel
Product Details
Nominal Inside Diameter (d): 12.00mm+ 0.7 / + 1.0
(12.00mm is 0.472 in.)
Carbon Spring Steel Self Finish
- Nominal Inside Diameter (d): 12.00mm
+ 0.7 / + 1.0
(12.00mm is 0.472 in.)
- Nominal Outside Diameter (D): 19.00mm
- 0.7 / - 1.0
(19.00mm is 0.748 in.)
- Nom. Height (H): 1.50mm
(1.50mm is 0.059 in.)
- Thickness (s): 0.20mm
- Info: Suits OD of 607, 626, and 635 Bearings (Equiv EPL008)
- Type: 3 Wave
- Nominal Screw Size: M12
- Spring Rate: 29N/mm
- Load at Height: 2.6 N at 1 mmRef.
Brand: MBA
Country of Origin: GB
Product Compliance and Data
Similar to
- ExaktKey® EPL008
- NoCor® EPL008
- Springmaster EPL008
- XOSpring® EPL008
- EPL08
- EPL8
- W0120T020020W3HC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0120T019015W3C, W0120T019
