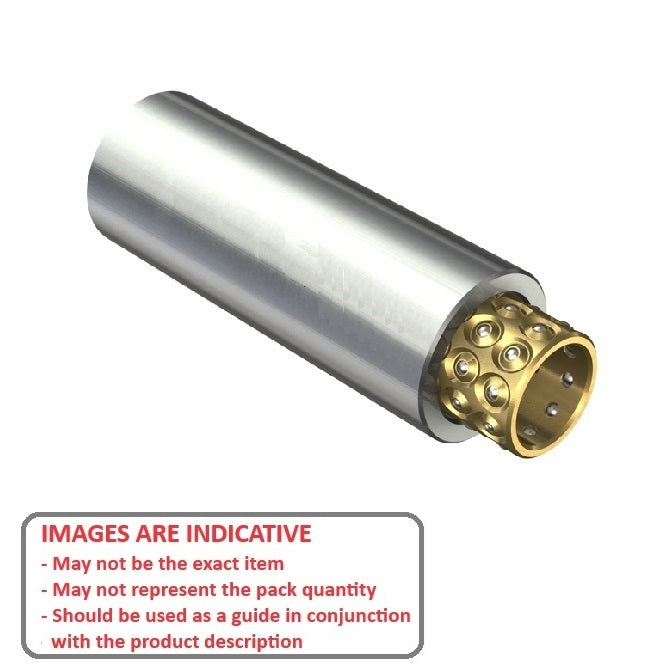

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

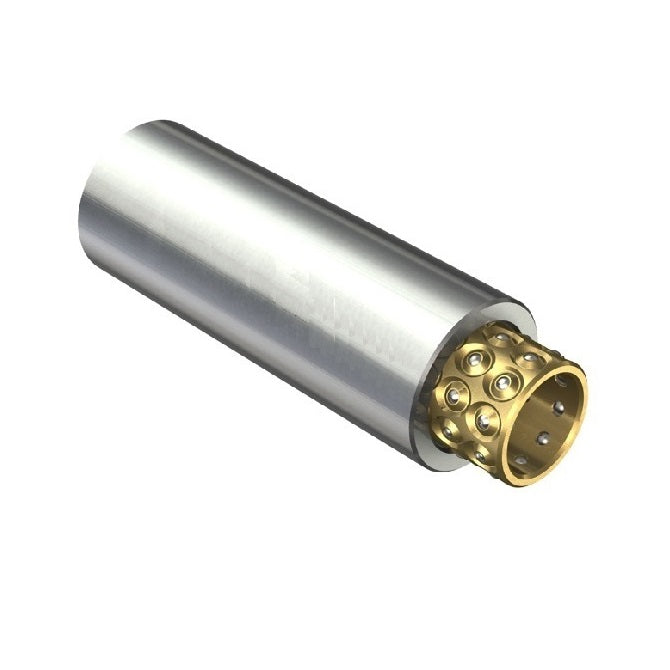

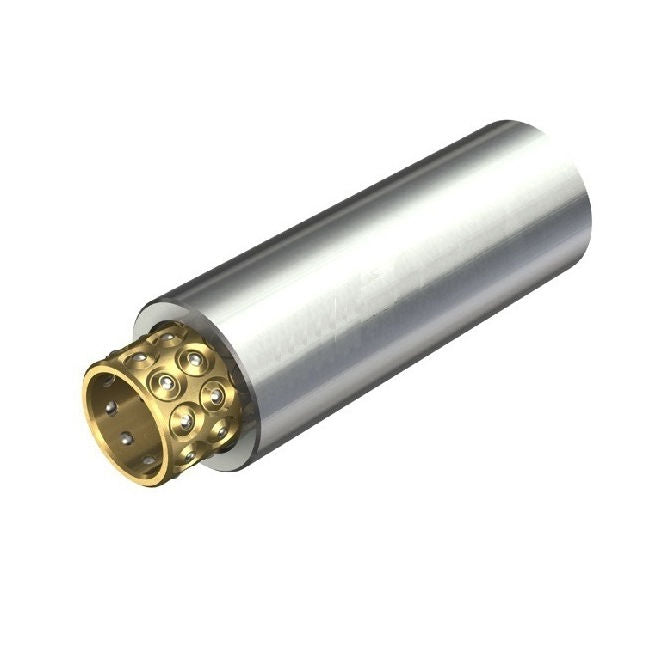

Bushings - 12 mm x 14 mm x 20 mm
STSI12252080

Name: 1098597 | STSI12252080 --- Bushings - 12 mm x 14 mm x 20 mm
Brand: MBA
SKU: STSI12252080
Price: 407.32 AUD
Availability: InStock

MBA

Category: Bushings - Stroke Rotary - Miniature

Price:

$407.32 AUD

Each
Out Of Stock
Order 50 or more for $366.59 AUD Each

Pre-Order now! Backorders for more than the stock quantity are expected before Jan 01, 2025

Quantity

Base Category: Bushings - Stroke Rotary

Top Level Category: Bushings - Stroke Rotary - Miniature

Product Details:

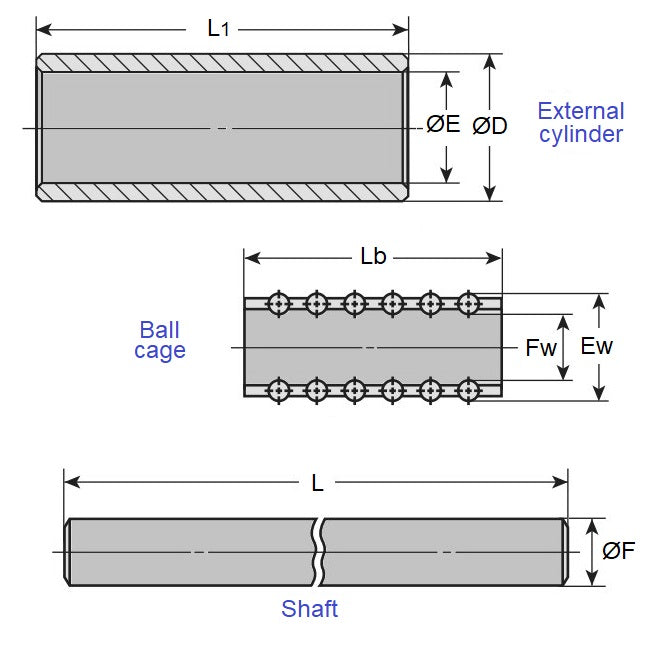

Shaft Diameter (F): 12.000mm

Outer Ring Bore Size (E): 14.000mm
Outer Ring Diameter (D): 20.000mm
_+0/-0.0009
Outer Ring Length (L1): 25.00mm
Max. Radial Runout on Dia. D: 0.01
Basic Static Load Rating: 341.00Co N
Ball Cage Bore (Fw): 12.00mm
Ball Cage Diameter (Ew): 14.00mm
Ball Cage Length (Lb): 20.00mm
Shaft Length (L): 80.00mm

Brand: MBA
Country of Origin: JP

Alternatives: STSI12-252080

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
