W0120-T-014-013-W3-S400 (PK-2)

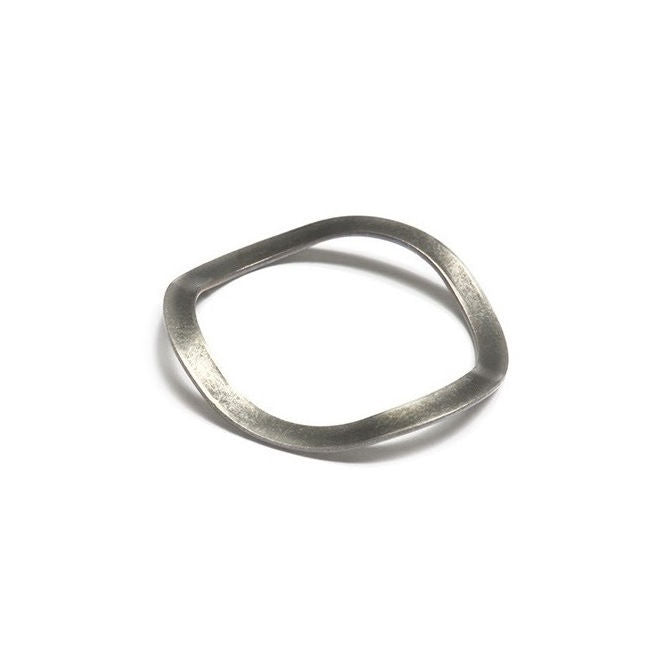

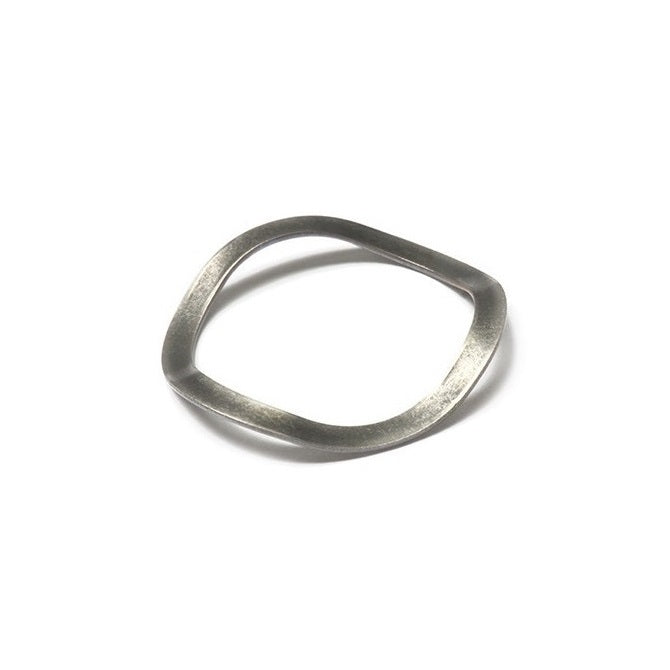

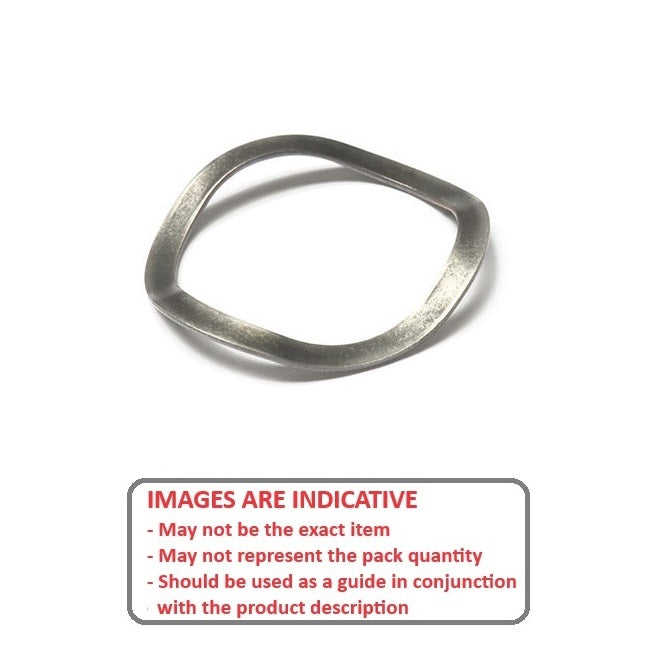

Spring Washers - 12x13.7x1.3 mm Wave - Stainless Steel AISI 400 Series Heat Treated Washer
Myonic
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Assortment Kits
Screws
Order 50 or more packs of 2 (100 pcs)
for $4.87 AUD per 2 pack
Couldn't load pickup availability
12x13.7x1.3 mm Spring Washers - Stainless Steel AISI 400 Series Heat Treated - Sold per pack of 2:
Base Category: Washers - Spring
Top Level Category: Washers - Spring - Wave - 400 Grade Stainless
Product Details

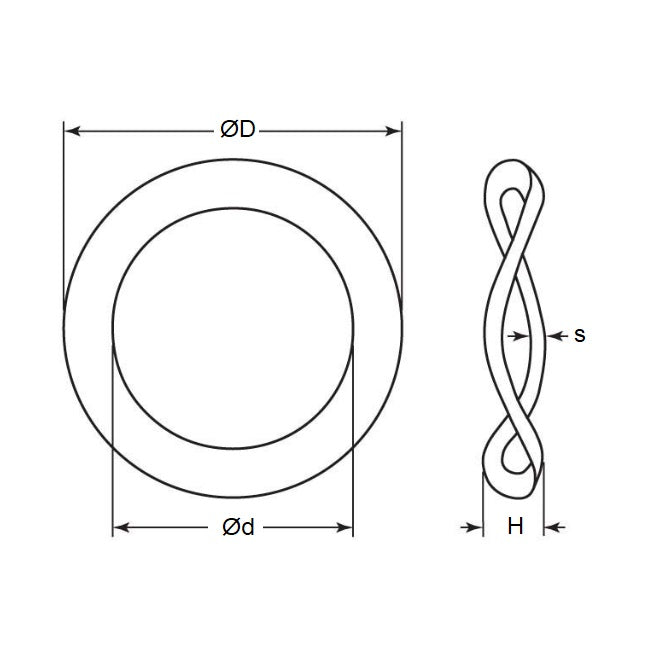

Nominal Inside Diameter (d): 12.00mm(12.00mm is 0.472 in.)
Stainless Steel AISI 400 Series Heat Treated
- Nominal Inside Diameter (d): 12.00mm
(12.00mm is 0.472 in.)
- Nominal Outside Diameter (D): 13.70mm
(13.70mm is 0.539 in.)
- Nom. Height (H): 1.30mm
+ /- 0.05
(1.30mm is 0.051 in.)
- Thickness (s): 0.22mm
+/- 0.01
- Type: 3 Wave
- Nominal Screw Size: M12
- Actual ID (Ref): 12.2mm
Brand: Myonic
Country of Origin: DE
Product Compliance and Data
Similar to
- RMB® FS12X14
- RMB® FS12X14x0.22
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0120T014013W3S400, W0120T014
