DP127-076-CH-1 (50 Pcs)

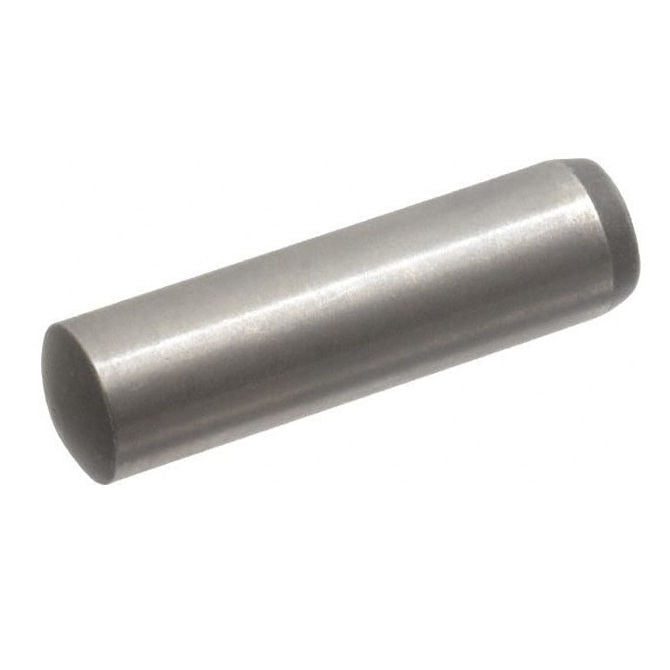

Dowel Pins - 12.7x76.2x76.2 mm - Steel Alloy - Heat Treated and Ground Rc 58-62
NoCor
Additional resources:Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Out Of Stock
Order 50 or more (2500 pcs) for $186.67 AUD per 50
Base Category: Pins - Dowel
Top Level Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel
Product Details:Diameter (D): 12.700mm
+ 0.007 / + 0.018
(12.700mm is 0.5 in.)
Steel Alloy - Heat Treated and Ground Rc 58-62
- Length (L): 76.20mm
+/- 0.600
(76.20mm is 3 in.) - Approx. Overall Length: 76.20mm
+/ - 0.600

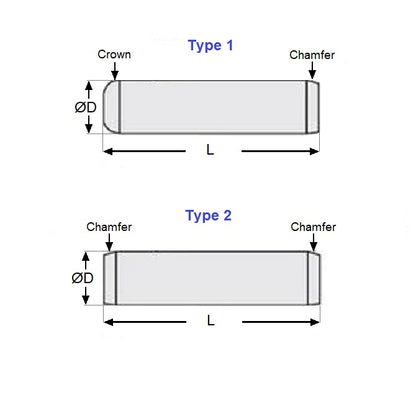

(76.20mm is 3 in.) - Type: 1 (Chamfer One End)
- Standard: Based on DIN 6325
Brand: NoCor
Country of Origin: TW
Alternative Parts Include: BRB241349P, BRB-241349P, DOW-500-3000, DOW5003000, 241349, Brighton Best, NoCor
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
