BP0079-0127-0079-DL

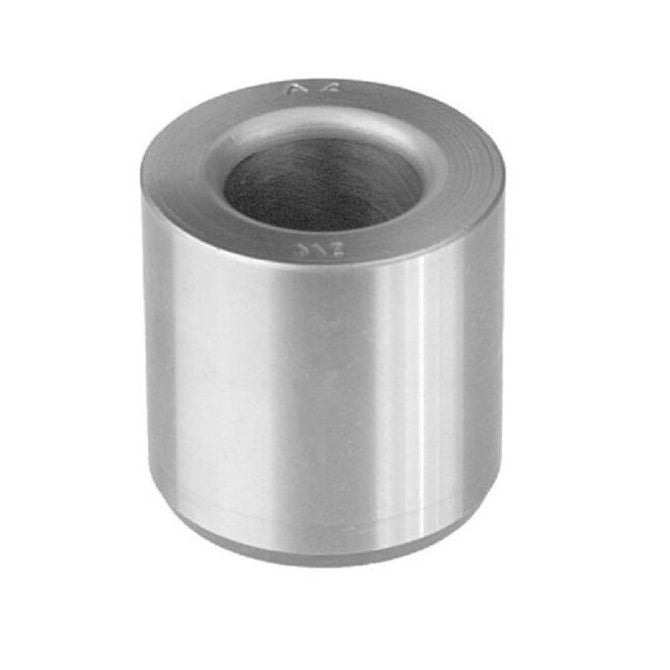

Drill Bushings - 12.7x7.938x7.938 mm - Carbon Steel - Hardened

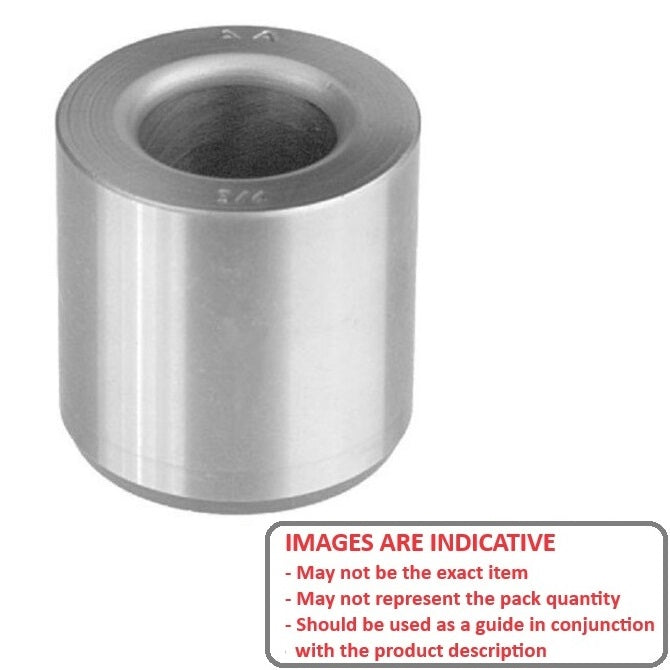

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Price:
$12.50 AUD
$15.00 AUD $12.50 AUD
Each
Out Of Stock
Order 50 or more for $11.25 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Jun 21, 2025

Base Category: Bushings - Drill

Top Level Category: Bushings - Drill - Plain - Liner Type - Hardened Steel

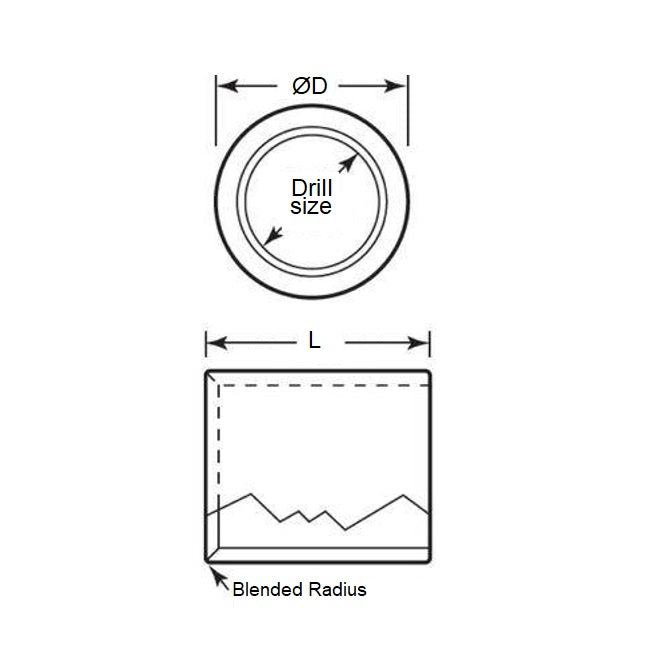

Product Details:

Outside Diameter (OD): 12.700mm
+ 0.003 / + 0.013
(12.700mm is 0.5 in.)

Carbon Steel - Hardened
  • Drill Size: 7.938mm
    + 0.036 / + 0.043
    (7.938mm is 0.313 in.)
  • Length: 7.938mm
    (7.938mm is 0.313 in.)

Brand: MBA
Country of Origin: US

Alternative Parts Include: BP-28430, BP28430

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
