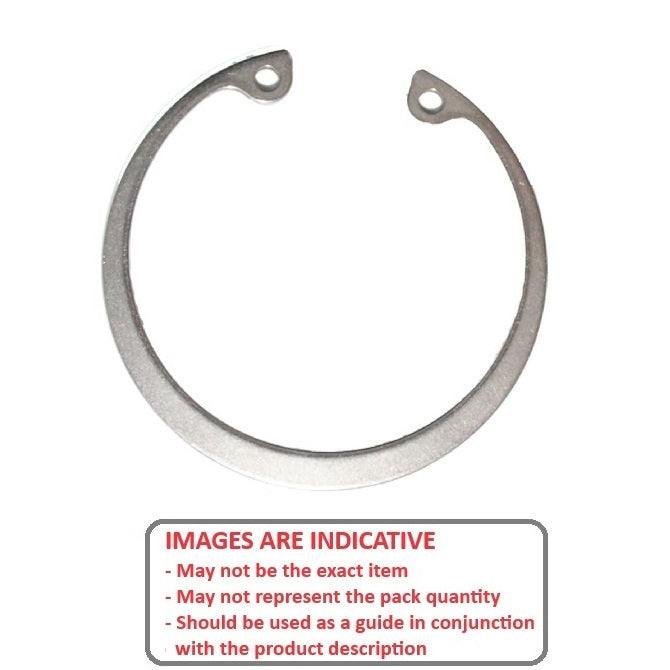

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

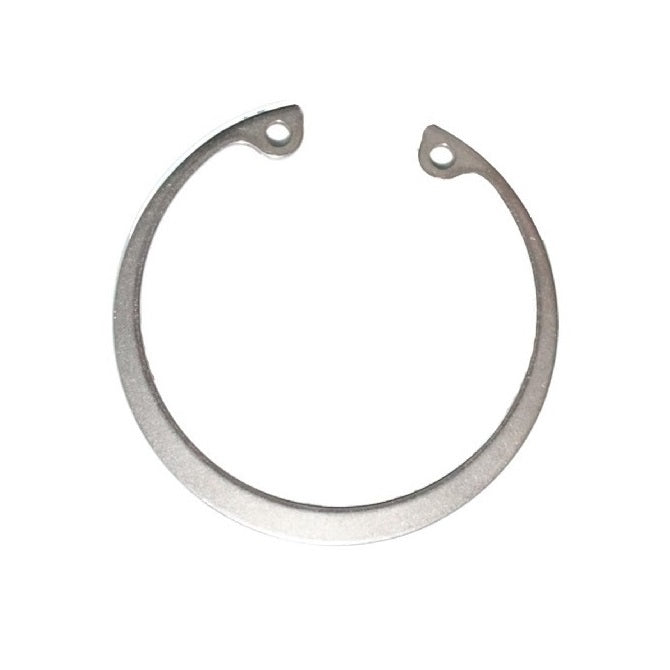

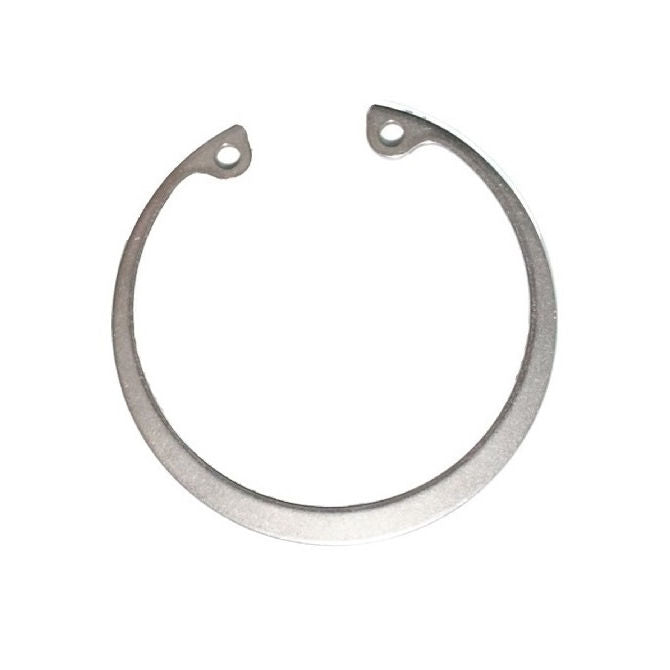

Circlips - 12.7 mm x 0.89 mm x 13.46 mm
CCI-01270-S15 (2 Pcs)

Name: 1101874 | CCI-01270-S15 (2 Pcs) --- Circlips - 12.7 mm x 0.89 mm x 13.46 mm
Brand: MBA
SKU: CCI01270S15
Price: 6.95 AUD
Availability: InStock

MBA

Category: Circlips - Internal - Standard - Stainless Steel

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

Price:

$6.95 AUD

per 2
Qty: 12 available now (24 pcs)
Order 50 or more (100 pcs) for $6.26 AUD per 2

Similar Items

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 03, 2025

Quantity

Base Category: Circlips - Internal

Top Level Category: Circlips - Internal - Standard - Stainless Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 16810

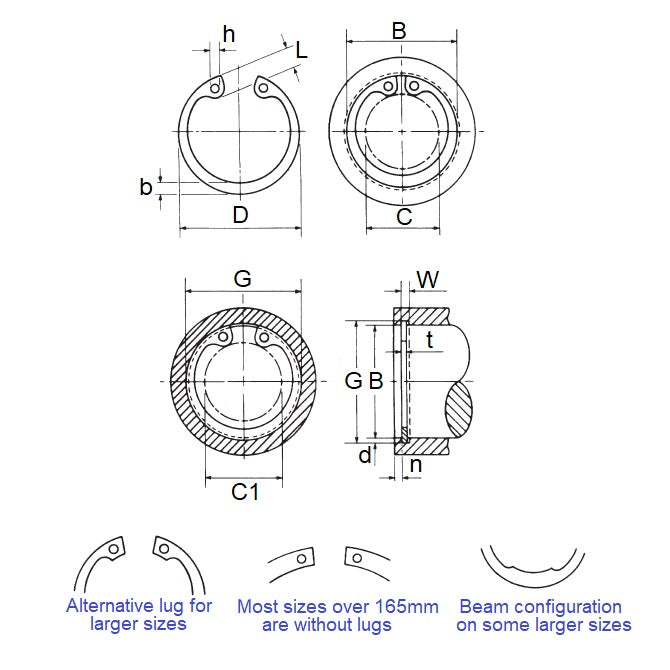

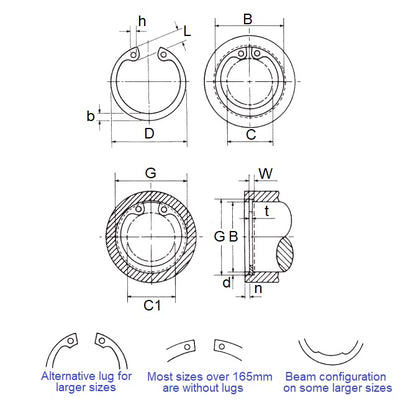

Housing Bore (B): 12.70mm
Stainless PH15-7 Mo

Clip Thickness (T): 0.89mm
_+/-0.050
Groove Dia. (G): 13.46mm
_+0.00/-0.06
Free Outside Dia (D): 13.92mm
_+0.25/-0.13
Min. Extension (n): 1.14mm
Groove Width (W): 0.99mm
_+0.08/-0.00
Clearance in Bore (C): 6.60mm
Clearance in Groove (C1): 7.37mm
Min. Lug Diameter (h): 1.14mm
Standard: MIL-16625

Brand: MBA
Country of Origin: US

Alternatives: 91580A151, HO-050-SS, N1300-0050BDS, RIX-8

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
