CP-127-127-29-028-H-PA

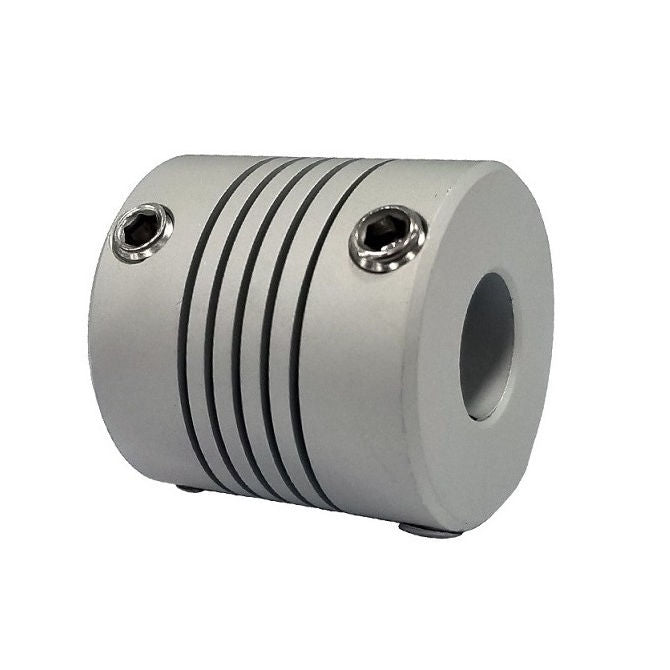

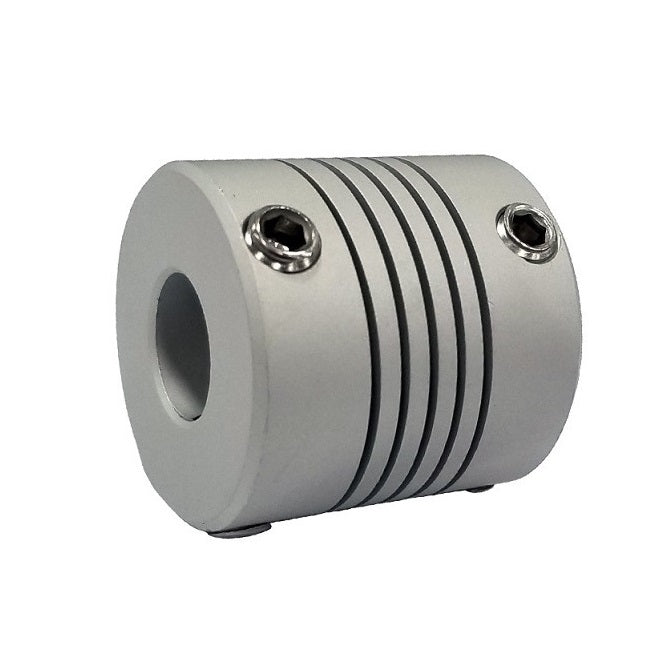

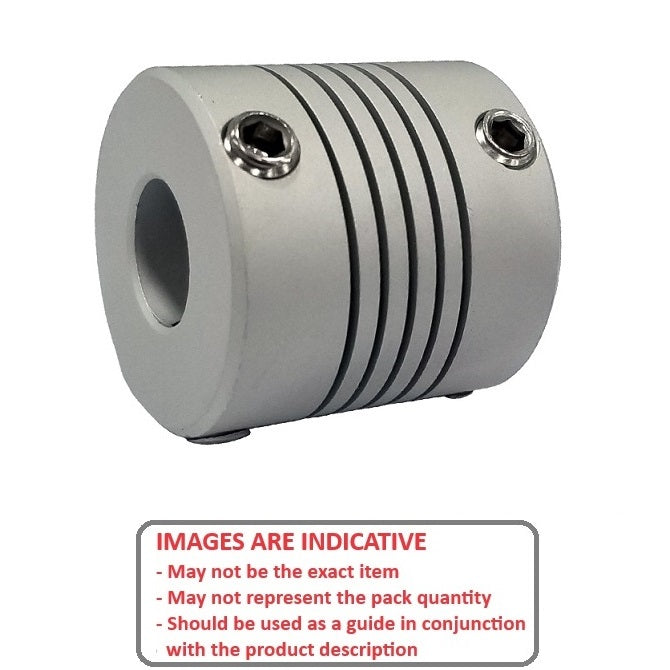

Helical Couplings - 12.7x12.7x28.575 mm - Aluminium 7075-T6
MBA
Qty: 1 available now
Couldn't load pickup availability
Base Category: Couplings - Helical
Top Level Category: Couplings - Helical - Standard

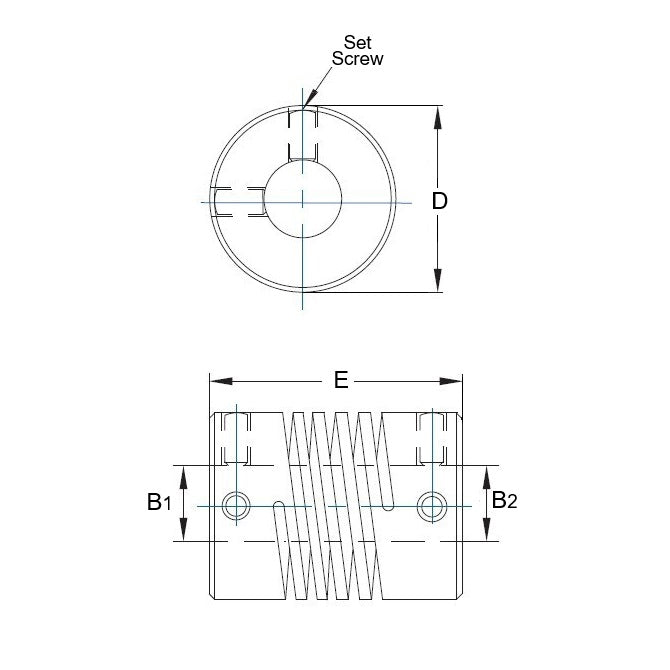

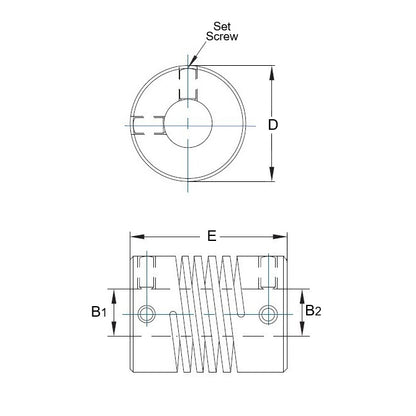

Product Details:Bore (B1): 12.700mm
Aluminium 7075-T6
- Bore (B2): 12.700mm
- OD (D) / Clearance Dia (H): 28.575mm
- Length (L): 28.448mm
- Max. Momentary Dyn. Torque: 1.6N.m
- Hub Config/Hub Diameter: Set Screw / 28.575mm
- Torsional Flexibility: 172.3Arc.Min / N.m
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Alternative Parts Include: S50HAA-112P1616, S50HAA112P1616
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
