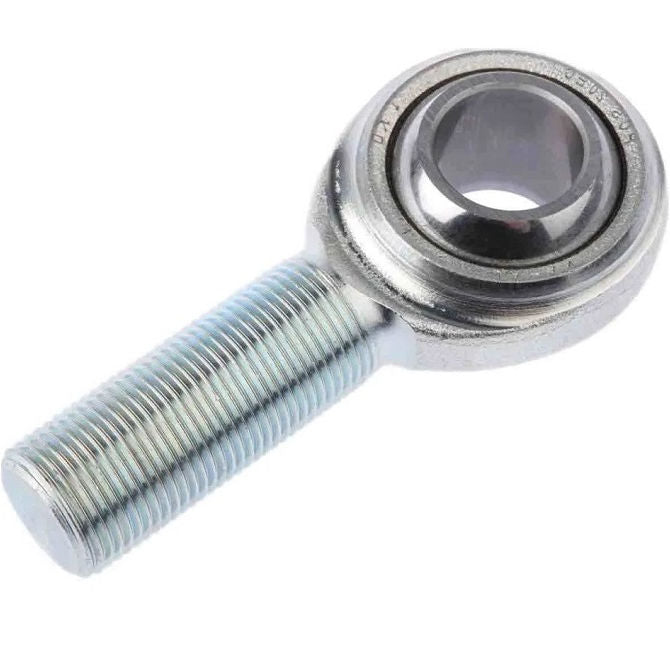

Male Rod Ends - 12.7 mm x 78.59 mm 1/2-20 UNF Left
REM-127-L-CT
Out Of Stock
Order 50 or more for $54.61 AUD Each
Base Category: Rod Ends - Male
Top Level Category: Rod Ends - Male - Steel - Plain - Tight Fit PTFE Lined

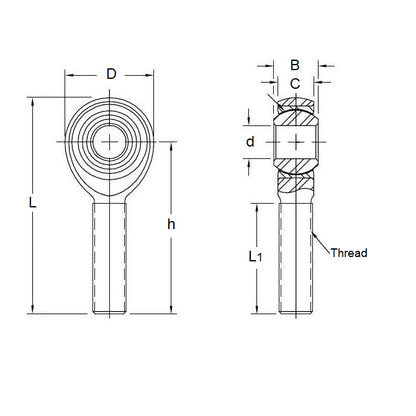

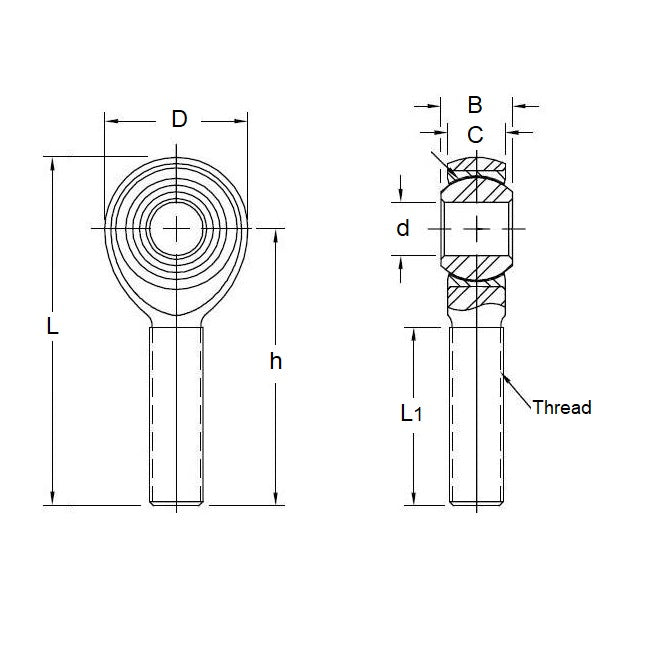

Product Details:Eye Size (d1): 12.7mm
Steel with PTFE Lined Raceway
- Overall Length (L): 78.59mm
- Thread Size: 1/2-20 UNF Left
- Thread Length (l2): 38.10mm
- Head Width (W): 12.70mm
- Eye Width (W1): 15.88mm
- Head Diameter (D): 33.32mm
- Centre Height (l1): 61.93mm
Brand: MBA
Country of Origin: DE
Alternatives: 2458K16-LEFT, TMB
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
