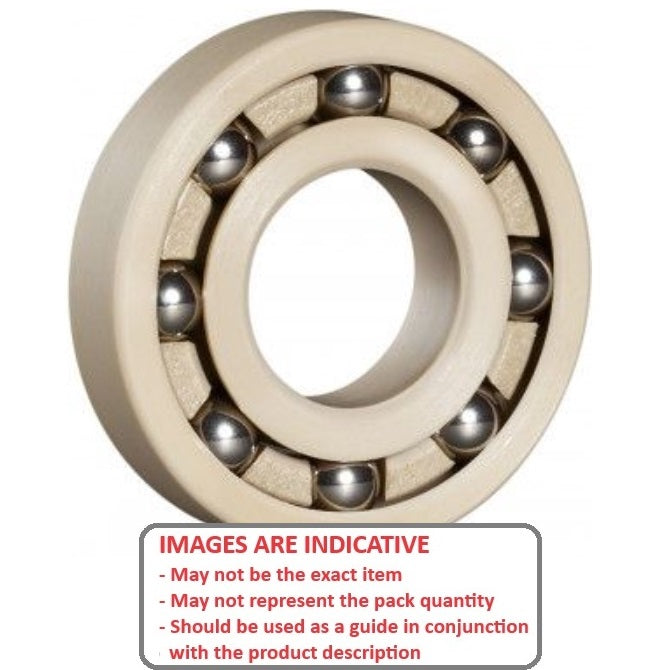

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

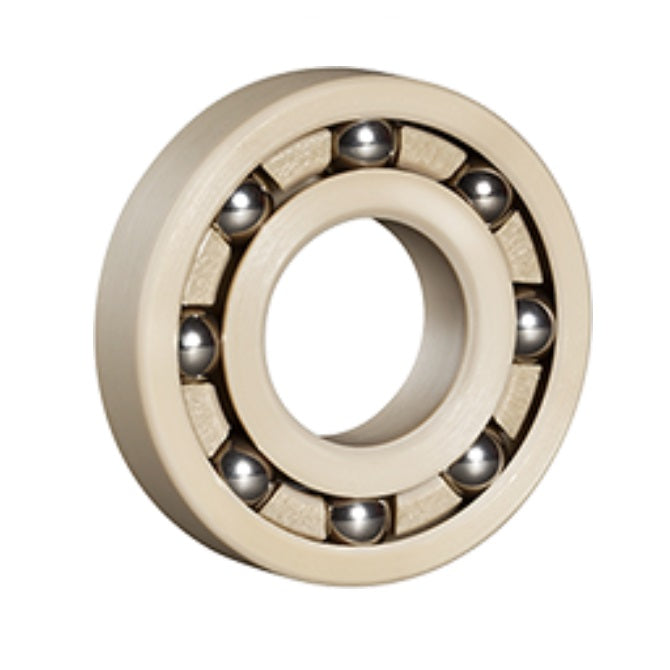

Bearing - 12.7 mm x 28.575 mm x 9.525 mm
P-R8H-PKS6

Name: 1103793 | P-R8H-PKS6 --- Bearing - 12.7 mm x 28.575 mm x 9.525 mm
Brand: MBA
SKU: PR8HPKS6
Price: 146.14 AUD
Availability: InStock

MBA

Category: Bearings - Plastic - PEEK with 316 Stainless Steel Balls

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

Price:

$146.14 AUD

Each
Out Of Stock
Order 50 or more for $131.53 AUD Each

Similar Items

Pre-Order now! Backorders for more than the stock quantity are expected before Jan 19, 2025

Quantity

Base Category: Bearings - Plastic

Top Level Category: Bearings - Plastic - PEEK with 316 Stainless Steel Balls

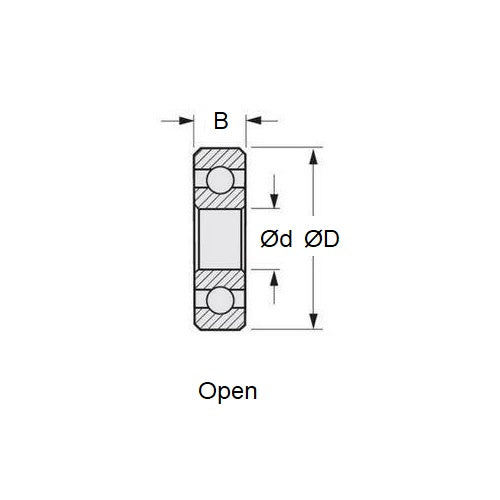

Product Details:

ID (d): 12.700mm
_{+0.076/-0.000}

PEEK with 316 Stainless Balls

OD (D): 28.575mm
_{+0.000/-0.102}
Width (B): 9.525mm
_{+0.127/-0.000}
Max RPM in Air: 1370
Dynamic Load Rating: 30.8Kg
Static Load Rating: 24.3Kg

Brand: MBA
Country of Origin: US

Alternatives: PKR8A-1/2B-6, PR8HPS6

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
