REF-127-R-CT (PK-50)

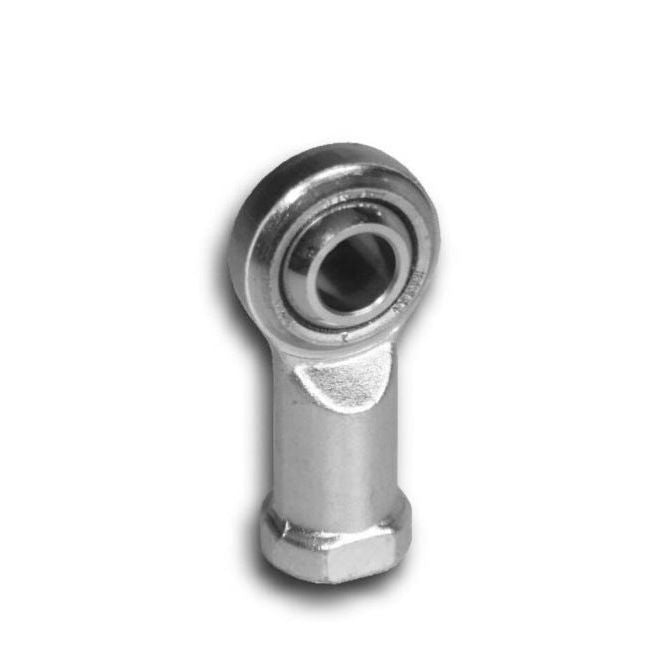

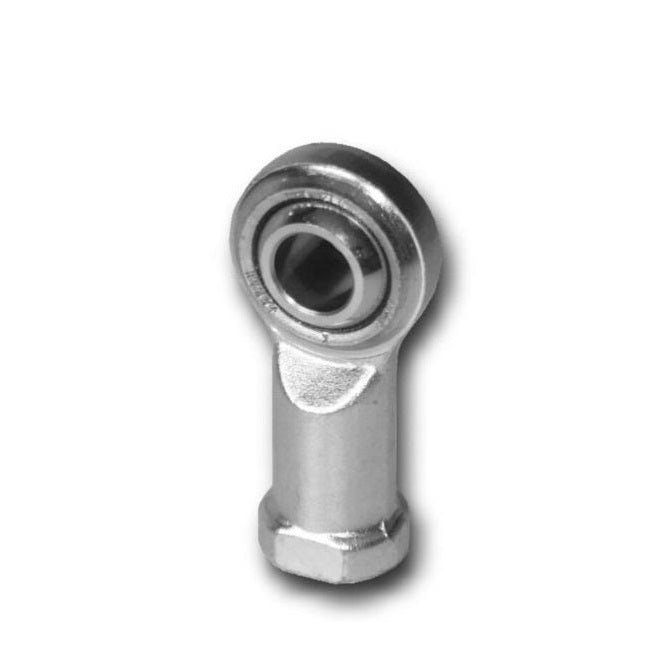

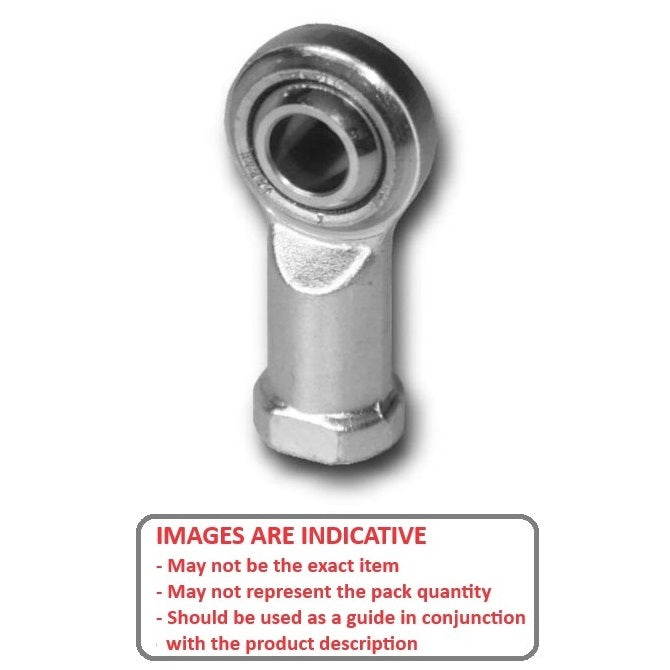

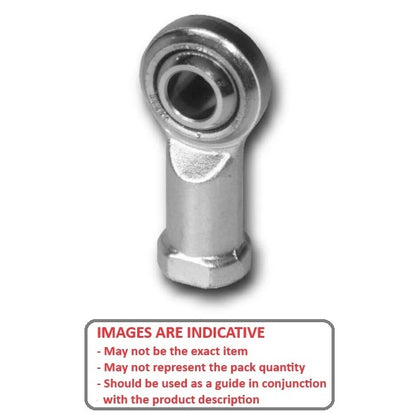

Female Rod Ends - 12.7x70.64 mm - 1/2-20 UNF Right - Steel with PTFE lined Raceway Rod End
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more packs of 50 (2500 pcs)
for $4,188.65 AUD per 50 pack
1/2x2-25/32 inch Rod End - 12.7x70.64 mm - 1/2-20 UNF Right Female Rod Ends - Steel with PTFE lined Raceway - Sold per pack of 50:
Base Category: Rod Ends - Female
Top Level Category: Rod Ends - Female - Steel - Plain - PTFE Lined - Tight Fit
Product Details

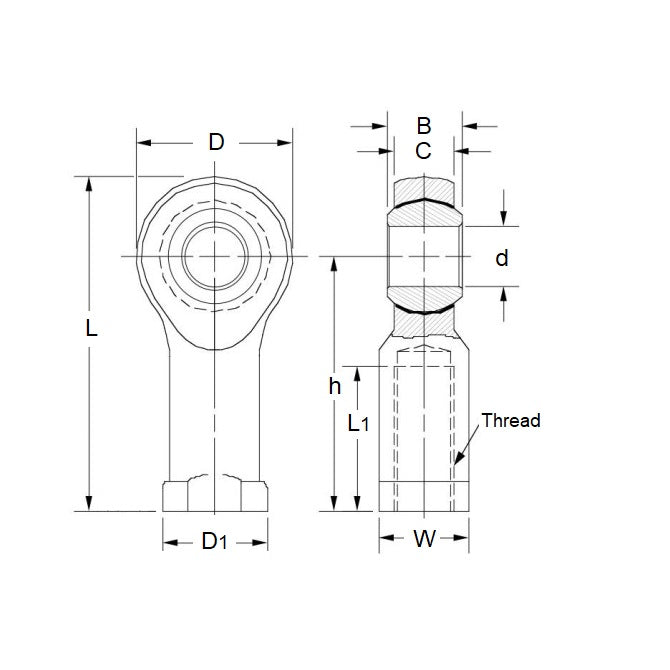

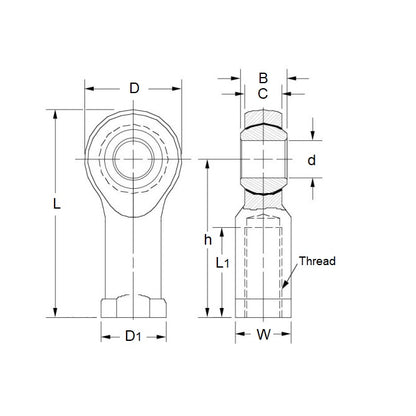

Eye Size (d1): 12.7mm(12.7mm is 0.5 in.)
Steel with PTFE lined Raceway
- Eye Size (d1): 12.7mm
(12.7mm is 0.5 in.)
- Overall Length (L): 70.64mm
(70.64mm is 2.781 in.)
- Thread Size: 1/2-20 UNF Right
- Thread Length (l2): 30.15mm
- Head Width (W): 12.70mm
- Eye Width (W1): 15.88mm
- Head Diameter (D): 33.32mm
- Centre Height (l1): 53.98mm
- Body Width/Flange Width(W2/D3): 19.05 / 22.23mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 2458K36-RIGHT
- Reid Tool® EF-8T
- 2458K36RIGHT
- EF8T
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
REF127RCT, REF127
