LOHP-0127-089-TSS (Each)

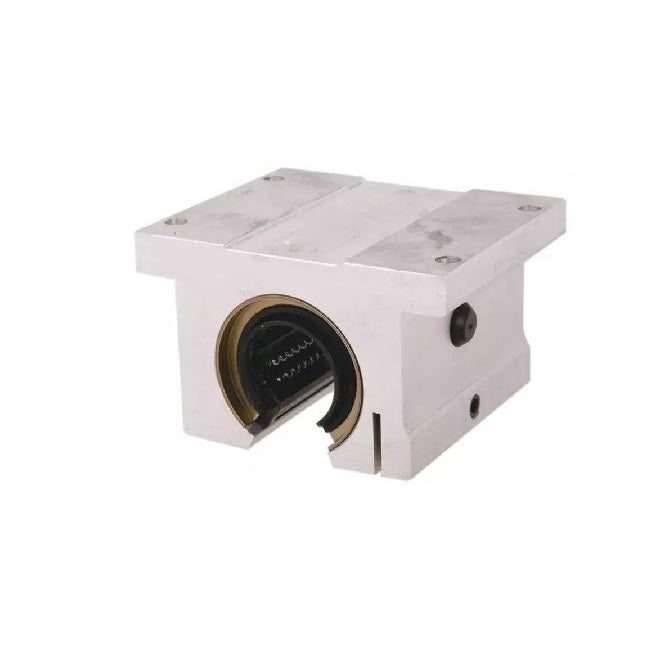

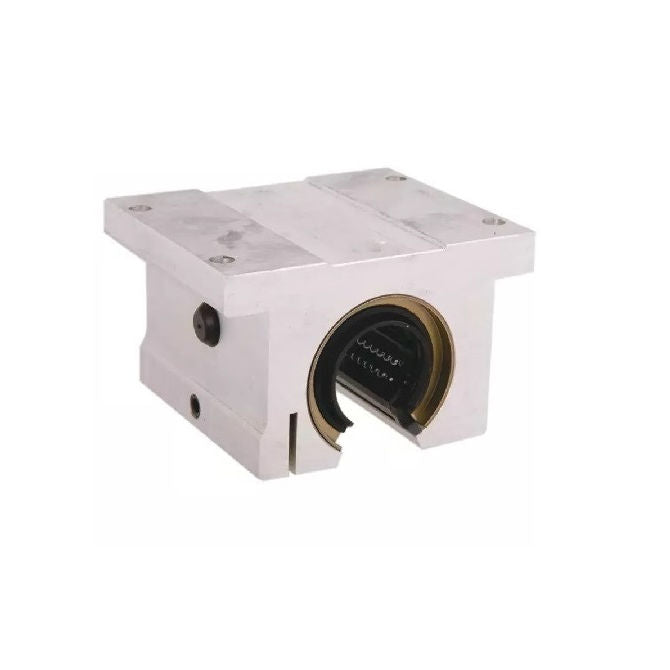

Thomson Super Smart Housings Linear - 12.7x88.9x28.702 mm Twin Pillow Block
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $788.27 AUD Each
1/2x3-1/2 inch Housing - 12.7x88.9x28.702 mm Thomson Super Smart Housings Linear - - Sold per Each:
Base Category: Linear - Thomson Super Smart Housings
Top Level Category: Linear - Thomson Super Smart Housings - Twin Pillow Block - Open

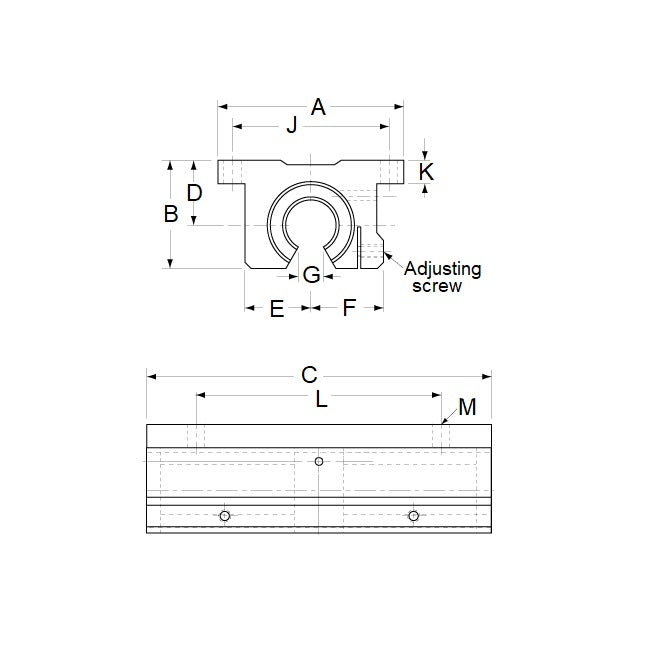

Product Details
Nominal Diameter: 12.700mm(12.700mm is 0.5 in.)
- Nominal Diameter: 12.700mm
(12.700mm is 0.5 in.)
- Overall Length (C): 88.900mm
(88.900mm is 3.5 in.)
- Height (B): 28.702mm
(28.702mm is 1.13 in.)
- Width (A): 50.800mm
- Centre Height (D): 17.450mm
- Centre Width (E): 17.526mm
- Centre Width (F): 19.050mm
- Opening Distance (G): 7.874mm
- Bolt Centres (J x L): 42.875 x 25.400mm
- Dynamic Load Capacity: 163kgf
- Bolt Hole (M): 4.064mm
- Flange Thickness (K): 6.350mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Thompson® SSUTWNO-8
- Reid Tool® TLM-1140
- SSUTWNO8
- TLM1140
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
LOHP0127089TSS, LOHP0127089
