PBC-101RS

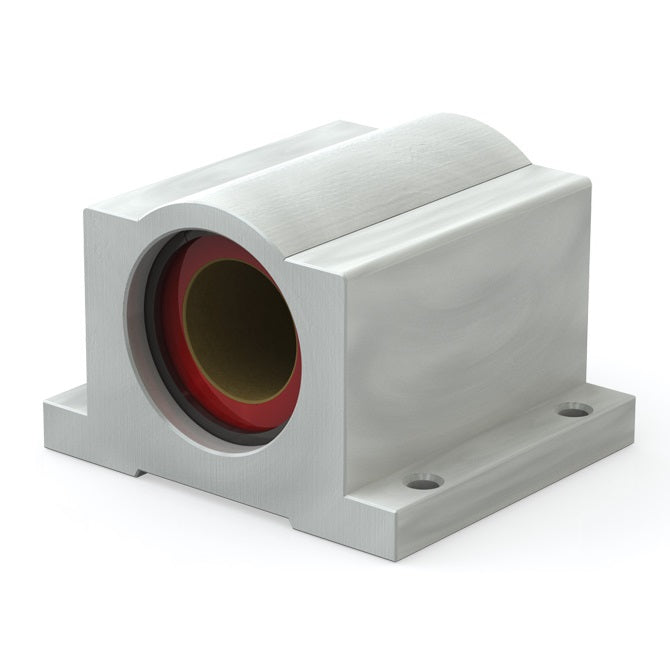

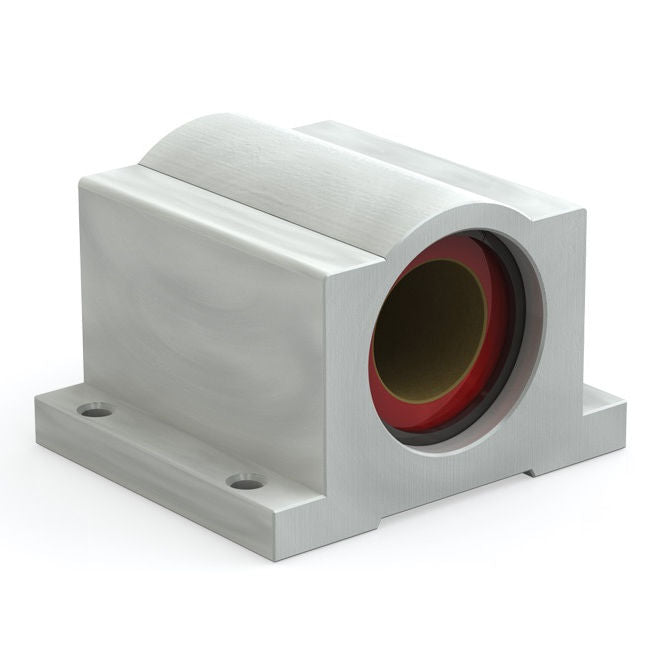

Housings Pillow Block Frelon Linear - 12.7x17.45x50.8 mm Precision - Frelon Housing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export
Price:
$430.05 AUD
$516.05 AUD $430.05 AUD
Each
Backorder
Order 50 or more for $387.05 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Sep 14, 2025

Base Category: Linear - Housings Pillow Block Frelon

Top Level Category: Linear - Housings Pillow Block Frelon - Precision - Closed

Product Details

Bore Diameter: 12.700mm
+ 0.10 / + 0.05
(12.700mm is 0.5 in.)

Frelon

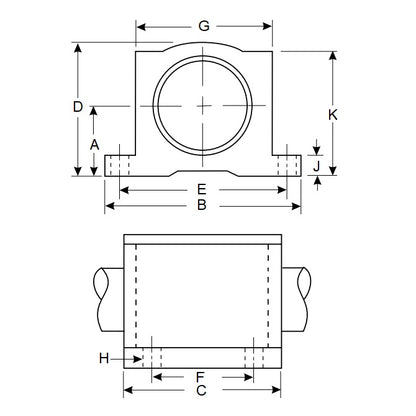

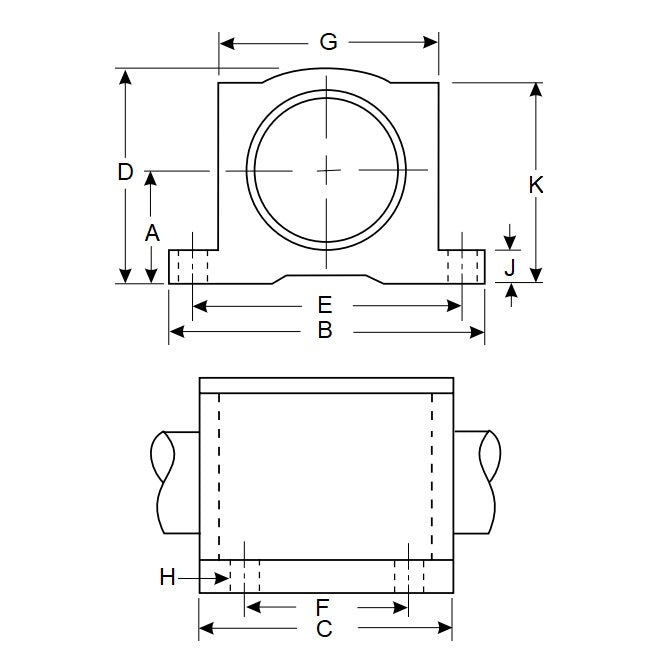

  • Centre Bore Height (A): 17.450mm
    (17.450mm is 0.687 in.)
  • Base Width (B): 50.800mm
    (50.800mm is 2 in.)
  • Overall Length (C): 88.900mm
  • Height (D): 31.750mm
  • Centre Bolt Holes Width (E): 42.875mm
  • Centre Bolt Holes Length (F): 63.500mm
  • Housing Width (G): 34.925mm
  • Bolt Hole Size: 3.962mm
  • Flange Height (J): 6.350mm
  • Centre Bore Height (A): 28.575mm
  • Max Load Rating: 884.50Kg

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Pacific PW08

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
