W0060-D-013-007-P (PK-10)

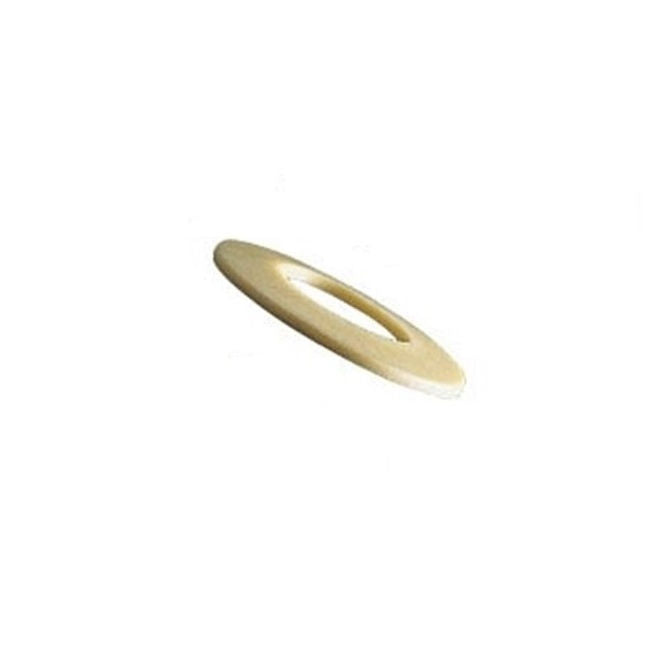

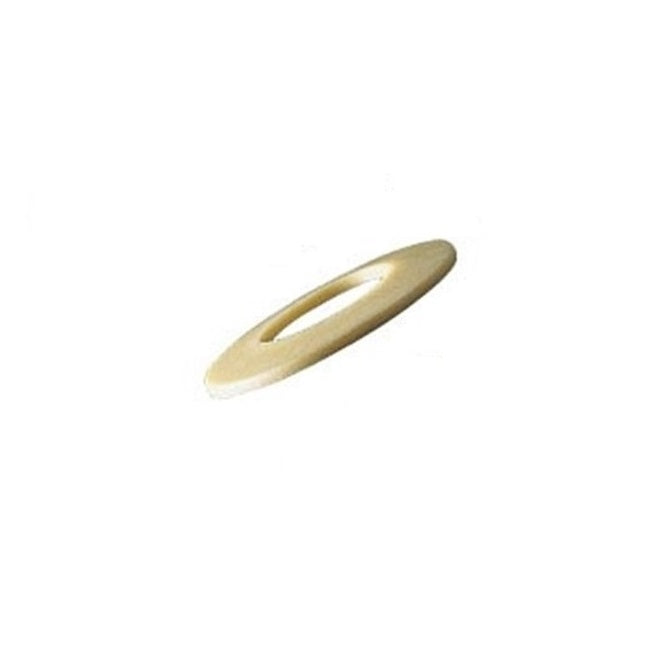

Disc Spring Washers - 12.5x6x0.7 mm Standard - Plastic Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Disc Spring Washers PDF
Screws
Couldn't load pickup availability
1/2 inch Washer - 12.5x6x0.7 mm Disc Spring Washers - Plastic - Sold per pack of 10:
Base Category: Washers - Disc Spring
Top Level Category: Washers - Disc Spring - Standard - Plastic
Product Details
Deleted Item. Available while stocks last.

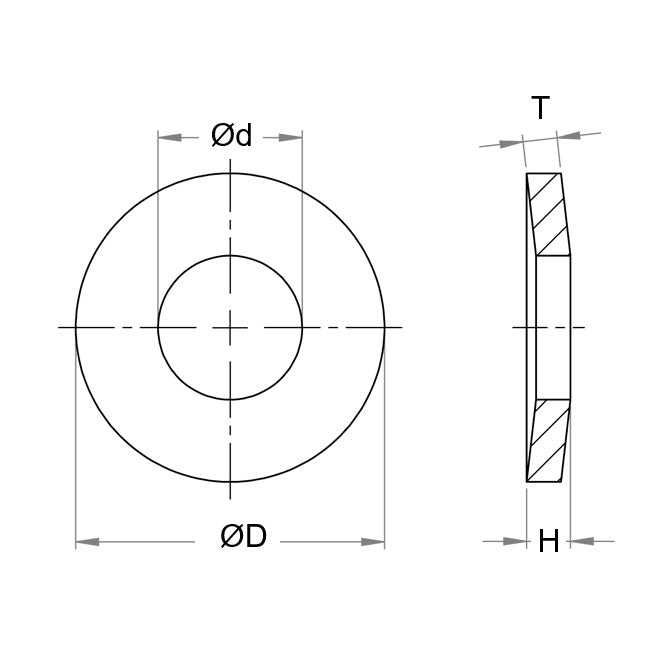

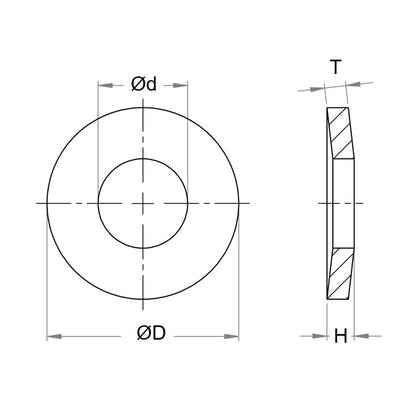

Nominal Outside Diameter (A): 12.50mm
(12.50mm is 0.492 in.)
Plastic
- Nominal Outside Diameter (A): 12.50mm
(12.50mm is 0.492 in.)
- Nominal Inside Diameter (B): 6.00mm
+ 0.20 / - 0.00
(6.00mm is 0.236 in.)
- Thickness (t): 0.70mm
(0.70mm is 0.028 in.)
- Free Height (ho): 0.30mm
- Spring Force at 25 Percent: 3.0N
- Spring Force at 50 Percent: 5.1N
- Spring Force at 75 Percent: 8.0N
- Spring Force at 100 Percent: 12.0N
- Actual ID (Ref): 6.2mm
Brand: MBA
Country of Origin: DE
Product Compliance and Data
Similar to
- ALTPART
- 3573A15
- Igus® JTEM-06
- JTEM06
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0060D013007P, W0060D013
