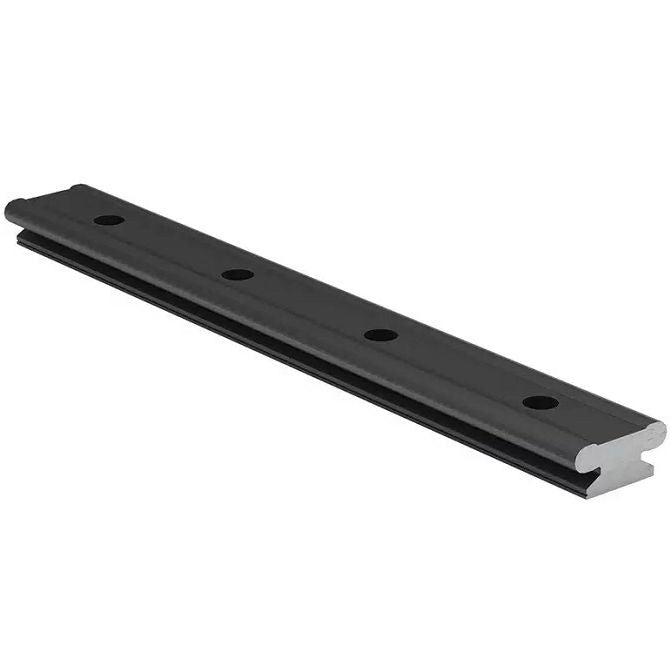

PBC-1166RS

Mini Rail Self-Lubricating Linear - 12 0.025-0.051 13 mm - Ceramic Coated RC70 with Frelon Gold

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export
Price:
$171.14 AUD
$205.36 AUD $171.14 AUD
Each
Backorder
Order 50 or more for $154.03 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Aug 15, 2025

Base Category: Linear - Mini Rail Self-Lubricating

Top Level Category: Linear - Mini Rail Self-Lubricating

Product Details

Rail Width (A): 12.00mm
(12.00mm is 0.472 in.)

Ceramic Coated RC70 with Frelon Gold
  • Running Clearance: 0.025-0.051mm
    (0.025-0.051mm is 0.001 in.)
  • Overall Height (B): 13.00mm
    (13.00mm is 0.512 in.)
  • Rail Height (B1): 8.00mm
  • Rail Hole Size (H): 6.00mm
  • Rail Hole Size (H1): 3.50mm
  • Rail Hole Depth (H2): 3.50mm
  • L: 4.60mm
  • M: 6.00mm
  • Bolt for Rail End (S): 10.00mm
  • Hole Spacing (T): 25.00mm
  • Rail Length: 320.00mm

Brand: MBA
Country of Origin: DE

Product Compliance and Data

Similar to

  • Pacific MR12-320-1
  • MR123201

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
