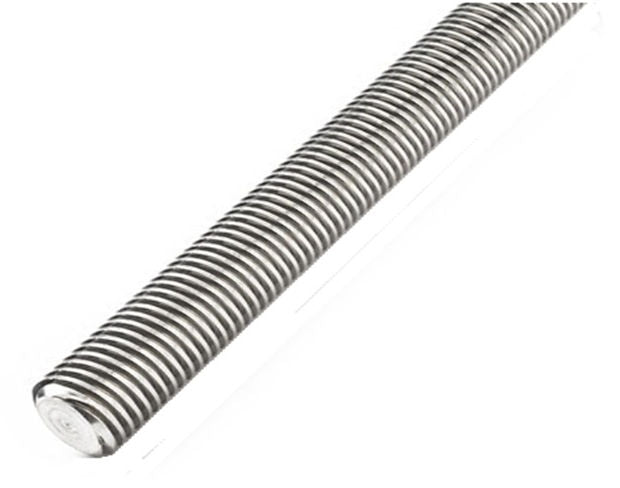

Leadscrews - 12 mm x 3 mm Right Hand
PTGSG-12X3-01-R-1000-ES (Length)
Out Of Stock
Order 50 or more for $186.51 AUD Per Length
Base Category: Leadscrews - Metric
Top Level Category: Leadscrews - Metric - Rolled Thread - Stainless Steel

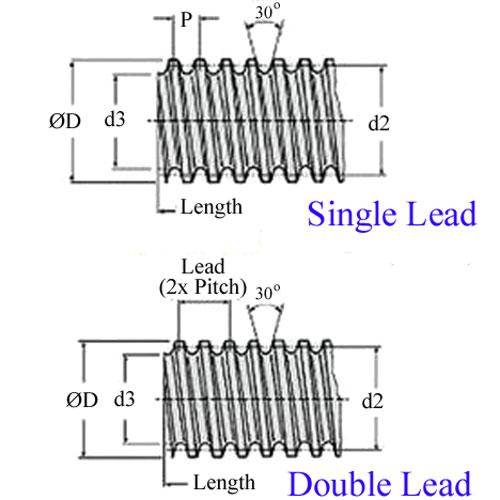

Product Details:Overall Diameter (D): 12.000mm
304 Stainless Steel
- Lead / Pitch (P): 3mm
0.3 / 300
- Direction: Right Hand
- Starts: Single
- Length: 1000mm
+ 0.5 /- 0.0
- Pitch Angle: 4.55Deg
- Straightness: 0.3mm Per 300mm
- Spec: DIN 103 7e
Brand: MBA
Country of Origin: DE
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
