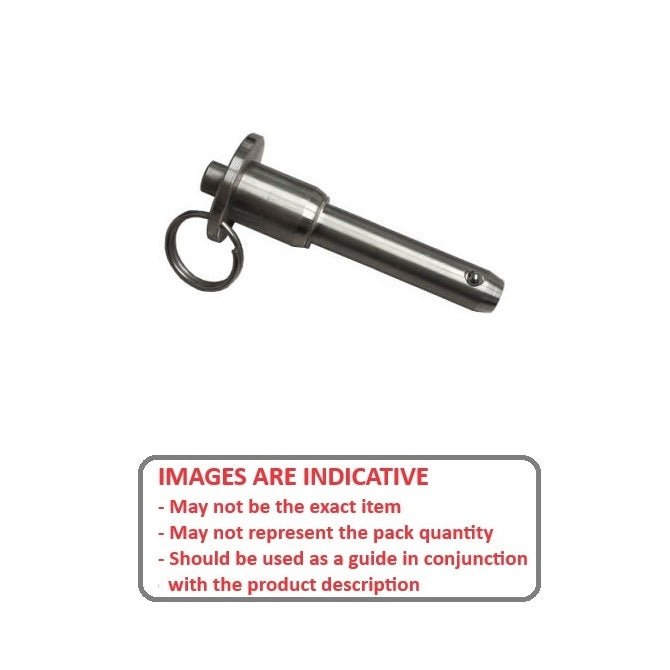

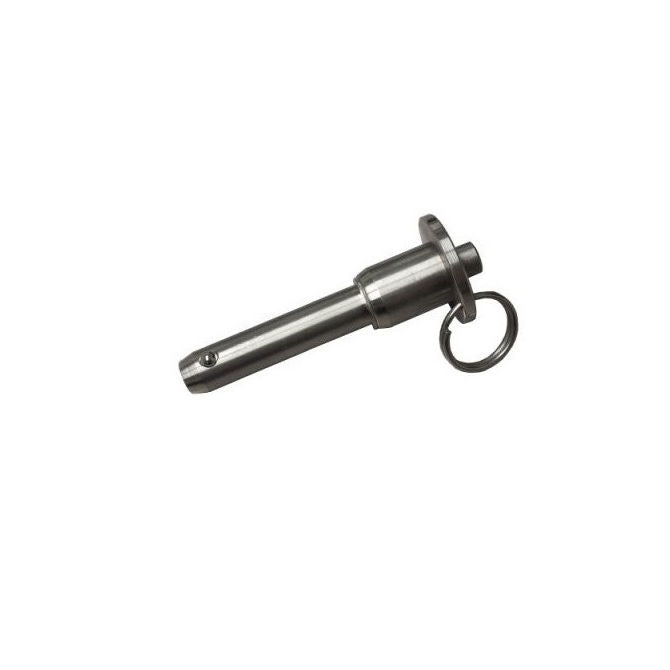

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

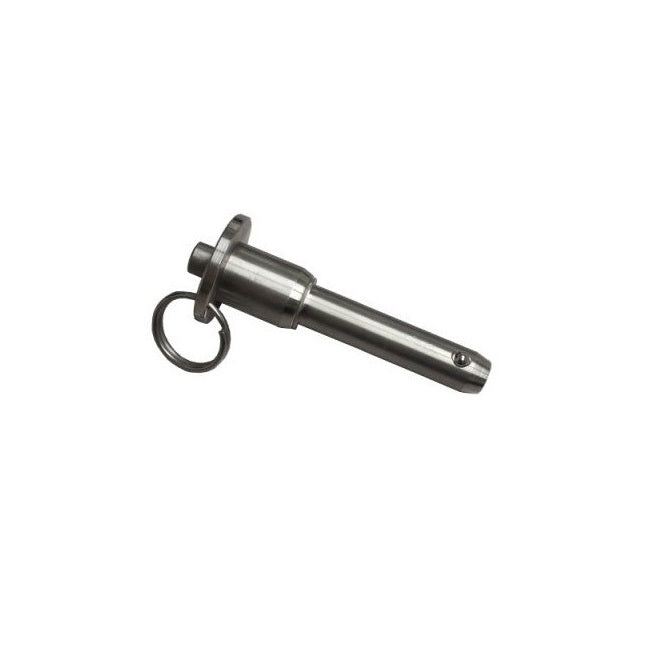

Pins - 11.11 mm x 63.5 mm 17-4 PH Stainless / Aluminium Handle
BLP-111-0635-BT-S17

MBA

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$129.50 AUD
$129.50 AUD
Each
Out Of Stock
Order 50 or more for $116.55 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Dec 22, 2024

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - Button Handle - Stainless Steel

Product Details:

Nominal Diameter: 11.11mm
Stainless 17-4PH with Aluminium Handle

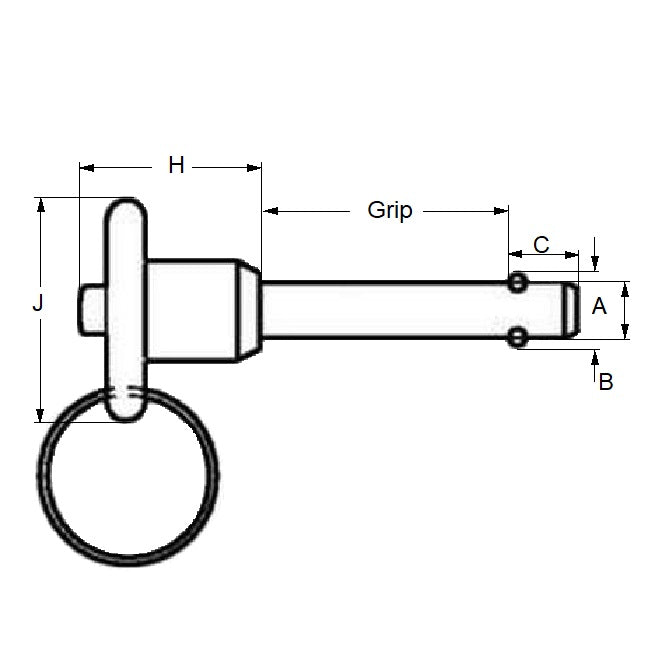

  • Grip Length: 63.50mm
  • Pin Material Grade: 17-4 PH Stainless / Aluminium Handle
  • Locking Ball to End (C): 9.65mm
  • Open Ball Distance (B): 12.92mm
  • Ring Diameter (F): 27.69mm
  • Handle Length (R): 24.89mm
  • Pull Out Strength: 321.00Kg
  • Calc. Double Shear Strength: 12670Kg
  • Max. Diameter: 11.07mm
  • Min. Diameter: 11.03mm

Brand: MBA
Country of Origin: DE

Alternatives: BLBS-107, BLBS-107A

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
