W0050-D-010-003-C (PK-50)

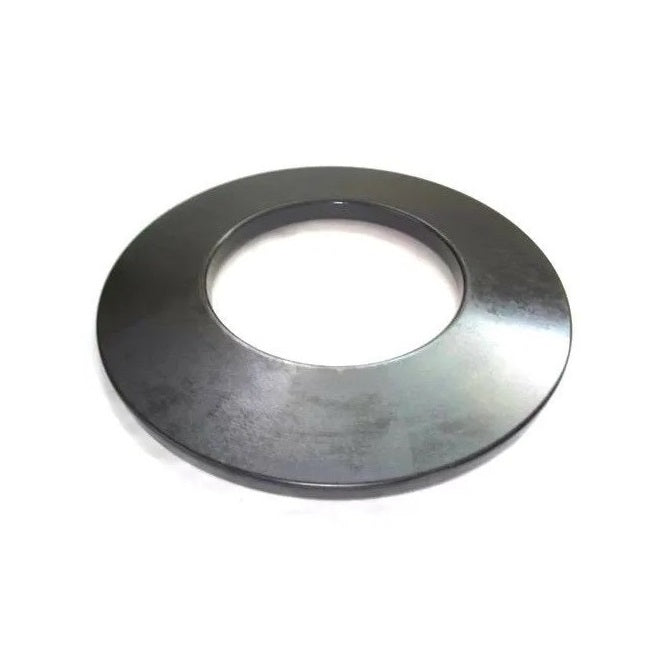

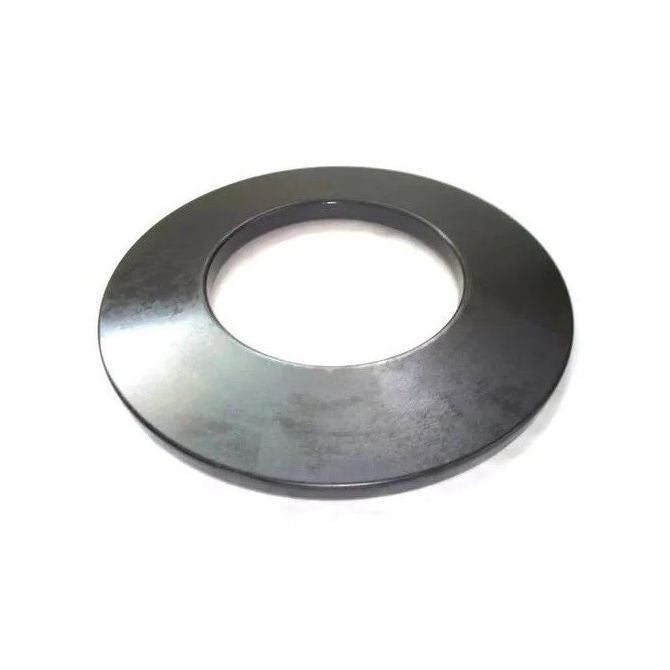

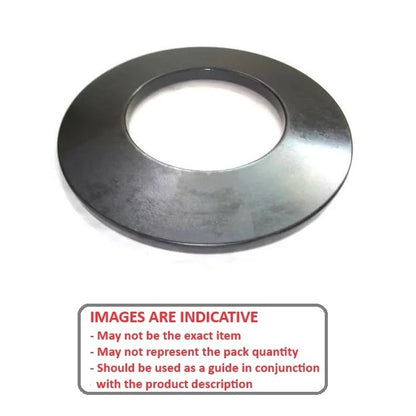

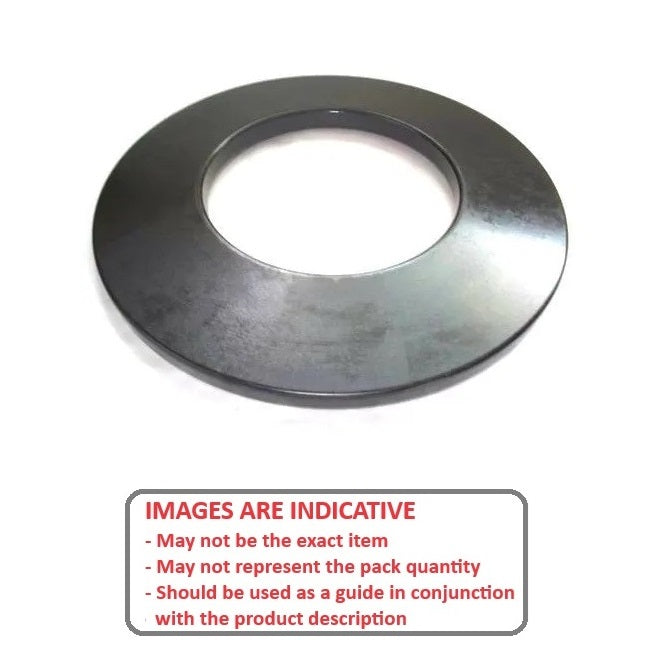

Disc Spring Washers - 10x5x0.25 mm Standard - Carbon Steel Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Disc Spring Washers PDF
Screws
Order 50 or more packs of 50 (2500 pcs)
for $32.19 AUD per 50 pack
10x5x0.25 mm Disc Spring Washers - Carbon Steel - Sold per pack of 50:
Base Category: Washers - Disc Spring
Top Level Category: Washers - Disc Spring - Standard - Carbon Steel
Product Details

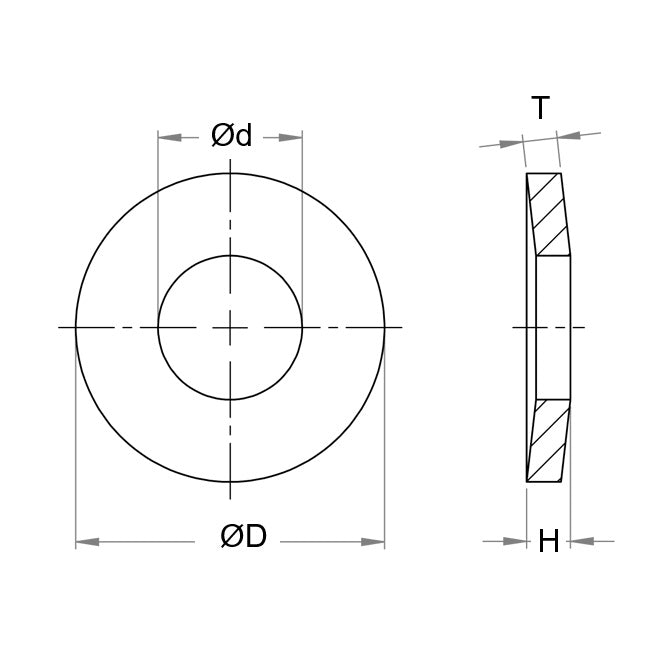

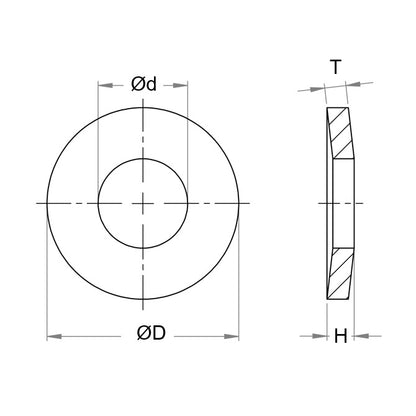

Nominal Outside Diameter (A): 10.00mm(10.00mm is 0.394 in.)
Carbon Steel
- Nominal Outside Diameter (A): 10.00mm
(10.00mm is 0.394 in.)
- Nominal Inside Diameter (B): 5.00mm
+ 0.20 / - 0.00
(5.00mm is 0.197 in.)
- Stock Thickness (C): 0.25mm
(0.25mm is 0.01 in.)
- Loaded Height (L1): 0.33mm
- Load at L1: 6.0kg
- Free Height (E): 0.55mm
- Actual ID (Ref): 5.2mm
- Inside Height (D): 0.30mm
Brand: MBA
Country of Origin: AU
Product Compliance and Data
Similar to
- ALTPART
- 96445K204
- WASCA DS100502
- S4215
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0050D010003C, W0050D010
