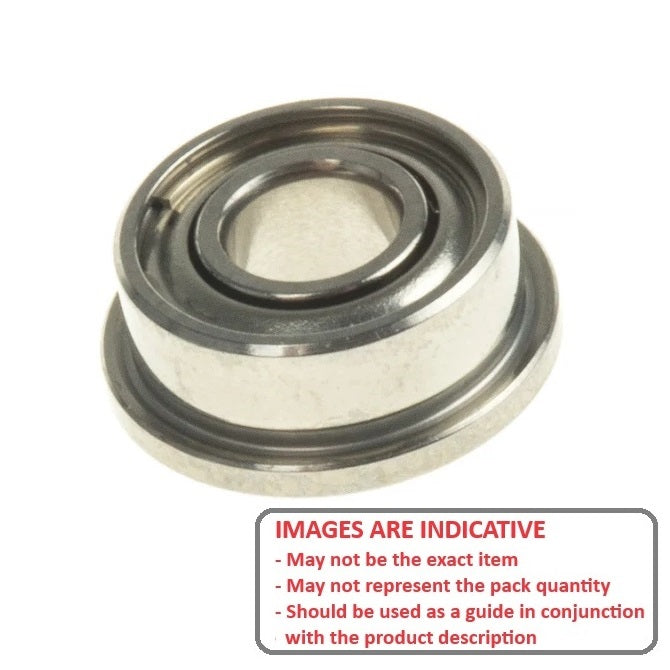

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

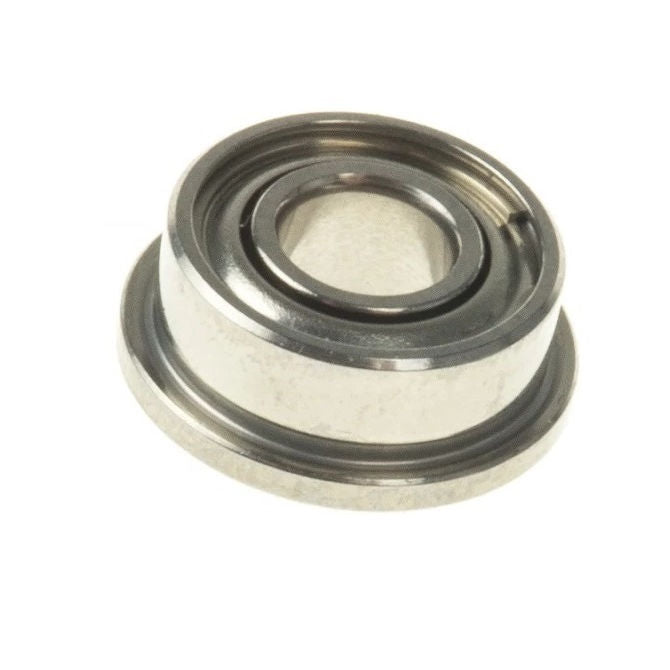

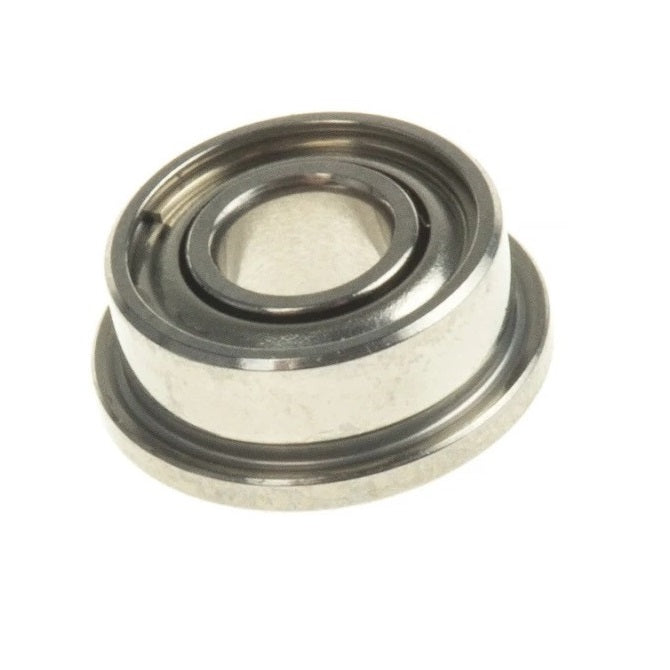

Bearings - 10 mm x 19 mm x 7 mm
SF6800B-ZZS-MC34-GR5-R-G48 (20 Pcs)

Name: 1092797 | SF6800B-ZZS-MC34-GR5-R-G48 (20 Pcs) --- Bearings - 10 mm x 19 mm x 7 mm
Brand: MBA
SKU: SF6800BZZSMC34GR5RG48
Price: 1743.32 AUD
Availability: InStock

MBA

Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting

Price:

$1,743.32 AUD

per 20
Out Of Stock
Order 50 or more (1000 pcs) for $1,568.99 AUD per 20

Similar Items

Pre-Order now! Backorders for more than the stock quantity are expected before Jan 25, 2025

Quantity

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

Product Details:

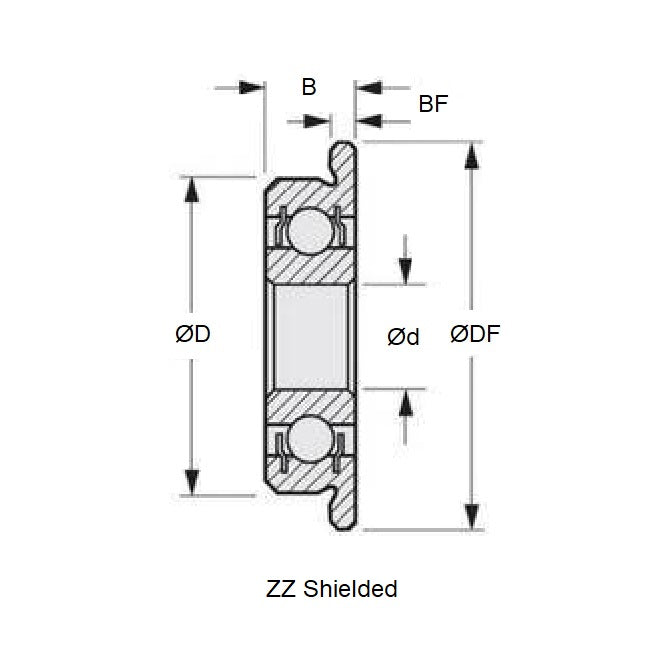

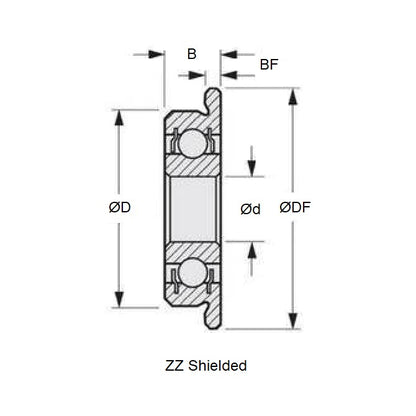

Non ISO Width

ID (d): 10.000mm
_{+0.000/-0.005}

AIS I 440C Stainless Steel

OD (D): 19.000mm
_{+0.000/-0.005}
Width (B): 7.000mm
_{+0.000/-0.040}
Flange Diameter (DF): 21.000mm
Flange Width (BF): 1.500mm
Precision Grade: Abec 5
Closure Type: ZZS
Bearing Type: Radial Flanged
Lubricant: Turmogrease Li 802 EP plus

Brand: MBA
Country of Origin: DE

Alternatives: P6SSF-6800-SSW-G-2, SF6800BZZSGR5G48, SF6800BZZSRGR5MC34G48, ULKZ-1019X-48-A5P-6/15-G48, ULKZ1019X-A5P-G48

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
