W0100-T-016-013-W3-C (2 Pcs)

Name: W0100-T-016-013-W3-C (2 Pack) - Spring Washers - 10x16x1.3 mm 3 Wave - Carbon Spring Steel Self Finish Washer
Brand: MBA
SKU: W0100T016013W3C
Price: 5.77 AUD
Availability: InStock

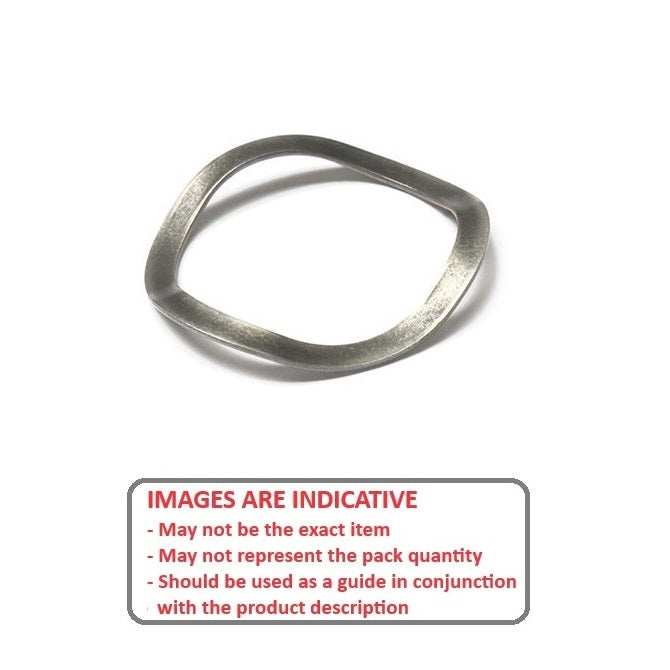

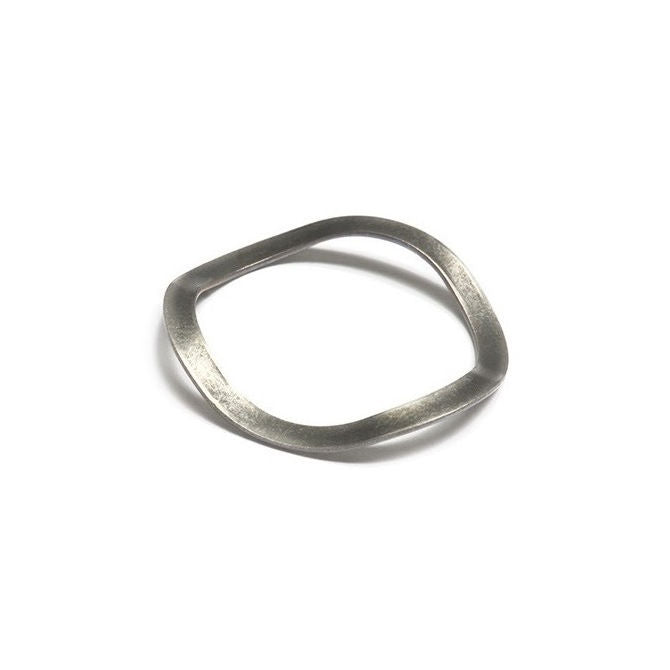

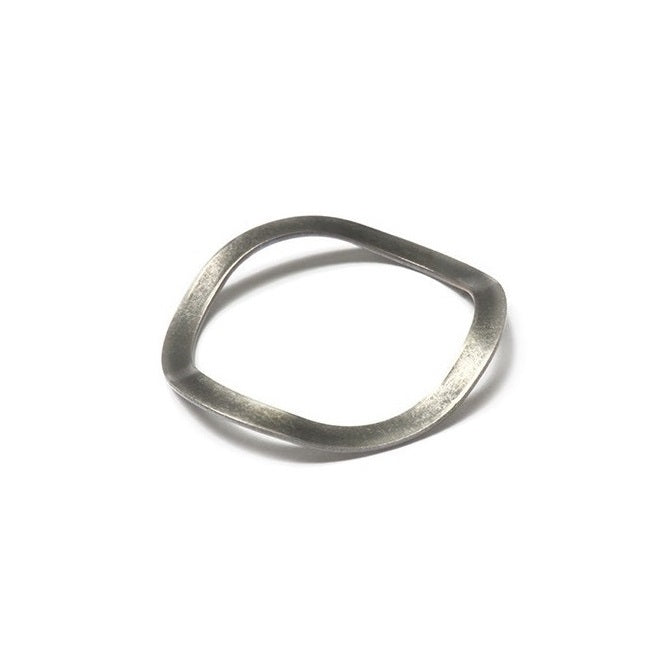

Spring Washers - 10x16x1.3 mm 3 Wave - Carbon Spring Steel Self Finish Washer

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

NaN -Infinity

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export

Category: Washers - Spring - 3 Wave - Carbon Steel

Additional resources:
Assortment Kits
Screws

Price:

$5.77 AUD

Excludes GST and overseas Taxes & Duties

per 2
Qty: 47 packs (94 pcs) available now
Order 50 or more packs (100 pcs) for $5.19 AUD per 2

Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.

Product Details

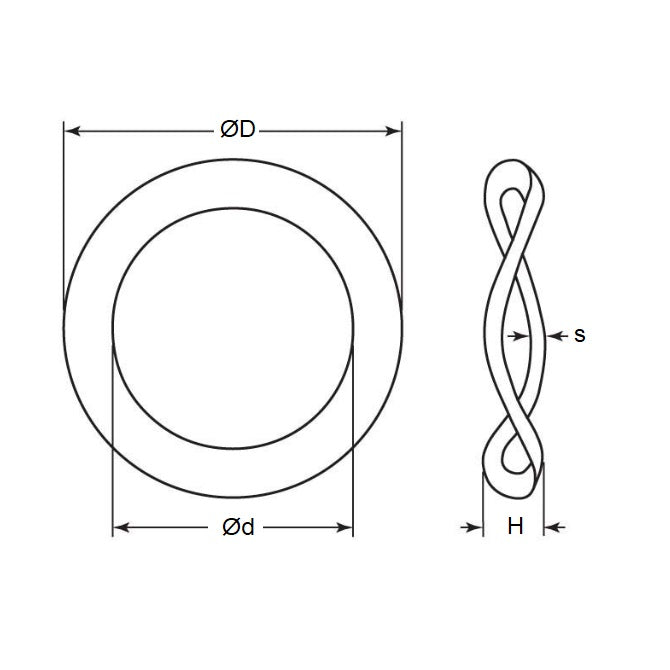

Nominal Inside Diameter (d): 10.00mm
_{+ 0.3 / + 0.7}
_{(10.00mm is 0.394 in.)}

Carbon Spring Steel Self Finish

Nominal Outside Diameter (D): 16.00mm
_{- 0.3 / - 0.7}
_{(16.00mm is 0.63 in.)}
Nom. Height (H): 1.30mm
_{(1.30mm is 0.051 in.)}
Thickness (s): 0.15mm
Info: Suits OD of 625, 634 Bearings (Equiv EPL005)
Type: 3 Wave
Nominal Screw Size: M10, 3/8
Spring Rate: 38N/mm
Max Kg at Yeld Point: 2.5Kg

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

ExaktKey EPL005
NoCor EPL005
Springmaster EPL005
XOSpring EPL005
W0100T016015W3CB

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
