WLB100-138-34-BI (PK-500)

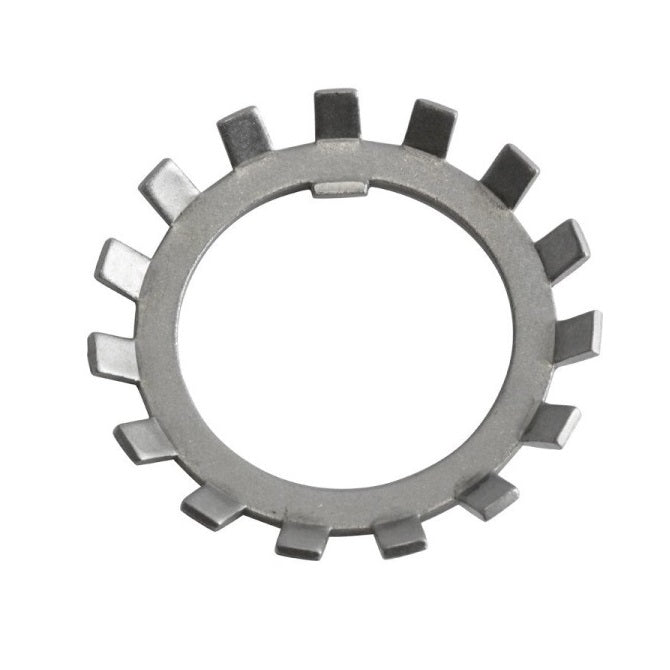

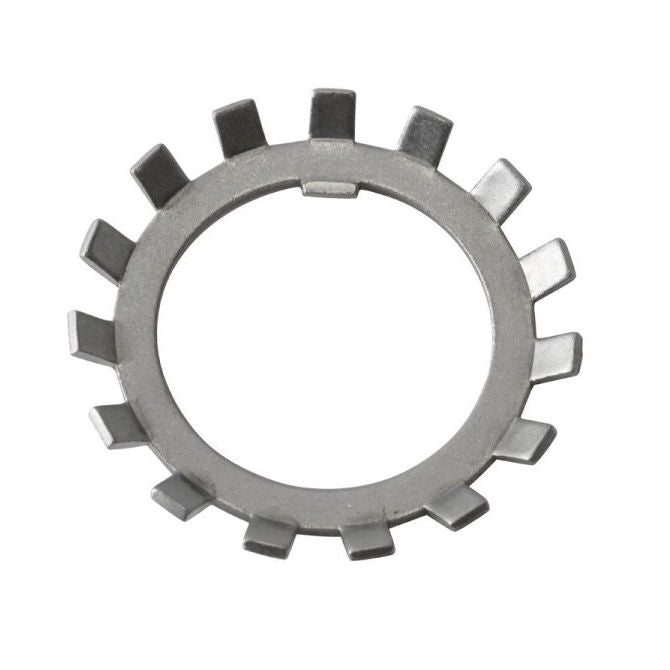

Lock Washers - 100x137.72 mm - 19 Nr. Tabbed - Carbon Spring Steel Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Screws
Order 50 or more packs of 500 (25000 pcs)
for $12,579.83 AUD per 500 pack
3-15/16 inch Washer - 100x137.72 mm - 19 Nr. Lock Washers - Carbon Spring Steel - Sold per pack of 500:
Base Category: Washers - Lock
Top Level Category: Washers - Lock - Tabbed - for Bearing Locknuts
Product Details

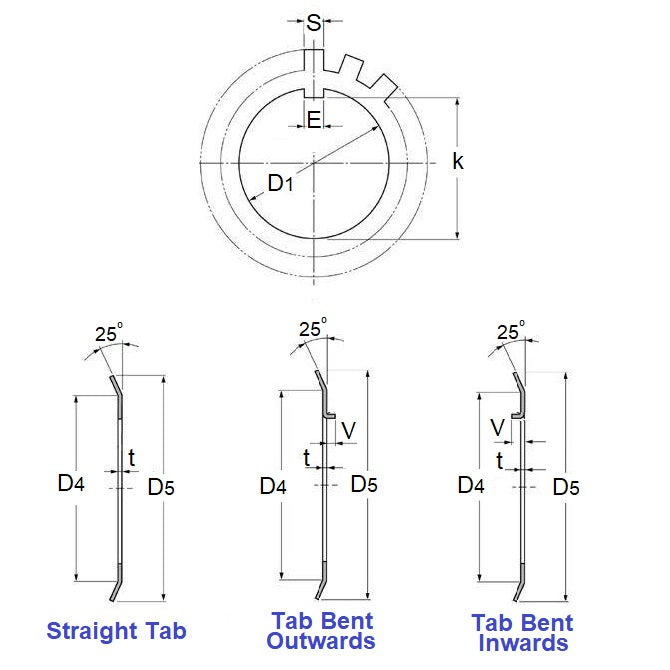

Approximate ID (D1): 100.00mm(100.00mm is 3.937 in.)
Carbon Spring Steel
- Approximate ID (D1): 100.00mm
(100.00mm is 3.937 in.)
- Approx OD (D5): 137.72mm
(137.72mm is 5.422 in.)
- Tabs: 19Nr.
- Inner Face (D4): 113.4mm
- thickness (t): 3.4mm
- Matching Locknut: NH-20
- Inner Tab Type: Bent Inwards
- Series: WH / Heavy Duty
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® WH-20
- WH20
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WLB10013834BI, WLB10013834
