BLP-100-0250-TI-AC (PK-10)

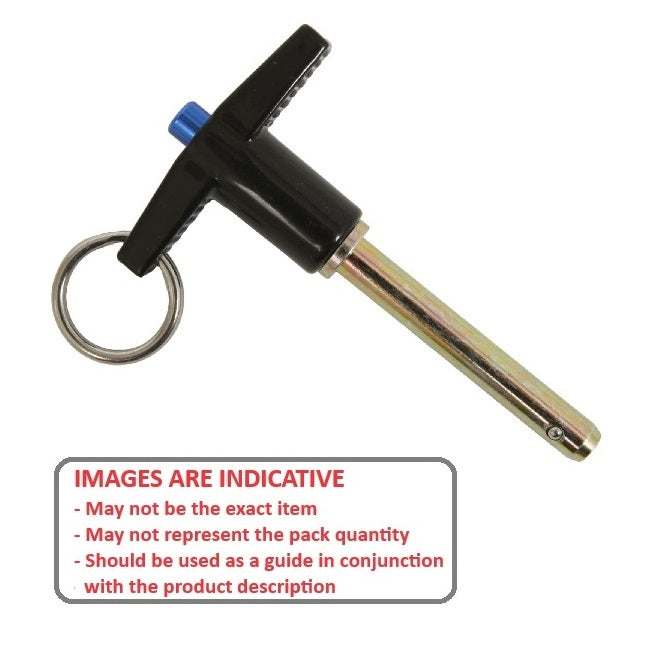

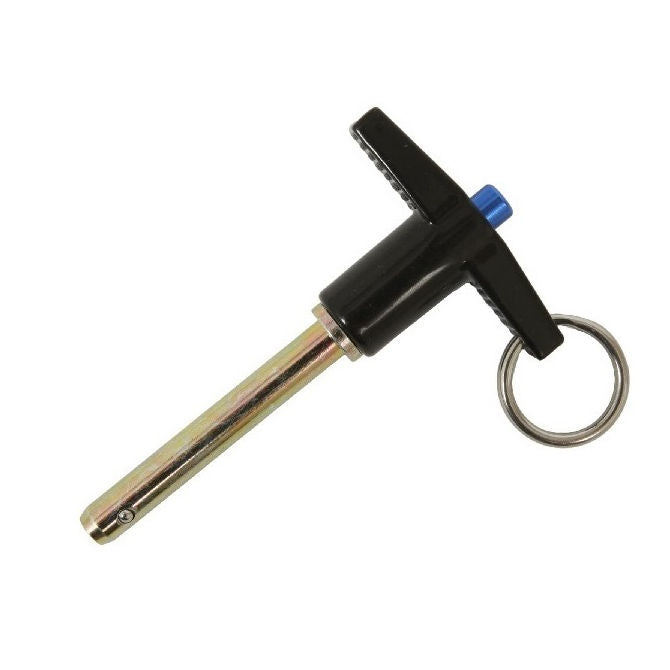

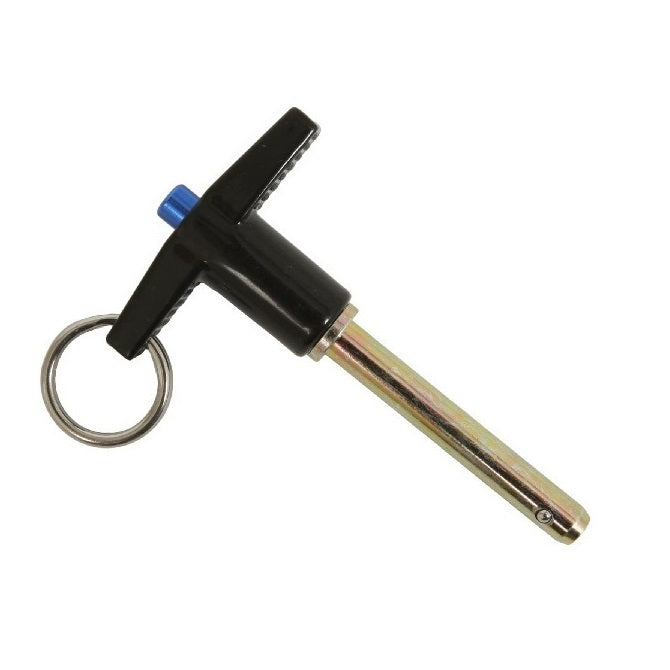

Ball Lock Pins - 10x25 mm - Alloy Steel / Aluminium Handle No Shoulder Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Order 50 or more packs of 10 (500 pcs)
for $4,509.29 AUD per 10 pack
10x25 mm - Alloy Steel / Aluminium Handle Ball Lock Pins - Steel Alloy with Aluminium Handle - Sold per pack of 10:
Base Category: Pins - Ball Lock
Top Level Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Steel and Aluminium
Product Details

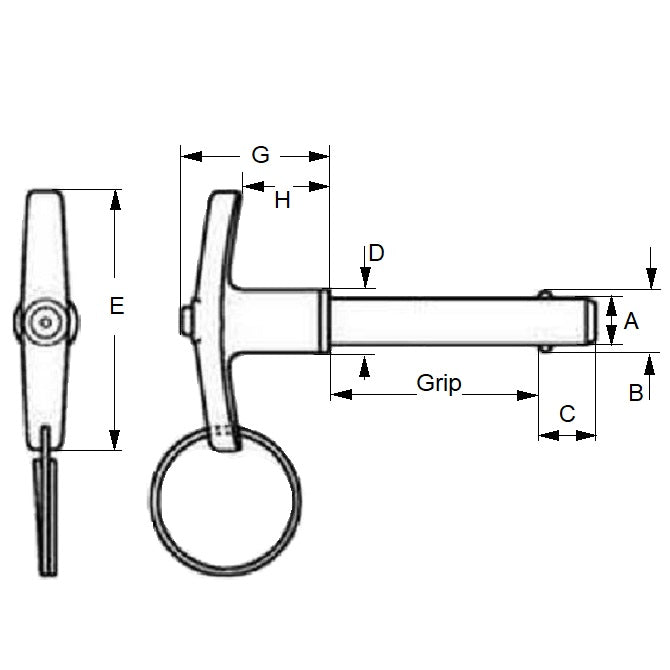

Nominal Diameter: 10.00mm(10.00mm is 0.394 in.)
Steel Alloy with Aluminium Handle
- Nominal Diameter: 10.00mm
(10.00mm is 0.394 in.)
- Grip Length (B): 25.00mm
(25.00mm is 0.984 in.)
- Pin Material Grade: Alloy Steel / Aluminium Handle
- Locking Ball to End (C): 9.00mm
- Open Ball Distance (B): 11.86mm
- Shank Diameter (D): 16.00mm
- Handle Width (E): 51.00mm
- Handle Height (G): 37.00mm
- Handle Shank Length (H): 21mm
- Max. Diameter: 9.96mm
- Min. Diameter: 9.92mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® MBL-380
- MBL380
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BLP1000250TIAC, BLP1000250
