Collection: Springs - Die - Metric - Medium Duty

Springs (With Images)

Metric

32 Products in this selection

Colour coded blue
High tensile strength chromium alloy steels.
Heat Resistance: Up to +230^oC (Loss of load occurs above +120^oC).
Spring Ends: Squared and ground.
For compressed length, Subtract Deflection from Free Length.

Additional resources:
Spings Catalogue PDF

Hole Diameter (A)	Rod Diameter (B)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal
25.00 mm	12.50 mm	76.00 mm	25 Percent	19.0 mm	820.8 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 1213.9 N Spring Rate: 43.2 N/mm Colour Code: Blue
Part Number: DS-250-076-MD Die Springs - 25 mm x 12.5 mm x 76 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $56.59 AUD Regular price Sale price $56.59 AUD Unit price per Each

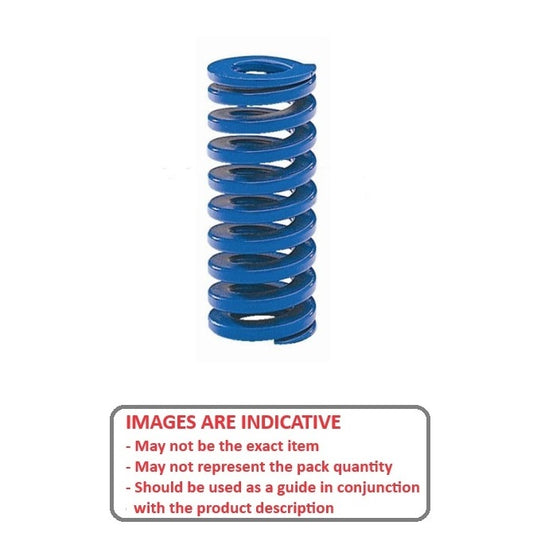

Hole Diameter (A)	Rod Diameter (B)	Length (L)	Optimum Deflection	Indicative Image
25.00 mm	12.50 mm	76.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 820.8 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 1213.9 N Spring Rate: 43.2 N/mm Colour Code: Blue
Part Number: DS-250-076-MD Die Springs - 25 mm x 12.5 mm x 76 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $56.59 AUD Regular price Sale price $56.59 AUD Unit price per Each View the product page first if you are unsure.
DS-250-076-MD --- Die Springs - 25 mm x 12.5 mm x 76 mm Spring Steel DS-250-076-MD --- Die Springs - 25 mm x 12.5 mm x 76 mm Spring Steel Regular price $56.59 AUD Regular price Sale price $56.59 AUD Unit price per Out of stock! Backorder Now
32.00 mm	16.00 mm	38.00 mm	25 Percent	9.5 mm	1757.5 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 2608.5 N Spring Rate: 185.0 N/mm Colour Code: Blue
Part Number: DS-320-038-MD Die Springs - 32 mm x 16 mm x 38 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $47.77 AUD Regular price Sale price $47.77 AUD Unit price per Each
32.00 mm	16.00 mm	38.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 1757.5 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 2608.5 N Spring Rate: 185.0 N/mm Colour Code: Blue
Part Number: DS-320-038-MD Die Springs - 32 mm x 16 mm x 38 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $47.77 AUD Regular price Sale price $47.77 AUD Unit price per Each View the product page first if you are unsure.
DS-320-038-MD --- Die Springs - 32 mm x 16 mm x 38 mm Spring Steel DS-320-038-MD --- Die Springs - 32 mm x 16 mm x 38 mm Spring Steel Regular price $47.77 AUD Regular price Sale price $47.77 AUD Unit price per Out of stock! Backorder Now
32.00 mm	16.00 mm	51.00 mm	25 Percent	12.8 mm	1715.2 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 2532.6 N Spring Rate: 134.0 N/mm Colour Code: Blue
Part Number: DS-320-051-MD Die Springs - 32 mm x 16 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $55.50 AUD Regular price Sale price $55.50 AUD Unit price per Each
32.00 mm	16.00 mm	51.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 1715.2 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 2532.6 N Spring Rate: 134.0 N/mm Colour Code: Blue
Part Number: DS-320-051-MD Die Springs - 32 mm x 16 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $55.50 AUD Regular price Sale price $55.50 AUD Unit price per Each View the product page first if you are unsure.
DS-320-051-MD --- Die Springs - 32 mm x 16 mm x 51 mm Spring Steel DS-320-051-MD --- Die Springs - 32 mm x 16 mm x 51 mm Spring Steel Regular price $55.50 AUD Regular price Sale price $55.50 AUD Unit price per Out of stock! Backorder Now
40.00 mm	20.00 mm	51.00 mm	25 Percent	12.8 mm	2324.5 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 3432.2 N Spring Rate: 181.6 N/mm Colour Code: Blue
Part Number: DS-400-051-MD Die Springs - 40 mm x 20 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $84.59 AUD Regular price Sale price $84.59 AUD Unit price per Each
40.00 mm	20.00 mm	51.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 2324.5 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 3432.2 N Spring Rate: 181.6 N/mm Colour Code: Blue
Part Number: DS-400-051-MD Die Springs - 40 mm x 20 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $84.59 AUD Regular price Sale price $84.59 AUD Unit price per Each View the product page first if you are unsure.
DS-400-051-MD --- Die Springs - 40 mm x 20 mm x 51 mm Spring Steel DS-400-051-MD --- Die Springs - 40 mm x 20 mm x 51 mm Spring Steel Regular price $84.59 AUD Regular price Sale price $84.59 AUD Unit price per Out of stock! Backorder Now
40.00 mm	20.00 mm	64.00 mm	25 Percent	16.0 mm	2240.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Load at Maximum: 3318.0 N Spring Rate: 140.0 N/mm Colour Code: Blue
Part Number: DS-400-064-MD Die Springs - 40 mm x 20 mm x 64 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $95.05 AUD Regular price Sale price $95.05 AUD Unit price per Each
40.00 mm	20.00 mm	64.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 16.0 mm Load at Optimal: 2240.0 N Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Load at Maximum: 3318.0 N Spring Rate: 140.0 N/mm Colour Code: Blue
Part Number: DS-400-064-MD Die Springs - 40 mm x 20 mm x 64 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $95.05 AUD Regular price Sale price $95.05 AUD Unit price per Each View the product page first if you are unsure.
DS-400-064-MD --- Die Springs - 40 mm x 20 mm x 64 mm Spring Steel DS-400-064-MD --- Die Springs - 40 mm x 20 mm x 64 mm Spring Steel Regular price $95.05 AUD Regular price Sale price $95.05 AUD Unit price per Out of stock! Backorder Now
40.00 mm	20.00 mm	76.00 mm	25 Percent	19.0 mm	2052.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 3034.8 N Spring Rate: 108.0 N/mm Colour Code: Blue
Part Number: DS-400-076-MD Die Springs - 40 mm x 20 mm x 76 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $89.68 AUD Regular price Sale price $89.68 AUD Unit price per Each
40.00 mm	20.00 mm	76.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 2052.0 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 3034.8 N Spring Rate: 108.0 N/mm Colour Code: Blue
Part Number: DS-400-076-MD Die Springs - 40 mm x 20 mm x 76 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $89.68 AUD Regular price Sale price $89.68 AUD Unit price per Each View the product page first if you are unsure.
DS-400-076-MD --- Die Springs - 40 mm x 20 mm x 76 mm Spring Steel DS-400-076-MD --- Die Springs - 40 mm x 20 mm x 76 mm Spring Steel Regular price $89.68 AUD Regular price Sale price $89.68 AUD Unit price per Out of stock! Backorder Now

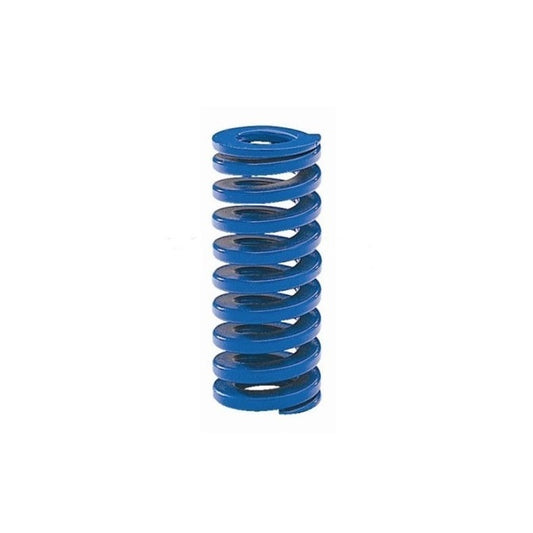

40.00 mm	20.00 mm	89.00 mm	25 Percent	22.3 mm	2022.6 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 32.9 mm Load at Maximum: 2984.0 N Spring Rate: 90.7 N/mm Colour Code: Blue
Part Number: DS-400-089-MD Die Springs - 40 mm x 20 mm x 89 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $98.50 AUD Regular price Sale price $98.50 AUD Unit price per Each
40.00 mm	20.00 mm	89.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 22.3 mm Load at Optimal: 2022.6 N Maximum Deflection: 37 Percent Maximum Deflection: 32.9 mm Load at Maximum: 2984.0 N Spring Rate: 90.7 N/mm Colour Code: Blue
Part Number: DS-400-089-MD Die Springs - 40 mm x 20 mm x 89 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $98.50 AUD Regular price Sale price $98.50 AUD Unit price per Each View the product page first if you are unsure.
DS-400-089-MD --- Die Springs - 40 mm x 20 mm x 89 mm Spring Steel DS-400-089-MD --- Die Springs - 40 mm x 20 mm x 89 mm Spring Steel Regular price $98.50 AUD Regular price Sale price $98.50 AUD Unit price per Out of stock! Backorder Now
50.00 mm	25.00 mm	64.00 mm	25 Percent	16.0 mm	3344.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Load at Maximum: 4953.3 N Spring Rate: 209.0 N/mm Colour Code: Blue
Part Number: DS-500-064-MD Die Springs - 50 mm x 25 mm x 64 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $128.50 AUD Regular price Sale price $128.50 AUD Unit price per Each
50.00 mm	25.00 mm	64.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 16.0 mm Load at Optimal: 3344.0 N Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Load at Maximum: 4953.3 N Spring Rate: 209.0 N/mm Colour Code: Blue
Part Number: DS-500-064-MD Die Springs - 50 mm x 25 mm x 64 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Apr 07, 2025 Regular price $128.50 AUD Regular price Sale price $128.50 AUD Unit price per Each View the product page first if you are unsure.
DS-500-064-MD --- Die Springs - 50 mm x 25 mm x 64 mm Spring Steel DS-500-064-MD --- Die Springs - 50 mm x 25 mm x 64 mm Spring Steel Regular price $128.50 AUD Regular price Sale price $128.50 AUD Unit price per Out of stock! Backorder Now
