Collection: Springs - Die - Metric - Medium Duty

Springs (With Images)

Die

Metric

32 Products in this selection

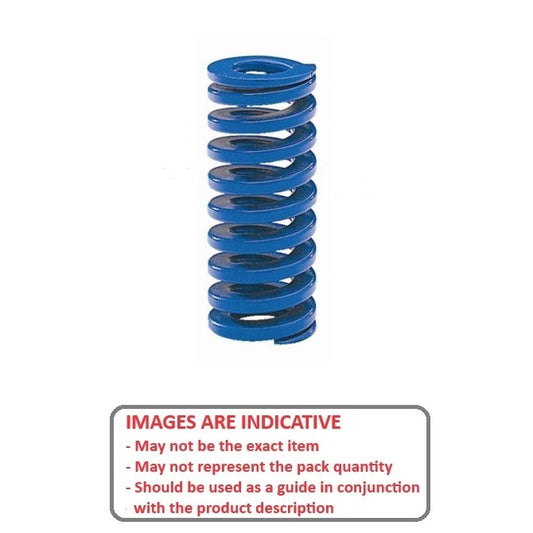

Colour coded blue
High tensile strength chromium alloy steels.
Heat Resistance: Up to +230^oC (Loss of load occurs above +120^oC).
Spring Ends: Squared and ground.
For compressed length, Subtract Deflection from Free Length.

Additional resources:
Spings Catalogue PDF

Hole Diameter (A)	Rod Diameter (B)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal	Indicative Image
10.00 mm	5.00 mm	25.00 mm	25 Percent	6.3 mm	100.8 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 148.8 N Spring Rate: 16.0 N/mm Colour Code: Blue
Part Number: DS-100-025-MD Die Springs - 10 mm x 5 mm x 25 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Each
Hole Diameter (A)	Rod Diameter (B)	Length (L)	Optimum Deflection	Indicative Image
10.00 mm	5.00 mm	25.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 100.8 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 148.8 N Spring Rate: 16.0 N/mm Colour Code: Blue
Part Number: DS-100-025-MD Die Springs - 10 mm x 5 mm x 25 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Each View the product page first if you are unsure.
DS-100-025-MD --- Die Springs - 10 mm x 5 mm x 25 mm Spring Steel DS-100-025-MD --- Die Springs - 10 mm x 5 mm x 25 mm Spring Steel Regular price $11.77 AUD Regular price Sale price $11.77 AUD Unit price per Out of stock! Backorder Now
10.00 mm	5.00 mm	32.00 mm	25 Percent	8.0 mm	104.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 153.4 N Spring Rate: 13.0 N/mm Colour Code: Blue
Part Number: DS-100-032-MD Die Springs - 10 mm x 5 mm x 32 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Each
10.00 mm	5.00 mm	32.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 104.0 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 153.4 N Spring Rate: 13.0 N/mm Colour Code: Blue
Part Number: DS-100-032-MD Die Springs - 10 mm x 5 mm x 32 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Each View the product page first if you are unsure.
DS-100-032-MD --- Die Springs - 10 mm x 5 mm x 32 mm Spring Steel DS-100-032-MD --- Die Springs - 10 mm x 5 mm x 32 mm Spring Steel Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Out of stock! Backorder Now
10.00 mm	5.00 mm	38.00 mm	25 Percent	9.5 mm	113.1 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 167.8 N Spring Rate: 11.9 N/mm Colour Code: Blue
Part Number: DS-100-038-MD Die Springs - 10 mm x 5 mm x 38 mm 4 Available Immediately \| Further orders can be expected around Sun, Apr 06, 2025 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Each
10.00 mm	5.00 mm	38.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 113.1 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 167.8 N Spring Rate: 11.9 N/mm Colour Code: Blue
Part Number: DS-100-038-MD Die Springs - 10 mm x 5 mm x 38 mm 4 Available Immediately \| Further orders can be expected around Sun, Apr 06, 2025 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Each View the product page first if you are unsure.
DS-100-038-MD --- Die Springs - 10 mm x 5 mm x 38 mm Spring Steel DS-100-038-MD --- Die Springs - 10 mm x 5 mm x 38 mm Spring Steel Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per 4 Available Now
10.00 mm	5.00 mm	44.00 mm	25 Percent	11.0 mm	113.3 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Load at Maximum: 167.9 N Spring Rate: 10.3 N/mm Colour Code: Blue
Part Number: DS-100-044-MD Die Springs - 10 mm x 5 mm x 44 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Each
10.00 mm	5.00 mm	44.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 11.0 mm Load at Optimal: 113.3 N Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Load at Maximum: 167.9 N Spring Rate: 10.3 N/mm Colour Code: Blue
Part Number: DS-100-044-MD Die Springs - 10 mm x 5 mm x 44 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Each View the product page first if you are unsure.
DS-100-044-MD --- Die Springs - 10 mm x 5 mm x 44 mm Spring Steel DS-100-044-MD --- Die Springs - 10 mm x 5 mm x 44 mm Spring Steel Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Out of stock! Backorder Now
10.00 mm	5.00 mm	51.00 mm	25 Percent	12.8 mm	113.9 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 168.2 N Spring Rate: 8.9 N/mm Colour Code: Blue
Part Number: DS-100-051-MD Die Springs - 10 mm x 5 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Each
10.00 mm	5.00 mm	51.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 113.9 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 168.2 N Spring Rate: 8.9 N/mm Colour Code: Blue
Part Number: DS-100-051-MD Die Springs - 10 mm x 5 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Each View the product page first if you are unsure.
DS-100-051-MD --- Die Springs - 10 mm x 5 mm x 51 mm Spring Steel DS-100-051-MD --- Die Springs - 10 mm x 5 mm x 51 mm Spring Steel Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Out of stock! Backorder Now
12.50 mm	6.30 mm	25.00 mm	25 Percent	6.3 mm	189.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 279.0 N Spring Rate: 30.0 N/mm Colour Code: Blue
Part Number: DS-125-025-MD Die Springs - 12.5 mm x 6.3 mm x 25 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Each
12.50 mm	6.30 mm	25.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 189.0 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 279.0 N Spring Rate: 30.0 N/mm Colour Code: Blue
Part Number: DS-125-025-MD Die Springs - 12.5 mm x 6.3 mm x 25 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Each View the product page first if you are unsure.
DS-125-025-MD --- Die Springs - 12.5 mm x 6.3 mm x 25 mm Spring Steel DS-125-025-MD --- Die Springs - 12.5 mm x 6.3 mm x 25 mm Spring Steel Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Out of stock! Backorder Now
12.50 mm	6.30 mm	32.00 mm	25 Percent	8.0 mm	198.4 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 292.6 N Spring Rate: 24.8 N/mm Colour Code: Blue
Part Number: DS-125-032-MD Die Springs - 12.5 mm x 6.3 mm x 32 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $16.95 AUD Regular price Sale price $16.95 AUD Unit price per Each
12.50 mm	6.30 mm	32.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 198.4 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 292.6 N Spring Rate: 24.8 N/mm Colour Code: Blue
Part Number: DS-125-032-MD Die Springs - 12.5 mm x 6.3 mm x 32 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $16.95 AUD Regular price Sale price $16.95 AUD Unit price per Each View the product page first if you are unsure.
DS-125-032-MD --- Die Springs - 12.5 mm x 6.3 mm x 32 mm Spring Steel DS-125-032-MD --- Die Springs - 12.5 mm x 6.3 mm x 32 mm Spring Steel Regular price $16.95 AUD Regular price Sale price $16.95 AUD Unit price per Out of stock! Backorder Now
12.50 mm	6.30 mm	38.00 mm	25 Percent	9.5 mm	203.3 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 301.7 N Spring Rate: 21.4 N/mm Colour Code: Blue
Part Number: DS-125-038-MD Die Springs - 12.5 mm x 6.3 mm x 38 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $19.59 AUD Regular price Sale price $19.59 AUD Unit price per Each
12.50 mm	6.30 mm	38.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 203.3 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 301.7 N Spring Rate: 21.4 N/mm Colour Code: Blue
Part Number: DS-125-038-MD Die Springs - 12.5 mm x 6.3 mm x 38 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $19.59 AUD Regular price Sale price $19.59 AUD Unit price per Each View the product page first if you are unsure.
DS-125-038-MD --- Die Springs - 12.5 mm x 6.3 mm x 38 mm Spring Steel DS-125-038-MD --- Die Springs - 12.5 mm x 6.3 mm x 38 mm Spring Steel Regular price $19.59 AUD Regular price Sale price $19.59 AUD Unit price per Out of stock! Backorder Now
12.50 mm	6.30 mm	44.00 mm	25 Percent	11.0 mm	203.5 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Load at Maximum: 301.6 N Spring Rate: 18.5 N/mm Colour Code: Blue
Part Number: DS-125-044-MD Die Springs - 12.5 mm x 6.3 mm x 44 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Each
12.50 mm	6.30 mm	44.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 11.0 mm Load at Optimal: 203.5 N Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Load at Maximum: 301.6 N Spring Rate: 18.5 N/mm Colour Code: Blue
Part Number: DS-125-044-MD Die Springs - 12.5 mm x 6.3 mm x 44 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Each View the product page first if you are unsure.
DS-125-044-MD --- Die Springs - 12.5 mm x 6.3 mm x 44 mm Spring Steel DS-125-044-MD --- Die Springs - 12.5 mm x 6.3 mm x 44 mm Spring Steel Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Out of stock! Backorder Now
12.50 mm	6.30 mm	51.00 mm	25 Percent	12.8 mm	198.4 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 293.0 N Spring Rate: 15.5 N/mm Colour Code: Blue
Part Number: DS-125-051-MD Die Springs - 12.5 mm x 6.3 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Each
12.50 mm	6.30 mm	51.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 198.4 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 293.0 N Spring Rate: 15.5 N/mm Colour Code: Blue
Part Number: DS-125-051-MD Die Springs - 12.5 mm x 6.3 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Each View the product page first if you are unsure.
DS-125-051-MD --- Die Springs - 12.5 mm x 6.3 mm x 51 mm Spring Steel DS-125-051-MD --- Die Springs - 12.5 mm x 6.3 mm x 51 mm Spring Steel Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Out of stock! Backorder Now
16.00 mm	8.00 mm	25.00 mm	25 Percent	6.3 mm	311.2 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 459.4 N Spring Rate: 49.4 N/mm Colour Code: Blue
Part Number: DS-160-025-MD Die Springs - 16 mm x 8 mm x 25 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Each
16.00 mm	8.00 mm	25.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 311.2 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 459.4 N Spring Rate: 49.4 N/mm Colour Code: Blue
Part Number: DS-160-025-MD Die Springs - 16 mm x 8 mm x 25 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Each View the product page first if you are unsure.
DS-160-025-MD --- Die Springs - 16 mm x 8 mm x 25 mm Spring Steel DS-160-025-MD --- Die Springs - 16 mm x 8 mm x 25 mm Spring Steel Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Out of stock! Backorder Now
16.00 mm	8.00 mm	32.00 mm	25 Percent	8.0 mm	296.8 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 437.8 N Spring Rate: 37.1 N/mm Colour Code: Blue
Part Number: DS-160-032-MD Die Springs - 16 mm x 8 mm x 32 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $16.23 AUD Regular price Sale price $16.23 AUD Unit price per Each
16.00 mm	8.00 mm	32.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 296.8 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 437.8 N Spring Rate: 37.1 N/mm Colour Code: Blue
Part Number: DS-160-032-MD Die Springs - 16 mm x 8 mm x 32 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $16.23 AUD Regular price Sale price $16.23 AUD Unit price per Each View the product page first if you are unsure.
DS-160-032-MD --- Die Springs - 16 mm x 8 mm x 32 mm Spring Steel DS-160-032-MD --- Die Springs - 16 mm x 8 mm x 32 mm Spring Steel Regular price $16.23 AUD Regular price Sale price $16.23 AUD Unit price per Out of stock! Backorder Now
16.00 mm	8.00 mm	38.00 mm	25 Percent	9.5 mm	322.1 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 478.0 N Spring Rate: 33.9 N/mm Colour Code: Blue
Part Number: DS-160-038-MD Die Springs - 16 mm x 8 mm x 38 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Each
16.00 mm	8.00 mm	38.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 322.1 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 478.0 N Spring Rate: 33.9 N/mm Colour Code: Blue
Part Number: DS-160-038-MD Die Springs - 16 mm x 8 mm x 38 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Each View the product page first if you are unsure.
DS-160-038-MD --- Die Springs - 16 mm x 8 mm x 38 mm Spring Steel DS-160-038-MD --- Die Springs - 16 mm x 8 mm x 38 mm Spring Steel Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Out of stock! Backorder Now
16.00 mm	8.00 mm	51.00 mm	25 Percent	12.8 mm	337.9 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 499.0 N Spring Rate: 26.4 N/mm Colour Code: Blue
Part Number: DS-160-051-MD Die Springs - 16 mm x 8 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $25.59 AUD Regular price Sale price $25.59 AUD Unit price per Each
16.00 mm	8.00 mm	51.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 337.9 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 499.0 N Spring Rate: 26.4 N/mm Colour Code: Blue
Part Number: DS-160-051-MD Die Springs - 16 mm x 8 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $25.59 AUD Regular price Sale price $25.59 AUD Unit price per Each View the product page first if you are unsure.
DS-160-051-MD --- Die Springs - 16 mm x 8 mm x 51 mm Spring Steel DS-160-051-MD --- Die Springs - 16 mm x 8 mm x 51 mm Spring Steel Regular price $25.59 AUD Regular price Sale price $25.59 AUD Unit price per Out of stock! Backorder Now
20.00 mm	10.00 mm	25.00 mm	25 Percent	6.3 mm	617.4 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 911.4 N Spring Rate: 98.0 N/mm Colour Code: Blue
Part Number: DS-200-025-MD Die Springs - 20 mm x 10 mm x 25 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $26.77 AUD Regular price Sale price $26.77 AUD Unit price per Each
20.00 mm	10.00 mm	25.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 617.4 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 911.4 N Spring Rate: 98.0 N/mm Colour Code: Blue
Part Number: DS-200-025-MD Die Springs - 20 mm x 10 mm x 25 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $26.77 AUD Regular price Sale price $26.77 AUD Unit price per Each View the product page first if you are unsure.
DS-200-025-MD --- Die Springs - 20 mm x 10 mm x 25 mm Spring Steel DS-200-025-MD --- Die Springs - 20 mm x 10 mm x 25 mm Spring Steel Regular price $26.77 AUD Regular price Sale price $26.77 AUD Unit price per Out of stock! Backorder Now
20.00 mm	10.00 mm	32.00 mm	25 Percent	8.0 mm	580.8 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 856.7 N Spring Rate: 72.6 N/mm Colour Code: Blue
Part Number: DS-200-032-MD Die Springs - 20 mm x 10 mm x 32 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $29.95 AUD Regular price Sale price $29.95 AUD Unit price per Each
20.00 mm	10.00 mm	32.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 580.8 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 856.7 N Spring Rate: 72.6 N/mm Colour Code: Blue
Part Number: DS-200-032-MD Die Springs - 20 mm x 10 mm x 32 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $29.95 AUD Regular price Sale price $29.95 AUD Unit price per Each View the product page first if you are unsure.
DS-200-032-MD --- Die Springs - 20 mm x 10 mm x 32 mm Spring Steel DS-200-032-MD --- Die Springs - 20 mm x 10 mm x 32 mm Spring Steel Regular price $29.95 AUD Regular price Sale price $29.95 AUD Unit price per Out of stock! Backorder Now
20.00 mm	10.00 mm	38.00 mm	25 Percent	9.5 mm	532.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 789.6 N Spring Rate: 56.0 N/mm Colour Code: Blue
Part Number: DS-200-038-MD Die Springs - 20 mm x 10 mm x 38 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $30.59 AUD Regular price Sale price $30.59 AUD Unit price per Each
20.00 mm	10.00 mm	38.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 532.0 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 789.6 N Spring Rate: 56.0 N/mm Colour Code: Blue
Part Number: DS-200-038-MD Die Springs - 20 mm x 10 mm x 38 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $30.59 AUD Regular price Sale price $30.59 AUD Unit price per Each View the product page first if you are unsure.
DS-200-038-MD --- Die Springs - 20 mm x 10 mm x 38 mm Spring Steel DS-200-038-MD --- Die Springs - 20 mm x 10 mm x 38 mm Spring Steel Regular price $30.59 AUD Regular price Sale price $30.59 AUD Unit price per Out of stock! Backorder Now
20.00 mm	10.00 mm	44.00 mm	25 Percent	11.0 mm	522.5 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Load at Maximum: 774.3 N Spring Rate: 47.5 N/mm Colour Code: Blue
Part Number: DS-200-044-MD Die Springs - 20 mm x 10 mm x 44 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Each
20.00 mm	10.00 mm	44.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 11.0 mm Load at Optimal: 522.5 N Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Load at Maximum: 774.3 N Spring Rate: 47.5 N/mm Colour Code: Blue
Part Number: DS-200-044-MD Die Springs - 20 mm x 10 mm x 44 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Each View the product page first if you are unsure.
DS-200-044-MD --- Die Springs - 20 mm x 10 mm x 44 mm Spring Steel DS-200-044-MD --- Die Springs - 20 mm x 10 mm x 44 mm Spring Steel Regular price $27.14 AUD Regular price Sale price $27.14 AUD Unit price per Out of stock! Backorder Now
20.00 mm	10.00 mm	51.00 mm	25 Percent	12.8 mm	533.8 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 788.1 N Spring Rate: 41.7 N/mm Colour Code: Blue
Part Number: DS-200-051-MD Die Springs - 20 mm x 10 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $34.77 AUD Regular price Sale price $34.77 AUD Unit price per Each
20.00 mm	10.00 mm	51.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 533.8 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 788.1 N Spring Rate: 41.7 N/mm Colour Code: Blue
Part Number: DS-200-051-MD Die Springs - 20 mm x 10 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $34.77 AUD Regular price Sale price $34.77 AUD Unit price per Each View the product page first if you are unsure.
DS-200-051-MD --- Die Springs - 20 mm x 10 mm x 51 mm Spring Steel DS-200-051-MD --- Die Springs - 20 mm x 10 mm x 51 mm Spring Steel Regular price $34.77 AUD Regular price Sale price $34.77 AUD Unit price per Out of stock! Backorder Now
20.00 mm	10.00 mm	76.00 mm	25 Percent	19.0 mm	476.9 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 705.3 N Spring Rate: 25.1 N/mm Colour Code: Blue
Part Number: DS-200-076-MD Die Springs - 20 mm x 10 mm x 76 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $53.95 AUD Regular price Sale price $53.95 AUD Unit price per Each
20.00 mm	10.00 mm	76.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 476.9 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Load at Maximum: 705.3 N Spring Rate: 25.1 N/mm Colour Code: Blue
Part Number: DS-200-076-MD Die Springs - 20 mm x 10 mm x 76 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $53.95 AUD Regular price Sale price $53.95 AUD Unit price per Each View the product page first if you are unsure.
DS-200-076-MD --- Die Springs - 20 mm x 10 mm x 76 mm Spring Steel DS-200-076-MD --- Die Springs - 20 mm x 10 mm x 76 mm Spring Steel Regular price $53.95 AUD Regular price Sale price $53.95 AUD Unit price per Out of stock! Backorder Now
25.00 mm	12.50 mm	25.00 mm	25 Percent	6.3 mm	926.1 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 1367.1 N Spring Rate: 147.0 N/mm Colour Code: Blue
Part Number: DS-250-025-MD Die Springs - 25 mm x 12.5 mm x 25 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $35.23 AUD Regular price Sale price $35.23 AUD Unit price per Each
25.00 mm	12.50 mm	25.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 926.1 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Load at Maximum: 1367.1 N Spring Rate: 147.0 N/mm Colour Code: Blue
Part Number: DS-250-025-MD Die Springs - 25 mm x 12.5 mm x 25 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $35.23 AUD Regular price Sale price $35.23 AUD Unit price per Each View the product page first if you are unsure.
DS-250-025-MD --- Die Springs - 25 mm x 12.5 mm x 25 mm Spring Steel DS-250-025-MD --- Die Springs - 25 mm x 12.5 mm x 25 mm Spring Steel Regular price $35.23 AUD Regular price Sale price $35.23 AUD Unit price per Out of stock! Backorder Now

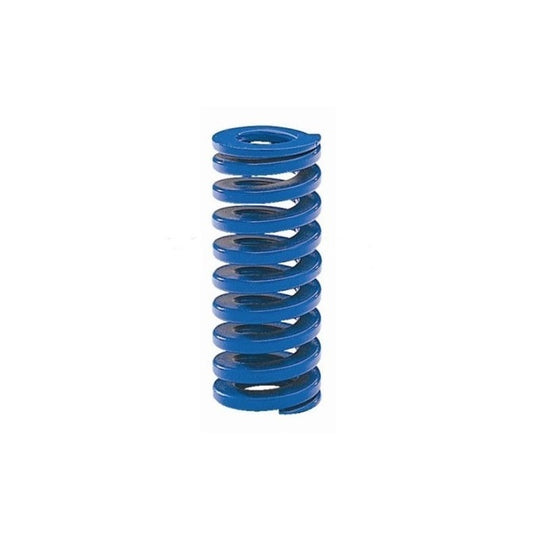

25.00 mm	12.50 mm	32.00 mm	25 Percent	8.0 mm	944.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 1392.4 N Spring Rate: 118.0 N/mm Colour Code: Blue
Part Number: DS-250-032-MD Die Springs - 25 mm x 12.5 mm x 32 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $35.14 AUD Regular price Sale price $35.14 AUD Unit price per Each
25.00 mm	12.50 mm	32.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 944.0 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Load at Maximum: 1392.4 N Spring Rate: 118.0 N/mm Colour Code: Blue
Part Number: DS-250-032-MD Die Springs - 25 mm x 12.5 mm x 32 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $35.14 AUD Regular price Sale price $35.14 AUD Unit price per Each View the product page first if you are unsure.
DS-250-032-MD --- Die Springs - 25 mm x 12.5 mm x 32 mm Spring Steel DS-250-032-MD --- Die Springs - 25 mm x 12.5 mm x 32 mm Spring Steel Regular price $35.14 AUD Regular price Sale price $35.14 AUD Unit price per Out of stock! Backorder Now
25.00 mm	12.50 mm	38.00 mm	25 Percent	9.5 mm	883.5 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 1311.3 N Spring Rate: 93.0 N/mm Colour Code: Blue
Part Number: DS-250-038-MD Die Springs - 25 mm x 12.5 mm x 38 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $39.32 AUD Regular price Sale price $39.32 AUD Unit price per Each
25.00 mm	12.50 mm	38.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 883.5 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Load at Maximum: 1311.3 N Spring Rate: 93.0 N/mm Colour Code: Blue
Part Number: DS-250-038-MD Die Springs - 25 mm x 12.5 mm x 38 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $39.32 AUD Regular price Sale price $39.32 AUD Unit price per Each View the product page first if you are unsure.
DS-250-038-MD --- Die Springs - 25 mm x 12.5 mm x 38 mm Spring Steel DS-250-038-MD --- Die Springs - 25 mm x 12.5 mm x 38 mm Spring Steel Regular price $39.32 AUD Regular price Sale price $39.32 AUD Unit price per Out of stock! Backorder Now
25.00 mm	12.50 mm	51.00 mm	25 Percent	12.8 mm	878.1 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 1296.5 N Spring Rate: 68.6 N/mm Colour Code: Blue
Part Number: DS-250-051-MD Die Springs - 25 mm x 12.5 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $40.77 AUD Regular price Sale price $40.77 AUD Unit price per Each
25.00 mm	12.50 mm	51.00 mm	25 Percent
Material: Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 878.1 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Load at Maximum: 1296.5 N Spring Rate: 68.6 N/mm Colour Code: Blue
Part Number: DS-250-051-MD Die Springs - 25 mm x 12.5 mm x 51 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $40.77 AUD Regular price Sale price $40.77 AUD Unit price per Each View the product page first if you are unsure.
DS-250-051-MD --- Die Springs - 25 mm x 12.5 mm x 51 mm Spring Steel DS-250-051-MD --- Die Springs - 25 mm x 12.5 mm x 51 mm Spring Steel Regular price $40.77 AUD Regular price Sale price $40.77 AUD Unit price per Out of stock! Backorder Now
