Collection: Springs - Die - Imperial - Medium-Heavy Duty

Springs (With Images)

Die

Imperial

70 Products in this selection

Vapor degassed high tensile strength chromium alloy steel. Spring ends are ground square. Designed for long life cycle with constant high end deflections and shot peened to increase fatigue life.
Colour coded red
Efficient operating range is 20 to 30 percent of the length
Maximum deflection is 37 percent of the length

Additional resources:
Spings Catalogue PDF

Hole Diameter (A)	Rod Diameter (B)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal	Indicative Image
25.40 mm	12.700 mm	50.800 mm	20 Percent	10.2 mm	714.0 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 1064.0 N Spring Rate: 70.0 N/mm Colour Code: Red
Part Number: DS-254-051-MHD Die Springs - 25.4 mm x 12.7 mm x 50.8 mm 2 Available Immediately \| Further orders can be expected around Fri, Mar 21, 2025 Regular price $30.14 AUD Regular price Sale price $30.14 AUD Unit price per Each
Hole Diameter (A)	Rod Diameter (B)	Length (L)	Optimum Deflection	Indicative Image
25.40 mm	12.700 mm	50.800 mm	20 Percent
Material: Spring Steel Optimum Deflection: 10.2 mm Load at Optimal: 714.0 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 1064.0 N Spring Rate: 70.0 N/mm Colour Code: Red
Part Number: DS-254-051-MHD Die Springs - 25.4 mm x 12.7 mm x 50.8 mm 2 Available Immediately \| Further orders can be expected around Fri, Mar 21, 2025 Regular price $30.14 AUD Regular price Sale price $30.14 AUD Unit price per Each View the product page first if you are unsure.
DS-254-051-MHD --- Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Spring Steel DS-254-051-MHD --- Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Spring Steel Regular price $30.14 AUD Regular price Sale price $30.14 AUD Unit price per 2 Available Now
25.40 mm	12.700 mm	50.800 mm	20 Percent	10.2 mm	715.0 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 1065.5 N Spring Rate: 70.1 N/mm Colour Code: Red
Part Number: DS-254-051-MHDS Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $47.05 AUD Regular price Sale price $47.05 AUD Unit price per Each
25.40 mm	12.700 mm	50.800 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 10.2 mm Load at Optimal: 715.0 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 1065.5 N Spring Rate: 70.1 N/mm Colour Code: Red
Part Number: DS-254-051-MHDS Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $47.05 AUD Regular price Sale price $47.05 AUD Unit price per Each View the product page first if you are unsure.
DS-254-051-MHDS --- Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Chrome Silicon DS-254-051-MHDS --- Die Springs - 25.4 mm x 12.7 mm x 50.8 mm Chrome Silicon Regular price $47.05 AUD Regular price Sale price $47.05 AUD Unit price per Out of stock! Backorder Now
25.40 mm	12.700 mm	63.500 mm	20 Percent	12.7 mm	716.3 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 1077.2 N Spring Rate: 56.4 N/mm Colour Code: Red
Part Number: DS-254-064-MHD Die Springs - 25.4 mm x 12.7 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $32.14 AUD Regular price Sale price $32.14 AUD Unit price per Each
25.40 mm	12.700 mm	63.500 mm	20 Percent
Material: Spring Steel Optimum Deflection: 12.7 mm Load at Optimal: 716.3 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 1077.2 N Spring Rate: 56.4 N/mm Colour Code: Red
Part Number: DS-254-064-MHD Die Springs - 25.4 mm x 12.7 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $32.14 AUD Regular price Sale price $32.14 AUD Unit price per Each View the product page first if you are unsure.
DS-254-064-MHD --- Die Springs - 25.4 mm x 12.7 mm x 63.5 mm Spring Steel DS-254-064-MHD --- Die Springs - 25.4 mm x 12.7 mm x 63.5 mm Spring Steel Regular price $32.14 AUD Regular price Sale price $32.14 AUD Unit price per Out of stock! Backorder Now
25.40 mm	12.700 mm	63.500 mm	20 Percent	12.7 mm	716.3 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 1077.2 N Spring Rate: 56.4 N/mm Colour Code: Red
Part Number: DS-254-064-MHDS Die Springs - 25.4 mm x 12.7 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $48.95 AUD Regular price Sale price $48.95 AUD Unit price per Each
25.40 mm	12.700 mm	63.500 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 716.3 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 1077.2 N Spring Rate: 56.4 N/mm Colour Code: Red
Part Number: DS-254-064-MHDS Die Springs - 25.4 mm x 12.7 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $48.95 AUD Regular price Sale price $48.95 AUD Unit price per Each View the product page first if you are unsure.
DS-254-064-MHDS --- Die Springs - 25.4 mm x 12.7 mm x 63.5 mm Chrome Silicon DS-254-064-MHDS --- Die Springs - 25.4 mm x 12.7 mm x 63.5 mm Chrome Silicon Regular price $48.95 AUD Regular price Sale price $48.95 AUD Unit price per Out of stock! Backorder Now

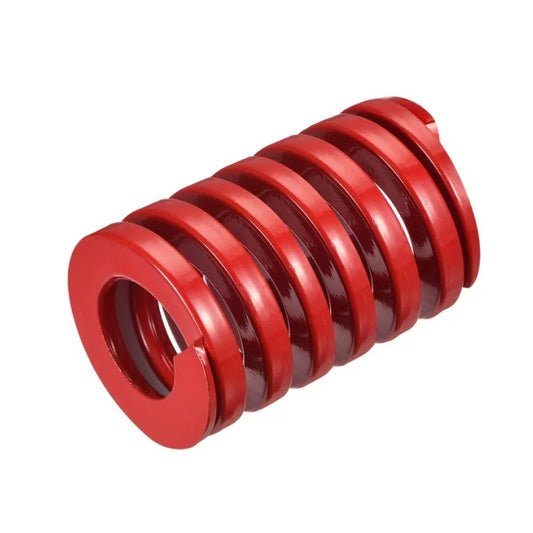

25.40 mm	12.700 mm	76.200 mm	20 Percent	15.2 mm	711.4 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 22.9 mm Load at Maximum: 1071.7 N Spring Rate: 46.8 N/mm Colour Code: Red
Part Number: DS-254-076-MHDS Die Springs - 25.4 mm x 12.7 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $51.95 AUD Regular price Sale price $51.95 AUD Unit price per Each
25.40 mm	12.700 mm	76.200 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 15.2 mm Load at Optimal: 711.4 N Maximum Deflection: 30 Percent Maximum Deflection: 22.9 mm Load at Maximum: 1071.7 N Spring Rate: 46.8 N/mm Colour Code: Red
Part Number: DS-254-076-MHDS Die Springs - 25.4 mm x 12.7 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $51.95 AUD Regular price Sale price $51.95 AUD Unit price per Each View the product page first if you are unsure.
DS-254-076-MHDS --- Die Springs - 25.4 mm x 12.7 mm x 76.2 mm Chrome Silicon DS-254-076-MHDS --- Die Springs - 25.4 mm x 12.7 mm x 76.2 mm Chrome Silicon Regular price $51.95 AUD Regular price Sale price $51.95 AUD Unit price per Out of stock! Backorder Now
25.40 mm	12.700 mm	88.900 mm	20 Percent	17.8 mm	713.8 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 26.7 mm Load at Maximum: 1070.7 N Spring Rate: 40.1 N/mm Colour Code: Red
Part Number: DS-254-089-MHD Die Springs - 25.4 mm x 12.7 mm x 88.9 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $40.77 AUD Regular price Sale price $40.77 AUD Unit price per Each
25.40 mm	12.700 mm	88.900 mm	20 Percent
Material: Spring Steel Optimum Deflection: 17.8 mm Load at Optimal: 713.8 N Maximum Deflection: 30 Percent Maximum Deflection: 26.7 mm Load at Maximum: 1070.7 N Spring Rate: 40.1 N/mm Colour Code: Red
Part Number: DS-254-089-MHD Die Springs - 25.4 mm x 12.7 mm x 88.9 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $40.77 AUD Regular price Sale price $40.77 AUD Unit price per Each View the product page first if you are unsure.
DS-254-089-MHD --- Die Springs - 25.4 mm x 12.7 mm x 88.9 mm Spring Steel DS-254-089-MHD --- Die Springs - 25.4 mm x 12.7 mm x 88.9 mm Spring Steel Regular price $40.77 AUD Regular price Sale price $40.77 AUD Unit price per Out of stock! Backorder Now
25.40 mm	12.700 mm	101.600 mm	20 Percent	20.3 mm	718.6 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 1079.7 N Spring Rate: 35.4 N/mm Colour Code: Red
Part Number: DS-254-102-MHDS Die Springs - 25.4 mm x 12.7 mm x 101.6 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $60.86 AUD Regular price Sale price $60.86 AUD Unit price per Each
25.40 mm	12.700 mm	101.600 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 20.3 mm Load at Optimal: 718.6 N Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 1079.7 N Spring Rate: 35.4 N/mm Colour Code: Red
Part Number: DS-254-102-MHDS Die Springs - 25.4 mm x 12.7 mm x 101.6 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $60.86 AUD Regular price Sale price $60.86 AUD Unit price per Each View the product page first if you are unsure.
DS-254-102-MHDS --- Die Springs - 25.4 mm x 12.7 mm x 101.6 mm Chrome Silicon DS-254-102-MHDS --- Die Springs - 25.4 mm x 12.7 mm x 101.6 mm Chrome Silicon Regular price $60.86 AUD Regular price Sale price $60.86 AUD Unit price per Out of stock! Backorder Now
25.40 mm	12.700 mm	101.600 mm	20 Percent	20.3 mm	718.6 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 1079.7 N Spring Rate: 35.4 N/mm Colour Code: Red
Part Number: DS-254-102-MHD Die Springs - 25.4 mm x 12.7 mm x 101.6 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $41.68 AUD Regular price Sale price $41.68 AUD Unit price per Each
25.40 mm	12.700 mm	101.600 mm	20 Percent
Material: Spring Steel Optimum Deflection: 20.3 mm Load at Optimal: 718.6 N Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 1079.7 N Spring Rate: 35.4 N/mm Colour Code: Red
Part Number: DS-254-102-MHD Die Springs - 25.4 mm x 12.7 mm x 101.6 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $41.68 AUD Regular price Sale price $41.68 AUD Unit price per Each View the product page first if you are unsure.
DS-254-102-MHD --- Die Springs - 25.4 mm x 12.7 mm x 101.6 mm Spring Steel DS-254-102-MHD --- Die Springs - 25.4 mm x 12.7 mm x 101.6 mm Spring Steel Regular price $41.68 AUD Regular price Sale price $41.68 AUD Unit price per Out of stock! Backorder Now
31.75 mm	15.875 mm	50.800 mm	20 Percent	10.2 mm	1498.4 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 2232.9 N Spring Rate: 146.9 N/mm Colour Code: Red
Part Number: DS-318-051-MHDS Die Springs - 31.75 mm x 15.875 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $57.86 AUD Regular price Sale price $57.86 AUD Unit price per Each
31.75 mm	15.875 mm	50.800 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 10.2 mm Load at Optimal: 1498.4 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 2232.9 N Spring Rate: 146.9 N/mm Colour Code: Red
Part Number: DS-318-051-MHDS Die Springs - 31.75 mm x 15.875 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $57.86 AUD Regular price Sale price $57.86 AUD Unit price per Each View the product page first if you are unsure.
DS-318-051-MHDS --- Die Springs - 31.75 mm x 15.875 mm x 50.8 mm Chrome Silicon DS-318-051-MHDS --- Die Springs - 31.75 mm x 15.875 mm x 50.8 mm Chrome Silicon Regular price $57.86 AUD Regular price Sale price $57.86 AUD Unit price per Out of stock! Backorder Now
31.75 mm	15.875 mm	50.800 mm	20 Percent	10.2 mm	2043.1 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 3044.6 N Spring Rate: 200.3 N/mm Colour Code: Red
Part Number: DS-318-051-MHD Die Springs - 31.75 mm x 15.875 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $39.23 AUD Regular price Sale price $39.23 AUD Unit price per Each
31.75 mm	15.875 mm	50.800 mm	20 Percent
Material: Spring Steel Optimum Deflection: 10.2 mm Load at Optimal: 2043.1 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 3044.6 N Spring Rate: 200.3 N/mm Colour Code: Red
Part Number: DS-318-051-MHD Die Springs - 31.75 mm x 15.875 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $39.23 AUD Regular price Sale price $39.23 AUD Unit price per Each View the product page first if you are unsure.
DS-318-051-MHD --- Die Springs - 31.75 mm x 15.875 mm x 50.8 mm Spring Steel DS-318-051-MHD --- Die Springs - 31.75 mm x 15.875 mm x 50.8 mm Spring Steel Regular price $39.23 AUD Regular price Sale price $39.23 AUD Unit price per Out of stock! Backorder Now
31.75 mm	15.875 mm	63.500 mm	20 Percent	12.7 mm	1389.4 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 2089.5 N Spring Rate: 109.4 N/mm Colour Code: Red
Part Number: DS-318-064-MHDS Die Springs - 31.75 mm x 15.875 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $62.77 AUD Regular price Sale price $62.77 AUD Unit price per Each
31.75 mm	15.875 mm	63.500 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 1389.4 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 2089.5 N Spring Rate: 109.4 N/mm Colour Code: Red
Part Number: DS-318-064-MHDS Die Springs - 31.75 mm x 15.875 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $62.77 AUD Regular price Sale price $62.77 AUD Unit price per Each View the product page first if you are unsure.
DS-318-064-MHDS --- Die Springs - 31.75 mm x 15.875 mm x 63.5 mm Chrome Silicon DS-318-064-MHDS --- Die Springs - 31.75 mm x 15.875 mm x 63.5 mm Chrome Silicon Regular price $62.77 AUD Regular price Sale price $62.77 AUD Unit price per Out of stock! Backorder Now
31.75 mm	15.875 mm	63.500 mm	20 Percent	12.7 mm	1863.1 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 2802.0 N Spring Rate: 146.7 N/mm Colour Code: Red
Part Number: DS-318-064-MHD Die Springs - 31.75 mm x 15.875 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $41.32 AUD Regular price Sale price $41.32 AUD Unit price per Each
31.75 mm	15.875 mm	63.500 mm	20 Percent
Material: Spring Steel Optimum Deflection: 12.7 mm Load at Optimal: 1863.1 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 2802.0 N Spring Rate: 146.7 N/mm Colour Code: Red
Part Number: DS-318-064-MHD Die Springs - 31.75 mm x 15.875 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $41.32 AUD Regular price Sale price $41.32 AUD Unit price per Each View the product page first if you are unsure.
DS-318-064-MHD --- Die Springs - 31.75 mm x 15.875 mm x 63.5 mm Spring Steel DS-318-064-MHD --- Die Springs - 31.75 mm x 15.875 mm x 63.5 mm Spring Steel Regular price $41.32 AUD Regular price Sale price $41.32 AUD Unit price per Out of stock! Backorder Now
31.75 mm	15.875 mm	76.200 mm	20 Percent	15.2 mm	1661.4 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 22.9 mm Load at Maximum: 2503.0 N Spring Rate: 109.3 N/mm Colour Code: Red
Part Number: DS-318-076-MHD Die Springs - 31.75 mm x 15.875 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $50.32 AUD Regular price Sale price $50.32 AUD Unit price per Each
31.75 mm	15.875 mm	76.200 mm	20 Percent
Material: Spring Steel Optimum Deflection: 15.2 mm Load at Optimal: 1661.4 N Maximum Deflection: 30 Percent Maximum Deflection: 22.9 mm Load at Maximum: 2503.0 N Spring Rate: 109.3 N/mm Colour Code: Red
Part Number: DS-318-076-MHD Die Springs - 31.75 mm x 15.875 mm x 76.2 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $50.32 AUD Regular price Sale price $50.32 AUD Unit price per Each View the product page first if you are unsure.
DS-318-076-MHD --- Die Springs - 31.75 mm x 15.875 mm x 76.2 mm Spring Steel DS-318-076-MHD --- Die Springs - 31.75 mm x 15.875 mm x 76.2 mm Spring Steel Regular price $50.32 AUD Regular price Sale price $50.32 AUD Unit price per Out of stock! Backorder Now
31.75 mm	15.875 mm	101.600 mm	20 Percent	20.3 mm	1356.0 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 2037.4 N Spring Rate: 66.8 N/mm Colour Code: Red
Part Number: DS-318-102-MHDS Die Springs - 31.75 mm x 15.875 mm x 101.6 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $84.68 AUD Regular price Sale price $84.68 AUD Unit price per Each
31.75 mm	15.875 mm	101.600 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 20.3 mm Load at Optimal: 1356.0 N Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 2037.4 N Spring Rate: 66.8 N/mm Colour Code: Red
Part Number: DS-318-102-MHDS Die Springs - 31.75 mm x 15.875 mm x 101.6 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $84.68 AUD Regular price Sale price $84.68 AUD Unit price per Each View the product page first if you are unsure.
DS-318-102-MHDS --- Die Springs - 31.75 mm x 15.875 mm x 101.6 mm Chrome Silicon DS-318-102-MHDS --- Die Springs - 31.75 mm x 15.875 mm x 101.6 mm Chrome Silicon Regular price $84.68 AUD Regular price Sale price $84.68 AUD Unit price per Out of stock! Backorder Now
31.75 mm	15.875 mm	101.600 mm	20 Percent	20.3 mm	1565.1 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 2351.6 N Spring Rate: 77.1 N/mm Colour Code: Red
Part Number: DS-318-102-MHD Die Springs - 31.75 mm x 15.875 mm x 101.6 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $59.50 AUD Regular price Sale price $59.50 AUD Unit price per Each
31.75 mm	15.875 mm	101.600 mm	20 Percent
Material: Spring Steel Optimum Deflection: 20.3 mm Load at Optimal: 1565.1 N Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 2351.6 N Spring Rate: 77.1 N/mm Colour Code: Red
Part Number: DS-318-102-MHD Die Springs - 31.75 mm x 15.875 mm x 101.6 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $59.50 AUD Regular price Sale price $59.50 AUD Unit price per Each View the product page first if you are unsure.
DS-318-102-MHD --- Die Springs - 31.75 mm x 15.875 mm x 101.6 mm Spring Steel DS-318-102-MHD --- Die Springs - 31.75 mm x 15.875 mm x 101.6 mm Spring Steel Regular price $59.50 AUD Regular price Sale price $59.50 AUD Unit price per Out of stock! Backorder Now
31.75 mm	15.875 mm	127.000 mm	20 Percent	25.4 mm	1333.5 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 38.1 mm Load at Maximum: 2000.3 N Spring Rate: 52.5 N/mm Colour Code: Red
Part Number: DS-318-127-MHD Die Springs - 31.75 mm x 15.875 mm x 127 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $73.95 AUD Regular price Sale price $73.95 AUD Unit price per Each
31.75 mm	15.875 mm	127.000 mm	20 Percent
Material: Spring Steel Optimum Deflection: 25.4 mm Load at Optimal: 1333.5 N Maximum Deflection: 30 Percent Maximum Deflection: 38.1 mm Load at Maximum: 2000.3 N Spring Rate: 52.5 N/mm Colour Code: Red
Part Number: DS-318-127-MHD Die Springs - 31.75 mm x 15.875 mm x 127 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $73.95 AUD Regular price Sale price $73.95 AUD Unit price per Each View the product page first if you are unsure.
DS-318-127-MHD --- Die Springs - 31.75 mm x 15.875 mm x 127 mm Spring Steel DS-318-127-MHD --- Die Springs - 31.75 mm x 15.875 mm x 127 mm Spring Steel Regular price $73.95 AUD Regular price Sale price $73.95 AUD Unit price per Out of stock! Backorder Now
38.10 mm	19.050 mm	50.800 mm	20 Percent	10.2 mm	1840.1 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 2742.1 N Spring Rate: 180.4 N/mm Colour Code: Red
Part Number: DS-381-051-MHD Die Springs - 38.1 mm x 19.05 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $35.23 AUD Regular price Sale price $35.23 AUD Unit price per Each
38.10 mm	19.050 mm	50.800 mm	20 Percent
Material: Spring Steel Optimum Deflection: 10.2 mm Load at Optimal: 1840.1 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 2742.1 N Spring Rate: 180.4 N/mm Colour Code: Red
Part Number: DS-381-051-MHD Die Springs - 38.1 mm x 19.05 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $35.23 AUD Regular price Sale price $35.23 AUD Unit price per Each View the product page first if you are unsure.
DS-381-051-MHD --- Die Springs - 38.1 mm x 19.05 mm x 50.8 mm Spring Steel DS-381-051-MHD --- Die Springs - 38.1 mm x 19.05 mm x 50.8 mm Spring Steel Regular price $35.23 AUD Regular price Sale price $35.23 AUD Unit price per Out of stock! Backorder Now
38.10 mm	19.050 mm	50.800 mm	20 Percent	10.2 mm	1842.1 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 2745.1 N Spring Rate: 180.6 N/mm Colour Code: Red
Part Number: DS-381-051-MHDS Die Springs - 38.1 mm x 19.05 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $76.95 AUD Regular price Sale price $76.95 AUD Unit price per Each
38.10 mm	19.050 mm	50.800 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 10.2 mm Load at Optimal: 1842.1 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 2745.1 N Spring Rate: 180.6 N/mm Colour Code: Red
Part Number: DS-381-051-MHDS Die Springs - 38.1 mm x 19.05 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $76.95 AUD Regular price Sale price $76.95 AUD Unit price per Each View the product page first if you are unsure.
DS-381-051-MHDS --- Die Springs - 38.1 mm x 19.05 mm x 50.8 mm Chrome Silicon DS-381-051-MHDS --- Die Springs - 38.1 mm x 19.05 mm x 50.8 mm Chrome Silicon Regular price $76.95 AUD Regular price Sale price $76.95 AUD Unit price per Out of stock! Backorder Now
38.10 mm	19.050 mm	88.900 mm	20 Percent	17.8 mm	1685.7 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 26.7 mm Load at Maximum: 2528.5 N Spring Rate: 94.7 N/mm Colour Code: Red
Part Number: DS-381-089-MHDS Die Springs - 38.1 mm x 19.05 mm x 88.9 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $90.05 AUD Regular price Sale price $90.05 AUD Unit price per Each
38.10 mm	19.050 mm	88.900 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 17.8 mm Load at Optimal: 1685.7 N Maximum Deflection: 30 Percent Maximum Deflection: 26.7 mm Load at Maximum: 2528.5 N Spring Rate: 94.7 N/mm Colour Code: Red
Part Number: DS-381-089-MHDS Die Springs - 38.1 mm x 19.05 mm x 88.9 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $90.05 AUD Regular price Sale price $90.05 AUD Unit price per Each View the product page first if you are unsure.
DS-381-089-MHDS --- Die Springs - 38.1 mm x 19.05 mm x 88.9 mm Chrome Silicon DS-381-089-MHDS --- Die Springs - 38.1 mm x 19.05 mm x 88.9 mm Chrome Silicon Regular price $90.05 AUD Regular price Sale price $90.05 AUD Unit price per Out of stock! Backorder Now
38.10 mm	19.050 mm	101.600 mm	20 Percent	20.3 mm	1654.5 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 2485.8 N Spring Rate: 81.5 N/mm Colour Code: Red
Part Number: DS-381-102-MHDS Die Springs - 38.1 mm x 19.05 mm x 101.6 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $101.50 AUD Regular price Sale price $101.50 AUD Unit price per Each
38.10 mm	19.050 mm	101.600 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 20.3 mm Load at Optimal: 1654.5 N Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 2485.8 N Spring Rate: 81.5 N/mm Colour Code: Red
Part Number: DS-381-102-MHDS Die Springs - 38.1 mm x 19.05 mm x 101.6 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $101.50 AUD Regular price Sale price $101.50 AUD Unit price per Each View the product page first if you are unsure.
DS-381-102-MHDS --- Die Springs - 38.1 mm x 19.05 mm x 101.6 mm Chrome Silicon DS-381-102-MHDS --- Die Springs - 38.1 mm x 19.05 mm x 101.6 mm Chrome Silicon Regular price $101.50 AUD Regular price Sale price $101.50 AUD Unit price per Out of stock! Backorder Now
38.10 mm	19.050 mm	152.400 mm	20 Percent	30.5 mm	1967.3 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 45.7 mm Load at Maximum: 2947.7 N Spring Rate: 64.5 N/mm Colour Code: Red
Part Number: DS-381-152-MHDS Die Springs - 38.1 mm x 19.05 mm x 152.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $101.68 AUD Regular price Sale price $101.68 AUD Unit price per Each
38.10 mm	19.050 mm	152.400 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 30.5 mm Load at Optimal: 1967.3 N Maximum Deflection: 30 Percent Maximum Deflection: 45.7 mm Load at Maximum: 2947.7 N Spring Rate: 64.5 N/mm Colour Code: Red
Part Number: DS-381-152-MHDS Die Springs - 38.1 mm x 19.05 mm x 152.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $101.68 AUD Regular price Sale price $101.68 AUD Unit price per Each View the product page first if you are unsure.
DS-381-152-MHDS --- Die Springs - 38.1 mm x 19.05 mm x 152.4 mm Chrome Silicon DS-381-152-MHDS --- Die Springs - 38.1 mm x 19.05 mm x 152.4 mm Chrome Silicon Regular price $101.68 AUD Regular price Sale price $101.68 AUD Unit price per Out of stock! Backorder Now
50.80 mm	25.400 mm	88.900 mm	20 Percent	17.8 mm	2440.4 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 26.7 mm Load at Maximum: 3660.6 N Spring Rate: 137.1 N/mm Colour Code: Red
Part Number: DS-508-089-MHDS Die Springs - 50.8 mm x 25.4 mm x 88.9 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $136.59 AUD Regular price Sale price $136.59 AUD Unit price per Each
50.80 mm	25.400 mm	88.900 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 17.8 mm Load at Optimal: 2440.4 N Maximum Deflection: 30 Percent Maximum Deflection: 26.7 mm Load at Maximum: 3660.6 N Spring Rate: 137.1 N/mm Colour Code: Red
Part Number: DS-508-089-MHDS Die Springs - 50.8 mm x 25.4 mm x 88.9 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $136.59 AUD Regular price Sale price $136.59 AUD Unit price per Each View the product page first if you are unsure.
DS-508-089-MHDS --- Die Springs - 50.8 mm x 25.4 mm x 88.9 mm Chrome Silicon DS-508-089-MHDS --- Die Springs - 50.8 mm x 25.4 mm x 88.9 mm Chrome Silicon Regular price $136.59 AUD Regular price Sale price $136.59 AUD Unit price per Out of stock! Backorder Now
