Collection: Springs - Die - Imperial - Medium-Heavy Duty

Springs (With Images)

Die

Imperial

70 Products in this selection

Vapor degassed high tensile strength chromium alloy steel. Spring ends are ground square. Designed for long life cycle with constant high end deflections and shot peened to increase fatigue life.

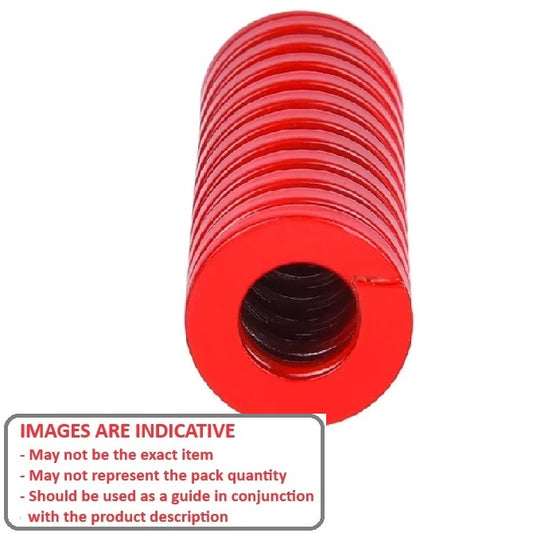

Colour coded red
Efficient operating range is 20 to 30 percent of the length
Maximum deflection is 37 percent of the length

Additional resources:
Spings Catalogue PDF

Hole Diameter (A)	Rod Diameter (B)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal	Indicative Image
9.53 mm	4.763 mm	25.400 mm	20 Percent	5.1 mm	75.0 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 111.7 N Spring Rate: 14.7 N/mm Colour Code: Red
Part Number: DS-095-025-MHD Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Each
Hole Diameter (A)	Rod Diameter (B)	Length (L)	Optimum Deflection	Indicative Image
9.53 mm	4.763 mm	25.400 mm	20 Percent
Material: Spring Steel Optimum Deflection: 5.1 mm Load at Optimal: 75.0 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 111.7 N Spring Rate: 14.7 N/mm Colour Code: Red
Part Number: DS-095-025-MHD Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Each View the product page first if you are unsure.
DS-095-025-MHD --- Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Spring Steel DS-095-025-MHD --- Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Spring Steel Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	25.400 mm	20 Percent	5.1 mm	75.0 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 111.7 N Spring Rate: 14.7 N/mm Colour Code: Red
Part Number: DS-095-025-MHDS Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Each
9.53 mm	4.763 mm	25.400 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 5.1 mm Load at Optimal: 75.0 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 111.7 N Spring Rate: 14.7 N/mm Colour Code: Red
Part Number: DS-095-025-MHDS Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Each View the product page first if you are unsure.
DS-095-025-MHDS --- Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Chrome Silicon DS-095-025-MHDS --- Die Springs - 9.53 mm x 4.763 mm x 25.4 mm Chrome Silicon Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	31.750 mm	20 Percent	6.4 mm	81.9 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 121.6 N Spring Rate: 12.8 N/mm Colour Code: Red
Part Number: DS-095-032-MHDS Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Each
9.53 mm	4.763 mm	31.750 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 6.4 mm Load at Optimal: 81.9 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 121.6 N Spring Rate: 12.8 N/mm Colour Code: Red
Part Number: DS-095-032-MHDS Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Each View the product page first if you are unsure.
DS-095-032-MHDS --- Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Chrome Silicon DS-095-032-MHDS --- Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Chrome Silicon Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	31.750 mm	20 Percent	6.4 mm	81.9 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 121.6 N Spring Rate: 12.8 N/mm Colour Code: Red
Part Number: DS-095-032-MHD Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Each
9.53 mm	4.763 mm	31.750 mm	20 Percent
Material: Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 81.9 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 121.6 N Spring Rate: 12.8 N/mm Colour Code: Red
Part Number: DS-095-032-MHD Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Each View the product page first if you are unsure.
DS-095-032-MHD --- Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Spring Steel DS-095-032-MHD --- Die Springs - 9.53 mm x 4.763 mm x 31.75 mm Spring Steel Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	38.100 mm	20 Percent	7.6 mm	88.9 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 133.4 N Spring Rate: 11.7 N/mm Colour Code: Red
Part Number: DS-095-038-MHDS Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each
9.53 mm	4.763 mm	38.100 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 7.6 mm Load at Optimal: 88.9 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 133.4 N Spring Rate: 11.7 N/mm Colour Code: Red
Part Number: DS-095-038-MHDS Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each View the product page first if you are unsure.
DS-095-038-MHDS --- Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Chrome Silicon DS-095-038-MHDS --- Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Chrome Silicon Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	38.100 mm	20 Percent	7.6 mm	88.9 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 133.4 N Spring Rate: 11.7 N/mm Colour Code: Red
Part Number: DS-095-038-MHD Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Each
9.53 mm	4.763 mm	38.100 mm	20 Percent
Material: Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 88.9 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 133.4 N Spring Rate: 11.7 N/mm Colour Code: Red
Part Number: DS-095-038-MHD Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Each View the product page first if you are unsure.
DS-095-038-MHD --- Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Spring Steel DS-095-038-MHD --- Die Springs - 9.53 mm x 4.763 mm x 38.1 mm Spring Steel Regular price $11.41 AUD Regular price Sale price $11.41 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	50.800 mm	20 Percent	10.2 mm	89.8 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 133.8 N Spring Rate: 8.8 N/mm Colour Code: Red
Part Number: DS-095-051-MHDS Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $19.50 AUD Regular price Sale price $19.50 AUD Unit price per Each
9.53 mm	4.763 mm	50.800 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 10.2 mm Load at Optimal: 89.8 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 133.8 N Spring Rate: 8.8 N/mm Colour Code: Red
Part Number: DS-095-051-MHDS Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $19.50 AUD Regular price Sale price $19.50 AUD Unit price per Each View the product page first if you are unsure.
DS-095-051-MHDS --- Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Chrome Silicon DS-095-051-MHDS --- Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Chrome Silicon Regular price $19.50 AUD Regular price Sale price $19.50 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	50.800 mm	20 Percent	10.2 mm	89.8 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 133.8 N Spring Rate: 8.8 N/mm Colour Code: Red
Part Number: DS-095-051-MHD Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Each
9.53 mm	4.763 mm	50.800 mm	20 Percent
Material: Spring Steel Optimum Deflection: 10.2 mm Load at Optimal: 89.8 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 133.8 N Spring Rate: 8.8 N/mm Colour Code: Red
Part Number: DS-095-051-MHD Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Each View the product page first if you are unsure.
DS-095-051-MHD --- Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Spring Steel DS-095-051-MHD --- Die Springs - 9.53 mm x 4.763 mm x 50.8 mm Spring Steel Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Out of stock! Backorder Now
9.53 mm	4.763 mm	63.500 mm	20 Percent	12.7 mm	82.6 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 124.2 N Spring Rate: 6.5 N/mm Colour Code: Red
Part Number: DS-095-064-MHDS Die Springs - 9.53 mm x 4.763 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Each
9.53 mm	4.763 mm	63.500 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 82.6 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 124.2 N Spring Rate: 6.5 N/mm Colour Code: Red
Part Number: DS-095-064-MHDS Die Springs - 9.53 mm x 4.763 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Each View the product page first if you are unsure.
DS-095-064-MHDS --- Die Springs - 9.53 mm x 4.763 mm x 63.5 mm Chrome Silicon DS-095-064-MHDS --- Die Springs - 9.53 mm x 4.763 mm x 63.5 mm Chrome Silicon Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	25.400 mm	20 Percent	5.1 mm	138.7 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 206.7 N Spring Rate: 27.2 N/mm Colour Code: Red
Part Number: DS-127-025-MHDS Die Springs - 12.7 mm x 7.144 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Each
12.70 mm	7.144 mm	25.400 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 5.1 mm Load at Optimal: 138.7 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 206.7 N Spring Rate: 27.2 N/mm Colour Code: Red
Part Number: DS-127-025-MHDS Die Springs - 12.7 mm x 7.144 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Each View the product page first if you are unsure.
DS-127-025-MHDS --- Die Springs - 12.7 mm x 7.144 mm x 25.4 mm Chrome Silicon DS-127-025-MHDS --- Die Springs - 12.7 mm x 7.144 mm x 25.4 mm Chrome Silicon Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	31.750 mm	20 Percent	6.4 mm	137.0 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 203.3 N Spring Rate: 21.4 N/mm Colour Code: Red
Part Number: DS-127-032-MHDS Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Each
12.70 mm	7.144 mm	31.750 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 6.4 mm Load at Optimal: 137.0 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 203.3 N Spring Rate: 21.4 N/mm Colour Code: Red
Part Number: DS-127-032-MHDS Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Each View the product page first if you are unsure.
DS-127-032-MHDS --- Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Chrome Silicon DS-127-032-MHDS --- Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Chrome Silicon Regular price $12.59 AUD Regular price Sale price $12.59 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	31.750 mm	20 Percent	6.4 mm	137.0 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 203.3 N Spring Rate: 21.4 N/mm Colour Code: Red
Part Number: DS-127-032-MHD Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Each
12.70 mm	7.144 mm	31.750 mm	20 Percent
Material: Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 137.0 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 203.3 N Spring Rate: 21.4 N/mm Colour Code: Red
Part Number: DS-127-032-MHD Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Each View the product page first if you are unsure.
DS-127-032-MHD --- Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Spring Steel DS-127-032-MHD --- Die Springs - 12.7 mm x 7.144 mm x 31.75 mm Spring Steel Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	38.100 mm	20 Percent	7.6 mm	130.7 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 196.1 N Spring Rate: 17.2 N/mm Colour Code: Red
Part Number: DS-127-038-MHD Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Each
12.70 mm	7.144 mm	38.100 mm	20 Percent
Material: Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 130.7 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 196.1 N Spring Rate: 17.2 N/mm Colour Code: Red
Part Number: DS-127-038-MHD Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Each View the product page first if you are unsure.
DS-127-038-MHD --- Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Spring Steel DS-127-038-MHD --- Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Spring Steel Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	38.100 mm	20 Percent	7.6 mm	130.7 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 196.1 N Spring Rate: 17.2 N/mm Colour Code: Red
Part Number: DS-127-038-MHDS Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Each
12.70 mm	7.144 mm	38.100 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 7.6 mm Load at Optimal: 130.7 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 196.1 N Spring Rate: 17.2 N/mm Colour Code: Red
Part Number: DS-127-038-MHDS Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Each View the product page first if you are unsure.
DS-127-038-MHDS --- Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Chrome Silicon DS-127-038-MHDS --- Die Springs - 12.7 mm x 7.144 mm x 38.1 mm Chrome Silicon Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	44.450 mm	20 Percent	8.9 mm	132.6 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 198.2 N Spring Rate: 14.9 N/mm Colour Code: Red
Part Number: DS-127-044-MHD Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each
12.70 mm	7.144 mm	44.450 mm	20 Percent
Material: Spring Steel Optimum Deflection: 8.9 mm Load at Optimal: 132.6 N Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 198.2 N Spring Rate: 14.9 N/mm Colour Code: Red
Part Number: DS-127-044-MHD Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Each View the product page first if you are unsure.
DS-127-044-MHD --- Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Spring Steel DS-127-044-MHD --- Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Spring Steel Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	44.450 mm	20 Percent	8.9 mm	132.6 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 198.2 N Spring Rate: 14.9 N/mm Colour Code: Red
Part Number: DS-127-044-MHDS Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $19.14 AUD Regular price Sale price $19.14 AUD Unit price per Each
12.70 mm	7.144 mm	44.450 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 8.9 mm Load at Optimal: 132.6 N Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 198.2 N Spring Rate: 14.9 N/mm Colour Code: Red
Part Number: DS-127-044-MHDS Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $19.14 AUD Regular price Sale price $19.14 AUD Unit price per Each View the product page first if you are unsure.
DS-127-044-MHDS --- Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Chrome Silicon DS-127-044-MHDS --- Die Springs - 12.7 mm x 7.144 mm x 44.45 mm Chrome Silicon Regular price $19.14 AUD Regular price Sale price $19.14 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	50.800 mm	20 Percent	10.2 mm	133.6 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 199.1 N Spring Rate: 13.1 N/mm Colour Code: Red
Part Number: DS-127-051-MHDS Die Springs - 12.7 mm x 7.144 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $19.95 AUD Regular price Sale price $19.95 AUD Unit price per Each
12.70 mm	7.144 mm	50.800 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 10.2 mm Load at Optimal: 133.6 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 199.1 N Spring Rate: 13.1 N/mm Colour Code: Red
Part Number: DS-127-051-MHDS Die Springs - 12.7 mm x 7.144 mm x 50.8 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $19.95 AUD Regular price Sale price $19.95 AUD Unit price per Each View the product page first if you are unsure.
DS-127-051-MHDS --- Die Springs - 12.7 mm x 7.144 mm x 50.8 mm Chrome Silicon DS-127-051-MHDS --- Die Springs - 12.7 mm x 7.144 mm x 50.8 mm Chrome Silicon Regular price $19.95 AUD Regular price Sale price $19.95 AUD Unit price per Out of stock! Backorder Now
12.70 mm	7.144 mm	63.500 mm	20 Percent	12.7 mm	133.4 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 200.6 N Spring Rate: 10.5 N/mm Colour Code: Red
Part Number: DS-127-064-MHDS Die Springs - 12.7 mm x 7.144 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Each
12.70 mm	7.144 mm	63.500 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 133.4 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 200.6 N Spring Rate: 10.5 N/mm Colour Code: Red
Part Number: DS-127-064-MHDS Die Springs - 12.7 mm x 7.144 mm x 63.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Each View the product page first if you are unsure.
DS-127-064-MHDS --- Die Springs - 12.7 mm x 7.144 mm x 63.5 mm Chrome Silicon DS-127-064-MHDS --- Die Springs - 12.7 mm x 7.144 mm x 63.5 mm Chrome Silicon Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Out of stock! Backorder Now
15.88 mm	8.731 mm	25.400 mm	20 Percent	5.1 mm	267.8 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 399.0 N Spring Rate: 52.5 N/mm Colour Code: Red
Part Number: DS-159-025-MHD Die Springs - 15.88 mm x 8.731 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Each
15.88 mm	8.731 mm	25.400 mm	20 Percent
Material: Spring Steel Optimum Deflection: 5.1 mm Load at Optimal: 267.8 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 399.0 N Spring Rate: 52.5 N/mm Colour Code: Red
Part Number: DS-159-025-MHD Die Springs - 15.88 mm x 8.731 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Each View the product page first if you are unsure.
DS-159-025-MHD --- Die Springs - 15.88 mm x 8.731 mm x 25.4 mm Spring Steel DS-159-025-MHD --- Die Springs - 15.88 mm x 8.731 mm x 25.4 mm Spring Steel Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Out of stock! Backorder Now
15.88 mm	8.731 mm	25.400 mm	20 Percent	5.1 mm	268.3 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 399.8 N Spring Rate: 52.6 N/mm Colour Code: Red
Part Number: DS-159-025-MHDS Die Springs - 15.88 mm x 8.731 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $18.59 AUD Regular price Sale price $18.59 AUD Unit price per Each
15.88 mm	8.731 mm	25.400 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 5.1 mm Load at Optimal: 268.3 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 399.8 N Spring Rate: 52.6 N/mm Colour Code: Red
Part Number: DS-159-025-MHDS Die Springs - 15.88 mm x 8.731 mm x 25.4 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $18.59 AUD Regular price Sale price $18.59 AUD Unit price per Each View the product page first if you are unsure.
DS-159-025-MHDS --- Die Springs - 15.88 mm x 8.731 mm x 25.4 mm Chrome Silicon DS-159-025-MHDS --- Die Springs - 15.88 mm x 8.731 mm x 25.4 mm Chrome Silicon Regular price $18.59 AUD Regular price Sale price $18.59 AUD Unit price per Out of stock! Backorder Now
15.88 mm	8.731 mm	31.750 mm	20 Percent	6.4 mm	241.3 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 358.2 N Spring Rate: 37.7 N/mm Colour Code: Red
Part Number: DS-159-032-MHD Die Springs - 15.88 mm x 8.731 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Each
15.88 mm	8.731 mm	31.750 mm	20 Percent
Material: Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 241.3 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 358.2 N Spring Rate: 37.7 N/mm Colour Code: Red
Part Number: DS-159-032-MHD Die Springs - 15.88 mm x 8.731 mm x 31.75 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Each View the product page first if you are unsure.
DS-159-032-MHD --- Die Springs - 15.88 mm x 8.731 mm x 31.75 mm Spring Steel DS-159-032-MHD --- Die Springs - 15.88 mm x 8.731 mm x 31.75 mm Spring Steel Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Out of stock! Backorder Now
15.88 mm	8.731 mm	38.100 mm	20 Percent	7.6 mm	253.1 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 379.6 N Spring Rate: 33.3 N/mm Colour Code: Red
Part Number: DS-159-038-MHD Die Springs - 15.88 mm x 8.731 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Each
15.88 mm	8.731 mm	38.100 mm	20 Percent
Material: Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 253.1 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 379.6 N Spring Rate: 33.3 N/mm Colour Code: Red
Part Number: DS-159-038-MHD Die Springs - 15.88 mm x 8.731 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Each View the product page first if you are unsure.
DS-159-038-MHD --- Die Springs - 15.88 mm x 8.731 mm x 38.1 mm Spring Steel DS-159-038-MHD --- Die Springs - 15.88 mm x 8.731 mm x 38.1 mm Spring Steel Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Out of stock! Backorder Now
15.88 mm	8.731 mm	38.100 mm	20 Percent	7.6 mm	253.1 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 379.6 N Spring Rate: 33.3 N/mm Colour Code: Red
Part Number: DS-159-038-MHDS Die Springs - 15.88 mm x 8.731 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each
15.88 mm	8.731 mm	38.100 mm	20 Percent
Material: Chrome Silicon Optimum Deflection: 7.6 mm Load at Optimal: 253.1 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 379.6 N Spring Rate: 33.3 N/mm Colour Code: Red
Part Number: DS-159-038-MHDS Die Springs - 15.88 mm x 8.731 mm x 38.1 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each View the product page first if you are unsure.
DS-159-038-MHDS --- Die Springs - 15.88 mm x 8.731 mm x 38.1 mm Chrome Silicon DS-159-038-MHDS --- Die Springs - 15.88 mm x 8.731 mm x 38.1 mm Chrome Silicon Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Out of stock! Backorder Now

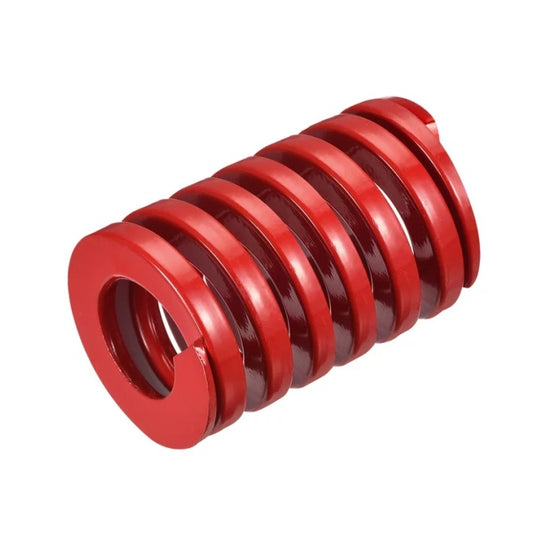

15.88 mm	8.731 mm	44.450 mm	20 Percent	8.9 mm	261.7 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 391.0 N Spring Rate: 29.4 N/mm Colour Code: Red
Part Number: DS-159-044-MHD Die Springs - 15.88 mm x 8.731 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Each
15.88 mm	8.731 mm	44.450 mm	20 Percent
Material: Spring Steel Optimum Deflection: 8.9 mm Load at Optimal: 261.7 N Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 391.0 N Spring Rate: 29.4 N/mm Colour Code: Red
Part Number: DS-159-044-MHD Die Springs - 15.88 mm x 8.731 mm x 44.45 mm Out of Stock \| Backorder Now \| Orders can be expected around Fri, Mar 21, 2025 Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Each View the product page first if you are unsure.
DS-159-044-MHD --- Die Springs - 15.88 mm x 8.731 mm x 44.45 mm Spring Steel DS-159-044-MHD --- Die Springs - 15.88 mm x 8.731 mm x 44.45 mm Spring Steel Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Out of stock! Backorder Now
