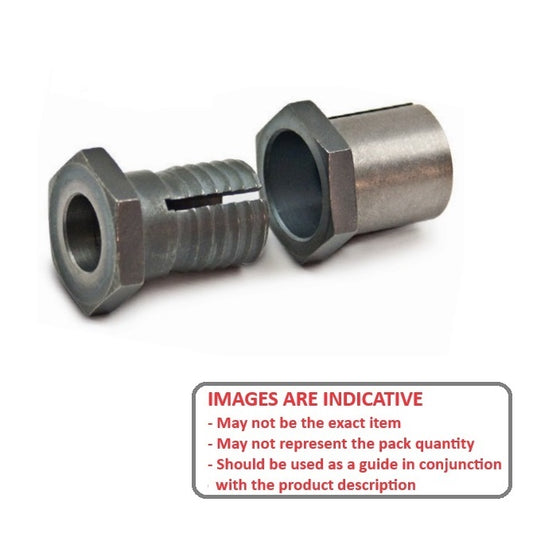

Shaftloc Sleeves - Single Ended

1 Item Available
  • Simple effective way to lock components onto shafts.
  • 416 Stainless Steel
  • Simple two part screw together system locks parts securely to shaft.
  • Asymetric thread geometry produces a large radial clamping force when the nut is tightened
Additional resources:
A more concise listing may be found on the Smallparts store at Shaftloc Sleeves - Single Ended. Smallparts promote the most popular MBA products.
Components Bore (+0.025) (D) Shaftloc Bore (d) Max. Length of Component (l) Max Torque Cap. Length of outer sleeve (L) Head Width Inner Sleeve (H) Indicative
18.000
mm 		12.000
mm 		20.000
mm 		16.5
N.m 		25.5
mm 		5.60
mm 		1118499 | SLV-K-120-180-200 (2 Pcs) --- Single Ended Shaftloc Sleeves - 18x12x20 mm - Steel
Material: Steel    Hex Size (H): 21.00 mm
Part Number: SLV-K-120-180-200 (2 Pcs) Single Ended Shaftloc Sleeves - 18x12x20 mm - Steel
1 pack (2 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Per 2
Components Bore (+0.025) (D) Shaftloc Bore (d) Max. Length of Component (l) Max Torque Cap. Indicative
18.000
mm 		12.000
mm 		20.000
mm 		16.5
N.m 		1118499 | SLV-K-120-180-200 (2 Pcs) --- Single Ended Shaftloc Sleeves - 18x12x20 mm - Steel
Material: Steel    Length of outer sleeve (L): 25.5 mm    Head Width Inner Sleeve (H): 5.60 mm    Hex Size (H): 21.00 mm
Part Number: SLV-K-120-180-200 (2 Pcs) Single Ended Shaftloc Sleeves - 18x12x20 mm - Steel
1 pack (2 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Per 2
