Retaining Rings - Internal

Retaining Rings -> Internal
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative
Internal Retaining Rings - 28x1.2x29.61 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
28.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
29.61
mm
+ 0.00 / - 0.21
(Equiv. 1.166 in.)
Approx. Loose Circlip OD (Dr)
29.85
mm
Radial Wall (S) Approx.
3.00
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 28x1.2x29.61 mm - Spring Steel
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips
Part Number: DJK-028 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 28x1.2x29.61 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
28.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
29.61
mm
+ 0.00 / - 0.21
(Equiv. 1.166 in.)
Approx. Loose Circlip OD (Dr)
29.85
mm
Internal Retaining Rings - 28x1.2x29.61 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.00 mm    Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Circlips
Part Number: DJK-028 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029

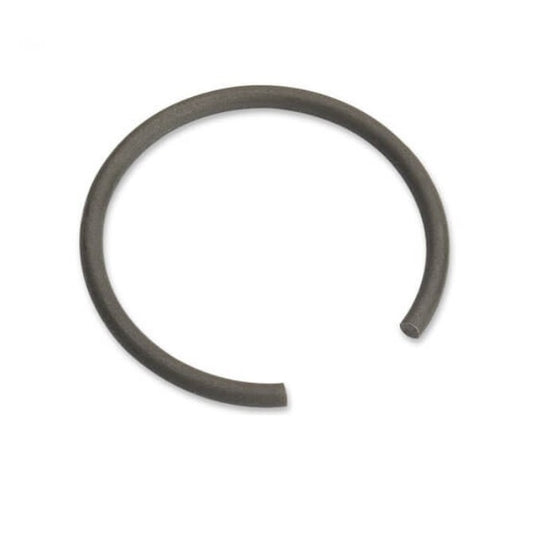

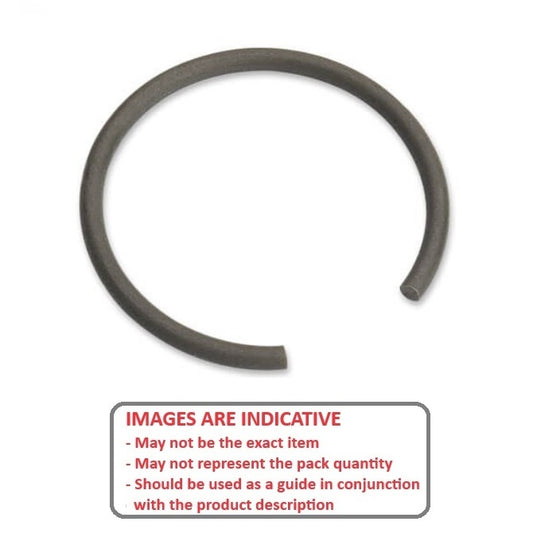

Internal Retaining Rings - 28x2x30.3 mm Round Wire - Carbon Spring Steel Wire Clip
Housing Bore (B)
28.00
mm
Clip Thickness (T)
2.0
mm
+ 0.10 / - 0.05
(Equiv. 0.079 in.)
Groove Dia. (Dg)
30.30
mm
Min.
(Equiv. 1.193 in.)
Approx. Loose Circlip OD (Dr)
31.10
mm
Groove Width (W)
2.10
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 28x2x30.3 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Bore (C): 27.1 mm
Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0280A-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 28x2x30.3 mm Round Wire - Carbon Spring Steel Wire Clip
Housing Bore (B)
28.00
mm
Clip Thickness (T)
2.0
mm
+ 0.10 / - 0.05
(Equiv. 0.079 in.)
Groove Dia. (Dg)
30.30
mm
Min.
(Equiv. 1.193 in.)
Approx. Loose Circlip OD (Dr)
31.10
mm
Internal Retaining Rings - 28x2x30.3 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.10 mm + 0.10 / - 0.00   Clearance in Bore (C): 27.1 mm
Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0280A-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029
Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
25.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
26.20
mm
+ 0.21 / - 0.00
(Equiv. 1.031 in.)
Approx. Loose Circlip OD (Dr)
26.90
mm
+ 0.42 / - 0.21
Groove Width (W)
1.30
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 25x1.2x26.2 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 15.50 mm    Clearance in Groove (C1): 17.20 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 1654
Part Number: CCI-02500-C (PK-20)
7 units (140 pcs) Available Now | Further orders can be expected around Tue, Aug 11, 2026
$4.32 AUD
$8.17 AUD $4.32 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 7 available can be backordered.
Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
25.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
26.20
mm
+ 0.21 / - 0.00
(Equiv. 1.031 in.)
Approx. Loose Circlip OD (Dr)
26.90
mm
+ 0.42 / - 0.21
Internal Retaining Rings - 25x1.2x26.2 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.30 mm + 0.08 / - 0.00   Clearance in Bore (C): 15.50 mm    Clearance in Groove (C1): 17.20 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 1654
Part Number: CCI-02500-C (PK-20)
7 units (140 pcs) Available Now | Further orders can be expected around Tue, Aug 11, 2026
$4.32 AUD
$8.17 AUD $4.32 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

7 units (140 pcs) Available Now. Backorder if more than 7.

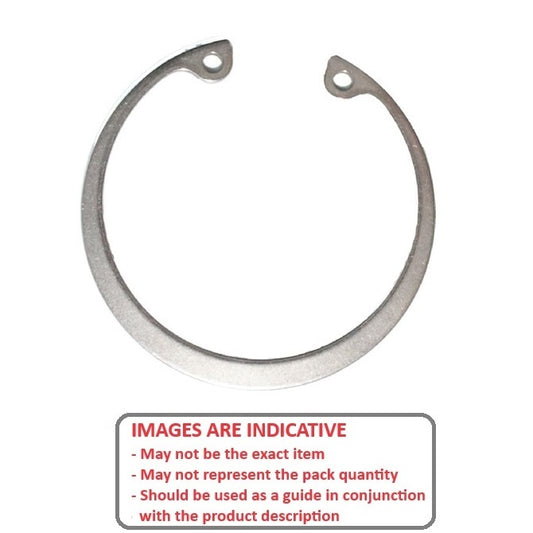

Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
25.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
26.20
mm
+ 0.21 / - 0.00
(Equiv. 1.031 in.)
Approx. Loose Circlip OD (Dr)
26.90
mm
+ 0.42 / - 0.21
Groove Width (W)
1.30
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 25x1.2x26.2 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 15.50 mm    Clearance in Groove (C1): 17.20 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 340
Part Number: CCI-02500-S15 (Each)
4 Available Now | Further orders can be expected around Tue, Aug 11, 2026
$2.59 AUD
$6.75 AUD $2.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
25.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
26.20
mm
+ 0.21 / - 0.00
(Equiv. 1.031 in.)
Approx. Loose Circlip OD (Dr)
26.90
mm
+ 0.42 / - 0.21
Internal Retaining Rings - 25x1.2x26.2 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.30 mm + 0.08 / - 0.00   Clearance in Bore (C): 15.50 mm    Clearance in Groove (C1): 17.20 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 340
Part Number: CCI-02500-S15 (Each)
4 Available Now | Further orders can be expected around Tue, Aug 11, 2026
$2.59 AUD
$6.75 AUD $2.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
Internal Retaining Rings - 28.58x0.94x29.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
28.58
mm
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
29.64
mm
Approx. Loose Circlip OD (Dr)
29.84
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.10
Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Groove (C1): 26.02 mm +/- 0.03
Category: Retaining Rings - Internal - Spiral Rings
Additional stock available from USA subject to Prior Sale = 8575
Part Number: RR-112 (PK-2)
32 units (64 pcs) Available Now | Further orders can be expected around Tue, Aug 11, 2026
$1.50 AUD
$1.50 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 32 available can be backordered.
Internal Retaining Rings - 28.58x0.94x29.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
28.58
mm
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
29.64
mm
Approx. Loose Circlip OD (Dr)
29.84
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.10   Clearance in Groove (C1): 26.02 mm +/- 0.03
Category: Retaining Rings - Internal - Spiral Rings
Additional stock available from USA subject to Prior Sale = 8575
Part Number: RR-112 (PK-2)
32 units (64 pcs) Available Now | Further orders can be expected around Tue, Aug 11, 2026
$1.50 AUD
$1.50 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

32 units (64 pcs) Available Now. Backorder if more than 32.
Internal Retaining Rings - 28.58x1.27x30.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.27
mm
+ 0.00 / - 0.06
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.40
mm
+/- 0.102
(Equiv. 1.197 in.)
Approx. Loose Circlip OD (Dr)
31.72
mm
+ 0.64 / - 0.38
Groove Width (W)
1.42
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 28.58x1.27x30.4 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 19.05 mm    Clearance in Groove (C1): 20.83 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 1624
Part Number: CCI-02858-S15 (PK-3)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Aug 24, 2026
$10.41 AUD
$23.48 AUD $10.41 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 28.58x1.27x30.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.27
mm
+ 0.00 / - 0.06
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.40
mm
+/- 0.102
(Equiv. 1.197 in.)
Approx. Loose Circlip OD (Dr)
31.72
mm
+ 0.64 / - 0.38
Internal Retaining Rings - 28.58x1.27x30.4 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.42 mm + 0.10 / - 0.00   Clearance in Bore (C): 19.05 mm    Clearance in Groove (C1): 20.83 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 1624
Part Number: CCI-02858-S15 (PK-3)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Aug 24, 2026
$10.41 AUD
$23.48 AUD $10.41 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 28.58x1.07x30 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.07
mm
+/- 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
30.00
mm
+/- 0.13
(Equiv. 1.181 in.)
Approx. Loose Circlip OD (Dr)
30.38
mm
+ 0.79 / - 0.00
Radial Wall (S) Approx.
2.36
mm
+/- 0.08
Groove Width (W)
1.17
mm
Internal Retaining Rings - 28.58x1.07x30 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Groove (C1): 25.66 mm
Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0286-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 28.58x1.07x30 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.07
mm
+/- 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
30.00
mm
+/- 0.13
(Equiv. 1.181 in.)
Approx. Loose Circlip OD (Dr)
30.38
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 28.58x1.07x30 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.36 mm +/- 0.08    Groove Width (W): 1.17 mm    Clearance in Groove (C1): 25.66 mm
Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0286-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029

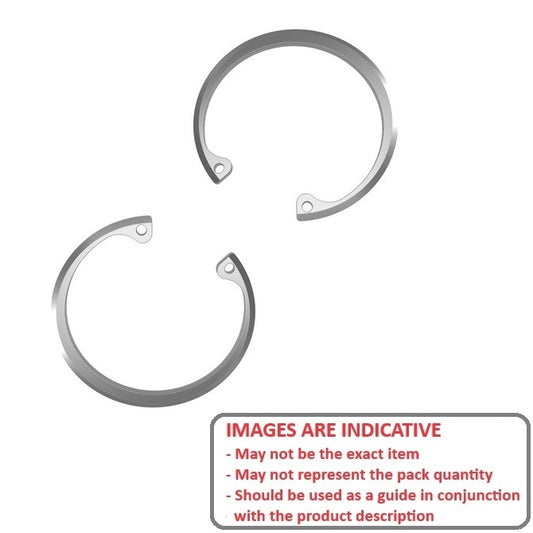

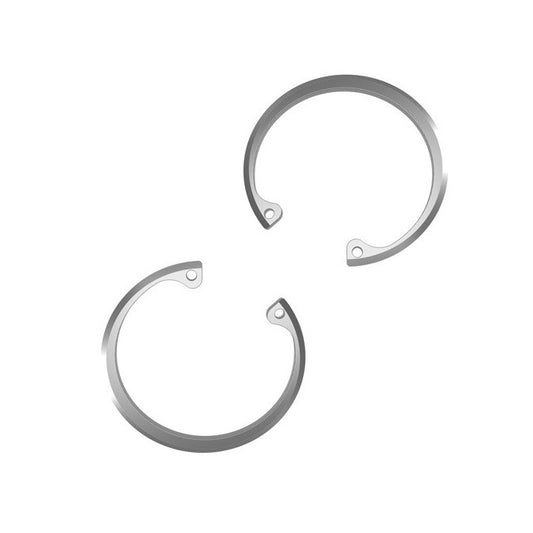

Internal Retaining Rings - 28.58x1.22x30.61 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.22
mm
+/- 0.05
(Equiv. 0.048 in.)
Groove Dia. (Dg)
30.61
mm
+ 0.10 / - 0.00
(Equiv. 1.205 in.)
Approx. Loose Circlip OD (Dr)
31.22
mm
+ 1.14 / - 0.00
Groove Width (W)
1.09
mm
+ 0.03 / - 0.00
Internal Retaining Rings - 28.58x1.22x30.61 mm - Carbon Steel
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 240
Part Number: CIB-02858-C (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$8.68 AUD
$19.82 AUD $8.68 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 28.58x1.22x30.61 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.22
mm
+/- 0.05
(Equiv. 0.048 in.)
Groove Dia. (Dg)
30.61
mm
+ 0.10 / - 0.00
(Equiv. 1.205 in.)
Approx. Loose Circlip OD (Dr)
31.22
mm
+ 1.14 / - 0.00
Internal Retaining Rings - 28.58x1.22x30.61 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.09 mm + 0.03 / - 0.00
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 240
Part Number: CIB-02858-C (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$8.68 AUD
$19.82 AUD $8.68 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 28.58x1.27x30 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.00
mm
+/- 0.13
(Equiv. 1.181 in.)
Approx. Loose Circlip OD (Dr)
30.53
mm
+ 0.79 / - 0.00
Radial Wall (S) Approx.
2.36
mm
+/- 0.08
Groove Width (W)
1.42
mm
Internal Retaining Rings - 28.58x1.27x30 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Groove (C1): 25.81 mm
Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0286-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 28.58x1.27x30 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.00
mm
+/- 0.13
(Equiv. 1.181 in.)
Approx. Loose Circlip OD (Dr)
30.53
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 28.58x1.27x30 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.36 mm +/- 0.08    Groove Width (W): 1.42 mm    Clearance in Groove (C1): 25.81 mm
Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0286-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029
Internal Retaining Rings - 28.58x1.27x30.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.41
mm
Approx. Loose Circlip OD (Dr)
30.49
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
2.62
mm
+/- 0.11
Groove Width (W)
1.47
mm
+/- 0.11
Internal Retaining Rings - 28.58x1.27x30.41 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Groove (C1): 25.25 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings
Additional stock available from USA subject to Prior Sale = 20880
Part Number: RRN-112 (PK-6)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$28.05 AUD
$33.65 AUD $28.05 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 28.58x1.27x30.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
28.58
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.41
mm
Approx. Loose Circlip OD (Dr)
30.49
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 28.58x1.27x30.41 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.62 mm +/- 0.11    Groove Width (W): 1.47 mm +/- 0.11   Clearance in Groove (C1): 25.25 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings
Additional stock available from USA subject to Prior Sale = 20880
Part Number: RRN-112 (PK-6)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$28.05 AUD
$33.65 AUD $28.05 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 29x1.2x30.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
29.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
30.40
mm
+ 0.25 / - 0.00
(Equiv. 1.197 in.)
Approx. Loose Circlip OD (Dr)
31.10
mm
+ 0.50 / - 0.25
Groove Width (W)
1.30
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 29x1.2x30.4 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 18.90 mm    Clearance in Groove (C1): 20.80 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 500
Part Number: CCI-02900-C (PK-10)
10 units (100 pcs) Available Now | Further orders can be expected around Tue, Aug 11, 2026
$2.86 AUD
$5.29 AUD $2.86 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Internal Retaining Rings - 29x1.2x30.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
29.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
30.40
mm
+ 0.25 / - 0.00
(Equiv. 1.197 in.)
Approx. Loose Circlip OD (Dr)
31.10
mm
+ 0.50 / - 0.25
Internal Retaining Rings - 29x1.2x30.4 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.30 mm + 0.10 / - 0.00   Clearance in Bore (C): 18.90 mm    Clearance in Groove (C1): 20.80 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 500
Part Number: CCI-02900-C (PK-10)
10 units (100 pcs) Available Now | Further orders can be expected around Tue, Aug 11, 2026
$2.86 AUD
$5.29 AUD $2.86 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (100 pcs) Available Now. Backorder if more than 10.
Internal Retaining Rings - 29x1.2x29.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
29.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
29.80
mm
+ 0.13 / - 0.00
(Equiv. 1.173 in.)
Approx. Loose Circlip OD (Dr)
30.20
mm
Radial Wall (S) Approx.
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Internal Retaining Rings - 29x1.2x29.8 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Groove (C1): 26.7 mm
Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0290-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 29x1.2x29.8 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
29.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
29.80
mm
+ 0.13 / - 0.00
(Equiv. 1.173 in.)
Approx. Loose Circlip OD (Dr)
30.20
mm
Internal Retaining Rings - 29x1.2x29.8 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Clearance in Groove (C1): 26.7 mm
Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0290-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029
Internal Retaining Rings - 30x1.2x31.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
30.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
31.40
mm
+ 0.25 / - 0.00
(Equiv. 1.236 in.)
Approx. Loose Circlip OD (Dr)
31.83
mm
+ 0.50 / - 0.25
Radial Wall (S) Approx.
3.1 - 3.2
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 30x1.2x31.4 mm - Carbon Steel
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 14537
Part Number: CCI-03000-C-V (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Tue, Aug 11, 2026
$8.50 AUD
$8.50 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Internal Retaining Rings - 30x1.2x31.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
30.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
31.40
mm
+ 0.25 / - 0.00
(Equiv. 1.236 in.)
Approx. Loose Circlip OD (Dr)
31.83
mm
+ 0.50 / - 0.25
Internal Retaining Rings - 30x1.2x31.4 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 3.1 - 3.2 mm    Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 14537
Part Number: CCI-03000-C-V (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Tue, Aug 11, 2026
$8.50 AUD
$8.50 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (50 pcs) Available Now. Backorder if more than 10.
Internal Retaining Rings - 30x1.2x31.65 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
30.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
31.65
mm
+ 0.00 / - 0.25
(Equiv. 1.246 in.)
Approx. Loose Circlip OD (Dr)
31.85
mm
Radial Wall (S) Approx.
3.20
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 30x1.2x31.65 mm - Spring Steel
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips
Part Number: DJK-030 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 30x1.2x31.65 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
30.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
31.65
mm
+ 0.00 / - 0.25
(Equiv. 1.246 in.)
Approx. Loose Circlip OD (Dr)
31.85
mm
Internal Retaining Rings - 30x1.2x31.65 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.20 mm    Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Circlips
Part Number: DJK-030 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029
Internal Retaining Rings - 30x1.5x31.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
30.00
mm
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.06
(Equiv. 0.059 in.)
Groove Dia. (Dg)
31.40
mm
+ 0.25 / - 0.00
(Equiv. 1.236 in.)
Approx. Loose Circlip OD (Dr)
32.10
mm
+ 0.50 / - 0.25
Groove Width (W)
1.60
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 30x1.5x31.4 mm - Carbon Steel
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips
Part Number: CCI-03000H-C (PK-500)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Oct 10, 2026
$293.41 AUD
$352.09 AUD $293.41 AUD
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 30x1.5x31.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
30.00
mm
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.06
(Equiv. 0.059 in.)
Groove Dia. (Dg)
31.40
mm
+ 0.25 / - 0.00
(Equiv. 1.236 in.)
Approx. Loose Circlip OD (Dr)
32.10
mm
+ 0.50 / - 0.25
Internal Retaining Rings - 30x1.5x31.4 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.60 mm + 0.10 / - 0.00
Category: Retaining Rings - Internal - Circlips
Part Number: CCI-03000H-C (PK-500)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Oct 10, 2026
$293.41 AUD
$352.09 AUD $293.41 AUD
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 30x2x32 mm Round Wire - Carbon Spring Steel Wire Clip
Housing Bore (B)
30.00
mm
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
32.00
mm
+ 0.5 / - 0.0
(Equiv. 1.26 in.)
Approx. Loose Circlip OD (Dr)
32.30
mm
Groove Width (W)
2.20
mm
Internal Retaining Rings - 30x2x32 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Bore (C): 28.3 mm
Category: Retaining Rings - Internal - Round Wire
Additional stock available from USA subject to Prior Sale = 1754
Part Number: WRI-0300-RD (PK-2)
25 units (50 pcs) Available Now | Further orders can be expected around Tue, Aug 11, 2026
$1.86 AUD
$1.86 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 25 available can be backordered.
Internal Retaining Rings - 30x2x32 mm Round Wire - Carbon Spring Steel Wire Clip
Housing Bore (B)
30.00
mm
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
32.00
mm
+ 0.5 / - 0.0
(Equiv. 1.26 in.)
Approx. Loose Circlip OD (Dr)
32.30
mm
Internal Retaining Rings - 30x2x32 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.20 mm    Clearance in Bore (C): 28.3 mm
Category: Retaining Rings - Internal - Round Wire
Additional stock available from USA subject to Prior Sale = 1754
Part Number: WRI-0300-RD (PK-2)
25 units (50 pcs) Available Now | Further orders can be expected around Tue, Aug 11, 2026
$1.86 AUD
$1.86 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

25 units (50 pcs) Available Now. Backorder if more than 25.
Internal Retaining Rings - 30x2x32.3 mm Round Wire - Carbon Spring Steel Wire Clip
Housing Bore (B)
30.00
mm
Clip Thickness (T)
2.0
mm
+ 0.10 / - 0.05
(Equiv. 0.079 in.)
Groove Dia. (Dg)
32.30
mm
Min.
(Equiv. 1.272 in.)
Approx. Loose Circlip OD (Dr)
33.10
mm
Groove Width (W)
2.10
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 30x2x32.3 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Bore (C): 29.1 mm
Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0300A-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 30x2x32.3 mm Round Wire - Carbon Spring Steel Wire Clip
Housing Bore (B)
30.00
mm
Clip Thickness (T)
2.0
mm
+ 0.10 / - 0.05
(Equiv. 0.079 in.)
Groove Dia. (Dg)
32.30
mm
Min.
(Equiv. 1.272 in.)
Approx. Loose Circlip OD (Dr)
33.10
mm
Internal Retaining Rings - 30x2x32.3 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.10 mm + 0.10 / - 0.00   Clearance in Bore (C): 29.1 mm
Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0300A-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sun, Apr 08, 2029
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
25.40
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.08
mm
+/- 0.075
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
28.22
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 17.27 mm    Clearance in Groove (C1): 18.80 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 817
Part Number: CCI-02540-CZY (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$27.32 AUD
$64.00 AUD $27.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
25.40
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.08
mm
+/- 0.075
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
28.22
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 17.27 mm    Clearance in Groove (C1): 18.80 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 817
Part Number: CCI-02540-CZY (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$27.32 AUD
$64.00 AUD $27.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
25.40
mm
Clip Thickness (T)
1.07
mm
+/- 0.052
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.08
mm
+/- 0.076
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
28.22
mm
Groove Width (W)
1.17
mm
Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 1340
Part Number: CCI-02540-C-V (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$34.59 AUD
$81.20 AUD $34.59 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
25.40
mm
Clip Thickness (T)
1.07
mm
+/- 0.052
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.08
mm
+/- 0.076
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
28.22
mm
Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.17 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 1340
Part Number: CCI-02540-C-V (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$34.59 AUD
$81.20 AUD $34.59 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.

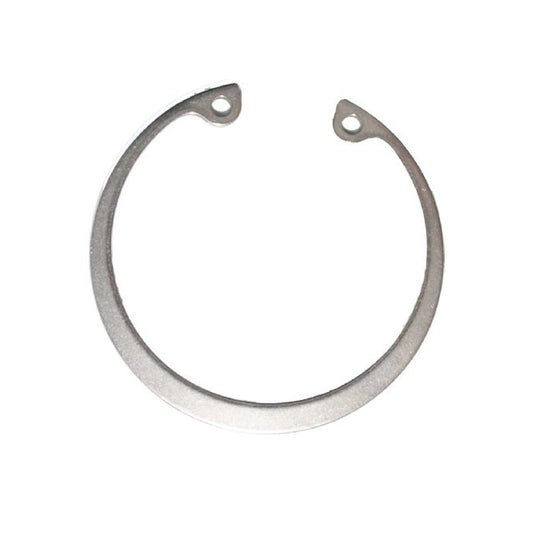

Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
25.40
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.08
mm
+/- 0.075
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
28.22
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 17.27 mm    Clearance in Groove (C1): 18.80 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 4633
Part Number: CCI-02540-S15 (Each)
2 Available Now | Further orders can be expected around Tue, Aug 11, 2026
$2.05 AUD
$5.41 AUD $2.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
25.40
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.08
mm
+/- 0.075
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
28.22
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 17.27 mm    Clearance in Groove (C1): 18.80 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 4633
Part Number: CCI-02540-S15 (Each)
2 Available Now | Further orders can be expected around Tue, Aug 11, 2026
$2.05 AUD
$5.41 AUD $2.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
25.40
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.08
mm
+/- 0.075
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
28.22
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 17.27 mm    Clearance in Groove (C1): 18.80 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 17563
Part Number: CCI-02540-C (PK-10)
10 units (100 pcs) Available Now | Further orders can be expected around Tue, Aug 11, 2026
$3.59 AUD
$6.65 AUD $3.59 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
25.40
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.08
mm
+/- 0.075
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
28.22
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 17.27 mm    Clearance in Groove (C1): 18.80 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 17563
Part Number: CCI-02540-C (PK-10)
10 units (100 pcs) Available Now | Further orders can be expected around Tue, Aug 11, 2026
$3.59 AUD
$6.65 AUD $3.59 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (100 pcs) Available Now. Backorder if more than 10.
Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
25.98
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.71
mm
+/- 0.075
(Equiv. 1.091 in.)
Approx. Loose Circlip OD (Dr)
28.85
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 25.98x1.07x27.71 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 17.78 mm    Clearance in Groove (C1): 19.30 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 1638
Part Number: CCI-02598-C (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$25.59 AUD
$30.71 AUD $25.59 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
25.98
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.71
mm
+/- 0.075
(Equiv. 1.091 in.)
Approx. Loose Circlip OD (Dr)
28.85
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 25.98x1.07x27.71 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 17.78 mm    Clearance in Groove (C1): 19.30 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 1638
Part Number: CCI-02598-C (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$25.59 AUD
$30.71 AUD $25.59 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
25.98
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.71
mm
+/- 0.075
(Equiv. 1.091 in.)
Approx. Loose Circlip OD (Dr)
28.85
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 25.98x1.07x27.71 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 17.78 mm    Clearance in Groove (C1): 19.30 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 664
Part Number: CCI-02598-S15 (PK-3)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$8.50 AUD
$19.14 AUD $8.50 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
25.98
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.71
mm
+/- 0.075
(Equiv. 1.091 in.)
Approx. Loose Circlip OD (Dr)
28.85
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 25.98x1.07x27.71 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 17.78 mm    Clearance in Groove (C1): 19.30 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 664
Part Number: CCI-02598-S15 (PK-3)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$8.50 AUD
$19.14 AUD $8.50 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 26x1.2x27.2 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
26.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
27.20
mm
+ 0.21 / - 0.00
(Equiv. 1.071 in.)
Approx. Loose Circlip OD (Dr)
27.90
mm
+ 0.42 / - 0.21
Groove Width (W)
1.30
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 26x1.2x27.2 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 16.10 mm    Clearance in Groove (C1): 17.80 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 880
Part Number: CCI-02600-C (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$10.68 AUD
$10.68 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 26x1.2x27.2 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
26.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
27.20
mm
+ 0.21 / - 0.00
(Equiv. 1.071 in.)
Approx. Loose Circlip OD (Dr)
27.90
mm
+ 0.42 / - 0.21
Internal Retaining Rings - 26x1.2x27.2 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.30 mm + 0.08 / - 0.00   Clearance in Bore (C): 16.10 mm    Clearance in Groove (C1): 17.80 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 880
Part Number: CCI-02600-C (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 11, 2026
$10.68 AUD
$10.68 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
