| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |

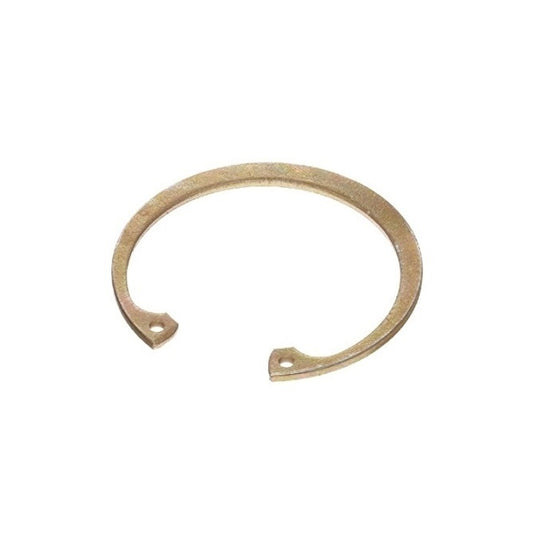

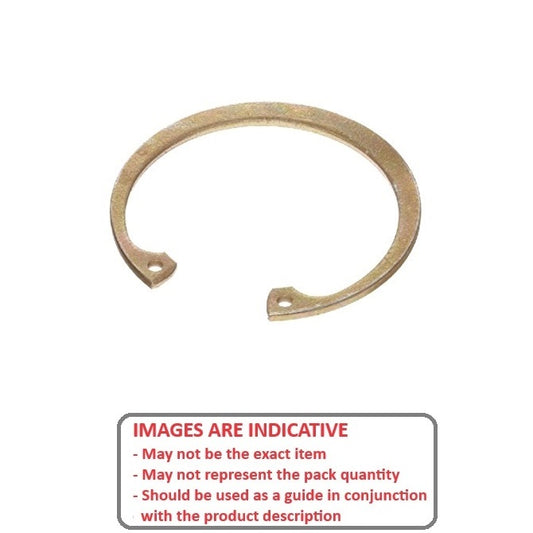

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
36.53
mm (Equiv. 1.438 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
38.81
mm + 0.00 / - 0.06 (Equiv. 1.528 in.) |
Approx. Loose Circlip OD (Dr)
40.54
mm + 0.64 / - 0.38 |
Groove Width (W)
1.42
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 26.92 mm
Clearance in Groove (C1): 29.21 mm
Min. Lug Diameter (h): 1.93 mm
Min. Extension (n): 3.43
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 96 |
||||||
|
Part Number: CCI-03653-CZY (PK-6)
Internal Retaining Rings - 36.53x1.27x38.81 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$10.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
36.53
mm (Equiv. 1.438 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
38.81
mm + 0.00 / - 0.06 (Equiv. 1.528 in.) |
Approx. Loose Circlip OD (Dr)
40.54
mm + 0.64 / - 0.38 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.42 mm + 0.10 / - 0.00
Clearance in Bore (C): 26.92 mm
Clearance in Groove (C1): 29.21 mm
Min. Lug Diameter (h): 1.93 mm
Min. Extension (n): 3.43
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 96 |
||||||
|
Part Number: CCI-03653-CZY (PK-6)
Internal Retaining Rings - 36.53x1.27x38.81 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$10.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
38.10
mm (Equiv. 1.5 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
40.49
mm + 0.00 / - 0.06 (Equiv. 1.594 in.) |
Approx. Loose Circlip OD (Dr)
42.16
mm + 0.64 / - 0.38 |
Groove Width (W)
1.42
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 28.70 mm
Clearance in Groove (C1): 30.99 mm
Min. Lug Diameter (h): 1.93 mm
Min. Extension (n): 3.58
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2924 |
||||||
|
Part Number: CCI-03810-CZY (PK-7)
Internal Retaining Rings - 38.1x1.27x40.49 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$9.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 7 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
38.10
mm (Equiv. 1.5 in.) |
Clip Thickness (T)
1.27
mm +/- 0.102 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
40.49
mm + 0.00 / - 0.06 (Equiv. 1.594 in.) |
Approx. Loose Circlip OD (Dr)
42.16
mm + 0.64 / - 0.38 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.42 mm + 0.10 / - 0.00
Clearance in Bore (C): 28.70 mm
Clearance in Groove (C1): 30.99 mm
Min. Lug Diameter (h): 1.93 mm
Min. Extension (n): 3.58
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2924 |
||||||
|
Part Number: CCI-03810-CZY (PK-7)
Internal Retaining Rings - 38.1x1.27x40.49 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$9.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 7 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
39.67
mm (Equiv. 1.562 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
42.11
mm + 0.00 / - 0.06 (Equiv. 1.658 in.) |
Approx. Loose Circlip OD (Dr)
44.04
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 29.21 mm
Clearance in Groove (C1): 31.50 mm
Min. Lug Diameter (h): 1.93 mm
Min. Extension (n): 3.66
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1545 |
||||||
|
Part Number: CCI-03967-CZY (PK-5)
Internal Retaining Rings - 39.67x1.57x42.11 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$8.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
39.67
mm (Equiv. 1.562 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
42.11
mm + 0.00 / - 0.06 (Equiv. 1.658 in.) |
Approx. Loose Circlip OD (Dr)
44.04
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 29.21 mm
Clearance in Groove (C1): 31.50 mm
Min. Lug Diameter (h): 1.93 mm
Min. Extension (n): 3.66
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1545 |
||||||
|
Part Number: CCI-03967-CZY (PK-5)
Internal Retaining Rings - 39.67x1.57x42.11 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$8.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
41.28
mm (Equiv. 1.625 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
43.82
mm + 0.00 / - 0.06 (Equiv. 1.725 in.) |
Approx. Loose Circlip OD (Dr)
45.82
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 30.73 mm
Clearance in Groove (C1): 33.27 mm
Min. Lug Diameter (h): 1.93 mm
Min. Extension (n): 3.81
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1941 |
||||||
|
Part Number: CCI-04128-CZY (PK-5)
Internal Retaining Rings - 41.28x1.57x43.82 mm Circlips - Carbon Steel Zinc Plated Circlip 20 units (100 pcs) Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$8.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
41.28
mm (Equiv. 1.625 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
43.82
mm + 0.00 / - 0.06 (Equiv. 1.725 in.) |
Approx. Loose Circlip OD (Dr)
45.82
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 30.73 mm
Clearance in Groove (C1): 33.27 mm
Min. Lug Diameter (h): 1.93 mm
Min. Extension (n): 3.81
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1941 |
||||||
|
Part Number: CCI-04128-CZY (PK-5)
Internal Retaining Rings - 41.28x1.57x43.82 mm Circlips - Carbon Steel Zinc Plated Circlip 20 units (100 pcs) Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$8.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm + 0.00 / - 0.06 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 34.04 mm
Clearance in Groove (C1): 36.58 mm
Min. Lug Diameter (h): 1.93 mm
Min. Extension (n): 4.11
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1380 |
||||||
|
Part Number: CCI-04445-CZY (PK-4)
Internal Retaining Rings - 44.45x1.57x47.19 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$9.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm + 0.00 / - 0.06 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 34.04 mm
Clearance in Groove (C1): 36.58 mm
Min. Lug Diameter (h): 1.93 mm
Min. Extension (n): 4.11
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1380 |
||||||
|
Part Number: CCI-04445-CZY (PK-4)
Internal Retaining Rings - 44.45x1.57x47.19 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$9.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
46.04
mm (Equiv. 1.813 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.82
mm + 0.00 / - 0.06 (Equiv. 1.922 in.) |
Approx. Loose Circlip OD (Dr)
51.10
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 35.56 mm
Clearance in Groove (C1): 38.35 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 4.19
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 731 |
||||||
|
Part Number: CCI-04604-CZY (PK-125)
Internal Retaining Rings - 46.04x1.57x48.82 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$327.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 125 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
46.04
mm (Equiv. 1.813 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.82
mm + 0.00 / - 0.06 (Equiv. 1.922 in.) |
Approx. Loose Circlip OD (Dr)
51.10
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 35.56 mm
Clearance in Groove (C1): 38.35 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 4.19
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 731 |
||||||
|
Part Number: CCI-04604-CZY (PK-125)
Internal Retaining Rings - 46.04x1.57x48.82 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$327.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 125 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
47.63
mm (Equiv. 1.875 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
50.52
mm + 0.00 / - 0.06 (Equiv. 1.989 in.) |
Approx. Loose Circlip OD (Dr)
52.63
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 37.08 mm
Clearance in Groove (C1): 40.13 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 4.34
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1953 |
||||||
|
Part Number: CCI-04763-CZY (PK-4)
Internal Retaining Rings - 47.63x1.57x50.52 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$9.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
47.63
mm (Equiv. 1.875 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
50.52
mm + 0.00 / - 0.06 (Equiv. 1.989 in.) |
Approx. Loose Circlip OD (Dr)
52.63
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 37.08 mm
Clearance in Groove (C1): 40.13 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 4.34
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1953 |
||||||
|
Part Number: CCI-04763-CZY (PK-4)
Internal Retaining Rings - 47.63x1.57x50.52 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$9.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm + 0.00 / - 0.07 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 40.39 mm
Clearance in Groove (C1): 43.43 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 4.65
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 479 |
||||||
|
Part Number: CCI-05080-CZY (PK-5)
Internal Retaining Rings - 50.8x1.57x53.9 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$14.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm + 0.00 / - 0.07 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 40.39 mm
Clearance in Groove (C1): 43.43 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 4.65
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 479 |
||||||
|
Part Number: CCI-05080-CZY (PK-5)
Internal Retaining Rings - 50.8x1.57x53.9 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$14.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.52
mm + 0.00 / - 0.07 (Equiv. 2.186 in.) |
Approx. Loose Circlip OD (Dr)
57.91
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 40.89 mm
Clearance in Groove (C1): 43.94 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 4.72
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 335 |
||||||
|
Part Number: CCI-05239-CZY (PK-4)
Internal Retaining Rings - 52.39x1.98x55.52 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$15.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.52
mm + 0.00 / - 0.07 (Equiv. 2.186 in.) |
Approx. Loose Circlip OD (Dr)
57.91
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 40.89 mm
Clearance in Groove (C1): 43.94 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 4.72
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 335 |
||||||
|
Part Number: CCI-05239-CZY (PK-4)
Internal Retaining Rings - 52.39x1.98x55.52 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$15.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
53.98
mm (Equiv. 2.125 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
57.18
mm + 0.00 / - 0.07 (Equiv. 2.251 in.) |
Approx. Loose Circlip OD (Dr)
59.69
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 41.91 mm
Clearance in Groove (C1): 45.21 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 4.80
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1158 |
||||||
|
Part Number: CCI-05398-CZY (PK-4)
Internal Retaining Rings - 53.98x1.98x57.18 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$16.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
53.98
mm (Equiv. 2.125 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
57.18
mm + 0.00 / - 0.07 (Equiv. 2.251 in.) |
Approx. Loose Circlip OD (Dr)
59.69
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 41.91 mm
Clearance in Groove (C1): 45.21 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 4.80
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1158 |
||||||
|
Part Number: CCI-05398-CZY (PK-4)
Internal Retaining Rings - 53.98x1.98x57.18 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$16.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
57.15
mm (Equiv. 2.25 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
60.50
mm + 0.00 / - 0.07 (Equiv. 2.382 in.) |
Approx. Loose Circlip OD (Dr)
63.25
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 44.96 mm
Clearance in Groove (C1): 48.51 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 5.03
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2927 |
||||||
|
Part Number: CCI-05715-CZY (PK-4)
Internal Retaining Rings - 57.15x1.98x60.5 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$16.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
57.15
mm (Equiv. 2.25 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
60.50
mm + 0.00 / - 0.07 (Equiv. 2.382 in.) |
Approx. Loose Circlip OD (Dr)
63.25
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 44.96 mm
Clearance in Groove (C1): 48.51 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 5.03
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2927 |
||||||
|
Part Number: CCI-05715-CZY (PK-4)
Internal Retaining Rings - 57.15x1.98x60.5 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$16.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
58.74
mm (Equiv. 2.313 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.23
mm + 0.00 / - 0.07 (Equiv. 2.45 in.) |
Approx. Loose Circlip OD (Dr)
65.02
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 46.74 mm
Clearance in Groove (C1): 50.29 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 5.26
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1244 |
||||||
|
Part Number: CCI-05874-CZY (PK-5)
Internal Retaining Rings - 58.74x1.98x62.23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$22.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
58.74
mm (Equiv. 2.313 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.23
mm + 0.00 / - 0.07 (Equiv. 2.45 in.) |
Approx. Loose Circlip OD (Dr)
65.02
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 46.74 mm
Clearance in Groove (C1): 50.29 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 5.26
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1244 |
||||||
|
Part Number: CCI-05874-CZY (PK-5)
Internal Retaining Rings - 58.74x1.98x62.23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$22.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm + 0.00 / - 0.07 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
66.80
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 48.26 mm
Clearance in Groove (C1): 51.82 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 5.41
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2313 |
||||||
|
Part Number: CCI-06033-CZY (PK-4)
Internal Retaining Rings - 60.33x1.98x63.93 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$18.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm + 0.00 / - 0.07 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
66.80
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 48.26 mm
Clearance in Groove (C1): 51.82 mm
Min. Lug Diameter (h): 2.31 mm
Min. Extension (n): 5.41
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2313 |
||||||
|
Part Number: CCI-06033-CZY (PK-4)
Internal Retaining Rings - 60.33x1.98x63.93 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$18.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
61.98
mm (Equiv. 2.44 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
65.63
mm + 0.00 / - 0.07 (Equiv. 2.584 in.) |
Approx. Loose Circlip OD (Dr)
68.63
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 49.78 mm
Clearance in Groove (C1): 53.59 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 5.49
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 582 |
||||||
|
Part Number: CCI-06198-CZY (Each)
Internal Retaining Rings - 61.98x1.98x65.63 mm Circlips - Carbon Steel Zinc Plated Circlip 48 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$3.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
61.98
mm (Equiv. 2.44 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
65.63
mm + 0.00 / - 0.07 (Equiv. 2.584 in.) |
Approx. Loose Circlip OD (Dr)
68.63
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 49.78 mm
Clearance in Groove (C1): 53.59 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 5.49
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 582 |
||||||
|
Part Number: CCI-06198-CZY (Each)
Internal Retaining Rings - 61.98x1.98x65.63 mm Circlips - Carbon Steel Zinc Plated Circlip 48 Available Now | Further orders can be expected around Sat, Jan 03, 2026 Regular price
$3.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
63.50
mm (Equiv. 2.5 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
67.26
mm + 0.00 / - 0.07 (Equiv. 2.648 in.) |
Approx. Loose Circlip OD (Dr)
70.49
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Steel Zinc Plated Clearance in Bore (C): 51.31 mm Clearance in Groove (C1): 55.12 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 5.64 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06350-CZY (PK-4)
Internal Retaining Rings - 63.5x1.98x67.26 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026 Regular price
$16.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
63.50
mm (Equiv. 2.5 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
67.26
mm + 0.00 / - 0.07 (Equiv. 2.648 in.) |
Approx. Loose Circlip OD (Dr)
70.49
mm + 1.02 / - 0.76 |
|
||
| Material: Carbon Steel Zinc Plated Groove Width (W): 2.18 mm + 0.13 / - 0.00 Clearance in Bore (C): 51.31 mm Clearance in Groove (C1): 55.12 mm Min. Lug Diameter (h): 2.74 mm Min. Extension (n): 5.64 Standard: MIL-16625 | ||||||
|
Part Number: CCI-06350-CZY (PK-4)
Internal Retaining Rings - 63.5x1.98x67.26 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026 Regular price
$16.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
65.07
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.94
mm + 0.00 / - 0.07 (Equiv. 2.714 in.) |
Approx. Loose Circlip OD (Dr)
72.24
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 51.31 mm
Clearance in Groove (C1): 55.37 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 5.79
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1000 |
||||||
|
Part Number: CCI-06507-CZY (PK-50)
Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 27, 2026 Regular price
$362.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
65.07
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.94
mm + 0.00 / - 0.07 (Equiv. 2.714 in.) |
Approx. Loose Circlip OD (Dr)
72.24
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 51.31 mm
Clearance in Groove (C1): 55.37 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 5.79
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1000 |
||||||
|
Part Number: CCI-06507-CZY (PK-50)
Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 27, 2026 Regular price
$362.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
68.26
mm (Equiv. 2.687 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.34
mm + 0.00 / - 0.07 (Equiv. 2.848 in.) |
Approx. Loose Circlip OD (Dr)
75.69
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 5.94
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 245 |
||||||
|
Part Number: CCI-06826-CZY (PK-125)
Internal Retaining Rings - 68.26x2.36x72.34 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$885.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 125 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
68.26
mm (Equiv. 2.687 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.34
mm + 0.00 / - 0.07 (Equiv. 2.848 in.) |
Approx. Loose Circlip OD (Dr)
75.69
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 5.94
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 245 |
||||||
|
Part Number: CCI-06826-CZY (PK-125)
Internal Retaining Rings - 68.26x2.36x72.34 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$885.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 125 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
71.42
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm + 0.00 / - 0.07 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
79.27
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 56.90 mm
Clearance in Groove (C1): 60.96 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 6.40
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 598 |
||||||
|
Part Number: CCI-07142-CZY (PK-3)
Internal Retaining Rings - 71.42x2.36x75.69 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$22.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
71.42
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm + 0.00 / - 0.07 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
79.27
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 56.90 mm
Clearance in Groove (C1): 60.96 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 6.40
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 598 |
||||||
|
Part Number: CCI-07142-CZY (PK-3)
Internal Retaining Rings - 71.42x2.36x75.69 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$22.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
77.50
mm + 0.00 / - 0.07 (Equiv. 3.051 in.) |
Approx. Loose Circlip OD (Dr)
81.05
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 58.42 mm
Clearance in Groove (C1): 62.74 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 6.71
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1688 |
||||||
|
Part Number: CCI-07303-CZY (PK-3)
Internal Retaining Rings - 73.03x2.36x77.5 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$23.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
77.50
mm + 0.00 / - 0.07 (Equiv. 3.051 in.) |
Approx. Loose Circlip OD (Dr)
81.05
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 58.42 mm
Clearance in Groove (C1): 62.74 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 6.71
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1688 |
||||||
|
Part Number: CCI-07303-CZY (PK-3)
Internal Retaining Rings - 73.03x2.36x77.5 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$23.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
78.00
mm + 0.00 / - 0.07 (Equiv. 3.071 in.) |
Approx. Loose Circlip OD (Dr)
79.50
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Steel Zinc Plated Clearance in Bore (C): 58.60 mm Clearance in Groove (C1): 62.40 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-07500-CZ (PK-63)
Internal Retaining Rings - 75x2.5x78 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 05, 2026 Regular price
$257.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 63 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
78.00
mm + 0.00 / - 0.07 (Equiv. 3.071 in.) |
Approx. Loose Circlip OD (Dr)
79.50
mm + 1.10 / - 0.46 |
|
||
| Material: Carbon Steel Zinc Plated Groove Width (W): 2.65 mm + 0.13 / - 0.00 Clearance in Bore (C): 58.60 mm Clearance in Groove (C1): 62.40 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 4.50 Standard: DIN472 | ||||||
|
Part Number: CCI-07500-CZ (PK-63)
Internal Retaining Rings - 75x2.5x78 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 05, 2026 Regular price
$257.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 63 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
79.38
mm (Equiv. 3.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
84.20
mm + 0.00 / - 0.08 (Equiv. 3.315 in.) |
Approx. Loose Circlip OD (Dr)
88.60
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Steel Zinc Plated Clearance in Bore (C): 64.01 mm Clearance in Groove (C1): 68.83 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.24 Standard: MIL-16625 | ||||||
|
Part Number: CCI-07938-CZY (PK-20)
Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Mar 29, 2026 Regular price
$864.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
79.38
mm (Equiv. 3.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
84.20
mm + 0.00 / - 0.08 (Equiv. 3.315 in.) |
Approx. Loose Circlip OD (Dr)
88.60
mm + 1.40 / - 1.40 |
|
||
| Material: Carbon Steel Zinc Plated Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 64.01 mm Clearance in Groove (C1): 68.83 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.24 Standard: MIL-16625 | ||||||
|
Part Number: CCI-07938-CZY (PK-20)
Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Mar 29, 2026 Regular price
$864.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
79.98
mm (Equiv. 3.149 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
85.04
mm + 0.00 / - 0.08 (Equiv. 3.348 in.) |
Approx. Loose Circlip OD (Dr)
89.48
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 64.77 mm
Clearance in Groove (C1): 69.60 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.32
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 430 |
||||||
|
Part Number: CCI-07998-CZY (PK-2)
Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$22.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
79.98
mm (Equiv. 3.149 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
85.04
mm + 0.00 / - 0.08 (Equiv. 3.348 in.) |
Approx. Loose Circlip OD (Dr)
89.48
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 64.77 mm
Clearance in Groove (C1): 69.60 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.32
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 430 |
||||||
|
Part Number: CCI-07998-CZY (PK-2)
Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$22.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
84.99
mm (Equiv. 3.346 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
90.07
mm + 0.00 / - 0.08 (Equiv. 3.546 in.) |
Approx. Loose Circlip OD (Dr)
94.84
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 68.33 mm
Clearance in Groove (C1): 73.41 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.62
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 14 |
||||||
|
Part Number: CCI-08499-CZY (PK-2)
Internal Retaining Rings - 84.99x2.77x90.07 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$26.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
84.99
mm (Equiv. 3.346 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
90.07
mm + 0.00 / - 0.08 (Equiv. 3.546 in.) |
Approx. Loose Circlip OD (Dr)
94.84
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 68.33 mm
Clearance in Groove (C1): 73.41 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.62
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 14 |
||||||
|
Part Number: CCI-08499-CZY (PK-2)
Internal Retaining Rings - 84.99x2.77x90.07 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Jan 03, 2026 Regular price
$26.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm + 0.00 / - 0.08 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
98.81
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Steel Zinc Plated Clearance in Bore (C): 71.12 mm Clearance in Groove (C1): 73.66 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.00 Standard: MIL-16625 | ||||||
|
Part Number: CCI-08890-CZY (PK-25)
Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 09, 2026 Regular price
$324.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm + 0.00 / - 0.08 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
98.81
mm + 1.40 / - 1.40 |
|
||
| Material: Carbon Steel Zinc Plated Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 71.12 mm Clearance in Groove (C1): 73.66 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.00 Standard: MIL-16625 | ||||||
|
Part Number: CCI-08890-CZY (PK-25)
Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 09, 2026 Regular price
$324.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
