Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Retaining Rings -> Internal -> Circlips -> Standard -> Zinc Plated

There are 53 products in the sub-categories of Retaining Rings - Internal - Circlips - Standard - Zinc Plated. Scroll down or follow the link to Retaining Rings - Internal - Circlips - Standard - Zinc Plated in the products table to see all these items combined into a handy table with filters.

Category Details

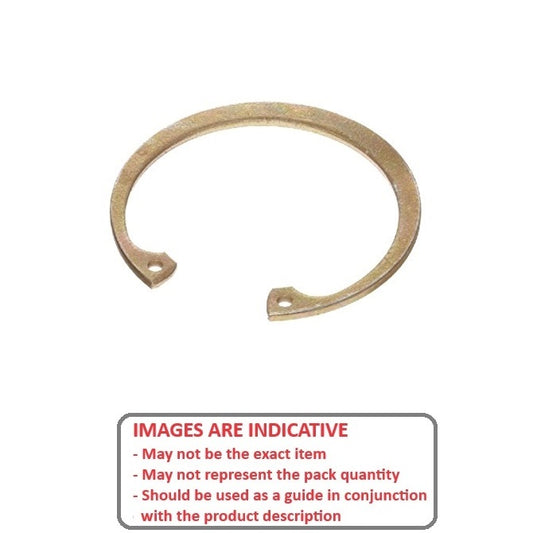

A selection of Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • Zinc plated carbon steel
  • Tolerances on request.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - Internal - Circlips - Standard - Zinc Plated category on the Small Parts & Bearings online store.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative
Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
6.35
mm

(Equiv. 0.25 in.)
Clip Thickness (T)
0.31
mm
+/- 0.025
(Equiv. 0.012 in.)
Groove Dia. (Dg)
6.81
mm
+ 0.00 / - 0.05
(Equiv. 0.268 in.)
Approx. Loose Circlip OD (Dr)
7.11
mm
+ 0.25 / - 0.13
Groove Width (W)
0.51
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 6.35x0.31x6.81 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 2.79 mm    Clearance in Groove (C1): 3.30 mm    Min. Lug Diameter (h): 0.74 mm    Min. Extension (n): 0.69    Standard: MIL-16625
Part Number: CCI-00635-CZY (PK-1250)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 26, 2026
$448.95 AUD
$448.95 AUD
Priced, Stocked and Sold Per 1250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
6.35
mm

(Equiv. 0.25 in.)
Clip Thickness (T)
0.31
mm
+/- 0.025
(Equiv. 0.012 in.)
Groove Dia. (Dg)
6.81
mm
+ 0.00 / - 0.05
(Equiv. 0.268 in.)
Approx. Loose Circlip OD (Dr)
7.11
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 6.35x0.31x6.81 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.51 mm + 0.05 / - 0.00   Clearance in Bore (C): 2.79 mm    Clearance in Groove (C1): 3.30 mm    Min. Lug Diameter (h): 0.74 mm    Min. Extension (n): 0.69    Standard: MIL-16625
Part Number: CCI-00635-CZY (PK-1250)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 26, 2026
$448.95 AUD
$448.95 AUD
Priced, Stocked and Sold Per 1250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
7.94
mm

(Equiv. 0.313 in.)
Clip Thickness (T)
0.31
mm
+/- 0.025
(Equiv. 0.012 in.)
Groove Dia. (Dg)
8.38
mm
+ 0.00 / - 0.05
(Equiv. 0.33 in.)
Approx. Loose Circlip OD (Dr)
8.79
mm
+ 0.25 / - 0.13
Groove Width (W)
0.51
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 7.94x0.31x8.38 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 4.32 mm    Clearance in Groove (C1): 4.83 mm    Min. Lug Diameter (h): 0.74 mm    Min. Extension (n): 0.69    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 15154
Part Number: CCI-00794-CZY (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$23.23 AUD
$54.40 AUD $23.23 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
7.94
mm

(Equiv. 0.313 in.)
Clip Thickness (T)
0.31
mm
+/- 0.025
(Equiv. 0.012 in.)
Groove Dia. (Dg)
8.38
mm
+ 0.00 / - 0.05
(Equiv. 0.33 in.)
Approx. Loose Circlip OD (Dr)
8.79
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 7.94x0.31x8.38 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.51 mm + 0.05 / - 0.00   Clearance in Bore (C): 4.32 mm    Clearance in Groove (C1): 4.83 mm    Min. Lug Diameter (h): 0.74 mm    Min. Extension (n): 0.69    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 15154
Part Number: CCI-00794-CZY (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$23.23 AUD
$54.40 AUD $23.23 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
9.53
mm

(Equiv. 0.375 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
10.08
mm
+ 0.00 / - 0.05
(Equiv. 0.397 in.)
Approx. Loose Circlip OD (Dr)
10.54
mm
+ 0.25 / - 0.13
Groove Width (W)
0.74
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 9.53x0.64x10.08 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 5.08 mm    Clearance in Groove (C1): 5.59 mm    Min. Lug Diameter (h): 0.99 mm    Min. Extension (n): 0.84    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1001
Part Number: CCI-00953-CZY (PK-5)
38 units (190 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$0.95 AUD
$2.42 AUD $0.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 38 available can be backordered.
Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
9.53
mm

(Equiv. 0.375 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
10.08
mm
+ 0.00 / - 0.05
(Equiv. 0.397 in.)
Approx. Loose Circlip OD (Dr)
10.54
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 9.53x0.64x10.08 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.74 mm + 0.08 / - 0.00   Clearance in Bore (C): 5.08 mm    Clearance in Groove (C1): 5.59 mm    Min. Lug Diameter (h): 0.99 mm    Min. Extension (n): 0.84    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1001
Part Number: CCI-00953-CZY (PK-5)
38 units (190 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$0.95 AUD
$2.42 AUD $0.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

38 units (190 pcs) Available Now. Backorder if more than 38.
Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
11.11
mm

(Equiv. 0.437 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
11.71
mm
+ 0.00 / - 0.06
(Equiv. 0.461 in.)
Approx. Loose Circlip OD (Dr)
12.24
mm
+ 0.25 / - 0.13
Groove Width (W)
0.74
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 5.84 mm    Clearance in Groove (C1): 6.35 mm    Min. Lug Diameter (h): 0.99 mm    Min. Extension (n): 0.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 9794
Part Number: CCI-01111-CZY (PK-5)
40 units (200 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$0.95 AUD
$2.56 AUD $0.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 40 available can be backordered.
Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
11.11
mm

(Equiv. 0.437 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
11.71
mm
+ 0.00 / - 0.06
(Equiv. 0.461 in.)
Approx. Loose Circlip OD (Dr)
12.24
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 11.11x0.64x11.71 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.74 mm + 0.08 / - 0.00   Clearance in Bore (C): 5.84 mm    Clearance in Groove (C1): 6.35 mm    Min. Lug Diameter (h): 0.99 mm    Min. Extension (n): 0.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 9794
Part Number: CCI-01111-CZY (PK-5)
40 units (200 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$0.95 AUD
$2.56 AUD $0.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

40 units (200 pcs) Available Now. Backorder if more than 40.
Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
11.51
mm

(Equiv. 0.453 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.12
mm
+ 0.00 / - 0.06
(Equiv. 0.477 in.)
Approx. Loose Circlip OD (Dr)
12.65
mm
+ 0.25 / - 0.13
Groove Width (W)
0.74
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 11.51x0.64x12.12 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 6.35 mm    Clearance in Groove (C1): 6.86 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 0.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 456
Part Number: CCI-01151-CZY (PK-5)
40 units (200 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$1.32 AUD
$3.60 AUD $1.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 40 available can be backordered.
Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
11.51
mm

(Equiv. 0.453 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.12
mm
+ 0.00 / - 0.06
(Equiv. 0.477 in.)
Approx. Loose Circlip OD (Dr)
12.65
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 11.51x0.64x12.12 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.74 mm + 0.08 / - 0.00   Clearance in Bore (C): 6.35 mm    Clearance in Groove (C1): 6.86 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 0.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 456
Part Number: CCI-01151-CZY (PK-5)
40 units (200 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$1.32 AUD
$3.60 AUD $1.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

40 units (200 pcs) Available Now. Backorder if more than 40.
Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
13.46
mm
+ 0.00 / - 0.06
(Equiv. 0.53 in.)
Approx. Loose Circlip OD (Dr)
13.92
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 6.60 mm    Clearance in Groove (C1): 7.37 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.14    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 939
Part Number: CCI-01270-CZY (PK-5)
148 units (740 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$1.14 AUD
$2.98 AUD $1.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 148 available can be backordered.
Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
13.46
mm
+ 0.00 / - 0.06
(Equiv. 0.53 in.)
Approx. Loose Circlip OD (Dr)
13.92
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 12.7x0.89x13.46 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 6.60 mm    Clearance in Groove (C1): 7.37 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.14    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 939
Part Number: CCI-01270-CZY (PK-5)
148 units (740 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$1.14 AUD
$2.98 AUD $1.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

148 units (740 pcs) Available Now. Backorder if more than 148.
Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
14.29
mm

(Equiv. 0.563 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
15.14
mm
+ 0.00 / - 0.06
(Equiv. 0.596 in.)
Approx. Loose Circlip OD (Dr)
15.75
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 14.29x0.89x15.14 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 7.11 mm    Clearance in Groove (C1): 8.13 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.30    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2179
Part Number: CCI-01429-CZY (PK-250)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$73.68 AUD
$173.00 AUD $73.68 AUD
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
14.29
mm

(Equiv. 0.563 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
15.14
mm
+ 0.00 / - 0.06
(Equiv. 0.596 in.)
Approx. Loose Circlip OD (Dr)
15.75
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 14.29x0.89x15.14 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 7.11 mm    Clearance in Groove (C1): 8.13 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.30    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2179
Part Number: CCI-01429-CZY (PK-250)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$73.68 AUD
$173.00 AUD $73.68 AUD
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
16.89
mm
+ 0.00 / - 0.06
(Equiv. 0.665 in.)
Approx. Loose Circlip OD (Dr)
17.63
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 15.88x0.89x16.89 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 8.89 mm    Clearance in Groove (C1): 9.91 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.52    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2635
Part Number: CCI-01588-CZY (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$1.32 AUD
$3.46 AUD $1.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
16.89
mm
+ 0.00 / - 0.06
(Equiv. 0.665 in.)
Approx. Loose Circlip OD (Dr)
17.63
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 15.88x0.89x16.89 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 8.89 mm    Clearance in Groove (C1): 9.91 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.52    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2635
Part Number: CCI-01588-CZY (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$1.32 AUD
$3.46 AUD $1.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (50 pcs) Available Now. Backorder if more than 10.
Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
17.46
mm

(Equiv. 0.687 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
18.59
mm
+ 0.00 / - 0.06
(Equiv. 0.732 in.)
Approx. Loose Circlip OD (Dr)
19.38
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 17.46x0.89x18.59 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 10.41 mm    Clearance in Groove (C1): 11.43 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.68    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 47
Part Number: CCI-01746-CZY (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$41.23 AUD
$96.80 AUD $41.23 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
17.46
mm

(Equiv. 0.687 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
18.59
mm
+ 0.00 / - 0.06
(Equiv. 0.732 in.)
Approx. Loose Circlip OD (Dr)
19.38
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 17.46x0.89x18.59 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 10.41 mm    Clearance in Groove (C1): 11.43 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.68    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 47
Part Number: CCI-01746-CZY (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$41.23 AUD
$96.80 AUD $41.23 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
20.22
mm
+ 0.00 / - 0.06
(Equiv. 0.796 in.)
Approx. Loose Circlip OD (Dr)
21.11
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 11.43 mm    Clearance in Groove (C1): 12.70 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.75    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 4106
Part Number: CCI-01905-CZY (PK-5)
60 units (300 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$1.86 AUD
$5.00 AUD $1.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 60 available can be backordered.
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
20.22
mm
+ 0.00 / - 0.06
(Equiv. 0.796 in.)
Approx. Loose Circlip OD (Dr)
21.11
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 19.05x0.89x20.22 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 11.43 mm    Clearance in Groove (C1): 12.70 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.75    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 4106
Part Number: CCI-01905-CZY (PK-5)
60 units (300 pcs) Available Now | Further orders can be expected around Fri, Jan 23, 2026
$1.86 AUD
$5.00 AUD $1.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

60 units (300 pcs) Available Now. Backorder if more than 60.
Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
19.74
mm

(Equiv. 0.777 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
20.96
mm
+ 0.00 / - 0.06
(Equiv. 0.825 in.)
Approx. Loose Circlip OD (Dr)
21.82
mm
+ 0.25 / - 0.13
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 11.94 mm    Clearance in Groove (C1): 13.21 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.83    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1849
Part Number: CCI-01974-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$23.32 AUD
$54.60 AUD $23.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
19.74
mm

(Equiv. 0.777 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
20.96
mm
+ 0.00 / - 0.06
(Equiv. 0.825 in.)
Approx. Loose Circlip OD (Dr)
21.82
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 19.74x1.07x20.96 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 11.94 mm    Clearance in Groove (C1): 13.21 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.83    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1849
Part Number: CCI-01974-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$23.32 AUD
$54.60 AUD $23.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
20.64
mm

(Equiv. 0.813 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
21.89
mm
+ 0.00 / - 0.06
(Equiv. 0.862 in.)
Approx. Loose Circlip OD (Dr)
22.89
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00

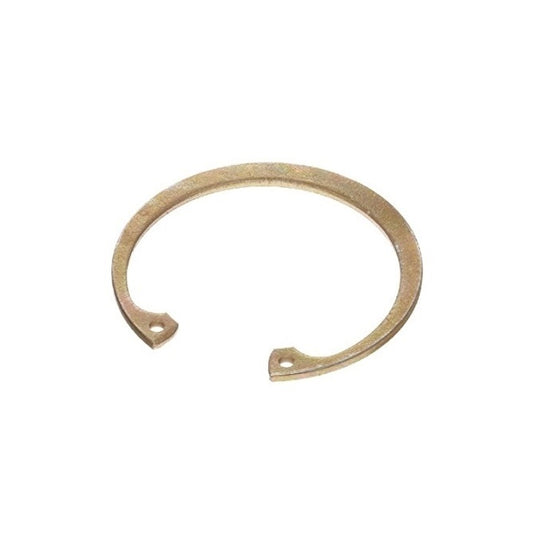

Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 12.45 mm    Clearance in Groove (C1): 13.46 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2850
Part Number: CCI-02064-CZY (PK-250)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$100.86 AUD
$237.00 AUD $100.86 AUD
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
20.64
mm

(Equiv. 0.813 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
21.89
mm
+ 0.00 / - 0.06
(Equiv. 0.862 in.)
Approx. Loose Circlip OD (Dr)
22.89
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 20.64x1.07x21.89 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 12.45 mm    Clearance in Groove (C1): 13.46 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2850
Part Number: CCI-02064-CZY (PK-250)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$100.86 AUD
$237.00 AUD $100.86 AUD
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
22.00
mm

(Equiv. 0.866 in.)
Clip Thickness (T)
1.00
mm
+/- 0.075
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.00
mm
+ 0.00 / - 0.06
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
23.50
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 22x1x23 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 13.20 mm    Clearance in Groove (C1): 14.60 mm    Min. Lug Diameter (h): 2.00 mm    Min. Extension (n): 1.50    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 994
Part Number: CCI-02200N-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$23.59 AUD
$55.20 AUD $23.59 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
22.00
mm

(Equiv. 0.866 in.)
Clip Thickness (T)
1.00
mm
+/- 0.075
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.00
mm
+ 0.00 / - 0.06
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
23.50
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 22x1x23 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 13.20 mm    Clearance in Groove (C1): 14.60 mm    Min. Lug Diameter (h): 2.00 mm    Min. Extension (n): 1.50    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 994
Part Number: CCI-02200N-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$23.59 AUD
$55.20 AUD $23.59 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
22.23
mm

(Equiv. 0.875 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
+ 0.00 / - 0.06
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr)
24.66
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 13.97 mm    Clearance in Groove (C1): 15.24 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 2.13    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1398
Part Number: CCI-02223-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$22.50 AUD
$52.60 AUD $22.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
22.23
mm

(Equiv. 0.875 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
+ 0.00 / - 0.06
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr)
24.66
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 13.97 mm    Clearance in Groove (C1): 15.24 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 2.13    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1398
Part Number: CCI-02223-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$22.50 AUD
$52.60 AUD $22.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
22.89
mm

(Equiv. 0.901 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.36
mm
+ 0.00 / - 0.06
(Equiv. 0.959 in.)
Approx. Loose Circlip OD (Dr)
25.40
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 22.89x1.07x24.36 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 14.73 mm    Clearance in Groove (C1): 16.00 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 2.21    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 3689
Part Number: CCI-02289-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$66.95 AUD
$157.20 AUD $66.95 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
22.89
mm

(Equiv. 0.901 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.36
mm
+ 0.00 / - 0.06
(Equiv. 0.959 in.)
Approx. Loose Circlip OD (Dr)
25.40
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 22.89x1.07x24.36 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 14.73 mm    Clearance in Groove (C1): 16.00 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 2.21    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 3689
Part Number: CCI-02289-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$66.95 AUD
$157.20 AUD $66.95 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
23.81
mm

(Equiv. 0.937 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
25.40
mm
+ 0.00 / - 0.06
(Equiv. 1 in.)
Approx. Loose Circlip OD (Dr)
26.44
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 23.81x1.07x25.4 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 15.49 mm    Clearance in Groove (C1): 17.02 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 2.36    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 918
Part Number: CCI-02381-CZY (PK-250)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$116.59 AUD
$274.00 AUD $116.59 AUD
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
23.81
mm

(Equiv. 0.937 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
25.40
mm
+ 0.00 / - 0.06
(Equiv. 1 in.)
Approx. Loose Circlip OD (Dr)
26.44
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 23.81x1.07x25.4 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 15.49 mm    Clearance in Groove (C1): 17.02 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 2.36    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 918
Part Number: CCI-02381-CZY (PK-250)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$116.59 AUD
$274.00 AUD $116.59 AUD
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.08
mm
+ 0.00 / - 0.06
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
28.22
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 17.27 mm    Clearance in Groove (C1): 18.80 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 2.51    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 725
Part Number: CCI-02540-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$27.32 AUD
$64.00 AUD $27.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.08
mm
+ 0.00 / - 0.06
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
28.22
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 25.4x1.07x27.08 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 17.27 mm    Clearance in Groove (C1): 18.80 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 2.51    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 725
Part Number: CCI-02540-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$27.32 AUD
$64.00 AUD $27.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
25.98
mm

(Equiv. 1.023 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.71
mm
+ 0.00 / - 0.06
(Equiv. 1.091 in.)
Approx. Loose Circlip OD (Dr)
28.85
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 25.98x1.07x27.71 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 17.78 mm    Clearance in Groove (C1): 19.30 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 2.59    Standard: MIL-16625
Part Number: CCI-02598-CZY (PK-1250)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 19, 2026
$1,078.95 AUD
$1,078.95 AUD
Priced, Stocked and Sold Per 1250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
25.98
mm

(Equiv. 1.023 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.71
mm
+ 0.00 / - 0.06
(Equiv. 1.091 in.)
Approx. Loose Circlip OD (Dr)
28.85
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 25.98x1.07x27.71 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 17.78 mm    Clearance in Groove (C1): 19.30 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 2.59    Standard: MIL-16625
Part Number: CCI-02598-CZY (PK-1250)
Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 19, 2026
$1,078.95 AUD
$1,078.95 AUD
Priced, Stocked and Sold Per 1250 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 26.99x1.27x28.7 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
26.99
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
28.70
mm
+ 0.00 / - 0.06
(Equiv. 1.13 in.)
Approx. Loose Circlip OD (Dr)
29.97
mm
+ 0.64 / - 0.38
Groove Width (W)
1.42
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 26.99x1.27x28.7 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 17.53 mm    Clearance in Groove (C1): 19.05 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 2.59    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 413
Part Number: CCI-02699-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$36.32 AUD
$85.20 AUD $36.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 26.99x1.27x28.7 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
26.99
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
28.70
mm
+ 0.00 / - 0.06
(Equiv. 1.13 in.)
Approx. Loose Circlip OD (Dr)
29.97
mm
+ 0.64 / - 0.38
Internal Retaining Rings - 26.99x1.27x28.7 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.42 mm + 0.10 / - 0.00   Clearance in Bore (C): 17.53 mm    Clearance in Groove (C1): 19.05 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 2.59    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 413
Part Number: CCI-02699-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$36.32 AUD
$85.20 AUD $36.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 28.58x1.27x30.4 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.40
mm
+ 0.00 / - 0.06
(Equiv. 1.197 in.)
Approx. Loose Circlip OD (Dr)
31.72
mm
+ 0.64 / - 0.38
Groove Width (W)
1.42
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 28.58x1.27x30.4 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 19.05 mm    Clearance in Groove (C1): 20.83 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 2.74    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1217
Part Number: CCI-02858-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$37.05 AUD
$86.80 AUD $37.05 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 28.58x1.27x30.4 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.40
mm
+ 0.00 / - 0.06
(Equiv. 1.197 in.)
Approx. Loose Circlip OD (Dr)
31.72
mm
+ 0.64 / - 0.38
Internal Retaining Rings - 28.58x1.27x30.4 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.42 mm + 0.10 / - 0.00   Clearance in Bore (C): 19.05 mm    Clearance in Groove (C1): 20.83 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 2.74    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1217
Part Number: CCI-02858-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$37.05 AUD
$86.80 AUD $37.05 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 30.16x1.27x32.05 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
30.16
mm

(Equiv. 1.187 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
32.05
mm
+ 0.00 / - 0.06
(Equiv. 1.262 in.)
Approx. Loose Circlip OD (Dr)
33.50
mm
+ 0.64 / - 0.38
Groove Width (W)
1.42
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 30.16x1.27x32.05 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 20.57 mm    Clearance in Groove (C1): 22.35 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 2.82    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1225
Part Number: CCI-03016-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$40.32 AUD
$94.60 AUD $40.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 30.16x1.27x32.05 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
30.16
mm

(Equiv. 1.187 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
32.05
mm
+ 0.00 / - 0.06
(Equiv. 1.262 in.)
Approx. Loose Circlip OD (Dr)
33.50
mm
+ 0.64 / - 0.38
Internal Retaining Rings - 30.16x1.27x32.05 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.42 mm + 0.10 / - 0.00   Clearance in Bore (C): 20.57 mm    Clearance in Groove (C1): 22.35 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 2.82    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1225
Part Number: CCI-03016-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$40.32 AUD
$94.60 AUD $40.32 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 31.75x1.27x33.72 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
33.72
mm
+ 0.00 / - 0.06
(Equiv. 1.328 in.)
Approx. Loose Circlip OD (Dr)
35.26
mm
+ 0.64 / - 0.38
Groove Width (W)
1.42
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 31.75x1.27x33.72 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 22.35 mm    Clearance in Groove (C1): 24.13 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.05    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 8941
Part Number: CCI-03175-CZY (PK-7)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$8.05 AUD
$18.68 AUD $8.05 AUD
Priced, Stocked and Sold Per 7 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 31.75x1.27x33.72 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
33.72
mm
+ 0.00 / - 0.06
(Equiv. 1.328 in.)
Approx. Loose Circlip OD (Dr)
35.26
mm
+ 0.64 / - 0.38
Internal Retaining Rings - 31.75x1.27x33.72 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.42 mm + 0.10 / - 0.00   Clearance in Bore (C): 22.35 mm    Clearance in Groove (C1): 24.13 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.05    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 8941
Part Number: CCI-03175-CZY (PK-7)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$8.05 AUD
$18.68 AUD $8.05 AUD
Priced, Stocked and Sold Per 7 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 33.38x1.27x35.46 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
33.38
mm

(Equiv. 1.314 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
35.46
mm
+ 0.00 / - 0.06
(Equiv. 1.396 in.)
Approx. Loose Circlip OD (Dr)
36.98
mm
+ 0.64 / - 0.38
Groove Width (W)
1.42
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 23.88 mm    Clearance in Groove (C1): 25.91 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.20    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 843
Part Number: CCI-03338-CZY (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$6.68 AUD
$15.42 AUD $6.68 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 33.38x1.27x35.46 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
33.38
mm

(Equiv. 1.314 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
35.46
mm
+ 0.00 / - 0.06
(Equiv. 1.396 in.)
Approx. Loose Circlip OD (Dr)
36.98
mm
+ 0.64 / - 0.38
Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.42 mm + 0.10 / - 0.00   Clearance in Bore (C): 23.88 mm    Clearance in Groove (C1): 25.91 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.20    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 843
Part Number: CCI-03338-CZY (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$6.68 AUD
$15.42 AUD $6.68 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 34.93x1.27x37.11 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
34.93
mm

(Equiv. 1.375 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
37.11
mm
+ 0.00 / - 0.06
(Equiv. 1.461 in.)
Approx. Loose Circlip OD (Dr)
38.76
mm
+ 0.64 / - 0.38
Groove Width (W)
1.42
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 25.40 mm    Clearance in Groove (C1): 27.43 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.28    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 6026
Part Number: CCI-03493-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$50.50 AUD
$118.40 AUD $50.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 34.93x1.27x37.11 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
34.93
mm

(Equiv. 1.375 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.)
Groove Dia. (Dg)
37.11
mm
+ 0.00 / - 0.06
(Equiv. 1.461 in.)
Approx. Loose Circlip OD (Dr)
38.76
mm
+ 0.64 / - 0.38
Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.42 mm + 0.10 / - 0.00   Clearance in Bore (C): 25.40 mm    Clearance in Groove (C1): 27.43 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.28    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 6026
Part Number: CCI-03493-CZY (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 23, 2026
$50.50 AUD
$118.40 AUD $50.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
