Retaining Rings - External - Snap Rings

Retaining Rings -> External -> Snap Rings
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative
External Retaining Rings - 76.2x7.93x72.24 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
7.93
mm
+/- 0.08
(Equiv. 0.312 in.)
Groove Dia. (Dg)
72.24
mm
+ 0.10 / - 0.00
(Equiv. 2.844 in.)
Approx. Loose Circlip ID (A)
71.53
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
7.93
mm
+/- 0.08
Groove Width (W)
8.31
mm
External Retaining Rings - 76.2x7.93x72.24 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 87.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
External Retaining Rings - 76.2x7.93x72.24 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
7.93
mm
+/- 0.08
(Equiv. 0.312 in.)
Groove Dia. (Dg)
72.24
mm
+ 0.10 / - 0.00
(Equiv. 2.844 in.)
Approx. Loose Circlip ID (A)
71.53
mm
+ 0.00 / - 2.00
External Retaining Rings - 76.2x7.93x72.24 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 7.93 mm +/- 0.08    Groove Width (W): 8.31 mm    Approx. Loose Clip OD: 87.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 76.2x7.93x72.24 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
7.93
mm
+/- 0.08
(Equiv. 0.312 in.)
Groove Dia. (Dg)
72.24
mm
+ 0.10 / - 0.00
(Equiv. 2.844 in.)
Approx. Loose Circlip ID (A)
71.53
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
7.93
mm
+/- 0.08
Groove Width (W)
8.31
mm
External Retaining Rings - 76.2x7.93x72.24 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 87.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 76.2x7.93x72.24 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
7.93
mm
+/- 0.08
(Equiv. 0.312 in.)
Groove Dia. (Dg)
72.24
mm
+ 0.10 / - 0.00
(Equiv. 2.844 in.)
Approx. Loose Circlip ID (A)
71.53
mm
+ 0.00 / - 2.00
External Retaining Rings - 76.2x7.93x72.24 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 7.93 mm +/- 0.08    Groove Width (W): 8.31 mm    Approx. Loose Clip OD: 87.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 77.78x2.36x73.61 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
77.78
mm

(Equiv. 3.062 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
73.61
mm
+/- 0.15
(Equiv. 2.898 in.)
Approx. Loose Circlip ID (A)
72.97
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 77.78x2.36x73.61 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 84.05
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0778-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 77.78x2.36x73.61 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
77.78
mm

(Equiv. 3.062 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
73.61
mm
+/- 0.15
(Equiv. 2.898 in.)
Approx. Loose Circlip ID (A)
72.97
mm
+ 0.00 / - 2.00
External Retaining Rings - 77.78x2.36x73.61 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 84.05
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0778-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 77.78x2.36x74.17 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
77.78
mm

(Equiv. 3.062 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
74.17
mm
+/- 0.15
(Equiv. 2.92 in.)
Approx. Loose Circlip ID (A)
73.41
mm
+ 0.00 / - 1.58
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 77.78x2.36x74.17 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 84.49
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0778-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 77.78x2.36x74.17 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
77.78
mm

(Equiv. 3.062 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
74.17
mm
+/- 0.15
(Equiv. 2.92 in.)
Approx. Loose Circlip ID (A)
73.41
mm
+ 0.00 / - 1.58
External Retaining Rings - 77.78x2.36x74.17 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 84.49
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0778-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 79.38x1.58x76.2 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
79.38
mm

(Equiv. 3.125 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
76.20
mm
+/- 0.15
(Equiv. 3 in.)
Approx. Loose Circlip ID (A)
75.31
mm
- 0.00 / + 2.00
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
1.73
mm
External Retaining Rings - 79.38x1.58x76.2 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 84.81
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0794-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 79.38x1.58x76.2 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
79.38
mm

(Equiv. 3.125 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
76.20
mm
+/- 0.15
(Equiv. 3 in.)
Approx. Loose Circlip ID (A)
75.31
mm
- 0.00 / + 2.00
External Retaining Rings - 79.38x1.58x76.2 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 1.73 mm    Approx. Loose Clip OD: 84.81
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0794-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 79.38x2.36x75.11 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
79.38
mm

(Equiv. 3.125 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
75.11
mm
+/- 0.15
(Equiv. 2.957 in.)
Approx. Loose Circlip ID (A)
74.47
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 79.38x2.36x75.11 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 85.55
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0794-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 79.38x2.36x75.11 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
79.38
mm

(Equiv. 3.125 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
75.11
mm
+/- 0.15
(Equiv. 2.957 in.)
Approx. Loose Circlip ID (A)
74.47
mm
+ 0.00 / - 2.00
External Retaining Rings - 79.38x2.36x75.11 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 85.55
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0794-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 79.38x2.36x75.72 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
79.38
mm

(Equiv. 3.125 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
75.72
mm
+/- 0.15
(Equiv. 2.981 in.)
Approx. Loose Circlip ID (A)
74.96
mm
+ 0.00 / - 1.58
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 79.38x2.36x75.72 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 86.04
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0794-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 79.38x2.36x75.72 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
79.38
mm

(Equiv. 3.125 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
75.72
mm
+/- 0.15
(Equiv. 2.981 in.)
Approx. Loose Circlip ID (A)
74.96
mm
+ 0.00 / - 1.58
External Retaining Rings - 79.38x2.36x75.72 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 86.04
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0794-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 80.16x2.36x75.84 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
80.16
mm

(Equiv. 3.156 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
75.84
mm
+/- 0.15
(Equiv. 2.986 in.)
Approx. Loose Circlip ID (A)
75.21
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 80.16x2.36x75.84 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 87.91
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0802-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 80.16x2.36x75.84 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
80.16
mm

(Equiv. 3.156 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
75.84
mm
+/- 0.15
(Equiv. 2.986 in.)
Approx. Loose Circlip ID (A)
75.21
mm
+ 0.00 / - 2.00
External Retaining Rings - 80.16x2.36x75.84 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 87.91
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0802-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 80.16x2.36x76.45 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
80.16
mm

(Equiv. 3.156 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
76.45
mm
+/- 0.15
(Equiv. 3.01 in.)
Approx. Loose Circlip ID (A)
75.69
mm
+ 0.00 / - 1.58
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 80.16x2.36x76.45 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 86.77
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0802-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 80.16x2.36x76.45 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
80.16
mm

(Equiv. 3.156 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
76.45
mm
+/- 0.15
(Equiv. 3.01 in.)
Approx. Loose Circlip ID (A)
75.69
mm
+ 0.00 / - 1.58
External Retaining Rings - 80.16x2.36x76.45 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 86.77
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0802-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 82.55x1.58x79.38 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
82.55
mm

(Equiv. 3.25 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
79.38
mm
+/- 0.15
(Equiv. 3.125 in.)
Approx. Loose Circlip ID (A)
78.49
mm
- 0.00 / + 2.00
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
1.73
mm
External Retaining Rings - 82.55x1.58x79.38 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 87.99
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0826-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 82.55x1.58x79.38 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
82.55
mm

(Equiv. 3.25 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
79.38
mm
+/- 0.15
(Equiv. 3.125 in.)
Approx. Loose Circlip ID (A)
78.49
mm
- 0.00 / + 2.00
External Retaining Rings - 82.55x1.58x79.38 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 1.73 mm    Approx. Loose Clip OD: 87.99
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0826-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 82.55x2.36x78.13 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
82.55
mm

(Equiv. 3.25 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
78.13
mm
+/- 0.15
(Equiv. 3.076 in.)
Approx. Loose Circlip ID (A)
77.50
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 82.55x2.36x78.13 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 90.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0826-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 82.55x2.36x78.13 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
82.55
mm

(Equiv. 3.25 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
78.13
mm
+/- 0.15
(Equiv. 3.076 in.)
Approx. Loose Circlip ID (A)
77.50
mm
+ 0.00 / - 2.00
External Retaining Rings - 82.55x2.36x78.13 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 90.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0826-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 82.55x2.36x78.74 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
82.55
mm

(Equiv. 3.25 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
78.74
mm
+/- 0.15
(Equiv. 3.1 in.)
Approx. Loose Circlip ID (A)
77.98
mm
+ 0.00 / - 1.58
Radial Wall (S) Approx.
6.35
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 82.55x2.36x78.74 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 90.68
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0826-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 82.55x2.36x78.74 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
82.55
mm

(Equiv. 3.25 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
78.74
mm
+/- 0.15
(Equiv. 3.1 in.)
Approx. Loose Circlip ID (A)
77.98
mm
+ 0.00 / - 1.58
External Retaining Rings - 82.55x2.36x78.74 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 90.68
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0826-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 84.94x2.36x81.03 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
84.94
mm

(Equiv. 3.344 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
81.03
mm
+/- 0.15
(Equiv. 3.19 in.)
Approx. Loose Circlip ID (A)
80.26
mm
+ 0.00 / - 1.58
Radial Wall (S) Approx.
6.35
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 84.94x2.36x81.03 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 92.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0849-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 84.94x2.36x81.03 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
84.94
mm

(Equiv. 3.344 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
81.03
mm
+/- 0.15
(Equiv. 3.19 in.)
Approx. Loose Circlip ID (A)
80.26
mm
+ 0.00 / - 1.58
External Retaining Rings - 84.94x2.36x81.03 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 92.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0849-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 84.99x2.36x80.42 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
84.99
mm

(Equiv. 3.346 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
80.42
mm
+/- 0.15
(Equiv. 3.166 in.)
Approx. Loose Circlip ID (A)
79.78
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 84.99x2.36x80.42 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 92.48
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0850-LS-H-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 84.99x2.36x80.42 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
84.99
mm

(Equiv. 3.346 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
80.42
mm
+/- 0.15
(Equiv. 3.166 in.)
Approx. Loose Circlip ID (A)
79.78
mm
+ 0.00 / - 2.00
External Retaining Rings - 84.99x2.36x80.42 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 92.48
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0850-LS-H-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 85x2.5x83 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
85.00
mm

(Equiv. 3.346 in.)
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
83.00
mm
+ 0 / - 0.22
(Equiv. 3.268 in.)
Approx. Loose Circlip ID (A)
82.00
mm
Radial Wall (S) Approx.
3.40
mm
+ 0 / - 0.10
Groove Width (W)
2.70
mm
External Retaining Rings - 85x2.5x83 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 88.8
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0850-LS (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026
$157.32 AUD
$157.32 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 85x2.5x83 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
85.00
mm

(Equiv. 3.346 in.)
Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.)
Groove Dia. (Dg)
83.00
mm
+ 0 / - 0.22
(Equiv. 3.268 in.)
Approx. Loose Circlip ID (A)
82.00
mm
External Retaining Rings - 85x2.5x83 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.40 mm + 0 / - 0.10    Groove Width (W): 2.70 mm    Approx. Loose Clip OD: 88.8
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0850-LS (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026
$157.32 AUD
$157.32 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 85.73x1.58x82.55 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
85.73
mm

(Equiv. 3.375 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
82.55
mm
+/- 0.15
(Equiv. 3.25 in.)
Approx. Loose Circlip ID (A)
81.66
mm
- 0.00 / + 2.00
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
1.73
mm

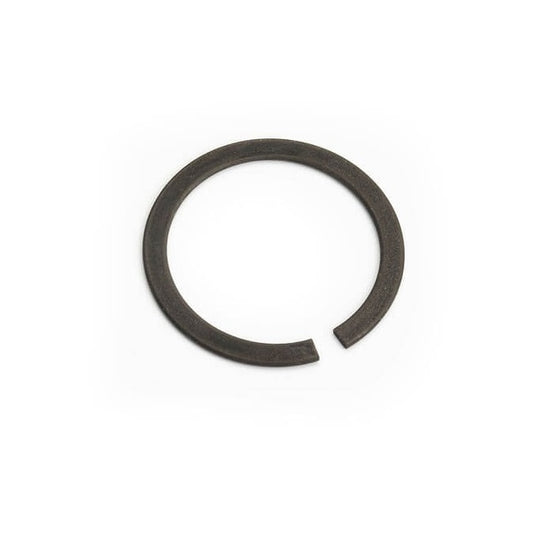

External Retaining Rings - 85.73x1.58x82.55 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 91.16
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0857-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 85.73x1.58x82.55 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
85.73
mm

(Equiv. 3.375 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
82.55
mm
+/- 0.15
(Equiv. 3.25 in.)
Approx. Loose Circlip ID (A)
81.66
mm
- 0.00 / + 2.00
External Retaining Rings - 85.73x1.58x82.55 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 1.73 mm    Approx. Loose Clip OD: 91.16
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0857-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 87.3x2.36x83.34 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
87.30
mm

(Equiv. 3.437 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
83.34
mm
+/- 0.15
(Equiv. 3.281 in.)
Approx. Loose Circlip ID (A)
82.58
mm
+ 0.00 / - 1.58
Radial Wall (S) Approx.
6.35
mm
+/- 0.13
Groove Width (W)
2.62
mm

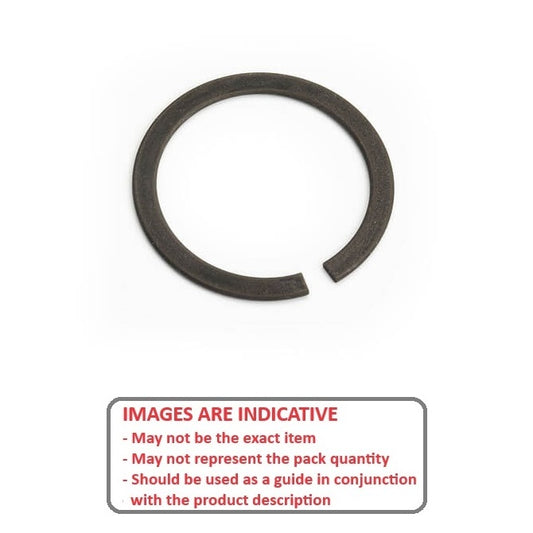

External Retaining Rings - 87.3x2.36x83.34 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 95.28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0873-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 87.3x2.36x83.34 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
87.30
mm

(Equiv. 3.437 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
83.34
mm
+/- 0.15
(Equiv. 3.281 in.)
Approx. Loose Circlip ID (A)
82.58
mm
+ 0.00 / - 1.58
External Retaining Rings - 87.3x2.36x83.34 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 95.28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0873-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 87.33x2.36x82.73 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
87.33
mm

(Equiv. 3.438 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
82.73
mm
+/- 0.15
(Equiv. 3.257 in.)
Approx. Loose Circlip ID (A)
82.09
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 87.33x2.36x82.73 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 94.79
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0873-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 87.33x2.36x82.73 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
87.33
mm

(Equiv. 3.438 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
82.73
mm
+/- 0.15
(Equiv. 3.257 in.)
Approx. Loose Circlip ID (A)
82.09
mm
+ 0.00 / - 2.00
External Retaining Rings - 87.33x2.36x82.73 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 94.79
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0873-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 88.9x1.58x85.73 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
88.90
mm

(Equiv. 3.5 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
85.73
mm
+/- 0.15
(Equiv. 3.375 in.)
Approx. Loose Circlip ID (A)
84.84
mm
- 0.00 / + 2.00
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
1.73
mm
External Retaining Rings - 88.9x1.58x85.73 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 94.34
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0889-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 88.9x1.58x85.73 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
88.90
mm

(Equiv. 3.5 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
85.73
mm
+/- 0.15
(Equiv. 3.375 in.)
Approx. Loose Circlip ID (A)
84.84
mm
- 0.00 / + 2.00
External Retaining Rings - 88.9x1.58x85.73 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 1.73 mm    Approx. Loose Clip OD: 94.34
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0889-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 88.9x2.77x84.23 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
88.90
mm

(Equiv. 3.5 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
84.23
mm
+/- 0.15
(Equiv. 3.316 in.)
Approx. Loose Circlip ID (A)
83.46
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.13
Groove Width (W)
3.05
mm
External Retaining Rings - 88.9x2.77x84.23 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 96.16
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0889-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 88.9x2.77x84.23 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
88.90
mm

(Equiv. 3.5 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
84.23
mm
+/- 0.15
(Equiv. 3.316 in.)
Approx. Loose Circlip ID (A)
83.46
mm
+ 0.00 / - 2.00
External Retaining Rings - 88.9x2.77x84.23 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.13    Groove Width (W): 3.05 mm    Approx. Loose Clip OD: 96.16
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0889-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 88.9x2.77x84.84 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
88.90
mm

(Equiv. 3.5 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
84.84
mm
+/- 0.15
(Equiv. 3.34 in.)
Approx. Loose Circlip ID (A)
83.95
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.13
Groove Width (W)
3.05
mm
External Retaining Rings - 88.9x2.77x84.84 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 96.65
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0889-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 88.9x2.77x84.84 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
88.90
mm

(Equiv. 3.5 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
84.84
mm
+/- 0.15
(Equiv. 3.34 in.)
Approx. Loose Circlip ID (A)
83.95
mm
+ 0.00 / - 2.00
External Retaining Rings - 88.9x2.77x84.84 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.13    Groove Width (W): 3.05 mm    Approx. Loose Clip OD: 96.65
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0889-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 89.99x2.77x85.27 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
89.99
mm

(Equiv. 3.543 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
85.27
mm
+/- 0.15
(Equiv. 3.357 in.)
Approx. Loose Circlip ID (A)
84.51
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.13
Groove Width (W)
3.05
mm
External Retaining Rings - 89.99x2.77x85.27 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 97.21
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0900-LS-H-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 89.99x2.77x85.27 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
89.99
mm

(Equiv. 3.543 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
85.27
mm
+/- 0.15
(Equiv. 3.357 in.)
Approx. Loose Circlip ID (A)
84.51
mm
+ 0.00 / - 2.00
External Retaining Rings - 89.99x2.77x85.27 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.13    Groove Width (W): 3.05 mm    Approx. Loose Clip OD: 97.21
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0900-LS-H-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 89.99x2.77x85.88 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
89.99
mm

(Equiv. 3.543 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
85.88
mm
+/- 0.15
(Equiv. 3.381 in.)
Approx. Loose Circlip ID (A)
84.99
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.13
Groove Width (W)
3.05
mm
External Retaining Rings - 89.99x2.77x85.88 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 97.69
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0900-LS-H (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 89.99x2.77x85.88 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
89.99
mm

(Equiv. 3.543 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
85.88
mm
+/- 0.15
(Equiv. 3.381 in.)
Approx. Loose Circlip ID (A)
84.99
mm
+ 0.00 / - 2.00
External Retaining Rings - 89.99x2.77x85.88 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.13    Groove Width (W): 3.05 mm    Approx. Loose Clip OD: 97.69
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0900-LS-H (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 92.08x2.77x87.25 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
92.08
mm

(Equiv. 3.625 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
87.25
mm
+/- 0.15
(Equiv. 3.435 in.)
Approx. Loose Circlip ID (A)
86.49
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.13
Groove Width (W)
3.05
mm
External Retaining Rings - 92.08x2.77x87.25 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 99.19
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0921-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 92.08x2.77x87.25 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
92.08
mm

(Equiv. 3.625 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
87.25
mm
+/- 0.15
(Equiv. 3.435 in.)
Approx. Loose Circlip ID (A)
86.49
mm
+ 0.00 / - 2.00
External Retaining Rings - 92.08x2.77x87.25 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.13    Groove Width (W): 3.05 mm    Approx. Loose Clip OD: 99.19
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0921-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
