Retaining Rings - External - Snap Rings

Retaining Rings -> External -> Snap Rings
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative
External Retaining Rings - 63.5x7.93x59.54 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
7.93
mm
+/- 0.08
(Equiv. 0.312 in.)
Groove Dia. (Dg)
59.54
mm
+ 0.10 / - 0.00
(Equiv. 2.344 in.)
Approx. Loose Circlip ID (A)
58.95
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
7.93
mm
+/- 0.08
Groove Width (W)
8.31
mm

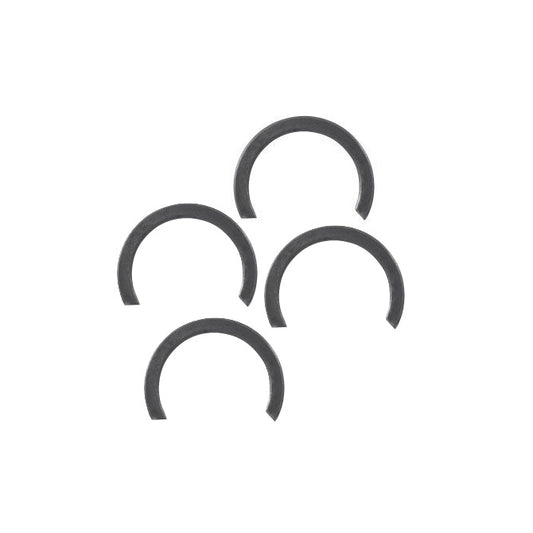

External Retaining Rings - 63.5x7.93x59.54 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 74.81
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0635-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
External Retaining Rings - 63.5x7.93x59.54 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
63.50
mm

(Equiv. 2.5 in.)
Clip Thickness (T)
7.93
mm
+/- 0.08
(Equiv. 0.312 in.)
Groove Dia. (Dg)
59.54
mm
+ 0.10 / - 0.00
(Equiv. 2.344 in.)
Approx. Loose Circlip ID (A)
58.95
mm
+ 0.00 / - 2.00
External Retaining Rings - 63.5x7.93x59.54 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 7.93 mm +/- 0.08    Groove Width (W): 8.31 mm    Approx. Loose Clip OD: 74.81
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0635-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 65x1.98x61.44 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
61.44
mm
+/- 0.15
(Equiv. 2.419 in.)
Approx. Loose Circlip ID (A)
60.94
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 65x1.98x61.44 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 72.02
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0650-LS-H-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 65x1.98x61.44 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
61.44
mm
+/- 0.15
(Equiv. 2.419 in.)
Approx. Loose Circlip ID (A)
60.94
mm
+ 0.00 / - 1.50
External Retaining Rings - 65x1.98x61.44 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 72.02
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0650-LS-H-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 65x1.98x62.05 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
62.05
mm
+/- 0.15
(Equiv. 2.443 in.)
Approx. Loose Circlip ID (A)
61.29
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 65x1.98x62.05 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 70.79
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0650-LS-H (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 65x1.98x62.05 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
65.00
mm

(Equiv. 2.559 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
62.05
mm
+/- 0.15
(Equiv. 2.443 in.)
Approx. Loose Circlip ID (A)
61.29
mm
+ 0.00 / - 1.17
External Retaining Rings - 65x1.98x62.05 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 70.79
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0650-LS-H (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 66.68x1.98x63.02 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
66.68
mm

(Equiv. 2.625 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
63.02
mm
+/- 0.15
(Equiv. 2.481 in.)
Approx. Loose Circlip ID (A)
62.51
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 66.68x1.98x63.02 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 73.59
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0667-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 66.68x1.98x63.02 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
66.68
mm

(Equiv. 2.625 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
63.02
mm
+/- 0.15
(Equiv. 2.481 in.)
Approx. Loose Circlip ID (A)
62.51
mm
+ 0.00 / - 1.50
External Retaining Rings - 66.68x1.98x63.02 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 73.59
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0667-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 66.68x1.98x63.63 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
66.68
mm

(Equiv. 2.625 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
63.63
mm
+/- 0.15
(Equiv. 2.505 in.)
Approx. Loose Circlip ID (A)
62.87
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 66.68x1.98x63.63 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 72.37
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0667-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 66.68x1.98x63.63 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
66.68
mm

(Equiv. 2.625 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
63.63
mm
+/- 0.15
(Equiv. 2.505 in.)
Approx. Loose Circlip ID (A)
62.87
mm
+ 0.00 / - 1.17
External Retaining Rings - 66.68x1.98x63.63 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 72.37
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0667-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 68x1.7x64.82 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
68.00
mm

(Equiv. 2.677 in.)
Clip Thickness (T)
1.70
mm
+ 0 / - 0.10
(Equiv. 0.067 in.)
Groove Dia. (Dg)
64.82
mm
+ 0 / - 0.50
(Equiv. 2.552 in.)
Approx. Loose Circlip ID (A)
64.20
mm
Radial Wall (S) Approx.
4.85
mm
+ 0 / - 0.10
Groove Width (W)
2.20
mm

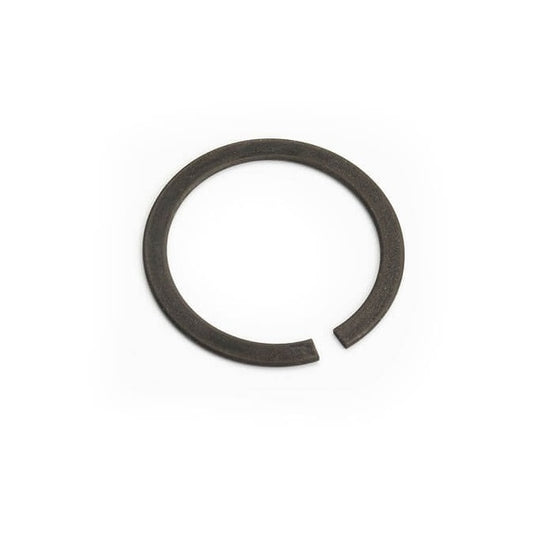

External Retaining Rings - 68x1.7x64.82 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 73.9
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0680-LR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 68x1.7x64.82 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
68.00
mm

(Equiv. 2.677 in.)
Clip Thickness (T)
1.70
mm
+ 0 / - 0.10
(Equiv. 0.067 in.)
Groove Dia. (Dg)
64.82
mm
+ 0 / - 0.50
(Equiv. 2.552 in.)
Approx. Loose Circlip ID (A)
64.20
mm
External Retaining Rings - 68x1.7x64.82 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.85 mm + 0 / - 0.10    Groove Width (W): 2.20 mm    Approx. Loose Clip OD: 73.9
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0680-LR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 68x2x66.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
68.00
mm

(Equiv. 2.677 in.)
Clip Thickness (T)
2.00
mm
+ 0 / - 0.10
(Equiv. 0.079 in.)
Groove Dia. (Dg)
66.20
mm
+ 0 / - 0.19
(Equiv. 2.606 in.)
Approx. Loose Circlip ID (A)
65.40
mm
Radial Wall (S) Approx.
2.80
mm
+ 0 / - 0.10
Groove Width (W)
2.20
mm
External Retaining Rings - 68x2x66.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 71
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0680-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 68x2x66.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
68.00
mm

(Equiv. 2.677 in.)
Clip Thickness (T)
2.00
mm
+ 0 / - 0.10
(Equiv. 0.079 in.)
Groove Dia. (Dg)
66.20
mm
+ 0 / - 0.19
(Equiv. 2.606 in.)
Approx. Loose Circlip ID (A)
65.40
mm
External Retaining Rings - 68x2x66.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.80 mm + 0 / - 0.10    Groove Width (W): 2.20 mm    Approx. Loose Clip OD: 71
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0680-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 68.25x1.98x65.15 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
68.25
mm

(Equiv. 2.687 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
65.15
mm
+/- 0.15
(Equiv. 2.565 in.)
Approx. Loose Circlip ID (A)
64.39
mm
+ 0.00 / - 1.17
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 68.25x1.98x65.15 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 73.89
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0683-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 68.25x1.98x65.15 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
68.25
mm

(Equiv. 2.687 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
65.15
mm
+/- 0.15
(Equiv. 2.565 in.)
Approx. Loose Circlip ID (A)
64.39
mm
+ 0.00 / - 1.17
External Retaining Rings - 68.25x1.98x65.15 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 73.89
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0683-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 68.28x1.98x64.54 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
68.28
mm

(Equiv. 2.688 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
64.54
mm
+/- 0.15
(Equiv. 2.541 in.)
Approx. Loose Circlip ID (A)
64.03
mm
+ 0.00 / - 1.50
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.18
mm
External Retaining Rings - 68.28x1.98x64.54 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 75.11
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0683-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 68.28x1.98x64.54 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
68.28
mm

(Equiv. 2.688 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
64.54
mm
+/- 0.15
(Equiv. 2.541 in.)
Approx. Loose Circlip ID (A)
64.03
mm
+ 0.00 / - 1.50
External Retaining Rings - 68.28x1.98x64.54 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.18 mm    Approx. Loose Clip OD: 75.11
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0683-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 69.85x1.58x66.7 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
66.70
mm
+/- 0.15
(Equiv. 2.626 in.)
Approx. Loose Circlip ID (A)
65.94
mm
- 0.00 / + 2.00
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
1.73
mm
External Retaining Rings - 69.85x1.58x66.7 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 75.44
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0699-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 69.85x1.58x66.7 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
66.70
mm
+/- 0.15
(Equiv. 2.626 in.)
Approx. Loose Circlip ID (A)
65.94
mm
- 0.00 / + 2.00
External Retaining Rings - 69.85x1.58x66.7 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 1.73 mm    Approx. Loose Clip OD: 75.44
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0699-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 69.85x2.36x66.09 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
66.09
mm
+/- 0.15
(Equiv. 2.602 in.)
Approx. Loose Circlip ID (A)
65.46
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 69.85x2.36x66.09 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 76.54
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0699-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 69.85x2.36x66.09 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
66.09
mm
+/- 0.15
(Equiv. 2.602 in.)
Approx. Loose Circlip ID (A)
65.46
mm
+ 0.00 / - 2.00
External Retaining Rings - 69.85x2.36x66.09 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 76.54
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0699-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 69.85x2.36x66.65 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
66.65
mm
+/- 0.15
(Equiv. 2.624 in.)
Approx. Loose Circlip ID (A)
65.89
mm
+ 0.00 / - 1.58
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 69.85x2.36x66.65 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 75.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0699-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 69.85x2.36x66.65 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
66.65
mm
+/- 0.15
(Equiv. 2.624 in.)
Approx. Loose Circlip ID (A)
65.89
mm
+ 0.00 / - 1.58
External Retaining Rings - 69.85x2.36x66.65 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 75.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0699-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 70x2x68.2 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
70.00
mm

(Equiv. 2.756 in.)
Clip Thickness (T)
2.00
mm
+ 0 / - 0.10
(Equiv. 0.079 in.)
Groove Dia. (Dg)
68.20
mm
+ 0 / - 0.19
(Equiv. 2.685 in.)
Approx. Loose Circlip ID (A)
67.40
mm
Radial Wall (S) Approx.
2.80
mm
+ 0 / - 0.10
Groove Width (W)
2.20
mm
External Retaining Rings - 70x2x68.2 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 73
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0700-LS (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026
$92.05 AUD
$92.05 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 70x2x68.2 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
70.00
mm

(Equiv. 2.756 in.)
Clip Thickness (T)
2.00
mm
+ 0 / - 0.10
(Equiv. 0.079 in.)
Groove Dia. (Dg)
68.20
mm
+ 0 / - 0.19
(Equiv. 2.685 in.)
Approx. Loose Circlip ID (A)
67.40
mm
External Retaining Rings - 70x2x68.2 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.80 mm + 0 / - 0.10    Groove Width (W): 2.20 mm    Approx. Loose Clip OD: 73
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0700-LS (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 01, 2026
$92.05 AUD
$92.05 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 73x2x71.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
73.00
mm

(Equiv. 2.874 in.)
Clip Thickness (T)
2.00
mm
+ 0 / - 0.10
(Equiv. 0.079 in.)
Groove Dia. (Dg)
71.20
mm
+ 0 / - 0.19
(Equiv. 2.803 in.)
Approx. Loose Circlip ID (A)
70.40
mm
Radial Wall (S) Approx.
2.80
mm
+ 0 / - 0.10
Groove Width (W)
2.20
mm
External Retaining Rings - 73x2x71.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 76
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0730-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 73x2x71.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
73.00
mm

(Equiv. 2.874 in.)
Clip Thickness (T)
2.00
mm
+ 0 / - 0.10
(Equiv. 0.079 in.)
Groove Dia. (Dg)
71.20
mm
+ 0 / - 0.19
(Equiv. 2.803 in.)
Approx. Loose Circlip ID (A)
70.40
mm
External Retaining Rings - 73x2x71.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.80 mm + 0 / - 0.10    Groove Width (W): 2.20 mm    Approx. Loose Clip OD: 76
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0730-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 73.03x2.36x69.11 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
73.03
mm

(Equiv. 2.875 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
69.11
mm
+/- 0.15
(Equiv. 2.721 in.)
Approx. Loose Circlip ID (A)
68.48
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 73.03x2.36x69.11 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 79.56
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0730-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 73.03x2.36x69.11 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
73.03
mm

(Equiv. 2.875 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
69.11
mm
+/- 0.15
(Equiv. 2.721 in.)
Approx. Loose Circlip ID (A)
68.48
mm
+ 0.00 / - 2.00
External Retaining Rings - 73.03x2.36x69.11 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 79.56
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0730-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 73.03x2.36x69.67 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
73.03
mm

(Equiv. 2.875 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
69.67
mm
+/- 0.15
(Equiv. 2.743 in.)
Approx. Loose Circlip ID (A)
68.91
mm
+ 0.00 / - 1.58
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 73.03x2.36x69.67 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 78.41
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0730-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 73.03x2.36x69.67 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
73.03
mm

(Equiv. 2.875 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
69.67
mm
+/- 0.15
(Equiv. 2.743 in.)
Approx. Loose Circlip ID (A)
68.91
mm
+ 0.00 / - 1.58
External Retaining Rings - 73.03x2.36x69.67 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 78.41
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0730-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 74.6x1.58x71.45 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
74.60
mm

(Equiv. 2.937 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
71.45
mm
+/- 0.15
(Equiv. 2.813 in.)
Approx. Loose Circlip ID (A)
70.69
mm
- 0.00 / + 2.00
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
1.73
mm
External Retaining Rings - 74.6x1.58x71.45 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 80.19
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0746-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 74.6x1.58x71.45 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
74.60
mm

(Equiv. 2.937 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
71.45
mm
+/- 0.15
(Equiv. 2.813 in.)
Approx. Loose Circlip ID (A)
70.69
mm
- 0.00 / + 2.00
External Retaining Rings - 74.6x1.58x71.45 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 1.73 mm    Approx. Loose Clip OD: 80.19
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0746-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 74.6x2.36x71.15 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
74.60
mm

(Equiv. 2.937 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
71.15
mm
+/- 0.15
(Equiv. 2.801 in.)
Approx. Loose Circlip ID (A)
70.38
mm
+ 0.00 / - 1.58
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 74.6x2.36x71.15 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 79.88
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0746-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 74.6x2.36x71.15 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
74.60
mm

(Equiv. 2.937 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
71.15
mm
+/- 0.15
(Equiv. 2.801 in.)
Approx. Loose Circlip ID (A)
70.38
mm
+ 0.00 / - 1.58
External Retaining Rings - 74.6x2.36x71.15 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 79.88
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0746-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 74.63x2.36x71.1 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
74.63
mm

(Equiv. 2.938 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
71.10
mm
+/- 0.15
(Equiv. 2.799 in.)
Approx. Loose Circlip ID (A)
69.95
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 74.63x2.36x71.1 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 81.03
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0746-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 74.63x2.36x71.1 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
74.63
mm

(Equiv. 2.938 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
71.10
mm
+/- 0.15
(Equiv. 2.799 in.)
Approx. Loose Circlip ID (A)
69.95
mm
+ 0.00 / - 2.00
External Retaining Rings - 74.63x2.36x71.1 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 81.03
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0746-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 76.2x1.58x73.05 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
73.05
mm
+/- 0.15
(Equiv. 2.876 in.)
Approx. Loose Circlip ID (A)
72.29
mm
- 0.00 / + 2.00
Radial Wall (S) Approx.
4.75
mm
+/- 0.13
Groove Width (W)
1.73
mm
External Retaining Rings - 76.2x1.58x73.05 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 81.79
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 76.2x1.58x73.05 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
73.05
mm
+/- 0.15
(Equiv. 2.876 in.)
Approx. Loose Circlip ID (A)
72.29
mm
- 0.00 / + 2.00
External Retaining Rings - 76.2x1.58x73.05 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 4.75 mm +/- 0.13    Groove Width (W): 1.73 mm    Approx. Loose Clip OD: 81.79
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 76.2x2.36x72.09 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
72.09
mm
+/- 0.15
(Equiv. 2.838 in.)
Approx. Loose Circlip ID (A)
71.45
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 76.2x2.36x72.09 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 82.53
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 76.2x2.36x72.09 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
72.09
mm
+/- 0.15
(Equiv. 2.838 in.)
Approx. Loose Circlip ID (A)
71.45
mm
+ 0.00 / - 2.00
External Retaining Rings - 76.2x2.36x72.09 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 82.53
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 76.2x2.36x72.64 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
72.64
mm
+/- 0.15
(Equiv. 2.86 in.)
Approx. Loose Circlip ID (A)
71.88
mm
+ 0.00 / - 1.58
Radial Wall (S) Approx.
5.54
mm
+/- 0.13
Groove Width (W)
2.62
mm
External Retaining Rings - 76.2x2.36x72.64 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 82.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 76.2x2.36x72.64 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
72.64
mm
+/- 0.15
(Equiv. 2.86 in.)
Approx. Loose Circlip ID (A)
71.88
mm
+ 0.00 / - 1.58
External Retaining Rings - 76.2x2.36x72.64 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 5.54 mm +/- 0.13    Groove Width (W): 2.62 mm    Approx. Loose Clip OD: 82.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 76.2x6.35x73.03 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
73.03
mm
+ 0.10 / - 0.00
(Equiv. 2.875 in.)
Approx. Loose Circlip ID (A)
72.26
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.08
Groove Width (W)
6.73
mm
External Retaining Rings - 76.2x6.35x73.03 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 84.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 76.2x6.35x73.03 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
73.03
mm
+ 0.10 / - 0.00
(Equiv. 2.875 in.)
Approx. Loose Circlip ID (A)
72.26
mm
+ 0.00 / - 2.00
External Retaining Rings - 76.2x6.35x73.03 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.08    Groove Width (W): 6.73 mm    Approx. Loose Clip OD: 84.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
External Retaining Rings - 76.2x6.35x73.03 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
73.03
mm
+ 0.10 / - 0.00
(Equiv. 2.875 in.)
Approx. Loose Circlip ID (A)
72.26
mm
+ 0.00 / - 2.00
Radial Wall (S) Approx.
6.35
mm
+/- 0.08
Groove Width (W)
6.73
mm
External Retaining Rings - 76.2x6.35x73.03 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 84.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 76.2x6.35x73.03 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
6.35
mm
+/- 0.08
(Equiv. 0.25 in.)
Groove Dia. (Dg)
73.03
mm
+ 0.10 / - 0.00
(Equiv. 2.875 in.)
Approx. Loose Circlip ID (A)
72.26
mm
+ 0.00 / - 2.00
External Retaining Rings - 76.2x6.35x73.03 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 6.35 mm +/- 0.08    Groove Width (W): 6.73 mm    Approx. Loose Clip OD: 84.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0762-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Sep 13, 2028
