Collection: Retaining Rings - External - Spiral Rings
Retaining Rings -> External -> Spiral RingsThere are 163 products in the sub-categories of Retaining Rings - External - Spiral Rings. Scroll down or follow the link to Retaining Rings - External - Spiral Rings in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

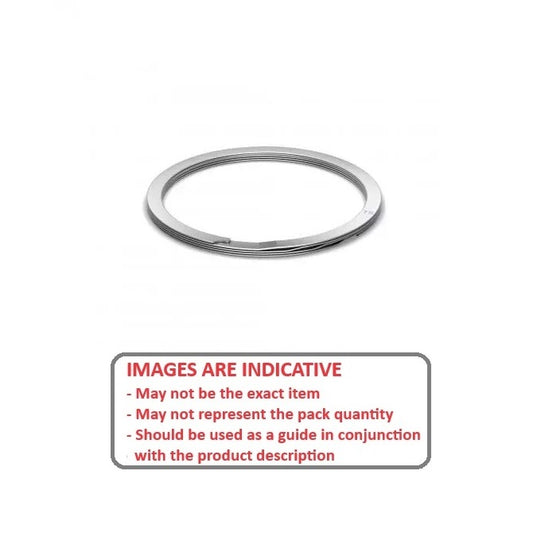

Retaining Rings - External - Spiral Rings - Heavy Duty
This category includes various types of external retaining rings.An expanded range may...

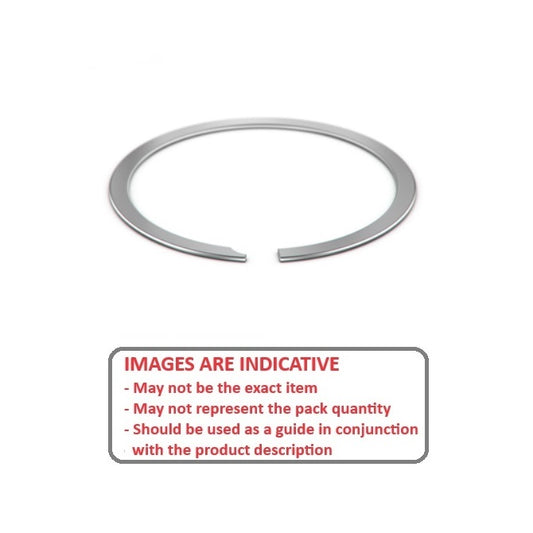

Retaining Rings - External - Spiral Rings - Light Duty
This category includes various types of external retaining rings.An expanded range may...

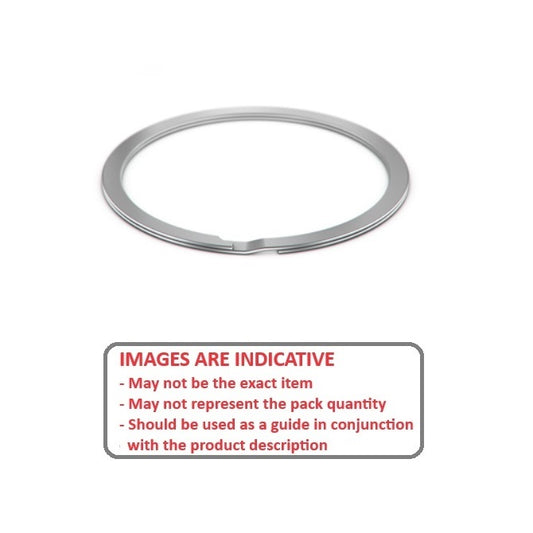

Retaining Rings - External - Spiral Rings - Medium Duty
This category includes various types of external retaining rings.An expanded range may...
Retaining Rings - External - Spiral Rings - Medium-Heavy
This category includes various types of external retaining rings.An expanded range may...
Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
This category includes various types of external retaining rings.An expanded range may...
Category Details
This category includes various types of external retaining rings.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Retaining Rings - External - Spiral Rings category on the Small Parts & Bearings online store.
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) Approx. | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|

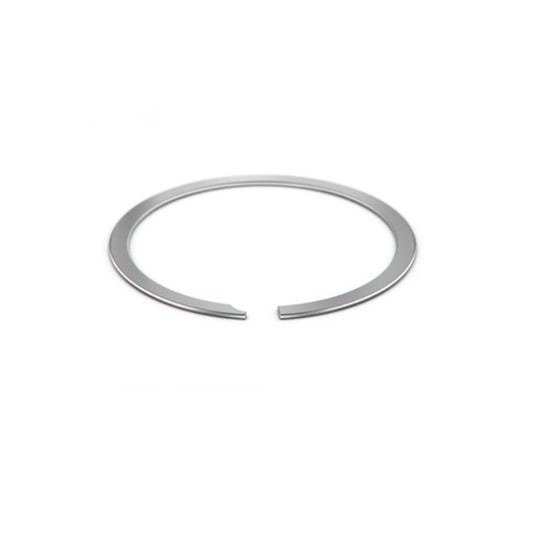

| External Retaining Rings - 9.525x0.38x8.92 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
9.525
mm (Equiv. 0.375 in.) |
Clip Thickness (T)
0.38
mm +/- 0.05 (Equiv. 0.015 in.) |
Groove Dia. (Dg)
8.92
mm (Equiv. 0.351 in.) |
Approx. Loose Circlip ID (A)
8.83
mm + 0.00 / - 0.25 |
Radial Wall (S) Approx.
0.635
mm +/- 0.10 |
Groove Width (W)
0.46
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 10.10 +/- - 0.03
Category: Retaining Rings - External - Spiral Rings - Light Duty |
||||||
|
Part Number: US-037 (PK-25)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$53.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
| External Retaining Rings - 9.525x0.38x8.92 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
9.525
mm (Equiv. 0.375 in.) |
Clip Thickness (T)
0.38
mm +/- 0.05 (Equiv. 0.015 in.) |
Groove Dia. (Dg)
8.92
mm (Equiv. 0.351 in.) |
Approx. Loose Circlip ID (A)
8.83
mm + 0.00 / - 0.25 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.635 mm +/- 0.10
Groove Width (W): 0.46 mm +/- 0.05
Approx. Loose Clip OD: 10.10 +/- - 0.03
Category: Retaining Rings - External - Spiral Rings - Light Duty |
||||||
|
Part Number: US-037 (PK-25)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$53.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

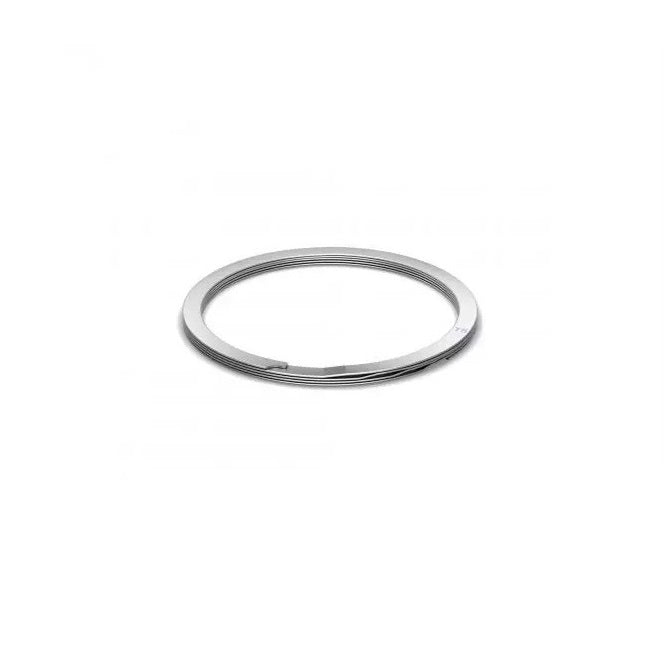

| External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
11.91
mm (Equiv. 0.469 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
11.25
mm (Equiv. 0.443 in.) |
Approx. Loose Circlip ID (A)
11.08
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.78
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 13.36 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-046 (Each)
6 Available Now | Further orders can be expected around Thu, Feb 05, 2026 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
11.91
mm (Equiv. 0.469 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
11.25
mm (Equiv. 0.443 in.) |
Approx. Loose Circlip ID (A)
11.08
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.78 mm +/- 0.05
Approx. Loose Clip OD: 13.36 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-046 (Each)
6 Available Now | Further orders can be expected around Thu, Feb 05, 2026 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
11.91
mm (Equiv. 0.469 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
11.25
mm (Equiv. 0.443 in.) |
Approx. Loose Circlip ID (A)
11.08
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.78
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 13.36 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-046-S02 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$61.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
11.91
mm (Equiv. 0.469 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
11.25
mm (Equiv. 0.443 in.) |
Approx. Loose Circlip ID (A)
11.08
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.78 mm +/- 0.05
Approx. Loose Clip OD: 13.36 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-046-S02 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$61.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
12.04
mm (Equiv. 0.474 in.) |
Approx. Loose Circlip ID (A)
11.94
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 14.22 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 7370 |
||||||
|
Part Number: RS-050-S02 (PK-8)
12 units (96 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026 Regular price
$9.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
12.04
mm (Equiv. 0.474 in.) |
Approx. Loose Circlip ID (A)
11.94
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.05
Approx. Loose Clip OD: 14.22 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 7370 |
||||||
|
Part Number: RS-050-S02 (PK-8)
12 units (96 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026 Regular price
$9.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 8 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
12.04
mm (Equiv. 0.474 in.) |
Approx. Loose Circlip ID (A)
11.94
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 14.22 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 7645 |
||||||
|
Part Number: RS-050 (PK-5)
24 units (120 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026 Regular price
$10.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
12.04
mm (Equiv. 0.474 in.) |
Approx. Loose Circlip ID (A)
11.94
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.05
Approx. Loose Clip OD: 14.22 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 7645 |
||||||
|
Part Number: RS-050 (PK-5)
24 units (120 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026 Regular price
$10.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
11.89
mm (Equiv. 0.468 in.) |
Approx. Loose Circlip ID (A)
11.81
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.27
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 14.35 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-050 (PK-2)
24 units (48 pcs) Available Now | Further orders can be expected around Thu, Feb 05, 2026 Regular price
$7.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
11.89
mm (Equiv. 0.468 in.) |
Approx. Loose Circlip ID (A)
11.81
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.27 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip OD: 14.35 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-050 (PK-2)
24 units (48 pcs) Available Now | Further orders can be expected around Thu, Feb 05, 2026 Regular price
$7.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
11.89
mm (Equiv. 0.468 in.) |
Approx. Loose Circlip ID (A)
11.81
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.27
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 14.35 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-050-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$5.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
11.89
mm (Equiv. 0.468 in.) |
Approx. Loose Circlip ID (A)
11.81
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.27 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip OD: 14.35 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-050-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$5.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 12.7x0.89x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
12.04
mm (Equiv. 0.474 in.) |
Approx. Loose Circlip ID (A)
11.94
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 14.22 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 4850 |
||||||
|
Part Number: RST-050 (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026 Regular price
$66.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 12.7x0.89x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
12.04
mm (Equiv. 0.474 in.) |
Approx. Loose Circlip ID (A)
11.94
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip OD: 14.22 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 4850 |
||||||
|
Part Number: RST-050 (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026 Regular price
$66.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
13.49
mm (Equiv. 0.531 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
12.83
mm (Equiv. 0.505 in.) |
Approx. Loose Circlip ID (A)
12.68
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 14.96 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 22474 |
||||||
|
Part Number: RS-053 (PK-19)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026 Regular price
$13.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 19 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
13.49
mm (Equiv. 0.531 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
12.83
mm (Equiv. 0.505 in.) |
Approx. Loose Circlip ID (A)
12.68
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.05
Approx. Loose Clip OD: 14.96 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 22474 |
||||||
|
Part Number: RS-053 (PK-19)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026 Regular price
$13.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 19 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
14.27
mm (Equiv. 0.562 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
13.46
mm (Equiv. 0.53 in.) |
Approx. Loose Circlip ID (A)
13.27
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.27
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 15.81 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-056 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$33.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
14.27
mm (Equiv. 0.562 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
13.46
mm (Equiv. 0.53 in.) |
Approx. Loose Circlip ID (A)
13.27
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.27 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip OD: 15.81 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-056 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$33.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
14.27
mm (Equiv. 0.562 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
13.46
mm (Equiv. 0.53 in.) |
Approx. Loose Circlip ID (A)
13.27
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.27
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 15.81 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-056-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$5.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
14.27
mm (Equiv. 0.562 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
13.46
mm (Equiv. 0.53 in.) |
Approx. Loose Circlip ID (A)
13.27
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.27 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Approx. Loose Clip OD: 15.81 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-056-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$5.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 14.27x0.89x13.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
14.27
mm (Equiv. 0.562 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
13.59
mm (Equiv. 0.535 in.) |
Approx. Loose Circlip ID (A)
13.41
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.08 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 15.69 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 1876 |
||||||
|
Part Number: RST-056 (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026 Regular price
$8.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 14.27x0.89x13.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
14.27
mm (Equiv. 0.562 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
13.59
mm (Equiv. 0.535 in.) |
Approx. Loose Circlip ID (A)
13.41
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.08
Approx. Loose Clip OD: 15.69 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 1876 |
||||||
|
Part Number: RST-056 (PK-100)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026 Regular price
$8.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.09
mm (Equiv. 0.594 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
14.20
mm (Equiv. 0.559 in.) |
Approx. Loose Circlip ID (A)
14.03
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.27
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.08 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 16.57 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-059-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.09
mm (Equiv. 0.594 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
14.20
mm (Equiv. 0.559 in.) |
Approx. Loose Circlip ID (A)
14.03
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.27 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.08
Approx. Loose Clip OD: 16.57 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-059-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.09
mm (Equiv. 0.594 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
14.20
mm (Equiv. 0.559 in.) |
Approx. Loose Circlip ID (A)
14.03
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.27
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.08 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 16.57 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-059 (Each)
40 Available Now | Further orders can be expected around Thu, Feb 05, 2026 Regular price
$6.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.09
mm (Equiv. 0.594 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
14.20
mm (Equiv. 0.559 in.) |
Approx. Loose Circlip ID (A)
14.03
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.27 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.08
Approx. Loose Clip OD: 16.57 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-059 (Each)
40 Available Now | Further orders can be expected around Thu, Feb 05, 2026 Regular price
$6.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
15.10
mm (Equiv. 0.594 in.) |
Approx. Loose Circlip ID (A)
14.93
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.06 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 17.73 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 4501 |
||||||
|
Part Number: RS-062-S02 (PK-5)
19 units (95 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026 Regular price
$20.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
15.10
mm (Equiv. 0.594 in.) |
Approx. Loose Circlip ID (A)
14.93
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.06
Approx. Loose Clip OD: 17.73 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 4501 |
||||||
|
Part Number: RS-062-S02 (PK-5)
19 units (95 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026 Regular price
$20.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
15.10
mm (Equiv. 0.594 in.) |
Approx. Loose Circlip ID (A)
14.93
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.06 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 17.73 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Deleted Item. Available while stocks last. |
||||||
|
Part Number: RS-062 (PK-2)
90 units (180 pcs) Available Now | Further orders can be expected around Wed, Apr 01, 2026 Regular price
$6.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
15.10
mm (Equiv. 0.594 in.) |
Approx. Loose Circlip ID (A)
14.93
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.06
Approx. Loose Clip OD: 17.73 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Deleted Item. Available while stocks last. |
||||||
|
Part Number: RS-062 (PK-2)
90 units (180 pcs) Available Now | Further orders can be expected around Wed, Apr 01, 2026 Regular price
$6.00 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
14.94
mm (Equiv. 0.588 in.) |
Approx. Loose Circlip ID (A)
14.77
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.08 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 17.57 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-062-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$5.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
14.94
mm (Equiv. 0.588 in.) |
Approx. Loose Circlip ID (A)
14.77
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.08
Approx. Loose Clip OD: 17.57 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-062-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$5.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
14.94
mm (Equiv. 0.588 in.) |
Approx. Loose Circlip ID (A)
14.77
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.08 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 17.57 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-062 (Each)
24 Available Now | Further orders can be expected around Thu, Feb 05, 2026 Regular price
$4.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
14.94
mm (Equiv. 0.588 in.) |
Approx. Loose Circlip ID (A)
14.77
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.08
Approx. Loose Clip OD: 17.57 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-062 (Each)
24 Available Now | Further orders can be expected around Thu, Feb 05, 2026 Regular price
$4.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 15.88x0.89x15.14 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
15.14
mm (Equiv. 0.596 in.) |
Approx. Loose Circlip ID (A)
14.93
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.08 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 17.73 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 16192 |
||||||
|
Part Number: RST-062 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026 Regular price
$22.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 15.88x0.89x15.14 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
15.14
mm (Equiv. 0.596 in.) |
Approx. Loose Circlip ID (A)
14.93
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.08
Approx. Loose Clip OD: 17.73 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty Additional stock available from USA subject to Prior Sale = 16192 |
||||||
|
Part Number: RST-062 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026 Regular price
$22.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
17.27
mm (Equiv. 0.68 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
16.67
mm (Equiv. 0.656 in.) |
Approx. Loose Circlip ID (A)
16.23
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 19.03 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 125 |
||||||
|
Part Number: RS-068 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026 Regular price
$34.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
17.27
mm (Equiv. 0.68 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
16.67
mm (Equiv. 0.656 in.) |
Approx. Loose Circlip ID (A)
16.23
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.07
Approx. Loose Clip OD: 19.03 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 125 |
||||||
|
Part Number: RS-068 (PK-5)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 25, 2026 Regular price
$34.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
17.48
mm (Equiv. 0.688 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
16.41
mm (Equiv. 0.646 in.) |
Approx. Loose Circlip ID (A)
16.26
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.08 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 19.56 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-068 (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$6.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
17.48
mm (Equiv. 0.688 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
16.41
mm (Equiv. 0.646 in.) |
Approx. Loose Circlip ID (A)
16.26
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.08
Approx. Loose Clip OD: 19.56 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-068 (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$6.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
17.48
mm (Equiv. 0.688 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
16.41
mm (Equiv. 0.646 in.) |
Approx. Loose Circlip ID (A)
16.26
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.08 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 19.56 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-068-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$7.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
17.48
mm (Equiv. 0.688 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
16.41
mm (Equiv. 0.646 in.) |
Approx. Loose Circlip ID (A)
16.26
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.08
Approx. Loose Clip OD: 19.56 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Heavy Duty |
||||||
|
Part Number: RSN-068-S02 (Each)
Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 05, 2026 Regular price
$7.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
18.27
mm (Equiv. 0.719 in.) |
Approx. Loose Circlip ID (A)
17.91
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 21.21 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 13888 |
||||||
|
Part Number: RS-075 (PK-10)
42 units (420 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026 Regular price
$7.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Shaft Diameter (Ds)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
18.27
mm (Equiv. 0.719 in.) |
Approx. Loose Circlip ID (A)
17.91
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.07
Approx. Loose Clip OD: 21.21 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 13888 |
||||||
|
Part Number: RS-075 (PK-10)
42 units (420 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026 Regular price
$7.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
18.27
mm (Equiv. 0.719 in.) |
Approx. Loose Circlip ID (A)
17.91
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.07 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 21.21 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 5770 |
||||||
|
Part Number: RS-075-S02 (PK-5)
97 units (485 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026 Regular price
$1.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Shaft Diameter (Ds)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
18.27
mm (Equiv. 0.719 in.) |
Approx. Loose Circlip ID (A)
17.91
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.07
Approx. Loose Clip OD: 21.21 +/- 0.04
Category: Retaining Rings - External - Spiral Rings - Medium Duty Additional stock available from USA subject to Prior Sale = 5770 |
||||||
|
Part Number: RS-075-S02 (PK-5)
97 units (485 pcs) Available Now | Further orders can be expected around Sun, Jan 25, 2026 Regular price
$1.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
