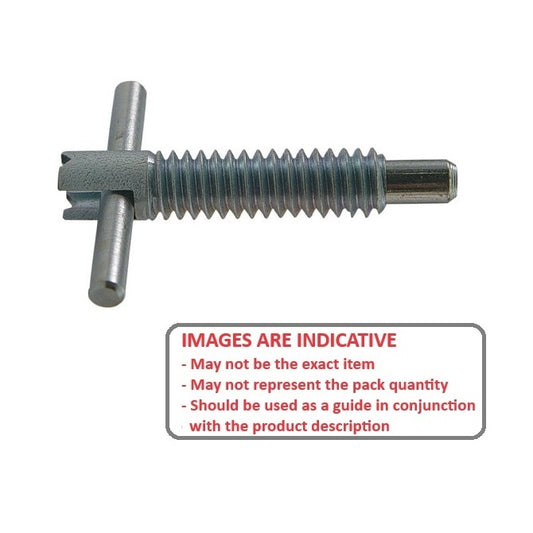

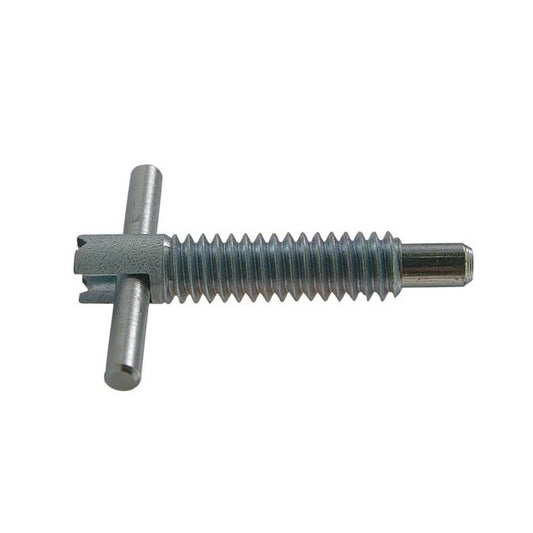

Plungers - Spring - Tee Handle - Locking - Stainless

4 Products in this selection
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Additional resources:
Threaded Ball Plungers
Push Fit Ball Plungers
Thread Size (A) Overall Length (B) Initial Pressure (F1) Final Pressure (F2) Tip Diameter (D) Tip Length (C) Indicative
1/4-20 UNC (6.35mm)
 29.0
mm 		4.5
N 		11.1
N 		3.9
mm 		6.4
mm 		1074420 | PLST-064C-290-HTSL-011 --- Plungers - 1/4-20 UNC (6.35mm) x 29 mm x 4.5 N
Material: Stainless    Handle Thickness (F): 3.3    Thread Length (G): 20.3 mm
Part Number: PLST-064C-290-HTSL-011 Plungers - 1/4-20 UNC (6.35mm) x 29 mm x 4.5 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$40.41 AUD
$40.41 AUD
Each
Thread Size (A) Overall Length (B) Initial Pressure (F1) Final Pressure (F2) Indicative
1/4-20 UNC (6.35mm)
 29.0
mm 		4.5
N 		11.1
N 		1074420 | PLST-064C-290-HTSL-011 --- Plungers - 1/4-20 UNC (6.35mm) x 29 mm x 4.5 N
Material: Stainless    Tip Diameter (D): 3.9 mm    Tip Length (C): 6.4 mm    Handle Thickness (F): 3.3    Thread Length (G): 20.3 mm
Part Number: PLST-064C-290-HTSL-011 Plungers - 1/4-20 UNC (6.35mm) x 29 mm x 4.5 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$40.41 AUD
$40.41 AUD
Each
3/8-16 UNC (9.525mm)
 42.7
mm 		8.9
N 		17.8
N 		5.9
mm 		9.5
mm 		1088543 | PLST-095C-427-HTSL-018 --- Plungers - 3/8-16 UNC (9.525mm) x 42.7 mm x 8.9 N
Material: Stainless    Handle Thickness (F): 3.3    Thread Length (G): 30.5 mm
Part Number: PLST-095C-427-HTSL-018 Plungers - 3/8-16 UNC (9.525mm) x 42.7 mm x 8.9 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$41.41 AUD
$41.41 AUD
Each
3/8-16 UNC (9.525mm)
 42.7
mm 		8.9
N 		17.8
N 		1088543 | PLST-095C-427-HTSL-018 --- Plungers - 3/8-16 UNC (9.525mm) x 42.7 mm x 8.9 N
Material: Stainless    Tip Diameter (D): 5.9 mm    Tip Length (C): 9.5 mm    Handle Thickness (F): 3.3    Thread Length (G): 30.5 mm
Part Number: PLST-095C-427-HTSL-018 Plungers - 3/8-16 UNC (9.525mm) x 42.7 mm x 8.9 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$41.41 AUD
$41.41 AUD
Each
1/2-13 UNC
 50.8
mm 		11.1
N 		22.2
N 		7.9
mm 		12.7
mm 		1104283 | PLST-127C-508-HTSL-022 --- Plungers - 1/2-13 UNC x 50.8 mm x 11.1 N
Material: Stainless    Handle Thickness (F): 4.1    Thread Length (G): 35.6 mm
Part Number: PLST-127C-508-HTSL-022 Plungers - 1/2-13 UNC x 50.8 mm x 11.1 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$53.59 AUD
$53.59 AUD
Each
1/2-13 UNC
 50.8
mm 		11.1
N 		22.2
N 		1104283 | PLST-127C-508-HTSL-022 --- Plungers - 1/2-13 UNC x 50.8 mm x 11.1 N
Material: Stainless    Tip Diameter (D): 7.9 mm    Tip Length (C): 12.7 mm    Handle Thickness (F): 4.1    Thread Length (G): 35.6 mm
Part Number: PLST-127C-508-HTSL-022 Plungers - 1/2-13 UNC x 50.8 mm x 11.1 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$53.59 AUD
$53.59 AUD
Each
5/8-11 UNC
 60.5
mm 		11.1
N 		22.2
N 		9.5
mm 		15.9
mm 		1112550 | PLST-159C-605-HTSL-022 --- Plungers - 5/8-11 UNC x 60.5 mm x 11.1 N
Material: Stainless    Handle Thickness (F): 4.8    Thread Length (G): 43.2 mm
Part Number: PLST-159C-605-HTSL-022 Plungers - 5/8-11 UNC x 60.5 mm x 11.1 N
Out of Stock
Backorder Now | Backorders for more can be expected around Sun, Dec 22, 2024
$74.59 AUD
$74.59 AUD
Each
5/8-11 UNC
 60.5
mm 		11.1
N 		22.2
N 		1112550 | PLST-159C-605-HTSL-022 --- Plungers - 5/8-11 UNC x 60.5 mm x 11.1 N
Material: Stainless    Tip Diameter (D): 9.5 mm    Tip Length (C): 15.9 mm    Handle Thickness (F): 4.8    Thread Length (G): 43.2 mm
Part Number: PLST-159C-605-HTSL-022 Plungers - 5/8-11 UNC x 60.5 mm x 11.1 N
Out of Stock
Backorder Now | | Backorders for more can be expected around Sun, Dec 22, 2024
$74.59 AUD
$74.59 AUD
Each
