Plungers - Spring - L Handle - Non Locking

8 Products in this selection
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Additional resources:
Threaded Ball Plungers
Push Fit Ball Plungers
Thread Size (A) Thread Length (B) Initial Pressure (F1) Final Pressure (F2) Tip Diameter (D) Tip Length (C) Indicative
1/4-20 UNC (6.35mm)
12.7
mm 		0.5
N 		2.2
N 		4.1
mm 		5.1
mm 		1074034 | PLST-064C-191-HLC-002 --- Spring Plungers - 1/4-20 UNC (6.35mm) x 12.7 mm x 0.5 N
Material: Steel    Body Length (B): 19.1 mm    Handle Diameter (G): 2.3 mm    Handle Length (F): 10.2 mm
Part Number: PLST-064C-191-HLC-002 Spring Plungers - 1/4-20 UNC (6.35mm) x 12.7 mm x 0.5 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$28.50 AUD
$28.50 AUD
Each
Thread Size (A) Thread Length (B) Initial Pressure (F1) Final Pressure (F2) Indicative
1/4-20 UNC (6.35mm)
12.7
mm 		0.5
N 		2.2
N 		1074034 | PLST-064C-191-HLC-002 --- Spring Plungers - 1/4-20 UNC (6.35mm) x 12.7 mm x 0.5 N
Material: Steel    Tip Diameter (D): 4.1 mm    Tip Length (C): 5.1 mm    Body Length (B): 19.1 mm    Handle Diameter (G): 2.3 mm    Handle Length (F): 10.2 mm
Part Number: PLST-064C-191-HLC-002 Spring Plungers - 1/4-20 UNC (6.35mm) x 12.7 mm x 0.5 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$28.50 AUD
$28.50 AUD
Each
View the product page first if you are unsure.
1/4-20 UNC (6.35mm)
17.0
mm 		2.2
N 		11.1
N 		4.1
mm 		9.7
mm 		1074551 | PLST-064C-318-HLC-011 --- Spring Plungers - 1/4-20 UNC (6.35mm) x 17 mm x 2.2 N
Material: Steel    Body Length (B): 31.8 mm    Handle Diameter (G): 2.3 mm    Handle Length (F): 12.7 mm
Part Number: PLST-064C-318-HLC-011 Spring Plungers - 1/4-20 UNC (6.35mm) x 17 mm x 2.2 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$26.41 AUD
$26.41 AUD
Each
1/4-20 UNC (6.35mm)
17.0
mm 		2.2
N 		11.1
N 		1074551 | PLST-064C-318-HLC-011 --- Spring Plungers - 1/4-20 UNC (6.35mm) x 17 mm x 2.2 N
Material: Steel    Tip Diameter (D): 4.1 mm    Tip Length (C): 9.7 mm    Body Length (B): 31.8 mm    Handle Diameter (G): 2.3 mm    Handle Length (F): 12.7 mm
Part Number: PLST-064C-318-HLC-011 Spring Plungers - 1/4-20 UNC (6.35mm) x 17 mm x 2.2 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$26.41 AUD
$26.41 AUD
Each
View the product page first if you are unsure.
3/8-16 UNC (9.53mm)
19.1
mm 		1.1
N 		5.6
N 		6.4
mm 		7.6
mm 		1088331 | PLST-095C-287-HLC-006 --- Spring Plungers - 3/8-16 UNC (9.53mm) x 19.1 mm x 1.1 N
Material: Steel    Body Length (B): 28.7 mm    Handle Diameter (G): 3.6 mm    Handle Length (F): 14.2 mm
Part Number: PLST-095C-287-HLC-006 Spring Plungers - 3/8-16 UNC (9.53mm) x 19.1 mm x 1.1 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$30.41 AUD
$30.41 AUD
Each
3/8-16 UNC (9.53mm)
19.1
mm 		1.1
N 		5.6
N 		1088331 | PLST-095C-287-HLC-006 --- Spring Plungers - 3/8-16 UNC (9.53mm) x 19.1 mm x 1.1 N
Material: Steel    Tip Diameter (D): 6.4 mm    Tip Length (C): 7.6 mm    Body Length (B): 28.7 mm    Handle Diameter (G): 3.6 mm    Handle Length (F): 14.2 mm
Part Number: PLST-095C-287-HLC-006 Spring Plungers - 3/8-16 UNC (9.53mm) x 19.1 mm x 1.1 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$30.41 AUD
$30.41 AUD
Each
View the product page first if you are unsure.
3/8-16 UNC (9.53mm)
30.0
mm 		3.3
N 		16.7
N 		6.4
mm 		14.2
mm 		1088693 | PLST-095C-508-HLC-017 --- Spring Plungers - 3/8-16 UNC (9.53mm) x 30 mm x 3.3 N
Material: Steel    Body Length (B): 50.8 mm    Handle Diameter (G): 3.6 mm    Handle Length (F): 19.1 mm
Part Number: PLST-095C-508-HLC-017 Spring Plungers - 3/8-16 UNC (9.53mm) x 30 mm x 3.3 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$30.41 AUD
$30.41 AUD
Each
3/8-16 UNC (9.53mm)
30.0
mm 		3.3
N 		16.7
N 		1088693 | PLST-095C-508-HLC-017 --- Spring Plungers - 3/8-16 UNC (9.53mm) x 30 mm x 3.3 N
Material: Steel    Tip Diameter (D): 6.4 mm    Tip Length (C): 14.2 mm    Body Length (B): 50.8 mm    Handle Diameter (G): 3.6 mm    Handle Length (F): 19.1 mm
Part Number: PLST-095C-508-HLC-017 Spring Plungers - 3/8-16 UNC (9.53mm) x 30 mm x 3.3 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$30.41 AUD
$30.41 AUD
Each
View the product page first if you are unsure.
1/2-13 UNC (12.7mm)
25.4
mm 		2.2
N 		8.9
N 		7.9
mm 		10.2
mm 		1104023 | PLST-127C-381-HLC-009 --- Spring Plungers - 1/2-13 UNC (12.7mm) x 25.4 mm x 2.2 N
Material: Steel    Body Length (B): 38.1 mm    Handle Diameter (G): 4.8 mm    Handle Length (F): 19.1 mm
Part Number: PLST-127C-381-HLC-009 Spring Plungers - 1/2-13 UNC (12.7mm) x 25.4 mm x 2.2 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$39.50 AUD
$39.50 AUD
Each
1/2-13 UNC (12.7mm)
25.4
mm 		2.2
N 		8.9
N 		1104023 | PLST-127C-381-HLC-009 --- Spring Plungers - 1/2-13 UNC (12.7mm) x 25.4 mm x 2.2 N
Material: Steel    Tip Diameter (D): 7.9 mm    Tip Length (C): 10.2 mm    Body Length (B): 38.1 mm    Handle Diameter (G): 4.8 mm    Handle Length (F): 19.1 mm
Part Number: PLST-127C-381-HLC-009 Spring Plungers - 1/2-13 UNC (12.7mm) x 25.4 mm x 2.2 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$39.50 AUD
$39.50 AUD
Each
View the product page first if you are unsure.
1/2-13 UNC (12.7mm)
28.4
mm 		4.5
N 		22.2
N 		7.9
mm 		19.1
mm 		1104389 | PLST-127C-536-HLC-022 --- Spring Plungers - 1/2-13 UNC (12.7mm) x 28.4 mm x 4.5 N
Material: Steel    Body Length (B): 53.6 mm    Handle Diameter (G): 4.8 mm    Handle Length (F): 25.4 mm
Part Number: PLST-127C-536-HLC-022 Spring Plungers - 1/2-13 UNC (12.7mm) x 28.4 mm x 4.5 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$41.95 AUD
$41.95 AUD
Each
1/2-13 UNC (12.7mm)
28.4
mm 		4.5
N 		22.2
N 		1104389 | PLST-127C-536-HLC-022 --- Spring Plungers - 1/2-13 UNC (12.7mm) x 28.4 mm x 4.5 N
Material: Steel    Tip Diameter (D): 7.9 mm    Tip Length (C): 19.1 mm    Body Length (B): 53.6 mm    Handle Diameter (G): 4.8 mm    Handle Length (F): 25.4 mm
Part Number: PLST-127C-536-HLC-022 Spring Plungers - 1/2-13 UNC (12.7mm) x 28.4 mm x 4.5 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$41.95 AUD
$41.95 AUD
Each
View the product page first if you are unsure.

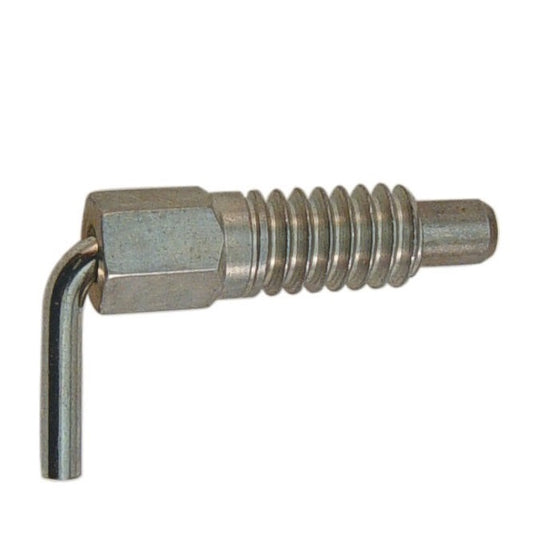

5/8-11 UNC (15.88mm)
31.8
mm 		3.3
N 		11.1
N 		9.7
mm 		12.7
mm 		1112508 | PLST-159C-478-HLC-011 --- Spring Plungers - 5/8-11 UNC (15.88mm) x 31.8 mm x 3.3 N
Material: Steel    Body Length (B): 47.8 mm    Handle Diameter (G): 4.8 mm    Handle Length (F): 22.4 mm
Part Number: PLST-159C-478-HLC-011 Spring Plungers - 5/8-11 UNC (15.88mm) x 31.8 mm x 3.3 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$44.05 AUD
$44.05 AUD
Each
5/8-11 UNC (15.88mm)
31.8
mm 		3.3
N 		11.1
N 		1112508 | PLST-159C-478-HLC-011 --- Spring Plungers - 5/8-11 UNC (15.88mm) x 31.8 mm x 3.3 N
Material: Steel    Tip Diameter (D): 9.7 mm    Tip Length (C): 12.7 mm    Body Length (B): 47.8 mm    Handle Diameter (G): 4.8 mm    Handle Length (F): 22.4 mm
Part Number: PLST-159C-478-HLC-011 Spring Plungers - 5/8-11 UNC (15.88mm) x 31.8 mm x 3.3 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$44.05 AUD
$44.05 AUD
Each
View the product page first if you are unsure.
5/8-11 UNC (15.88mm)
47.5
mm 		4.5
N 		22.2
N 		9.7
mm 		25.4
mm 		1112635 | PLST-159C-775-HLC-022 --- Spring Plungers - 5/8-11 UNC (15.88mm) x 47.5 mm x 4.5 N
Material: Steel    Body Length (B): 77.5 mm    Handle Diameter (G): 4.8 mm    Handle Length (F): 25.4 mm
Part Number: PLST-159C-775-HLC-022 Spring Plungers - 5/8-11 UNC (15.88mm) x 47.5 mm x 4.5 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$53.68 AUD
$53.68 AUD
Each
5/8-11 UNC (15.88mm)
47.5
mm 		4.5
N 		22.2
N 		1112635 | PLST-159C-775-HLC-022 --- Spring Plungers - 5/8-11 UNC (15.88mm) x 47.5 mm x 4.5 N
Material: Steel    Tip Diameter (D): 9.7 mm    Tip Length (C): 25.4 mm    Body Length (B): 77.5 mm    Handle Diameter (G): 4.8 mm    Handle Length (F): 25.4 mm
Part Number: PLST-159C-775-HLC-022 Spring Plungers - 5/8-11 UNC (15.88mm) x 47.5 mm x 4.5 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$53.68 AUD
$53.68 AUD
Each
View the product page first if you are unsure.
