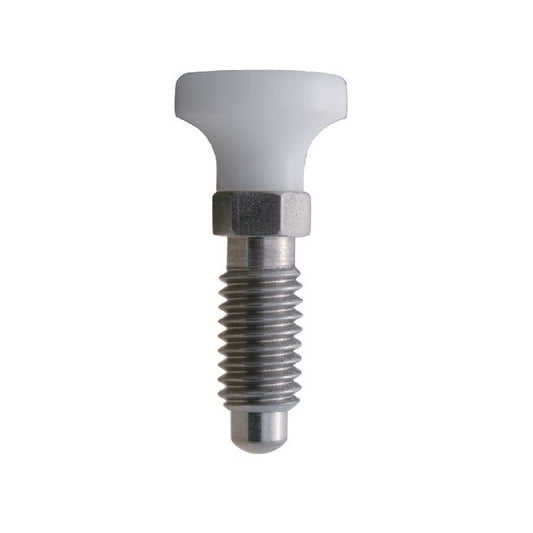

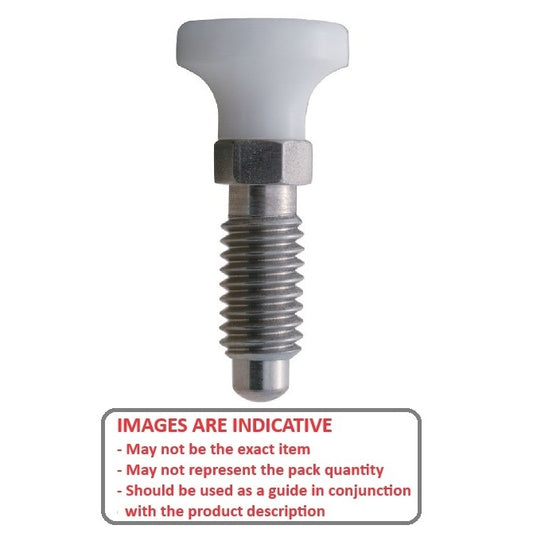

Plungers - Spring - Acetal Handle - Non Locking - Stainless

6 Products in this selection
  • White acetal plastic handle . 303 stainless steel body and plunger.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Additional resources:
Threaded Ball Plungers
Push Fit Ball Plungers
Thread Size (A) Thread Length (B) Initial Pressure (F1) Final Pressure (F2) Tip Diameter (D) Tip Length (C) Indicative
M6 (6x1mm)
13.0
mm 		0.5
N 		1.5
N 		3.0
mm 		3.0
mm 		1068238 | PLST-060-130-HS-002 --- Spring Plungers - M6 (6x1mm) x 13 mm x 0.5 N
Material: Stainless Steel with Acetal    Head Diameter (E): 12.0 mm    Hex: 6.0
Part Number: PLST-060-130-HS-002 Spring Plungers - M6 (6x1mm) x 13 mm x 0.5 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$53.23 AUD
$53.23 AUD
Each
Thread Size (A) Thread Length (B) Initial Pressure (F1) Final Pressure (F2) Indicative
M6 (6x1mm)
13.0
mm 		0.5
N 		1.5
N 		1068238 | PLST-060-130-HS-002 --- Spring Plungers - M6 (6x1mm) x 13 mm x 0.5 N
Material: Stainless Steel with Acetal    Tip Diameter (D): 3.0 mm    Tip Length (C): 3.0 mm    Head Diameter (E): 12.0 mm    Hex: 6.0
Part Number: PLST-060-130-HS-002 Spring Plungers - M6 (6x1mm) x 13 mm x 0.5 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$53.23 AUD
$53.23 AUD
Each
View the product page first if you are unsure.
1/4-20 UNC (6.35mm)
12.7
mm 		0.5
N 		1.6
N 		4.0
mm 		3.3
mm 		1073140 | PLST-064C-127-HS-002 --- Spring Plungers - 1/4-20 UNC (6.35mm) x 12.7 mm x 0.5 N
Material: Stainless Steel with Acetal    Head Diameter (E): 12.7 mm    Hex: 6.4
Part Number: PLST-064C-127-HS-002 Spring Plungers - 1/4-20 UNC (6.35mm) x 12.7 mm x 0.5 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$38.41 AUD
$38.41 AUD
Each
1/4-20 UNC (6.35mm)
12.7
mm 		0.5
N 		1.6
N 		1073140 | PLST-064C-127-HS-002 --- Spring Plungers - 1/4-20 UNC (6.35mm) x 12.7 mm x 0.5 N
Material: Stainless Steel with Acetal    Tip Diameter (D): 4.0 mm    Tip Length (C): 3.3 mm    Head Diameter (E): 12.7 mm    Hex: 6.4
Part Number: PLST-064C-127-HS-002 Spring Plungers - 1/4-20 UNC (6.35mm) x 12.7 mm x 0.5 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$38.41 AUD
$38.41 AUD
Each
View the product page first if you are unsure.
3/8-16 UNC (9.53mm)
19.1
mm 		1.1
N 		8.9
N 		6.3
mm 		4.8
mm 		1087901 | PLST-095C-191-HS-009 --- Spring Plungers - 3/8-16 UNC (9.53mm) x 19.1 mm x 1.1 N
Material: Stainless Steel with Acetal    Head Diameter (E): 19.1 mm    Hex: 9.5
Part Number: PLST-095C-191-HS-009 Spring Plungers - 3/8-16 UNC (9.53mm) x 19.1 mm x 1.1 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$41.05 AUD
$41.05 AUD
Each
3/8-16 UNC (9.53mm)
19.1
mm 		1.1
N 		8.9
N 		1087901 | PLST-095C-191-HS-009 --- Spring Plungers - 3/8-16 UNC (9.53mm) x 19.1 mm x 1.1 N
Material: Stainless Steel with Acetal    Tip Diameter (D): 6.3 mm    Tip Length (C): 4.8 mm    Head Diameter (E): 19.1 mm    Hex: 9.5
Part Number: PLST-095C-191-HS-009 Spring Plungers - 3/8-16 UNC (9.53mm) x 19.1 mm x 1.1 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$41.05 AUD
$41.05 AUD
Each
View the product page first if you are unsure.
M10 (10x1.5mm)
20.0
mm 		1.0
N 		9.0
N 		6.0
mm 		5.0
mm 		1092925 | PLST-100-200-HS-009 --- Spring Plungers - M10 (10x1.5mm) x 20 mm x 1 N
Material: Stainless Steel with Acetal    Head Diameter (E): 19.0 mm    Hex: 10.0
Part Number: PLST-100-200-HS-009 Spring Plungers - M10 (10x1.5mm) x 20 mm x 1 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$54.14 AUD
$54.14 AUD
Each
M10 (10x1.5mm)
20.0
mm 		1.0
N 		9.0
N 		1092925 | PLST-100-200-HS-009 --- Spring Plungers - M10 (10x1.5mm) x 20 mm x 1 N
Material: Stainless Steel with Acetal    Tip Diameter (D): 6.0 mm    Tip Length (C): 5.0 mm    Head Diameter (E): 19.0 mm    Hex: 10.0
Part Number: PLST-100-200-HS-009 Spring Plungers - M10 (10x1.5mm) x 20 mm x 1 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$54.14 AUD
$54.14 AUD
Each
View the product page first if you are unsure.
M12 (12x1.75mm)
25.0
mm 		2.5
N 		8.0
N 		8.0
mm 		6.0
mm 		1099685 | PLST-120-250-HS-008 --- Spring Plungers - M12 (12x1.75mm) x 25 mm x 2.5 N
Material: Stainless Steel with Acetal    Head Diameter (E): 25.0 mm    Hex: 12.0
Part Number: PLST-120-250-HS-008 Spring Plungers - M12 (12x1.75mm) x 25 mm x 2.5 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$52.68 AUD
$52.68 AUD
Each
M12 (12x1.75mm)
25.0
mm 		2.5
N 		8.0
N 		1099685 | PLST-120-250-HS-008 --- Spring Plungers - M12 (12x1.75mm) x 25 mm x 2.5 N
Material: Stainless Steel with Acetal    Tip Diameter (D): 8.0 mm    Tip Length (C): 6.0 mm    Head Diameter (E): 25.0 mm    Hex: 12.0
Part Number: PLST-120-250-HS-008 Spring Plungers - M12 (12x1.75mm) x 25 mm x 2.5 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$52.68 AUD
$52.68 AUD
Each
View the product page first if you are unsure.
1/2-13 UNC (12.7mm)
25.4
mm 		2.2
N 		7.8
N 		7.9
mm 		6.4
mm 		1103574 | PLST-127C-254-HS-008 --- Spring Plungers - 1/2-13 UNC (12.7mm) x 25.4 mm x 2.2 N
Material: Stainless Steel with Acetal    Head Diameter (E): 25.4 mm    Hex: 12.7
Part Number: PLST-127C-254-HS-008 Spring Plungers - 1/2-13 UNC (12.7mm) x 25.4 mm x 2.2 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$47.23 AUD
$47.23 AUD
Each
1/2-13 UNC (12.7mm)
25.4
mm 		2.2
N 		7.8
N 		1103574 | PLST-127C-254-HS-008 --- Spring Plungers - 1/2-13 UNC (12.7mm) x 25.4 mm x 2.2 N
Material: Stainless Steel with Acetal    Tip Diameter (D): 7.9 mm    Tip Length (C): 6.4 mm    Head Diameter (E): 25.4 mm    Hex: 12.7
Part Number: PLST-127C-254-HS-008 Spring Plungers - 1/2-13 UNC (12.7mm) x 25.4 mm x 2.2 N
Out of Stock | Backorder Now | Orders can be expected around Fri, Mar 21, 2025
$47.23 AUD
$47.23 AUD
Each
View the product page first if you are unsure.
