Plungers - Ball Threaded - Stainless Body - Stainless Ball

Plungers -> Ball Threaded -> Stainless Body -> Stainless Ball

There are 79 products in the sub-categories of Plungers - Ball Threaded - Stainless Body - Stainless Ball. Scroll down or follow the link to Plungers - Ball Threaded - Stainless Body - Stainless Ball in the products table to see all these items combined into a handy table with filters.

Category Details

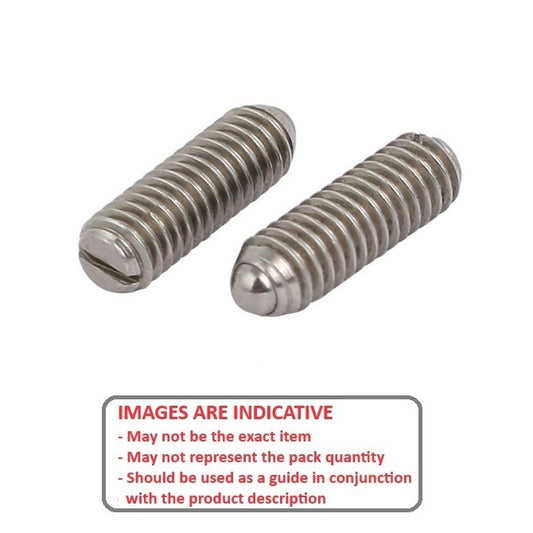

A selection of Stainless Ball Stainless Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • Spring-loaded mechanical component with a threaded body, used for locating, securing, or applying pressure.
  • When pressure is applied to the ball, it compresses the internal spring and can be temporarily pushed into the body, allowing parts to be moved, and then it springs back to its original position to hold them in place.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Plungers - Ball Threaded - Stainless Body - Stainless Ball category on the Small Parts & Bearings online store.
Thread Size (D) Body Length (L) Initial Pressure (F1) Final Pressure (F2) Ball Diameter (D1) Ball Height (H) Indicative
Ball Threaded Plungers - 4-48 UNF - 2.85mm - 4.8 mm - 2.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
4-48 UNF (2.85mm)
Body Length (L)
4.8
mm
Initial Pressure (F1)
2.5
N
Final Pressure (F2)
9.9
N
Ball Diameter (D1)
1.6
mm
Ball Height (H)
0.5
mm
Ball Threaded Plungers - 4-48 UNF - 2.85mm - 4.8 mm - 2.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-028F-048-S3-010 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$8.32 AUD
$9.98 AUD $8.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (D) Body Length (L) Initial Pressure (F1) Final Pressure (F2) Indicative
Ball Threaded Plungers - 4-48 UNF - 2.85mm - 4.8 mm - 2.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
4-48 UNF (2.85mm)
Body Length (L)
4.8
mm
Initial Pressure (F1)
2.5
N
Final Pressure (F2)
9.9
N
Ball Threaded Plungers - 4-48 UNF - 2.85mm - 4.8 mm - 2.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 1.6 mm    Ball Height (H): 0.5 mm    Drive: Slotted
Part Number: PLBT-028F-048-S3-010 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$8.32 AUD
$9.98 AUD $8.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 5-40 UNC - 3.18mm - 6.4 mm - 5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
5-40 UNC (3.18mm)
Body Length (L)
6.4
mm
Initial Pressure (F1)
5.0
N
Final Pressure (F2)
14.8
N
Ball Diameter (D1)
1.6
mm
Ball Height (H)
0.5
mm
Ball Threaded Plungers - 5-40 UNC - 3.18mm - 6.4 mm - 5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-032C-064-S3-015 (Each)
4 Available Now | Further orders can be expected around Thu, Aug 06, 2026
$11.50 AUD
$11.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Ball Threaded Plungers - 5-40 UNC - 3.18mm - 6.4 mm - 5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
5-40 UNC (3.18mm)
Body Length (L)
6.4
mm
Initial Pressure (F1)
5.0
N
Final Pressure (F2)
14.8
N
Ball Threaded Plungers - 5-40 UNC - 3.18mm - 6.4 mm - 5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 1.6 mm    Ball Height (H): 0.5 mm    Drive: Slotted
Part Number: PLBT-032C-064-S3-015 (Each)
4 Available Now | Further orders can be expected around Thu, Aug 06, 2026
$11.50 AUD
$11.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4 Available Now. Backorder if more than 4.
Ball Threaded Plungers - 6-40 UNF - 3.5mm - 7.9 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
6-40 UNF (3.5mm)
Body Length (L)
7.9
mm
Initial Pressure (F1)
9.9
N
Final Pressure (F2)
19.8
N
Ball Diameter (D1)
2.0
mm
Ball Height (H)
0.6
mm
Ball Threaded Plungers - 6-40 UNF - 3.5mm - 7.9 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-035F-079-S3-020 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$7.41 AUD
$8.89 AUD $7.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 6-40 UNF - 3.5mm - 7.9 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
6-40 UNF (3.5mm)
Body Length (L)
7.9
mm
Initial Pressure (F1)
9.9
N
Final Pressure (F2)
19.8
N
Ball Threaded Plungers - 6-40 UNF - 3.5mm - 7.9 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.0 mm    Ball Height (H): 0.6 mm    Drive: Slotted
Part Number: PLBT-035F-079-S3-020 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$7.41 AUD
$8.89 AUD $7.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M3 - 3x0.5mm - 6 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M3 (3x0.5mm)
Body Length (L)
6.00
mm
Initial Pressure (F1)
2.00
N
Final Pressure (F2)
5.00
N
Ball Diameter (D1)
1.50
mm
Ball Height (H)
0.50
mm
Ball Threaded Plungers - M3 - 3x0.5mm - 6 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 1.5mm Hex
Part Number: PLBT-030M-060-S3-005 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$25.95 AUD
$44.17 AUD $25.95 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M3 - 3x0.5mm - 6 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M3 (3x0.5mm)
Body Length (L)
6.00
mm
Initial Pressure (F1)
2.00
N
Final Pressure (F2)
5.00
N
Ball Threaded Plungers - M3 - 3x0.5mm - 6 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 1.50 mm    Ball Height (H): 0.50 mm    Drive: 1.5mm Hex
Part Number: PLBT-030M-060-S3-005 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$25.95 AUD
$44.17 AUD $25.95 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M3 - 3x0.5mm - 8 mm - 1.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M3 (3x0.5mm)
Body Length (L)
8.00
mm
Initial Pressure (F1)
1.50
N
Final Pressure (F2)
3.00
N
Ball Diameter (D1)
1.50
mm
Ball Height (H)
0.50
mm
Ball Threaded Plungers - M3 - 3x0.5mm - 8 mm - 1.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 1.5mm Hex
Part Number: PLBT-030M-080-S3-003 (PK-10)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$13.86 AUD
$23.37 AUD $13.86 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M3 - 3x0.5mm - 8 mm - 1.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M3 (3x0.5mm)
Body Length (L)
8.00
mm
Initial Pressure (F1)
1.50
N
Final Pressure (F2)
3.00
N
Ball Threaded Plungers - M3 - 3x0.5mm - 8 mm - 1.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 1.50 mm    Ball Height (H): 0.50 mm    Drive: 1.5mm Hex
Part Number: PLBT-030M-080-S3-003 (PK-10)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$13.86 AUD
$23.37 AUD $13.86 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M3 - 3x0.5mm - 8 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M3 (3x0.5mm)
Body Length (L)
8.00
mm
Initial Pressure (F1)
2.00
N
Final Pressure (F2)
5.00
N
Ball Diameter (D1)
1.50
mm
Ball Height (H)
0.50
mm
Ball Threaded Plungers - M3 - 3x0.5mm - 8 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 1.5mm Hex
Part Number: PLBT-030M-080-S3-005 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$25.95 AUD
$44.17 AUD $25.95 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M3 - 3x0.5mm - 8 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M3 (3x0.5mm)
Body Length (L)
8.00
mm
Initial Pressure (F1)
2.00
N
Final Pressure (F2)
5.00
N
Ball Threaded Plungers - M3 - 3x0.5mm - 8 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 1.50 mm    Ball Height (H): 0.50 mm    Drive: 1.5mm Hex
Part Number: PLBT-030M-080-S3-005 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$25.95 AUD
$44.17 AUD $25.95 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M3 - 3x0.5mm - 12 mm - 1.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M3 (3x0.5mm)
Body Length (L)
12.00
mm
Initial Pressure (F1)
1.50
N
Final Pressure (F2)
3.00
N
Ball Diameter (D1)
1.50
mm
Ball Height (H)
0.50
mm
Ball Threaded Plungers - M3 - 3x0.5mm - 12 mm - 1.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 1.5mm Hex
Part Number: PLBT-030M-120-S3-003 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$27.05 AUD
$45.92 AUD $27.05 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M3 - 3x0.5mm - 12 mm - 1.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M3 (3x0.5mm)
Body Length (L)
12.00
mm
Initial Pressure (F1)
1.50
N
Final Pressure (F2)
3.00
N
Ball Threaded Plungers - M3 - 3x0.5mm - 12 mm - 1.5 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 1.50 mm    Ball Height (H): 0.50 mm    Drive: 1.5mm Hex
Part Number: PLBT-030M-120-S3-003 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$27.05 AUD
$45.92 AUD $27.05 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M3 - 3x0.5mm - 12 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M3 (3x0.5mm)
Body Length (L)
12.00
mm
Initial Pressure (F1)
2.00
N
Final Pressure (F2)
5.00
N
Ball Diameter (D1)
1.50
mm
Ball Height (H)
0.50
mm
Ball Threaded Plungers - M3 - 3x0.5mm - 12 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 1.5mm Hex
Part Number: PLBT-030M-120-S3-005 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$27.05 AUD
$45.92 AUD $27.05 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M3 - 3x0.5mm - 12 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M3 (3x0.5mm)
Body Length (L)
12.00
mm
Initial Pressure (F1)
2.00
N
Final Pressure (F2)
5.00
N
Ball Threaded Plungers - M3 - 3x0.5mm - 12 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 1.50 mm    Ball Height (H): 0.50 mm    Drive: 1.5mm Hex
Part Number: PLBT-030M-120-S3-005 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$27.05 AUD
$45.92 AUD $27.05 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M4 - 4x0.7mm - 9 mm - 4 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
9.0
mm
Initial Pressure (F1)
4.0
N
Final Pressure (F2)
10.0
N
Ball Diameter (D1)
2.5
mm
Ball Height (H)
0.8
mm
Ball Threaded Plungers - M4 - 4x0.7mm - 9 mm - 4 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 0.6mm Slotted Drive
Part Number: PLBT-040M-090-S3-010 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$16.32 AUD
$16.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M4 - 4x0.7mm - 9 mm - 4 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
9.0
mm
Initial Pressure (F1)
4.0
N
Final Pressure (F2)
10.0
N
Ball Threaded Plungers - M4 - 4x0.7mm - 9 mm - 4 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.5 mm    Ball Height (H): 0.8 mm    Drive: 0.6mm Slotted Drive
Part Number: PLBT-040M-090-S3-010 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$16.32 AUD
$16.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 8.7 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
8-32 UNC (4.17mm)
Body Length (L)
8.7
mm
Initial Pressure (F1)
9.9
N
Final Pressure (F2)
24.7
N
Ball Diameter (D1)
2.4
mm
Ball Height (H)
0.6
mm
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 8.7 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-042C-087-S3-025 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$6.14 AUD
$7.36 AUD $6.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 8.7 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
8-32 UNC (4.17mm)
Body Length (L)
8.7
mm
Initial Pressure (F1)
9.9
N
Final Pressure (F2)
24.7
N
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 8.7 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.6 mm    Drive: Slotted
Part Number: PLBT-042C-087-S3-025 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$6.14 AUD
$7.36 AUD $6.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 11.3 mm - 2.2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
8-32 UNC (4.17mm)
Body Length (L)
11.3
mm
Initial Pressure (F1)
2.2
N
Final Pressure (F2)
5.6
N
Ball Diameter (D1)
2.4
mm
Ball Height (H)
2.4
mm
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 11.3 mm - 2.2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-042C-113-S3-006 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$25.77 AUD
$30.93 AUD $25.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 11.3 mm - 2.2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
8-32 UNC (4.17mm)
Body Length (L)
11.3
mm
Initial Pressure (F1)
2.2
N
Final Pressure (F2)
5.6
N
Ball Threaded Plungers - 8-32 UNC - 4.17mm - 11.3 mm - 2.2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.4 mm    Ball Height (H): 2.4 mm    Drive: Slotted
Part Number: PLBT-042C-113-S3-006 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$25.77 AUD
$30.93 AUD $25.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 8-36 UNF - 4.17mm - 8.7 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
8-36 UNF (4.17mm)
Body Length (L)
8.7
mm
Initial Pressure (F1)
9.9
N
Final Pressure (F2)
24.7
N
Ball Diameter (D1)
2.4
mm
Ball Height (H)
0.6
mm
Ball Threaded Plungers - 8-36 UNF - 4.17mm - 8.7 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-042F-087-S3-025 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$7.77 AUD
$9.33 AUD $7.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 8-36 UNF - 4.17mm - 8.7 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
8-36 UNF (4.17mm)
Body Length (L)
8.7
mm
Initial Pressure (F1)
9.9
N
Final Pressure (F2)
24.7
N
Ball Threaded Plungers - 8-36 UNF - 4.17mm - 8.7 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.6 mm    Drive: Slotted
Part Number: PLBT-042F-087-S3-025 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$7.77 AUD
$9.33 AUD $7.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M4 - 4x0.7mm - 6 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
6.00
mm
Initial Pressure (F1)
3.00
N
Final Pressure (F2)
20.00
N
Ball Diameter (D1)
2.38
mm
Ball Height (H)
0.80
mm
Ball Threaded Plungers - M4 - 4x0.7mm - 6 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 2.0mm Hex
Part Number: PLBT-040M-060-S3-020 (PK-5)
4 units (20 pcs) Available Now | Further orders can be expected around Thu, Aug 20, 2026
$10.14 AUD
$10.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4 available can be backordered.
Ball Threaded Plungers - M4 - 4x0.7mm - 6 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
6.00
mm
Initial Pressure (F1)
3.00
N
Final Pressure (F2)
20.00
N
Ball Threaded Plungers - M4 - 4x0.7mm - 6 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.38 mm    Ball Height (H): 0.80 mm    Drive: 2.0mm Hex
Part Number: PLBT-040M-060-S3-020 (PK-5)
4 units (20 pcs) Available Now | Further orders can be expected around Thu, Aug 20, 2026
$10.14 AUD
$10.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

4 units (20 pcs) Available Now. Backorder if more than 4.
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 1 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
10.00
mm
Initial Pressure (F1)
1.00
N
Final Pressure (F2)
3.00
N
Ball Diameter (D1)
2.38
mm
Ball Height (H)
0.80
mm
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 1 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 2.0mm Hex
Part Number: PLBT-040M-100-S3-003 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$25.95 AUD
$44.17 AUD $25.95 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 1 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
10.00
mm
Initial Pressure (F1)
1.00
N
Final Pressure (F2)
3.00
N
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 1 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.38 mm    Ball Height (H): 0.80 mm    Drive: 2.0mm Hex
Part Number: PLBT-040M-100-S3-003 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$25.95 AUD
$44.17 AUD $25.95 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
10.00
mm
Initial Pressure (F1)
2.00
N
Final Pressure (F2)
5.00
N
Ball Diameter (D1)
2.38
mm
Ball Height (H)
0.80
mm
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 2.0mm Hex
Part Number: PLBT-040M-100-S3-005 (PK-10)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$13.86 AUD
$23.37 AUD $13.86 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
10.00
mm
Initial Pressure (F1)
2.00
N
Final Pressure (F2)
5.00
N
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.38 mm    Ball Height (H): 0.80 mm    Drive: 2.0mm Hex
Part Number: PLBT-040M-100-S3-005 (PK-10)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$13.86 AUD
$23.37 AUD $13.86 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
10.00
mm
Initial Pressure (F1)
3.00
N
Final Pressure (F2)
20.00
N
Ball Diameter (D1)
2.38
mm
Ball Height (H)
0.80
mm
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 2.0mm Hex
Part Number: PLBT-040M-100-S3-020 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$25.95 AUD
$44.17 AUD $25.95 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
10.00
mm
Initial Pressure (F1)
3.00
N
Final Pressure (F2)
20.00
N
Ball Threaded Plungers - M4 - 4x0.7mm - 10 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.38 mm    Ball Height (H): 0.80 mm    Drive: 2.0mm Hex
Part Number: PLBT-040M-100-S3-020 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$25.95 AUD
$44.17 AUD $25.95 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 29.7 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
10-32 UNF (4.76mm)
Body Length (L)
13.0
mm
Initial Pressure (F1)
29.7
N
Final Pressure (F2)
59.4
N
Ball Diameter (D1)
2.4
mm
Ball Height (H)
0.6
mm
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 29.7 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-048F-130-S3-059 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$7.14 AUD
$8.56 AUD $7.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 29.7 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
10-32 UNF (4.76mm)
Body Length (L)
13.0
mm
Initial Pressure (F1)
29.7
N
Final Pressure (F2)
59.4
N
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 29.7 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.6 mm    Drive: Slotted
Part Number: PLBT-048F-130-S3-059 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$7.14 AUD
$8.56 AUD $7.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 39.6 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
10-32 UNF (4.76mm)
Body Length (L)
13.0
mm
Initial Pressure (F1)
39.6
N
Final Pressure (F2)
98.9
N
Ball Diameter (D1)
2.4
mm
Ball Height (H)
0.6
mm
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 39.6 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-048F-130-S3-099 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$9.05 AUD
$10.85 AUD $9.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 39.6 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
10-32 UNF (4.76mm)
Body Length (L)
13.0
mm
Initial Pressure (F1)
39.6
N
Final Pressure (F2)
98.9
N
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 39.6 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.6 mm    Drive: Slotted
Part Number: PLBT-048F-130-S3-099 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$9.05 AUD
$10.85 AUD $9.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 14.5 mm - 6.7 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
10-32 UNF (4.76mm)
Body Length (L)
14.5
mm
Initial Pressure (F1)
6.7
N
Final Pressure (F2)
13.4
N
Ball Diameter (D1)
2.4
mm
Ball Height (H)
2.4
mm
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 14.5 mm - 6.7 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-048F-145-S3-013 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$26.68 AUD
$32.02 AUD $26.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 14.5 mm - 6.7 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
10-32 UNF (4.76mm)
Body Length (L)
14.5
mm
Initial Pressure (F1)
6.7
N
Final Pressure (F2)
13.4
N
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 14.5 mm - 6.7 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.4 mm    Ball Height (H): 2.4 mm    Drive: Slotted
Part Number: PLBT-048F-145-S3-013 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$26.68 AUD
$32.02 AUD $26.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M4 - 4x0.7mm - 16 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
16.00
mm
Initial Pressure (F1)
2.00
N
Final Pressure (F2)
5.00
N
Ball Diameter (D1)
2.38
mm
Ball Height (H)
0.80
mm
Ball Threaded Plungers - M4 - 4x0.7mm - 16 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 2.0mm Hex
Part Number: PLBT-040M-160-S3-005 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$29.05 AUD
$49.41 AUD $29.05 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M4 - 4x0.7mm - 16 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
16.00
mm
Initial Pressure (F1)
2.00
N
Final Pressure (F2)
5.00
N
Ball Threaded Plungers - M4 - 4x0.7mm - 16 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.38 mm    Ball Height (H): 0.80 mm    Drive: 2.0mm Hex
Part Number: PLBT-040M-160-S3-005 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$29.05 AUD
$49.41 AUD $29.05 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M4 - 4x0.7mm - 16 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
16.00
mm
Initial Pressure (F1)
3.00
N
Final Pressure (F2)
20.00
N
Ball Diameter (D1)
2.38
mm
Ball Height (H)
0.80
mm
Ball Threaded Plungers - M4 - 4x0.7mm - 16 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: 2.0mm Hex
Part Number: PLBT-040M-160-S3-020 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$29.05 AUD
$49.41 AUD $29.05 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M4 - 4x0.7mm - 16 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M4 (4x0.7mm)
Body Length (L)
16.00
mm
Initial Pressure (F1)
3.00
N
Final Pressure (F2)
20.00
N
Ball Threaded Plungers - M4 - 4x0.7mm - 16 mm - 3 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.38 mm    Ball Height (H): 0.80 mm    Drive: 2.0mm Hex
Part Number: PLBT-040M-160-S3-020 (PK-20)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 20, 2026
$29.05 AUD
$49.41 AUD $29.05 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
10-32 UNF (4.76mm)
Body Length (L)
13.0
mm
Initial Pressure (F1)
9.9
N
Final Pressure (F2)
29.7
N
Ball Diameter (D1)
2.4
mm
Ball Height (H)
0.6
mm
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-048F-130-S3-030 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$26.23 AUD
$26.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
10-32 UNF (4.76mm)
Body Length (L)
13.0
mm
Initial Pressure (F1)
9.9
N
Final Pressure (F2)
29.7
N
Ball Threaded Plungers - 10-32 UNF - 4.76mm - 13 mm - 9.9 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 2.4 mm    Ball Height (H): 0.6 mm    Drive: Slotted
Part Number: PLBT-048F-130-S3-030 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$26.23 AUD
$26.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M6 - 6x1mm - 14 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M6 (6x1mm)
Body Length (L)
14.0
mm
Initial Pressure (F1)
2.0
N
Final Pressure (F2)
6.0
N
Ball Diameter (D1)
3.5
mm
Ball Height (H)
1.0
mm
Ball Threaded Plungers - M6 - 6x1mm - 14 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-060M-140-S3-006 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$19.41 AUD
$23.29 AUD $19.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M6 - 6x1mm - 14 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M6 (6x1mm)
Body Length (L)
14.0
mm
Initial Pressure (F1)
2.0
N
Final Pressure (F2)
6.0
N
Ball Threaded Plungers - M6 - 6x1mm - 14 mm - 2 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 3.5 mm    Ball Height (H): 1.0 mm    Drive: Slotted
Part Number: PLBT-060M-140-S3-006 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$19.41 AUD
$23.29 AUD $19.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M6 - 6x1mm - 14 mm - 28 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M6 (6x1mm)
Body Length (L)
14.0
mm
Initial Pressure (F1)
28.0
N
Final Pressure (F2)
40.0
N
Ball Diameter (D1)
3.5
mm
Ball Height (H)
1.0
mm
Ball Threaded Plungers - M6 - 6x1mm - 14 mm - 28 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Drive: Slotted
Part Number: PLBT-060M-140-S3-040 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$28.23 AUD
$28.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Threaded Plungers - M6 - 6x1mm - 14 mm - 28 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
Thread Size (D)
M6 (6x1mm)
Body Length (L)
14.0
mm
Initial Pressure (F1)
28.0
N
Final Pressure (F2)
40.0
N
Ball Threaded Plungers - M6 - 6x1mm - 14 mm - 28 N Stainless Body - Stainless Steel 303 Similar to A2, 304, 18-8
Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Ball Diameter (D1): 3.5 mm    Ball Height (H): 1.0 mm    Drive: Slotted
Part Number: PLBT-060M-140-S3-040 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$28.23 AUD
$28.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
