Collection: Gears - Spur - Standard - Module 0.5 - Stainless
- Gears (With Images)
- Spur
- Standard
- Module 0.5
- Plastic
- Stainless
1 Item Available
- PCD = No. of Teeth x 0.500mm. 20o Pressure Angle. 303 stainless steel and 416 stainless steel.
- FairlocTM Hub Type require controlled shaft tolerances between 0.0025 and 0.0203 mm Clearance.
Teeth | Pitch Circle Diameter (PD) | Bore (d) | Outside Diameter (OD) | Face Width (FW) | Pitch |

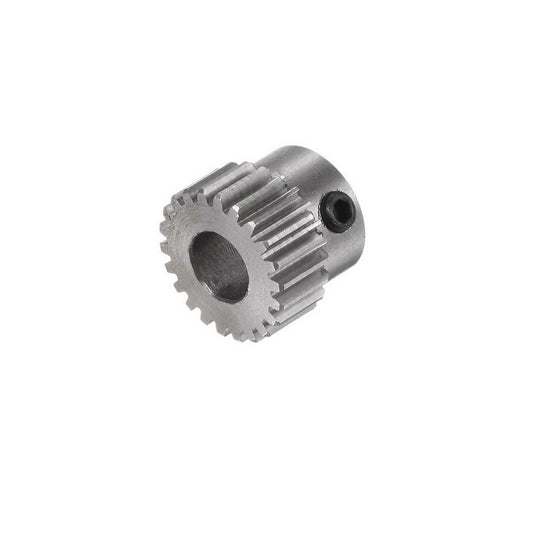

Indicative Image |
---|---|---|---|---|---|---|
20 Nr. |
10.00 mm |
5.000 mm |
11.000 mm |
5.000 mm |
Module 0.5 |
|
Material: 303 Stainless Steel Hub Diameter (D1): 10.00 mm Hub Projection (HL): 7.00 mm Locking Method: Set Screw Pressure Angle: 20 Deg. Quality: ISO 7 - ( AGMA 10 ) | ||||||
Part Number: G010B-20-M05-050-050-S3-G Gears - 20 Teeth x 10 mm x 5 mm
4 Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
/
per
Each
|
||||||
Teeth | Pitch Circle Diameter (PD) | Bore (d) | Outside Diameter (OD) |

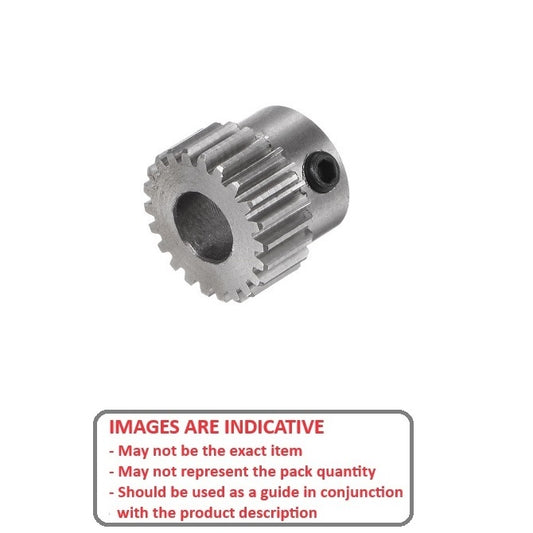

Indicative Image |
||
20 Nr. |
10.00 mm |
5.000 mm |
11.000 mm |
|||
Material: 303 Stainless Steel Face Width (FW): 5.000 mm Pitch: Module 0.5 Hub Diameter (D1): 10.00 mm Hub Projection (HL): 7.00 mm Locking Method: Set Screw Pressure Angle: 20 Deg. Quality: ISO 7 - ( AGMA 10 ) | ||||||
Part Number: G010B-20-M05-050-050-S3-G Gears - 20 Teeth x 10 mm x 5 mm
4 Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity | Regular price
$8.00 AUD
Regular price
Unit price
/
per
Each
|
||||||
|
